2006 SUBARU LEGACY maintenance

Maintenance and service 11 - 5 5
– CONTINUED –
2. Pull the bulb out of the socket. Install a
new bulb.
3. Reinstall the lens.
„
Cargo area light (Station wag- on)
1. Remove the cargo area light assembly
by prying the edge of the light with a flat-
head screwdriver.
2. Remove the lens from the cargo area
light assembly. 3. Pull the bulb out of the socket. Install a
new bulb.
4. Reinstall the lens. „
Trunk light (Sedan)
700082
700078
700079
700080

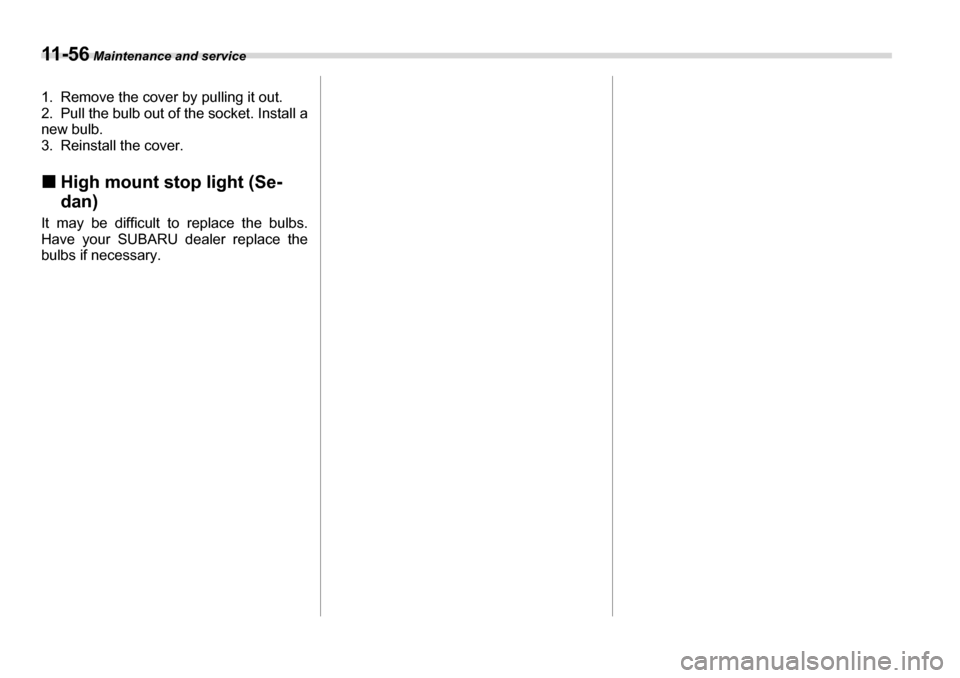

11 - 5 6 Maintenance and service
1. Remove the cover by pulling it out.
2. Pull the bulb out of the socket. Install a
new bulb.
3. Reinstall the cover. „High mount stop light (Se- dan)
It may be difficult to replace the bulbs.
Have your SUBARU dealer replace the
bulbs if necessary.

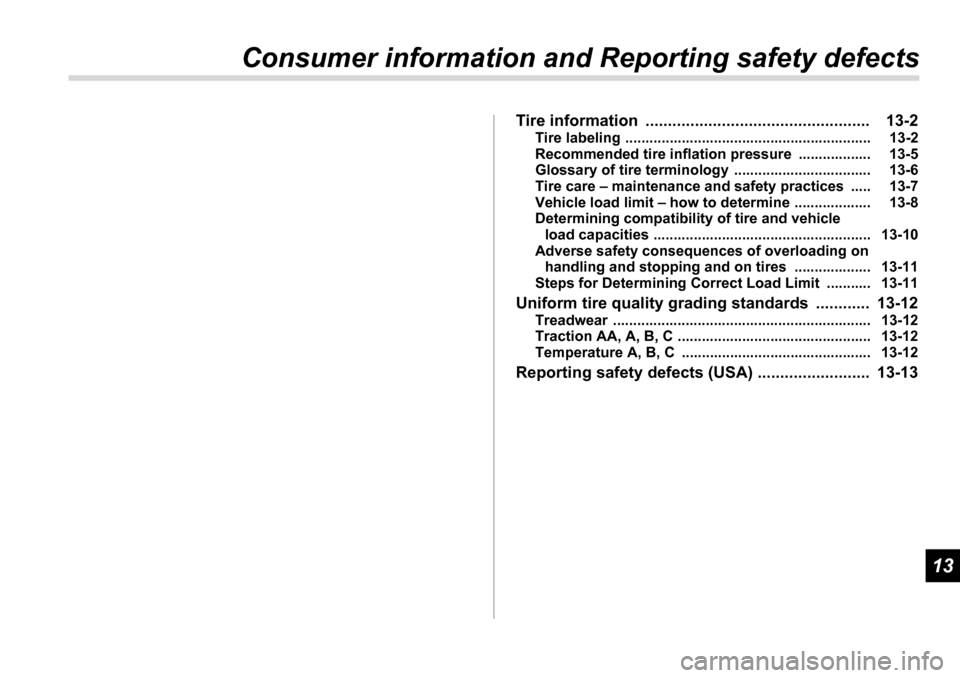

13
Consumer information and Reporting safety defects
Tire information .................................................. 13-2 Tire labeling ............................................................. 13-2
Recommended tire inflation pressure .................. 13-5
Glossary of tire terminology .................................. 13-6
Tire care – maintenance and safety practices ..... 13-7
Vehicle load limit – how to determine ................... 13-8
Determining compatibility of tire and vehicle load capacities ...................................................... 13-10
Adverse safety consequences of overloading on handling and stopping and on tires ................... 13-11
Steps for Determining Correct Load Limit ........... 13-11
Uniform tire quality grading standards ............ 13-12 Treadwear ................................................................ 13-12
Traction AA, A, B, C ................................................ 13-12
Temperature A, B, C ............................................... 13-12
Reporting safety defects (USA) ......................... 13-13

Consumer information and Reporting safety defects 13-7
– CONTINUED –
asymmetrical tire that has a particu-
lar side that must always face out-
ward when mounting on a vehicle.
y Accessory weight
The combined weight (in excess of
those standard items which may be
replaced) of floor mats, leather seats
and cross bars to the extent that these
items are available as factory-in-
stalled equipment (whether installedor not). y Curb weight
The weight of a motor vehicle with
standard equipment including the
maximum capacity of fuel, oil, and
coolant and air conditioning. y Maximum loaded vehicle weight
The sum of curb weight, accessory
weight, vehicle capacity weight and
production options weight. y Normal occupant weight
150 lbs (68 kg) times the number of
occupants (3 occupants). y Occupant distribution
Distribution of occupants in a vehicle,
2 in front, 1 in rear seat. y Production options weight
The combined weight of those in-
stalled regular production options weighing over 5.1 lbs (2.3 kg) in ex-
cess of those standards items which
they replace, not previously consid-
ered in curb weight or accessory
weight. y
Vehicle capacity weight
The total weight of cargo, luggage
and occupants that can be added to
the vehicle. y Vehicle maximum load on a tire
Load on an individual tire that is deter-
mined by distributing to each axle its
share of the maximum loaded vehicle
weight and dividing by two. y Vehicle normal load on a tire
Load on an individual tire that is deter-
mined by distributing to each axle its
share of the curb weight, accessory
weight, and normal occupant weight
and dividing by two. „ Tire care – maintenance and
safety practices
y Check on a daily basis that the tires
are free from serious damage, nails,
and stones. At the same time, check
the tires for abnormal wear.y Inspect the tire tread regularly and
replace the tires before their tread wear indicators become visible. When
a tire’s tread wear indicator becomes
visible, the tire is worn beyond the ac-
ceptable limit and must be replaced
immediately. With a tire in this condi-
tion, driving at even low speeds in wet
weather can cause the vehicle to hy-
droplane. Possible resulting loss of
vehicle control can lead to an acci-
dent. y
To maximize the life of each tire and
ensure that the tires wear uniformly, it
is best to rotate the tires every 7,500
miles (12,500 km). Rotating the tires
involves switching the front and rear
tires on the right-hand side of the ve-
hicle and similarly switching the front
and rear tires on the left-hand side of
the vehicle. (Each tire must be kept on
its original side of the vehicle.) Re-
place any damaged or unevenly worn
tire at the time of ro tation. After tire ro-
tation, adjust the tire pressures and
make sure the wheel nuts are correct-
ly tightened. A tightening torque spec-
ification and a tightening sequence
specification for the wheel nuts can be
found “Flat tires” section in chapter 9.

Index 14-5
Illuminated entry ................................................................. 2-9
Illumination brightness control ..... ..................................... 3-33
Immobilizer system ............................................................. 2-3
Indicator light ........................ ....................................... 3-23
Indicator light
Cruise control .............................................................. 3-25
Cruise control set ......................................................... 3-25
Front fog ...................................................................... 3-25
Headlight ..................................................................... 3-25
High beam ................................................................... 3-25
Selector lever position ................................................. 3-24
Turn signal ................................................................... 3-24
Information display ..... ...................................................... 3-26
Inside mirror ..................................................................... 3-40
Interior light ............................. ............................................ 6-2
Internal trunk lid release handle ....................................... 2-22
J
Jack .................................................................................. 9-18
Jack handle ...................................................................... 9-18
Jump starting .................................................................... 9-10 K Key Keyless entry system ... .................................................. 2-7
Number .......................................................................... 2-2
Reminder chime ............................................................ 3-5
Keys ................................................................................... 2-2 L
Leather seat materials ............... ....................................... 10-5 Light
Cargo area ..................................................................... 6-2
Control switch .............................................................. 3-31
Dome ............................................................................. 6-2
Map ................................................................................ 6-2
Light control switch ........................................................... 3-31
Limited slip differentia l (LSD) ............................................ 7-24
Loading your vehicle ......................................................... 8-12
Low fuel warning light ...................................... 3-9, 3-13, 3-21
LSD (Limited slip differential) ... ......................................... 7-24
Lumbar support ............. .................................................. .... 1-6
M
Main fuse ........................................................................ 11-47
Maintenance Precautions .................................................................. 11-3
Schedule ............ ........................................................ .. 11-3
Seatbelt ........................................................................ 1-21
Tools ............................................................................ 9-18
Manual
Climate control system .. .......................................... ....... 4-3
Mode ............... .......................................... .......... 7-14, 7-20
Seat ................................................................................ 1-3
Transmission .................................................................. 7-9
Transmission oil ......................................................... 11-20
Map light .................................................................. 6-2, 11-54
Maximum load limits .. ....................................................... 8-21
Meters and gauges .................................................... 3-5, 3-10
Mirrors ............................................................................... 3-40
Moonroof ........................................................................... 2-25

Index 14-7
Front turn signal light ................................................. 11-50
Headlight ................................................................... 11-49
High mount stop light ................................................. 11-56
License plate light ...................................................... 11-53
Map light .................................................................... 11-54
Parking light ............................................................... 11-50
Rear combination light ............................................... 11-51
Trunk light .................................................................. 11-55
Rocking the vehicle .......................................................... 8-12
Roof rail and crossbar ...................................................... 8-14 S
Safety Precautions when driving .......... ....................................... 4
Symbol .............................................................................. 2
Warnings .......................................................................... 2
Seat Fabric ........................................................................... 10-5
Heater ............................................................................ 1-7
Seatbelt ................................................................................. 4
Maintenance ............. ................................................... 1-21
Pretensioners .............................................................. 1-21
Safety tips .................................................................... 1-11
Warning light and chime .............................................. 1-13
Seatbelts .......................................................................... 1-11
Selector lever ............................ .............................. 7-12, 7-18
Position indicator .................... ..................................... 3-24
Shift lock release ..................................................... 7-16, 7-23
Snow tires ......................................................................... 8-10
Sounding a panic alarm .................................................... 2-10
Spark plugs .................................................................... 11-19
Specifications ................................................................... 12-2 Speedometer ............................................................. 3-6, 3-10SRS
Curtain airbag .......... ....................................... ............. 1-53
Frontal airbag ............................................................... 1-43
Side airbag ............... ....................................... ............. 1-53
SRS airbag (Supplemental Restraint System
airbag) .............. .......................................... ............... 4, 1-38
SRS airbag system warning light .. .................................... 3-16
Starting the engine ........ .................................................. .... 7-8
State emission testing (U.S. only) ....................................... 7-6
Steering wheel
Power ........................................................................... 7-25
Tilt ................................................................................ 3-43
Stopping the engine ............................................................ 7-9
Storage compartment ......................................................... 6-4
Sun shades ....................................................................... 2-27
Sun visors ........................................................................... 6-3
Supplemental Restraint System ai rbag (SRS) .................. 1-38
Synthetic leather upholstery ....... ...................................... 10-5
T
Tachometer ................................................................ 3-8, 3-12
Temperature gauge ........ ........................................... 3-9, 3-13
Temperature warning light (AT OIL TEMP) ...................... 3-18
Temporary spare tire .......................................................... 9-2
Tie-down hooks ................................................................ 9-13
Tilt steering wheel ............................................................. 3-43
Tire Chains .......................................................................... 8-11
Inspection ................................................................... 11-34
Pressures and wear ................................................... 11-35
Replacement .............................................................. 11-38

14-8 Index
Rotation ..................................................................... 11-37
Tires ................................................................................. 12-5
Types ......................................................................... 11-33
Tires and wheels ............................................................ 11-33
Top tether anchorages ..................................................... 1-36
Towing .............................................................................. 9-13 All wheels on the ground ............................................. 9-16
Flat-bed truck ............................................................... 9-16
Tie-down hooks ........................................................... 9-13
Weight ......................................................................... 8-21
Trailer
Hitch ............................................................................ 8-18
Hitches ........................................................................ 8-24
Towing ......................................................................... 8-20
Towing tips .................................................................. 8-26
Trip meter .................................................................. 3-7, 3-11
Trunk lid ........................................................................... 2-21 Release handle ........................................................... 2-22
Trunk light ...................................................................... 11-55
Turn signal Indicator lights ............................................................. 3-24
Lever ........................................................................... 3-32
U
Under-floor storage compartment .................................... 6-16 V
Valet mode ....................................................................... 2-16
Vanity mirror ....................................................................... 6-4
Vehicle Capacity weight ........................................................... 8-13 Identification ............................................................... 12-10
Vehicle Dynamics Control
OFF indicator light ....................................................... 3-22
OFF switch ................................................................... 7-32
Operation indicator light .......... ..................................... 3-22
System ......................................................................... 7-29
Warning light ................................................................ 3-22
Ventilator ............................................................................ 4-2 W
Warning and indicator lights ............................................. 3-14
Warning lights ABS ............. ....................................... .......................... 3-20
All-Wheel Drive ............................................................ 3-22
Anti-lock Brake System ................................................ 3-20
AT OIL TEMPerature ................................................... 3-18
Brake system ............ ................................................... 3-20
Charge ......................................................................... 3-18
CHECK ENGINE ......................................................... 3-17
Door open ................. ................................................... 3-22
Low fuel ....................................................... 3-9, 3-13, 3-21
Oil pressure ................................................................. 3-18
Seatbelt ........................................................................ 3-14
SRS airbag system ...... .......................................... ...... 3-16
Vehicle Dynamics Control ................................... 3-22, 7-31
Warranties and maintenance ............................................ 8-20
Washing ............................................................................ 10-2
Waxing and polishing .... ................................................... 10-3
Wear indicators ......................... ...................................... 11-37
Wheel
Alignment ..................................................................... 12-5
Balance ...................................................................... 11-37
