Vehicle symbols
There are some of the symbols you may
see on your vehicle.
Mark Name CAUTION Passengers’ windows lock
Fuel
Front fog lights
Parking lights
Hazard warning flasher
Cigarette lighter
Seat heater
Child restraint lower anchor-
ages
Child restraint top tether an-
chorages
Horn
Windshield wiper deicer
Wiper intermittent
Windshield wiper and wash- er
Rear window wiper and
washer Lights
Parking lights, tail lights, li-
cense plate lights and instru-
ment panel illumination
Head lights
Turn signal
Illumination brightness
Mark NameEngine hood
Trunk lid (Sedan)
Fan speed
Instrument panel outlets
Instrument panel outlets and foot outlets
Foot outlets
Windshield defroster and foot outlets
Windshield defroster
Rear window defogger/Out-
side mirror defogger
Air recirculation
Outside air Engine oil
Mark Name

5
– CONTINUED –
„
Child safety
yNever hold a child on your lap or
in your arms while the vehicle is
moving. The passenger cannot
protect the child from injury in a
collision, because the child will be
caught between the passenger
and objects inside the vehicle.
yWhile riding in the vehicle, infants
and small children should always
be placed in the REAR seat in an
infant or child restraint system
which is appropriate for the
child’s age, height and weight. If a
child is too big for a child restraint
system, the child should sit in the
REAR seat and be restrained us-
ing the seatbelts. According to ac-
cident statistics, children are saf-
er when properly restrained in the
rear seating positions than in the
front seating positions. Never al-
low a child to stand up or kneel on
the seat.
y Put children aged 12 and under in
the REAR seat properly restrained
at all times in a child restraint de-
vice or in a seatbelt. The SRS air-
bag deploys with considerable
speed and force and can injure or
even kill children, especially if
they are 12 years of age and under
and are not restrained or improp-
erly restrained. Because children
are lighter and weaker than
adults, their risk of being injured
from deployment is greater.
yNEVER INSTALL A REARWARD
FACING CHILD SAFETY SEAT IN
THE FRONT SEAT. DOING SORISKS SERIOUS INJURY OR
DEATH TO THE CHILD BY PLAC-
ING THE CHILD’S HEAD TOO
CLOSE TO THE SRS AIRBAG.
yAlways use the child safety locks
whenever a child rides in the rear
seat. Serious injury could result if
a child accidentally opened the
door and fell out. Refer to the
“Door locks” section in chapter 2.
yAlways lock the passenger’s win-
dows using the lock switch when
children are riding in the vehicle.
Failure to follow this procedure
could result in injury to a child op-
erating the power window. Refer
to the “Power windows” section
in chapter 2.
y Never leave unattended children
in the vehicle. They could acci-
dentally injure themselves or oth-
ers through inadvertent operation
of the vehicle. Also, on hot or sun-
ny days, temperature in a closed
vehicle could quickly become
high enough to cause severe or
possibly fatal injuries to them.
y Help prevent young children from
locking themselves in the trunk.
When leaving the vehicle, either
close all windows and lock all
doors or cancel the inside trunk
lid release. Also make certain that
the trunk is closed. On hot or sun-
ny days, the temperature in a
trunk could quickly become high
enough to cause death or serious
heat-related injuries including
brain damage to anyone locked
inside, particularly for small chil-
dren.

11
– CONTINUED –
68
5 4
123
7
5
98 4
12
3
000140
1) Rear window defogger button (page
3-38)
2) Fuel filler lid and cap (page 7-4)
3) Child safety locks (page 2-18)
4) Tie-down hooks (page 9-13)
5) Towing hook (page 9-13)
6) Trunk lid (page 2-21)
7) Rear gate (page 2-24)
8) Bulb replacement (page 11-51)
9) Rear wiper blade assembly and rub- ber replacement (page 3-37)

1
Seat, seatbelt and SRS airbags
Front seats .......................................................... 1-2 Manual seat ............................................................. 1-3
Power seat (if equipped) ...... .................................. 1-4
Reclining the seatback ........................................... 1-4
Head restraint adjustment ..................................... 1-5
Active head restraint .......... .................................... 1-6
Lumbar support (if equipped) ................................ 1-6
Seat heater (if equipped) ................................... 1-7
Rear seats ........................................................... 1-7 Folding down the rear seat – Station wagon ....... 1-8
Head restraint adjustment ..................................... 1-8
Armrest (if equipped) ......................................... 1-10 Loading long objects (Sedan) ............................... 1-10
Seatbelts ............................................................. 1-11 Seatbelt safety tips ................................................. 1-11
Emergency Locking Retractor (ELR) .................... 1-12
Automatic/Emergency Locking Retractor (A/ELR) .................................................................. 1-13
Seatbelt warning light and chime .......................... 1-13
Fastening the seatbelt ............................................ 1-15
Seatbelt maintenance ............................................. 1-21
Front seatbelt pretensioners ............................. 1-21 System monitors .................................................... 1-22
System servicing .................................................... 1-23
Precautions against vehicle modification ............ 1-24
Child restraint systems ..................................... 1-25 Where to place a child restraint system ............... 1-26
Choosing a child restraint system ........................ 1-27 Installing child restraint systems with A/ELR
seatbelt .................................................................. 1-28
Installing a booster seat ......................................... 1-31
Installation of child restraint systems by use of
lower and tether anchorages (LATCH) ............... 1-32
Top tether anchorages ........................................... 1-36
*SRS airbag (Supplemental Restraint System airbag) .............................................................. 1-38Vehicle with SRS airbags and lap/shoulder restraints for driver, front passenger, and
window-side rear passengers ............................. 1-38
Subaru advanced frontal airbag system .............. 1-43
SRS side airbag and SRS curtain airbag .............. 1-53
SRS airbag system monitors ................................. 1-59
SRS airbag system servicing ................................ 1-60
Precautions against vehicle modification ............ 1-61

Seat, seatbelt and SRS airbags 1-3
– CONTINUED –
„
Manual seat
T Fore and aft adjustment Pull the lever upward and slide the seat to
the desired position. Then release the le-
ver and move the seat back and forth to
make sure that it is securely locked into
place. T
Reclining the seatback
Pull the reclining lever up and adjust the
seatback to the desired position. Then re-
lease the lever and make sure the seat is
securely locked into place.
NEVER INSTALL A REARWARD
FACING CHILD SEAT IN THE FRONT
SEAT. DOING SO RISKS SERIOUSINJURY OR DEATH TO THE CHILD
BY PLACING THE CHILD’S HEAD
TOO CLOSE TO THE SRS AIRBAG.
According to accident statistics,
children are safer when properly re-
strained in the rear seating posi-
tions than in the front seating posi-
tions. For instructions and precau-
tions concerning child restraint sys-
tems, see the “Child restraint sys-
tems” section in this chapter.
100244
100085
To prevent the passenger from slid-
ing under the seatbelt in the event of
a collision, always put the seatback
in the upright posi tion while the ve-
hicle is in motion. Also, do not place
objects such as cushions between
the passenger and the seatback. If
you do so, the risk of sliding under
the lap belt and of the lap belt sliding
up over the abdomen will increase,
and both can result in serious inter-
nal injury or death.
100245

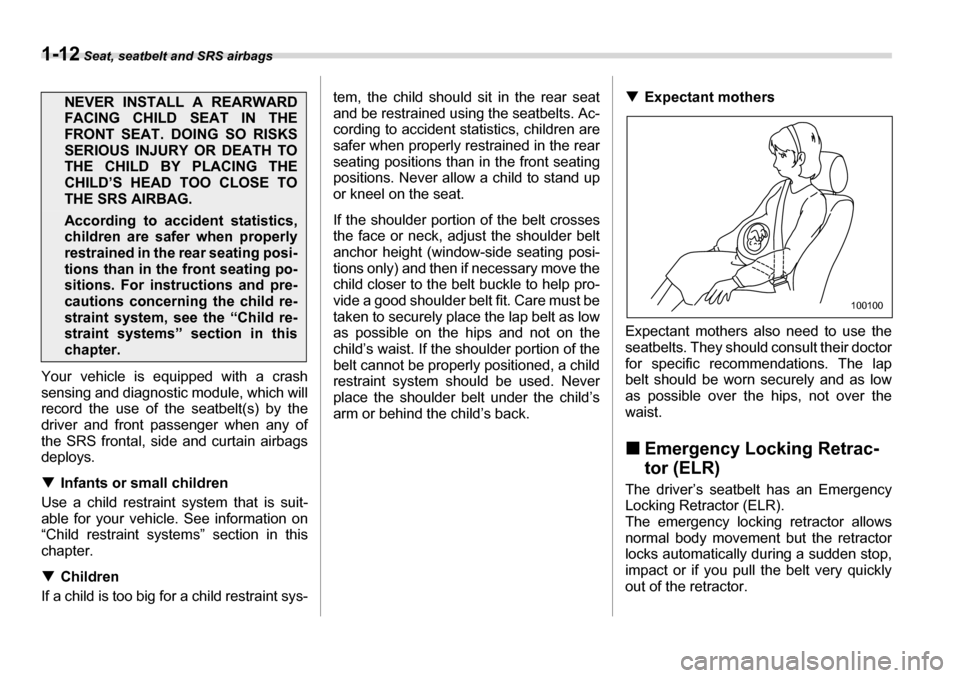

1-12 Seat, seatbelt and SRS airbags
Your vehicle is equipped with a crash
sensing and diagnostic module, which will
record the use of the seatbelt(s) by the
driver and front passenger when any of
the SRS frontal, side and curtain airbags
deploys. TInfants or small children
Use a child restraint system that is suit-
able for your vehicle. See information on
“Child restraint systems” section in this
chapter. T Children
If a child is too big for a child restraint sys- tem, the child should sit in the rear seat
and be restrained using the seatbelts. Ac- cording to accident st
atistics, children are
safer when properly restrained in the rear
seating positions than in the front seating
positions. Never allow a child to stand up
or kneel on the seat.
If the shoulder portion of the belt crosses
the face or neck, adjust the shoulder belt
anchor height (window-side seating posi-
tions only) and then if necessary move the
child closer to the belt buckle to help pro-
vide a good shoulder belt fit. Care must be
taken to securely place the lap belt as low
as possible on the hips and not on the
child’s waist. If the shoulder portion of the
belt cannot be properly positioned, a child
restraint system shou ld be used. Never
place the shoulder belt under the child’s
arm or behind the child’s back. T
Expectant mothers
Expectant mothers also need to use the
seatbelts. They should consult their doctor
for specific recommendations. The lap
belt should be worn securely and as low
as possible over the hips, not over the waist.
„ Emergency Locking Retrac- tor (ELR)
The driver’s seatbelt has an Emergency
Locking Retractor (ELR).
The emergency locking retractor allows
normal body movement but the retractor
locks automatically during a sudden stop,
impact or if you pull the belt very quickly out of the retractor.
NEVER INSTALL A REARWARD
FACING CHILD SEAT IN THE FRONT SEAT. DOING SO RISKS
SERIOUS INJURY OR DEATH TO
THE CHILD BY PLACING THE
CHILD’S HEAD TOO CLOSE TO
THE SRS AIRBAG.
According to accident statistics,
children are safer when properly
restrained in the rear seating posi-
tions than in the front seating po-
sitions. For instructions and pre-
cautions concerning the child re-
straint system, see the “Child re-
straint systems” section in this
chapter.
100100

Seat, seatbelt and SRS airbags 1-13
– CONTINUED –
„
Automatic/Emergency Lock- ing Retractor (A/ELR)
Each passenger’s seatbelt has an Auto-
matic/Emergency Locking Retractor (A/
ELR). The Automatic/Emergency Locking
Retractor normally functions as an Emer-
gency Locking Retractor (ELR). The A/
ELR has an additional locking mode “Au-
tomatic Locking Retractor (ALR) mode” in-
tended to secure a child restraint system.
When the seatbelt is once drawn out com-
pletely and is then retracted even slightly,
the retractor locks the se atbelt in that po-
sition and the seatbelt cannot be extend-
ed. As the belt is rewinding, clicks will be
heard which indicate the retractor func-
tions as ALR. When the seatbelt is retract-
ed fully, ALR mode is released.
When securing a child restraint system on
the passengers’ seats, the seatbelt must
be changed over to the Automatic Locking
Retractor (ALR) mode.
When the child rest raint system is re-
moved, make sure that the retractor is re-
stored to the Emergency Locking Retrac-
tor (ELR) function by allowing the seatbelt
to retract fully.
For instructions on how to convert the re-
tractor to the ALR mode and restore it to
the ELR mode, see the “Child restraint systems” section in this chapter. „
Seatbelt warning light
and chime
Your vehicle is equipped with a seatbelt
warning device at the driver’s and front
passenger’s seat, as required by current
safety standards.
With the ignition switch turned to the “ON”
position, this device reminds the driver
and front passenger to fasten their seat-
belts by illuminating the warning lights in
the locations indicated in the following il-
lustration and sounding a chime.
Driver’s warning light Front passenger’s warning light
T Operation
If the driver and/or front passenger have/
has not yet fastened the seatbelt(s) when
the ignition switch is turned to the “ON” po-
sition, the seatbelt warning light(s) will
flash for 6 seconds, to warn that the seat-
belt(s) is/are unfastened. If the driver’s
seatbelt is not fastened, a chime will also
sound simultaneously.
If the driver’s and/or front passenger’s
seatbelt(s) are/is still not fastened 6 sec-
onds later, both warning lights or the
warning light for t he unfastened seatbelt
will remain lit for 15 seconds. If the driver’s
and/or front passenger’s seatbelt(s) are/is
still not fastened even 15 seconds later
(21 seconds after turning ON the ignition
100254
100662

1-14 Seat, seatbelt and SRS airbags
switch), the warning lights will alternate
between flashing and steady illumination
at 15-second intervals, and the chime will
sound while the warning light(s) is/are
flashing.
Alternate flashing and steady illumination
of the warning lights and sounding of the
chime will continue until both driver and
front passenger fasten their seatbelts.
NOTE yIf the driver and/or front passenger
unfasten(s) the seatbelt(s) after fasten-
ing, the seatbelt warning device oper-
ates as follows according to the vehi-
cle speed.
yAt speeds lower than approximate-
ly 9 mph (15 km/h)
The warning light(s) for unfastened
seatbelt(s) will alternate between
flashing and steady illumination at
15-second intervals. The chime will
not sound. y At speeds higher than approxi-
mately 9 mph (15 km/h)
The warning light(s) for unfastened
seatbelt(s) will alternate between
flashing and steady illumination at
15-second intervals and the chime
will sound while the warning light(s)
is/are flashing.
y It is possible to cancel the warning
operation that follows the 6-second warning after turning ON the ignition
switch by unfastening and refastening
the driver’s seatbelt. When the ignition
switch is turned ON next time, howev-
er, the complete sequence of the warn-
ing operation resumes. For further de-
tails about canceling the warning oper-
ation, please contact your SUBARU
dealer.
If there is no passenger on the front pas-
senger’s seat, the seatbelt warning device
for the front passenger’s seat will be deac-
tivated. The front passenger’s occupant
detection system monitors whether or not
there is a passenger on the front passen-
ger’s seat.
Observe the following precautions. Failure
to do so may prevent the device from func-
tioning correctly or cause the device to
fail. y
Do not install any accessory such as a
table or TV onto the seatback. y Do not store a heavy load in the seat-
back pocket.y Do not allow the rear seat occupant to
place his/her hands or legs on the front
passenger’s seatback, or allow him/her to
pull the seatback.y Do not use front seats with their back-
ward-forward position and seatback not
being locked into place securely. If any of
them are not locked securely, adjust them again. For adjusting procedure, refer to
the “Manual seat” in the front seats sec-
tion in Chapter 1 in this owner’s manual.
(Models equipped with manual seats only)
If the seatbelt warning device for the front
passenger’s seat does not function cor-
rectly (e.g., it is ac
tivated even when the
front passenger’s seat is empty or it is de-
activated even when the front passenger
has not fastened his/ her seatbelt), take
the following actions.y Ensure that no article is placed on the
seat other than a ch ild restraint system
and the child occupant.y Ensure that there is no article left in the
seatback pocket.y Ensure that the backward-forward posi-
tion and seatback of front passenger’s
seat are locked into place securely by
moving the seat back and forth. (Models
equipped with manual seats only)
If the seatbelt warning device for front
passenger’s seat still does not function correctly after taking relevant corrective
actions described above, immediately
contact your SUBARU dealer for an in-
spection.
