2006 SUBARU LEGACY window

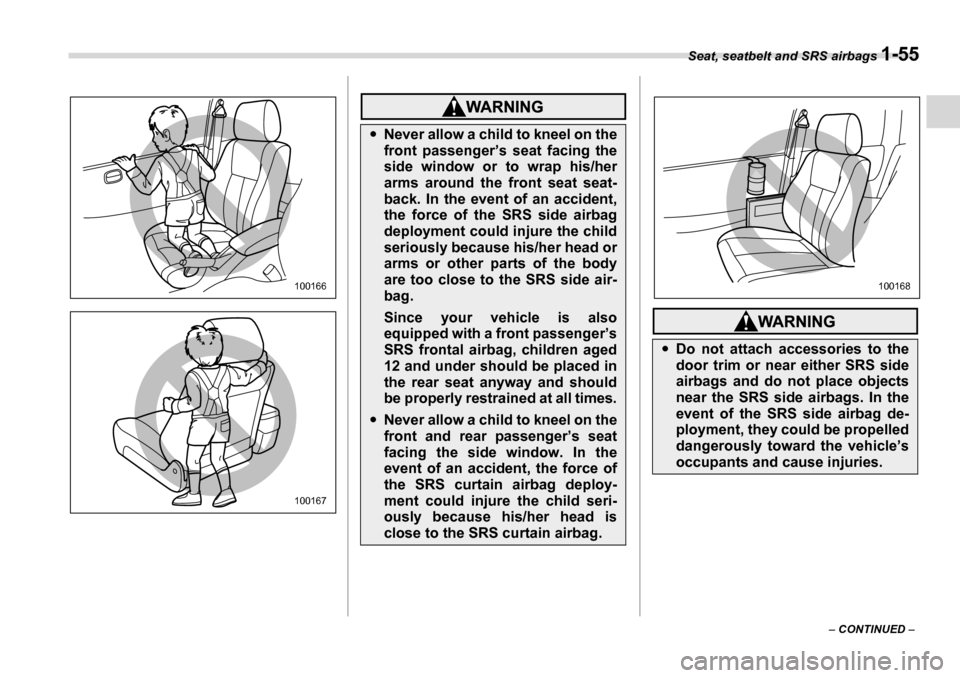

Seat, seatbelt and SRS airbags 1-55
– CONTINUED –
100166
100167
yNever allow a child to kneel on the
front passenger’s seat facing the
side window or to wrap his/her
arms around the front seat seat-
back. In the event of an accident,
the force of the SRS side airbag
deployment could injure the child
seriously because his/her head or
arms or other parts of the body
are too close to the SRS side air-
bag.
Since your vehicle is also
equipped with a front passenger’s
SRS frontal airbag, children aged
12 and under should be placed in
the rear seat anyway and should
be properly restrained at all times.
y Never allow a child to kneel on the
front and rear passenger’s seat
facing the side window. In the
event of an accident, the force of
the SRS curtain airbag deploy-
ment could injure the child seri-
ously because his/her head is
close to the SRS curtain airbag.
yDo not attach accessories to the
door trim or near either SRS side
airbags and do not place objects
near the SRS side airbags. In the
event of the SRS side airbag de-
ployment, they could be propelled
dangerously toward the vehicle’s
occupants and cause injuries.
100168

1-62 Seat, seatbelt and SRS airbags
Always consult your SUBARU dealer if
you want to install any accessory parts on
your vehicle.
yAttachment of a hands-free mi-
crophone or any other accesso- ry to a front pillar , a center pillar,
a rear pillar, the windshield, a
side window, an assist grip, or
any other cabin surface that
would be near a deploying SRS
curtain airbag.
y Installation of additional electri-
cal/electronic equipment such
as a mobile two-way radio on or
near the SRS airbag system
components and/or wiring is
not advisable. This could inter-
fere with proper operation of the
SRS airbag system.
Do not perform any of the following
modifications. Such modifications
can interfere with proper operation
of the SRS airbag system. y Attachment of any equipment
(bush bar, winches, snow plow,
skid plate, etc.) other than genu-
ine SUBARU accessory parts.
y Modification of the suspension
system or front end structure.
yInstallation of a tire of different
size and construction from the
tires specified on the vehicle plac-
ard attached to the driver’s door
pillar or specified for individual
vehicle models in this Owner’s
Manual.
y Attachment of any equipment
(side steps or side sill protectors,
etc.) other than genuine SUBARU
accessory parts to the side body.

2
Keys and doors
Keys ..................................................................... 2-2 Key number ............................................................. 2-2
Immobilizer ......................................................... 2-3 Security ID plate ..................................................... 2-3
Security indicator light ........................................... 2-4
Key replacement ........ ....................................... ...... 2-4
Door locks ........................................................... 2-4 Locking and unlocking from the outside ............. 2-4
Locking and unlocking from the inside ................ 2-5
Battery drainage prevention function ................... 2-6
Power door locking switches ............................ 2-6 Key lock-in prevention function ............................ 2-7
Remote keyless entry system ........................... 2-7 Locking the doors .................................................. 2-8
Unlocking the doors ............................................... 2-9
Unlocking the trunk lid/rear gate ........................... 2-9
Illuminated entry ..................................................... 2-9
Vehicle finder function ........................................... 2-9
Sounding a panic alarm ......................................... 2-10
Selecting audible signal operation ....................... 2-10
Replacing the battery ............................................. 2-10
Replacing lost transmitters ................................... 2-11
Alarm system ...................................................... 2-14 System alarm operation ......................................... 2-14
Activating and deactivating the alarm system ..... 2-14
If you have accidentally triggered the alarm system ................................................................... 2-15
Arming the system ................................................. 2-15
Disarming the system ............................................ 2-16 Valet mode ............................................................... 2-16
Passive arming ....................................................... 2-17
Tripped sensor identification ................................ 2-18
Shock sensors (dealer option) .............................. 2-18
Child safety locks ........... .................................... 2-18
Windows ................... ....................................... .... 2-19
Power windows ....................................................... 2-19
Trunk lid (Sedan) ............... ................................. 2-21
To open and close the trunk lid from outside ...... 2-21
To open the trunk lid from inside .......................... 2-22
To lock and unlock the trunk lid release lever ..... 2-22
Internal trunk lid release hand le ..................... ....... 2-22
Rear gate (Station wagon) ................................. 2-24
Moonroof (if equipped) ..... ................................. 2-25
Tilting/sliding moonroof (Sedan) .......................... 2-26
Moonroof (Station wagon) ..................................... 2-27

Keys and doors 2-3
– CONTINUED –
Immobilizer
The immobilizer system is designed to
prevent an unauthorized person from
starting the engine. Only keys registered with your vehicle’s immobilizer system
can be used to operate your vehicle. Even
if an unregistered key fits into the ignition
switch and can be turned to the “START”
position, the engine will automatically stop
after several seconds.
Each immobilizer key contains a tran-
sponder in which the key’s ID code is
stored. When a key is inserted into the ig-
nition switch and turned to the “ON” posi-
tion, the transponder transmits the key’s ID code to the imm obilizer system’s re-
ceiver. If the transmitt ed ID code matches
the ID code registered in the immobilizer
system, the system allo ws the engine to
be started. Since the ID code is transmit-
ted and acted upon almost instantly, the
immobilizer system does not impede nor-
mal starting of the engine.
If the engine fails to start, pull out the key
once before trying again. (Refer to the “Ig-
nition switch” section [chapter 3].)
This device complies with Part 15 of
the FCC Rules and with RSS-210 of In-
dustry Canada. Operation is subject to
the following two co nditions: (1) This device may not cause harmful interfer-
ence, and (2) this device must accept
any interference received, including in-
terference that may cause undesired
operation.
Changes or modifications not express-
ly approved by the party responsible
for compliance could void the user’s
authority to operate the equipment.
NOTE
To protect your veh
icle from theft,
please pay close attention to the fol-
lowing security precautions: y Never leave your vehicle unattended
with its keys inside. y Before leaving your vehicle, close all
windows and lock the doors and reargate (Stati on wagon).
y Do not leave spare keys or any
record of your key number in the vehi-
cle.
„ Security ID plate
1) Key number plate
2) Security ID plate
The security ID is stamped on the security
ID plate attached to the key set. Write
down the security ID and keep it in another
safe place, not in the vehicle. This number
is needed to make a replacement key if
you lose your key or lock it inside the vehi-cle.
This number is also needed for replace-
ment or repair of the engine control unit,
integrated unit, and combination meter.
y
Do not place the key under direct
sunlight or anywhere it may be-
come hot.
y Do not get the key wet. If the key
gets wet, wipe it dry with a cloth
immediately.
12
200701

Keys and doors 2-15
– CONTINUED –
“AL on” and the horn sounds once, indi-
cating that the system
is now activated.
NOTE
You may have the above setting
change done by your SUBARU dealer. „If you have accidentally trig-
gered the alarm system
T To stop the alarm
Do any of the following operations: y Insert the key in the door lock of the
driver’s door and turn it to the unlock posi- tion. y Press any button on the remote trans-
mitter. y Turn the ignition switch to the “ON” po-
sition. „ Arming the system
T To arm the system using remote
transmitter
1. Close all windows and the moonroof (if
so equipped).
2. Remove the key from the ignition switch.
3. Open the doors and get out of the vehi-cle.
4. Make sure that the engine hood (and
the trunk lid on the Sedan) are locked. 5. Close all doors (and the rear gate on
the Station wagon).
: Press to Arm the system.
: Press to Disarm the system.
6. Briefly press the “ ” button (for less than two seconds). All doors (and the rear
gate on the Station wagon) will lock, an
electronic chirp will sound once, the turn
signal lights will flash once, and the indica-
tor lights will start flashing rapidly. After
rapid flashing for 30 seconds (standby
time), the indicator lights will then flash
slowly (twice approximately every two seconds), indicating
that the system has
been armed for surveillance.
If any of the doors, (re ar gate or trunk lid)
is not fully closed, an electronic chirp
sounds five times, the turn signal lights
flash five times to alert you that the doors
(or the rear gate) are not properly closed.
When you close the door, the system will
automatically arm and doors will automat-
ically lock. T To arm the system using power
door locking switches
1. Close all windows.
2. Remove the key from the ignition switch.
3. Open the doors and get out of the vehi-
cle.
4. Make sure that the engine hood is
locked.
5. Close the doors (and the rear gate on
the station wagon) but leave only the driv-
er’s door or the front passenger’s door
open.
200918
200835

2-16 Keys and doors
6. Push the front side (“LOCK” side) of
the power door locking switch to set thedoor locks.
7. Close the door. An electronic chirp will
sound once, the turn signal lights will flash
once and the indicator lights will start
flashing rapidly. After rapid flashing for 30
seconds (standby time), the indicator
lights will then flash slowly (twice approxi-
mately every two seconds), indicating that
the system has been armed for surveil-
lance.
NOTE yThe system can be armed even if the
engine hood, the windows and/or
moonroofs are opened. Always make
sure that they are fully closed before
arming the system. y
The 30-second standby time can be
eliminated if you prefer. Have it per-
formed by your SUBARU dealer.y If your vehicle is a Sedan and you un-
lock the trunk usin g the remote trans-
mitter’s “ ” button with the alarm
system armed, the system will be tem-
porarily placed in a standby state. The
system will go back to the surveillance
state upon locking the trunk. y The system is in the standby mode
for a 30-second period after locking the
doors with the remo te transmitter. The
security indicator light will flash at
short intervals during this period.y If any of the following actions is done
during the standby period, the system
will not switch to the surveillance state.
yDoors are unlocked using the re-
mote transmitter. y Any door (including the rear gate
of a Station wagon or the trunk of a
Sedan) is opened. y Ignition switch is turned to the
“ON” position.
„ Disarming the system
Briefly press the “ ” button (for less
than two seconds) on the remote transmit-
ter. The driver’s door will unlock, an elec-
tronic chirp will sound twice, the turn sig-
nal lights will flash twice and the indicator light will go off.
To unlock all other doors and the rear gate
(Station wagon), briefly press the “ ”
button a second time within 5 seconds.
NOTE
If the interval betw
een the first and sec-
ond presses of the “ ” button (for
unlocking of all of the doors and the
rear gate) is extreme ly short, the sys-
tem may not respond.
Or the system can be disarmed by the following method, too.y Insert the key in the door lock of the
driver’s door and turn it to the unlock
position. T Emergency disarming
If you cannot disarm the system using the
transmitter (i.e. the transmitter is lost, bro-
ken or the transmitter battery is too weak),
you can disarm the system without using
the transmitter.
The system can be disarmed if you turn
the ignition switch from the “LOCK” to the
“ON” position with a registered key.
Insert the key in the door lock of the driv-
er’s door and turn it to the unlock position. „ Valet mode
When you choose the valet mode, the
alarm system does not operate. In valet
200897
LOCK

Keys and doors 2-19
– CONTINUED –
Windows „Power windows
The power windows operate only when
the ignition switch is in the “ON” position. T
Driver’s side switches
1) Lock switch
2) For driver’s window
3) For front passenger’s window
4) For rear left passenger’s window
5) For rear right passenger’s window
All door windows can be controlled by the
power window switch cluster at the driver
side door. V
Operating the driver’s window
1) Open
2) Automatically open
To open:
Push the switch down lightly and hold it.
The window will open as long as the
switch is held.
This switch also has a one-touch auto
down feature that allows the window to be
opened fully without holding the switch.
Push the switch down until it clicks and re-
lease it, and the window will fully open. To
stop the window halfwa y, pull the switch
up lightly.
To avoid serious personal injury
caused by entrapment, you must dothe following.
y When operating the power win-
dows, be extremely careful to pre-
vent anyone’s fingers, arms, neck
or head from being caught in the
window.
yAlways lock the passengers’ win-
dows using the lock switch when
children are riding in the vehicle.
yBefore leaving th e vehicle, always
remove the key from the ignition
switch for safety and never allow
an unattended child to remain in
the vehicle. Failure to follow this
procedure could result in injury to
a child operating the power win-
dow.
1
3
5
4 2
200843
1 2
200844

2-20 Keys and doors
To close:
Pull the switch up lightly and hold it. The
window will close as long as the switch is
held. VOperating the passengers’ windows To open the passengers’ windows, push
the appropriate switch down and hold it
until the window reaches the desired posi-
tion.
To close the window, pull the switch up
and hold it until it reaches the desired po-sition. V
Locking the passengers’ windows
To lock the passengers’ windows, push
the lock switch. When the lock switch is in
the “LOCK” position, the passengers’ win-
dows cannot be opened or closed.
Press the switch again to cancel the pas-
sengers’ window locking.
200845
200846
200847
200398
