Instruments and controls 3-41
– CONTINUED –
cover the sensors with
stickers, or other
similar items. Periodically wipe the sen-
sors clean using a piece of dry soft cotton
cloth or an applicator. T Compass calibration
1. For optimum calibration, switch off all
nonessential electrical accessories (rear
window defogger, heater/air conditioning system, spotlight , etc.) and ensure all
doors are shut.
2. Drive to an open, level area away from
large metallic objects or structures and
make certain the ignition switch is in the
“ON” position.
3. Press and hold the left button for 3 sec-
onds then release, and the compass will
enter the calibration mode. “CAL” and di-
rection will be displayed.
4. Drive slowly in a circle until “CAL” dis-
appears from the di splay (approximately
two or three circles). The compass is now
calibrated.
5. Further calibration may be necessary
should outside influences cause the mirror
to read inaccurately. You will know that
this has occurred if your compass begins
to read in only limited directions. Should
you encounter this situation, return to step
one of the above procedure and recali-brate the mirror. T
Compass zone adjustment
1. The zone setting is factory preset to
Zone 8. Refer to the “Compass calibration
zone” map attached to the end of this
manual to verify that the compass zone
setting is correct for your geographical lo- cation.
2. Press and hold the right button for 3
seconds then release, and the word
“ZONE” will briefly appear and then the
zone number will be displayed.
3. Press the right-hand button repeatedly to cycle the display through all possible
zone settings. Stop cycling when the cor- rect zone setting for your location is dis-
played.
4. Releasing the button for 3 seconds will
exit the zone setting mode. „
Outside mirrors
T Convex mirror (Passenger side)
TRemote control mirror switch
The remote control mirrors operate only
Objects look smaller in a convex
mirror and farther away than when
viewed in a flat mirror. Do not use
the convex mirror to judge the dis-
tance of vehicles behind you when
changing lanes. Use the inside mir-
ror (or glance backwards) to deter-
mine the actual size and distance of
objects that you view in convex mir-ror.
300519

3-42 Instruments and controls
when the ignition switch is in the “ON” or
“ACC” position.
1. Turn the knob to the “L” side to adjust
the left-hand mirror or to the “R” side to ad-
just the right-hand mirror.
2. Move the knob in the direction you
want to move the mirror.
3. Return the knob to the neutral position
to prevent unintentional operation.
The mirrors can also be adjusted manual- ly. TOutside mirror defogger (if
equipped)
Vehicle with manual climate control sys- tem Vehicle with automatic climate control
system
The outside mirror defogger shares the
button with rear window defogger.
The outside mirror defogger operates only
when the ignition switch is in the “ON” po- sition.
To turn on the outside mirror defogger,
push the button.
To turn it off, push the button again. The
indicator light located on the button lights
up while the outside mirror defogger is op-
erating.
The defogger will automatically shut off af-
ter approximately 15 minutes. If the mirror
clears before that time, push the button to
turn it off. It also turns off when the ignition
switch is turned to the “ACC” or “LOCK” position. If defrosting or defogging is de-
sired when you restart your vehicle, you
have to push the button to turn it on again.
NOTE y
While the outside mirror defogger is
operating, the rear window defogger
also operates. y When the rear window defogger has
been set for continuous operation, the
outside mirror defogger also operates
continuously. Refer to the “Rear win-
dow defogger button” section in this
chapter.
300291
300598
To prevent the battery from being
discharged, do not operate the de-
fogger continuously for any longer
than necessary.

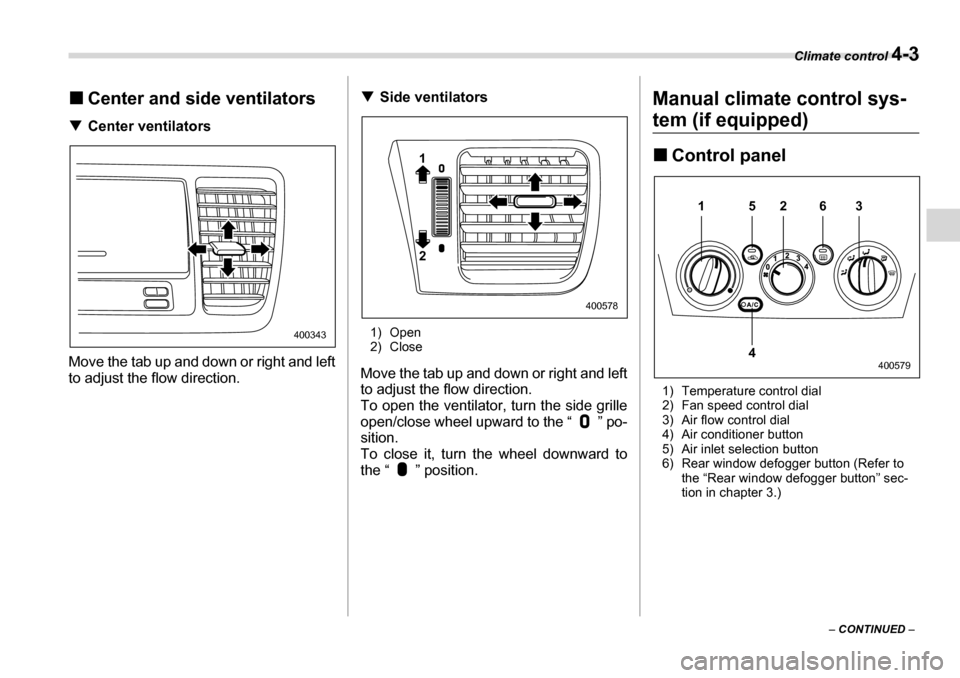

Climate control 4-3
– CONTINUED –
„
Center and side ventilators
T Center ventilators
Move the tab up and down or right and left
to adjust the flow direction. T
Side ventilators
1) Open
2) Close
Move the tab up and down or right and left
to adjust the flow direction.
To open the ventilator, turn the side grille
open/close wheel upward to the “ ” po-sition.
To close it, turn the wheel downward to
the “ ” position. Manual climate control sys-
tem (if equipped) „
Control panel
1) Temperature control dial
2) Fan speed control dial
3) Air flow control dial
4) Air conditioner button
5) Air inlet selection button
6) Rear window defogger button (Refer to the “Rear window defogger button” sec-
tion in chapter 3.)
400343
1 2
400578
12 6
5 4 3
400579

Climate control 4-5
– CONTINUED –
T
Air conditioner button
The air conditioner operates only when
the engine is running.
Push the air conditioner button while the
fan is in operation to turn on the air condi-
tioner. The indicator light will come on.
Push it again to turn off the air conditioner. T
Air inlet selection button
ON position (Recirculation): Interior air is
recirculated inside the vehicle.
Push the air inlet button to the ON posi-
tion. The indicator light will come on.
Place this button in the ON position when
you wish to cool the cabin quickly (in a ve-
hicle with an air conditioner) or are driving
on a dusty road.
OFF position (Outside air): Outside air is
drawn into the passenger compartment.
Push the air inlet button again to the OFF
position. The indicator light will go off.
Place this button in the OFF position when
you reach a road that is not dusty and
when you wish to achieve a comfortable
temperature in the cabin.
„ Heater operation
T Defrosting or defogging the wind- shield
To direct warm air to the windshield and
front door windows:
1. Set the air inlet selection button to the
OFF position.
2. Set the air flow control dial to the
“ ” position.
3. Turn the temperature control dial all the
way to the right.
4. Set the fan speed control dial to the
highest speed.
NOTE y In a vehicle equipped with an air con-
ditioner, when the dial is placed in the
“ ” position or “ ” position the
air conditioner compressor automati-
cally operates to quickly defog the
windshield. However the indicator on
the air conditioner button will not come
on. At the same time, the air inlet selec-
400349400350
Continued operation in the ON posi- tion may fog up the windows.
Switch to the OFF position as soon
as the outside dusty condition
clears.

Climate control 4-7
– CONTINUED –
When driving on a dusty road, set the air
inlet control button to the ON position.
„
Air conditioner operation
T Cooling or dehumidifying
For cooling and dehumidification of the
passenger compartment, air flows through
the instrument panel outlets:
1. Set the air inlet selection button to the
OFF position.
2. Set the air flow control dial to the “ ” position.
3. Set the air conditioner button to the
“ON” position.
4. Set the temperature control dial to the
blue side.
5. Set the fan speed control dial at the de-
sired speed. T Defrosting or defogging
To direct warm air to the windshield and
front door windows:
1. Set the air outlet control dial to the “ ” position.
2. Set the temperature control dial to the
red side.
3. Set the fan speed control dial at the
highest speed.
NOTE
In a vehicle equipped with an air condi-
tioner, when the dial is placed in the
“ ” position or “ ” position the
air conditioner compressor automati-
cally operates to quickly defog the
windshield. However the indicator on
the air conditioner
button will not come
on. At the same time, the air inlet selec-
tion is automatically set to “outside
air” mode.
In this state, you cannot select “recir-
culation” mode by manually pressing
the air inlet selection button.
Also, you cannot stop the air condi-
tioner compressor by pressing the air
conditioner button. Automatic climate control
system (if equipped)
NOTE y
Operate the automatic climate con-
trol system when the engine is run-
ning. y The blower fan rotates at a low speed
when the engine coolant temperature
is low.
For efficient defogging or dehumidify-
ing in cold weather, press the “A/C”button. y Even when cooling is not necessary,
setting the temperature much lower
than the current outlet air temperatureturns on the air c onditioner compres-
sor automatically and the “A/C” indica-
tor light on the control panel comes on.
The automatic climate control system au-
tomatically controls outlet air temperature,
fan speed, air flow distribution air-inlet
control, and air conditioner compressor
operation. It activates when the “AUTO”
button is pressed, and is used to maintain
a constant, comfortabl e climate within the
passenger compartment.
The temperature can be set within a rangeof 65 to 85 °F (18 to 32 °C).
Continued operation in the ON posi-
tion may fog up the windows.
Switch to the OFF position as soon
as the outside dusty condition
clears.

4-8 Climate control
„Control panel
1) AUTO button
2) Temperature control dial (driver’s side)
3) Defroster button
4) Temperature control dial (passenger’s side)
5) Rear window defogger button (Refer to the “Rear window defogger button” sec-
tion in chapter 3.)
6) Air conditioner button
7) Air flow mode selection button
8) Fan speed control button
9) Air inlet selection button
10) OFF button T
AUTO button
AUTO mode operation:
When the “AUTO” button is pressed, the
indicator light “AUTO” on the display
comes on. In this state, fan speed, air flow
distribution, air-inlet control, and air condi-
tioner compressor o peration are automat-
ically controlled.
Manual mode operation:
If you operate any of the buttons on the
control panel other than the “OFF” button
and temperature control dial during auto-
matic mode operation, the indicator light
“AUTO” on the control panel will go out.
You can then manually control the system
as desired using t he button you operated.
To change the system back to the AUTO
mode, press the “AUTO” button. T
OFF button
The Automatic Clim ate Control system
turns off (the air conditioner compressor
and fan turn off) when the “OFF” button is
pressed.
When the “OFF” button is pressed, the
outside air introduction mode (air inlet se-
lection OFF) is automatically selected.
12
10 9 8 7 6 5 34
400580400581
400582

Climate control 4-9
– CONTINUED –
T
Temperature control dial
Driver’s side
Passenger’s side
It is possible to make separate tempera- ture settings for the driver’s side and pas-
senger’s side. Each temperature setting is
shown on the display. With the dial set atyour desired temperature, the system au-
tomatically adjusts the temperature of air
supplied from the outlets such that the de-
sired temperature is achieved and main-
tained.
If the dial is turned
fully counterclockwise,
the system gives maximum cooling perfor-
mance. If the dial is turned fully clockwise,
the system gives ma ximum heating per-
formance. T – Defroster button
To defrost or dehumidify the windshield
and front door windows, push the defrost-
er button “ ”. When the “ ” button
is pushed, regardless whether the air con- ditioner is operating or not, outside air is
drawn into the passenger compartment,
the air conditioner compressor turns on,
air flow is directed towards the windshield
and front door windows, and the indicator
light on the button comes on.
After eliminating the fogging from the
windshield, return t
he climate control sys-
tem to the AUTO mode by pushing the
“AUTO” button or turn off by pushing the “OFF” button.
Alternatively, push the “ ” button
again to return the system to the setting
that was selected before you activated the
defroster. T Fan speed control button
The fan speed control button has 6 differ-
ent fan speed positions.
400583
400584
400585
400357

Climate control 4-11
automatically. (There is one exception:
When the temperature control dial is
turned fully counterclockwise, the recircu-
lation mode is automatically selected.)
When the outside air mode is selected, a
“ ” indicator light appears on the display.
NOTE
When driving on a dusty road or be-
hind a vehicle that emits unpleasant
exhaust gases, set the air inlet selec-
tion button to the “ ” position. From time to time, return the air inlet
selection button to the “ ” posi-
tion to draw outsid e air into the pas-
senger compartment. „
Temperature sensors
1) Solar sensor
2) Interior air temperature sensor
The automatic climate control system em-
ploys several sensors. These sensors are
delicate. If they are treated incorrectly and
become damaged, the system may not be
able to control the interior temperature
correctly. To avoid damaging the sensors,
observe the following precautions:
– Do not subject the sensors to impact.
– Keep water away from the sensors.
– Do not cover the sensors.
The sensors are located as follows:
– Solar sensor: beside windshield de-
froster grille
– Interior air temperature sensor: on the side of the driver-si
de part of the center
panel
– Outside temperature sensor: behind
front grille.
Continued operation in the “ ”
position may fog up the windows.
Switch to the “ ” position as
soon as the outside dusty condition
clears.
1
2
400589
