Maintenance and service
Replacement of brake pad and lining ............... 11-31
Breaking-in of new brake pads and linings ......... 11-32
Parking brake stroke .......................................... 11-32
Tires and wheels ................................................ 11-33 Types of tires .......................................................... 11-33
Tire pressure monitoring system (TPMS) (if equipped) .......................................................... 11-33
Tire inspection ........................................................ 11-34
Tire pressures and wear ........................................ 11-35
Wheel balance ........................................................ 11-37
Wear indicators ....................................................... 11-37
Tire rotation ............................................................. 11-37
Tire replacement ..................................................... 11-38
Wheel replacement ................................................. 11-38
Aluminum wheels ............................................... 11-39
Windshield washer fluid .................................... 11-39
Replacement of wiper blades ............................ 11-41 Windshield wiper blade assembly ........................ 11-41
Windshield wiper blade rubber ............................. 11-42
Rear window wiper blade assembly ..................... 11-42
Rear window wiper blade rubber .......................... 11-43
Battery ................................................................. 11-44
Fuses ................................................................... 11-45
Main fuse ............................................................. 11-47
Installation of accessories ................................ 11-47
Replacing bulbs .................................................. 11-48 Headlight ................................................................. 11-49
Parking light ............................................................ 11-50
Front turn signal light ............................................ 11-50
Front fog light (if equipped) ................................... 11-50 Rear combination lights ......................................... 11-51
Backup light (Station wagon) ................................ 11-52
License plate light .................................................. 11-53
Dome light ............................................................... 11-53
Map light .................................................................. 11-54
Door step light ........................................................ 11-54
Cargo area light (Station wa
gon) .......................... 11-55
Trunk light (Sedan) ................................................. 11-55
High mount stop light (Sedan) .............................. 11-56

Maintenance and service 11 - 4 1
– CONTINUED –

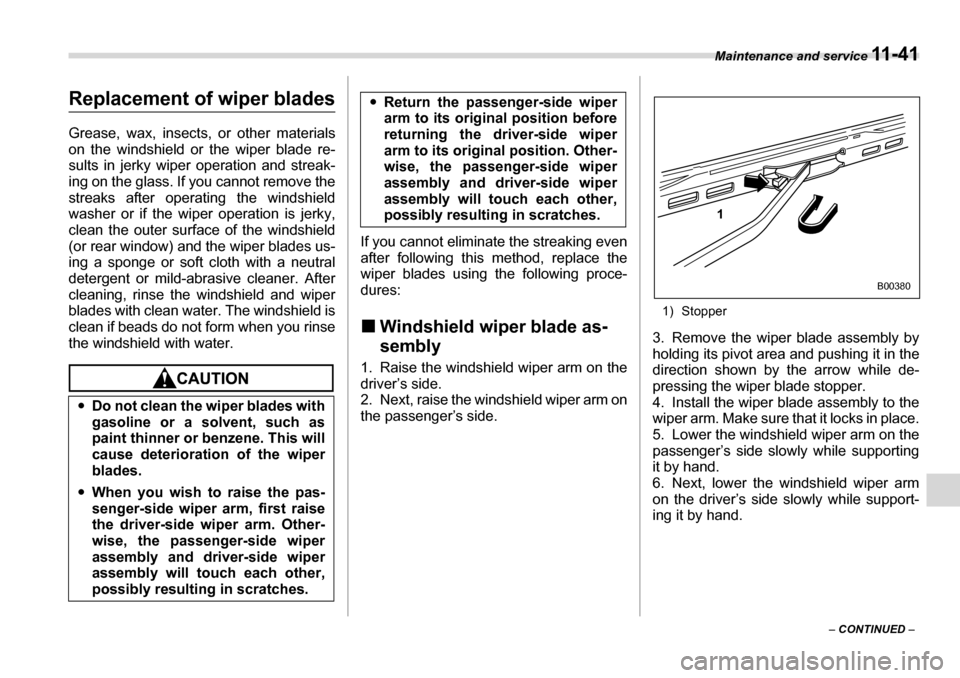

Replacement of wiper blades Grease, wax, insects, or other materials
on the windshield or the wiper blade re-
sults in jerky wiper operation and streak-
ing on the glass. If you cannot remove the
streaks after operating the windshield
washer or if the wiper operation is jerky,
clean the outer surface of the windshield
(or rear window) and the wiper blades us-
ing a sponge or soft cloth with a neutral
detergent or mild-abrasive cleaner. After
cleaning, rinse the windshield and wiper
blades with clean water. The windshield is
clean if beads do not form when you rinse
the windshield with water.
If you cannot eliminate the streaking even
after following this method, replace the
wiper blades using the following proce-
dures: „ Windshield wiper blade as- sembly
1. Raise the windshield wiper arm on the
driver’s side.
2. Next, raise the windshield wiper arm on
the passenger’s side. 1) Stopper
3. Remove the wiper blade assembly by
holding its pivot area and pushing it in the
direction shown by the arrow while de-
pressing the wiper blade stopper.
4. Install the wiper blade assembly to the
wiper arm. Make sure that it locks in place.
5. Lower the windshield wiper arm on the
passenger’s side slowly while supporting
it by hand.
6. Next, lower the windshield wiper arm
on the driver’s side slowly while support-
ing it by hand.
y
Do not clean the wiper blades with
gasoline or a solvent, such as
paint thinner or benzene. This will
cause deterioration of the wiper
blades.
y When you wish to raise the pas-
senger-side wiper arm, first raise
the driver-side wiper arm. Other-
wise, the passenger-side wiper
assembly and driver-side wiper
assembly will touch each other,
possibly resulting in scratches.
yReturn the passenger-side wiper
arm to its original position before
returning the driver-side wiper
arm to its original position. Other-
wise, the passenger-side wiper
assembly and driver-side wiper
assembly will touch each other,
possibly resulting in scratches.
1
B00380

11 - 4 2 Maintenance and service

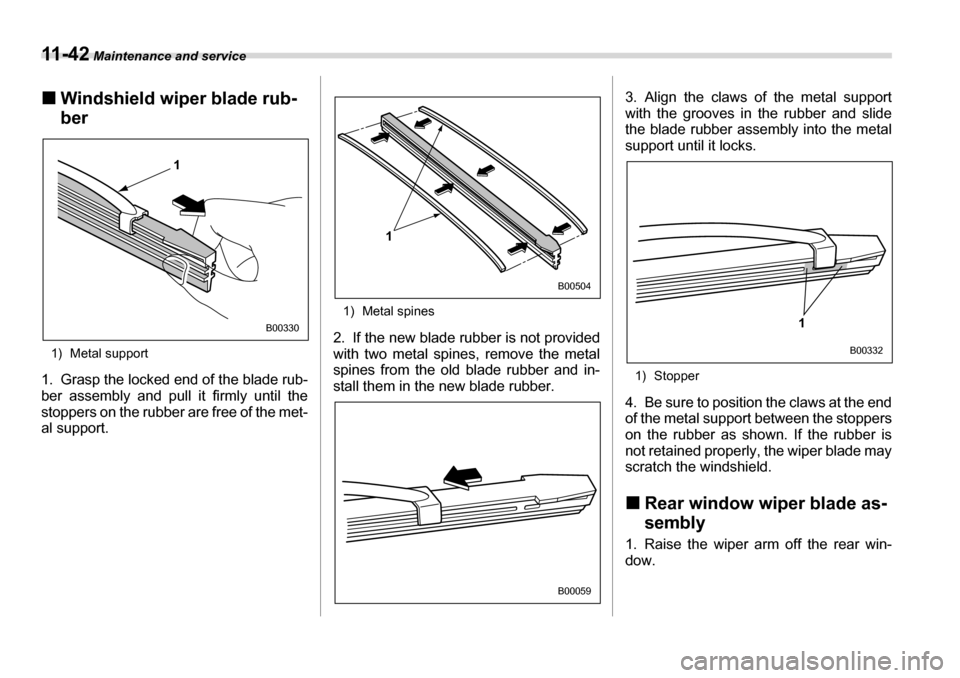

„Windshield wiper blade rub- ber
1) Metal support
1. Grasp the locked end of the blade rub-
ber assembly and pull it firmly until the
stoppers on the rubber are free of the met-
al support. 1) Metal spines
2. If the new blade rubber is not provided
with two metal spines, remove the metal
spines from the old blade rubber and in-
stall them in the new blade rubber. 3. Align the claws of the metal support
with the grooves in the rubber and slide
the blade rubber assembly into the metal
support until it locks.
1) Stopper
4. Be sure to position the claws at the end
of the metal support between the stoppers
on the rubber as shown. If the rubber is
not retained properly, the wiper blade may
scratch the windshield. „ Rear window wiper blade as-
sembly
1. Raise the wiper arm off the rear win- dow.
1
B00330
B00504
1
B00059
1
B00332

Maintenance and service 11 - 4 3
– CONTINUED –

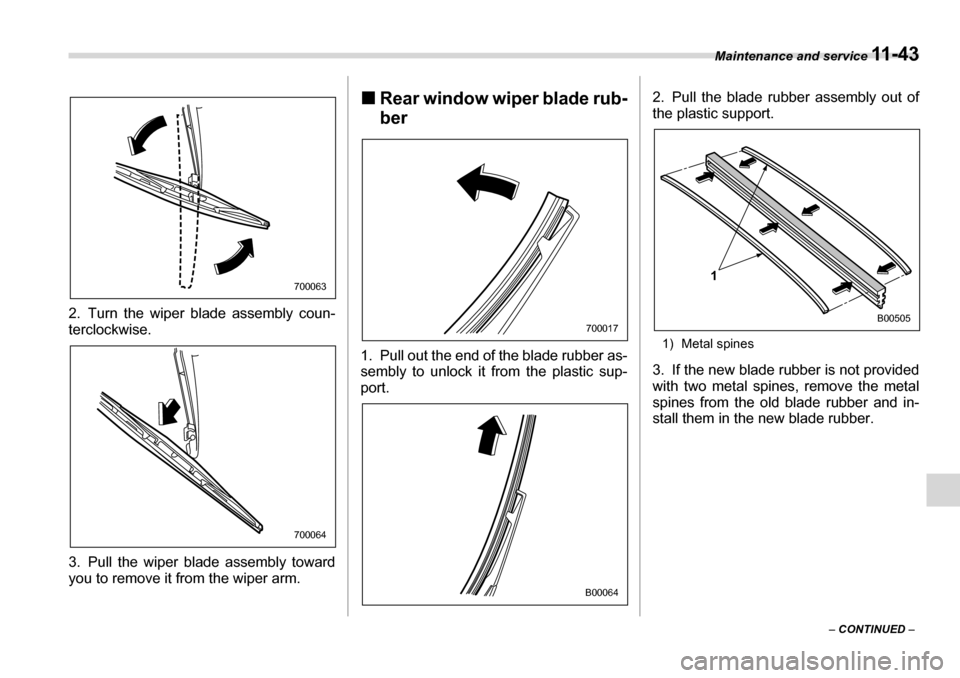

2. Turn the wiper blade assembly coun-
terclockwise.
3. Pull the wiper blade assembly toward
you to remove it from the wiper arm. „
Rear window wiper blade rub- ber
1. Pull out the end of the blade rubber as-
sembly to unlock it from the plastic sup-
port. 2. Pull the blade rubber assembly out of
the plastic support.
1) Metal spines
3. If the new blade rubber is not provided
with two metal spines, remove the metal
spines from the old blade rubber and in-
stall them in the new blade rubber.
700063
700064
700017
B00064
B00505
1

11 - 4 4 Maintenance and service

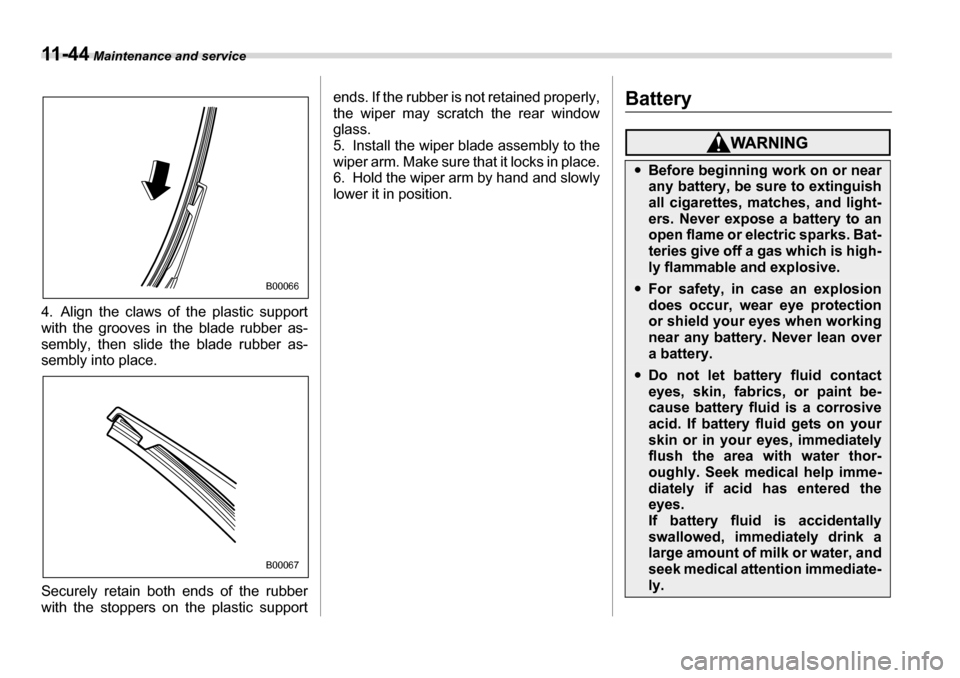

4. Align the claws of the plastic support
with the grooves in the blade rubber as-
sembly, then slide the blade rubber as-
sembly into place.
Securely retain both ends of the rubber
with the stoppers on the plastic support ends. If the rubber is not retained properly,
the wiper may scratch the rear window
glass.
5. Install the wiper blade assembly to the
wiper arm. Make sure that it locks in place.
6. Hold the wiper arm by hand and slowly
lower it in position.
Battery
B00066
B00067
y
Before beginning work on or near
any battery, be su re to extinguish
all cigarettes, matches, and light-
ers. Never expose a battery to an
open flame or electric sparks. Bat-
teries give off a gas which is high-
ly flammable and explosive.
y For safety, in case an explosion
does occur, wear eye protection
or shield your eyes when working
near any battery. Never lean over a battery.
yDo not let battery fluid contact
eyes, skin, fabrics, or paint be-
cause battery fluid is a corrosive
acid. If battery fluid gets on your
skin or in your eyes, immediately
flush the area wi th water thor-
oughly. Seek medical help imme-
diately if acid has entered the
eyes. If battery fluid is accidentally
swallowed, immediately drink a
large amount of milk or water, and
seek medical attention immediate-ly.

Specifications 12-7
– CONTINUED –
1320AyCargo socket
1415AyPosition light
y Tail light
y Rear combination light
15Empty
1615AyIllumination
1715AySeat heaters
1810AyBackup light
197.5AyHeadlight right side relay
2010AyCigarette lighter socket
217.5AyStarter relay
2215AyAir conditioner
y Rear window defogger relay coil
2315AyRear wiper
y Rear window washer
2415AyAudio unit
y Clock
2515AySRS airbag system (Main)
2615AyPower window relay
2715AyBlower fan
Fuse panelFuse ratingCircuit
2815AyBlower fan
2915AyFog light
3030AyFront wiper
y Front wiper washer
317.5AyAuto air conditioner unit
y Integrated unit
327.5AyHeadlight left side relay
337.5AyABS/Vehicle dynamics control unit
Fuse panelFuse ratingCircuit

12-8 Specifications
„Fuse panel located in the engine compartment
A) FWD socket (AT vehicles – ex cept Turbo models and 3.0-liter
models)
B) Main fuse
1 2
B
3 45
67
8
910
11
A 12
13
14 1516
C00005
Fuse panelFuse ratingCircuit
130Ay ABS unit
y Vehicle dynamics control unit
225AyMain fan (3.0-liter models)
325AySub fan (Except 3.0-liter models)
425AyMain fan
520AyAudio
615AyHeadlight (right side)
715AyHeadlight (left side)
820AyBackup light
915AyHorn
1025AyRear window defogger
1115AyFuel pump
1215AyAutomatic transmission control unit
137.5AyEngine control unit
1415AyTurn and hazard warning flasher
1520AyParking switch
167.5AyAlternator

14-6 Index
N
New vehicle break-in driving the first 1,000 miles (1,600 km) ...................................................................... 8-2
O
Odometer .................................................................. 3-7, 3-11
Off road driving ................................................................... 8-6
Oil filter ........................................................................... 11-10 Oil level Engine ......................................................................... 11-9
Front differential gear (AT vehicles) .......................... 11-23
Manual transmission ... .......................................... ..... 11-20
Rear differential ......................................................... 11-24
Oil pressure warning light ................................................. 3-18
Outside mirrors ................................................................. 3-41
Outside temperature indicator .......................................... 3-27
Overheating engine ........... ............................................... 9-12
P Parking Brake stroke .............................................................. 11-32
Light switch .................................................................. 3-33
Periodic inspection . ............................................................ 8-4
Power
Door locking switches .................................................... 2-6
Seat ............................................................................... 1-4
Steering fluid ............................................................. 11-27
Windows ...................................................................... 2-19
Precautions against vehicle modification ................ 1-24, 1-61
Preparing to drive ............................................................... 7-7
Printed antenna .................................................................. 5-2 R
Rear
Combination lights ..................................................... 11-51
Differential gear oil ..................................................... 11-24
Gate ............................................................................. 2-24
Seats .............................................................................. 1-7
Rear seat
Folding down (Station wagon) ... .................................... 1-8
Rear window
Defogger button ........................................................... 3-38
Wiper and washer switch ............................................. 3-37
Recommended
Automatic transmission fluid ... ................................... 11-23
Brake fluid .................................................................. 11-28
Clutch fluid ................................................................. 11-29
OIL grade and viscosity ...................... 11-12, 11-13, 11-21,
11-24, 11-26
Power steering fluid ................................................... 11-27
Spark plugs ................................................................ 11-19
Remote keyless entry system ........................................... .. 2-7
Replacement Brake pad and lining .................................................. 11-31
Wiper blades ............. ................................................. 11-41
Replacing Air cleaner element ................. ................................... 11-17
Battery (remote keyless entry syst em) ........................... 2-7
Lost transmitters (keyless entry system) ...................... 2-11
Replacing bulbs .............................................................. 11-48
Cargo area light ......................................................... 11-55
Dome light .................................................................. 11-53
Door step light ............................................................ 11-54
Front fog light ............................................................. 11-50
