Seat, seatbelt and SRS airbags 1-9
– CONTINUED –
T
Rear windows side seating position
Sedan Station wagon
To raise the head restraint, pull it up.
To lower it, push the head restraint down
while pressing the release button on the
top of the seatback.
The head restraint should be adjusted so
that the center of the head restraint is clos-
est to the top of the occupant’s ears.
When the seats are not occupied, lower
the head restraints to improve rearward visibility. T
Rear center seating positionTo raise the head restraint, pull it up.
To lower it, push the head restraint down
while pressing the release button on the
top of the seatback.
When the rear center seating position is
occupied, place the head restraint in its
highest position. When the rear center
seating position is not occupied, lower the
The head restraint is not intended to
be used at the lowest position. Be-
fore sitting on the seat, raise the
head restraint to an appropriate po-
sition depending on your sitting
height.
200290
200284
The head restraint is not intended to
be used at the lowest position. Be-
fore sitting on the seat, raise the
head restraint to an appropriate po-
sition depending on your sitting
height.
200285

1-12 Seat, seatbelt and SRS airbags
Your vehicle is equipped with a crash
sensing and diagnostic module, which will
record the use of the seatbelt(s) by the
driver and front passenger when any of
the SRS frontal, side and curtain airbags
deploys. TInfants or small children
Use a child restraint system that is suit-
able for your vehicle. See information on
“Child restraint systems” section in this
chapter. T Children
If a child is too big for a child restraint sys- tem, the child should sit in the rear seat
and be restrained using the seatbelts. Ac- cording to accident st
atistics, children are
safer when properly restrained in the rear
seating positions than in the front seating
positions. Never allow a child to stand up
or kneel on the seat.
If the shoulder portion of the belt crosses
the face or neck, adjust the shoulder belt
anchor height (window-side seating posi-
tions only) and then if necessary move the
child closer to the belt buckle to help pro-
vide a good shoulder belt fit. Care must be
taken to securely place the lap belt as low
as possible on the hips and not on the
child’s waist. If the shoulder portion of the
belt cannot be properly positioned, a child
restraint system shou ld be used. Never
place the shoulder belt under the child’s
arm or behind the child’s back. T
Expectant mothers
Expectant mothers also need to use the
seatbelts. They should consult their doctor
for specific recommendations. The lap
belt should be worn securely and as low
as possible over the hips, not over the waist.
„ Emergency Locking Retrac- tor (ELR)
The driver’s seatbelt has an Emergency
Locking Retractor (ELR).
The emergency locking retractor allows
normal body movement but the retractor
locks automatically during a sudden stop,
impact or if you pull the belt very quickly out of the retractor.
NEVER INSTALL A REARWARD
FACING CHILD SEAT IN THE FRONT SEAT. DOING SO RISKS
SERIOUS INJURY OR DEATH TO
THE CHILD BY PLACING THE
CHILD’S HEAD TOO CLOSE TO
THE SRS AIRBAG.
According to accident statistics,
children are safer when properly
restrained in the rear seating posi-
tions than in the front seating po-
sitions. For instructions and pre-
cautions concerning the child re-
straint system, see the “Child re-
straint systems” section in this
chapter.
100100

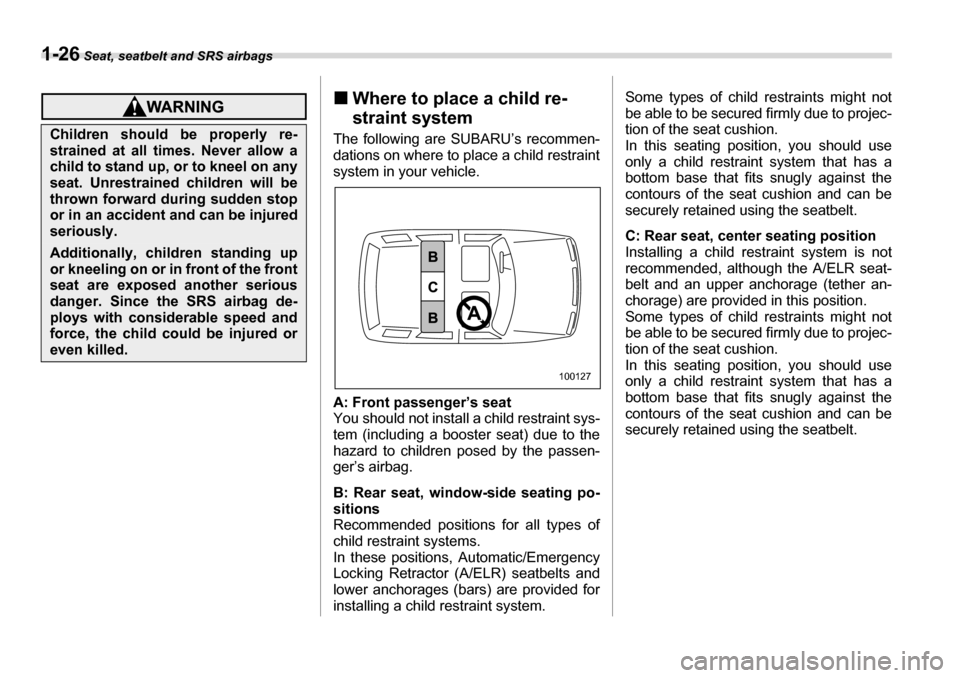

1-26 Seat, seatbelt and SRS airbags
„Where to place a child re-
straint system
The following are SUBARU’s recommen-
dations on where to place a child restraint
system in your vehicle.
A: Front passenger’s seat You should not instal l a child restraint sys-
tem (including a booster seat) due to the
hazard to children posed by the passen-
ger’s airbag.
B: Rear seat, window-side seating po-
sitions
Recommended positions for all types of
child restraint systems.
In these positions, Automatic/Emergency
Locking Retractor (A/ELR) seatbelts and
lower anchorages (bars) are provided for
installing a child restraint system. Some types of child
restraints might not
be able to be secured firmly due to projec-
tion of the seat cushion.
In this seating position, you should use
only a child restrain t system that has a
bottom base that fits snugly against the
contours of the seat cushion and can be
securely retained using the seatbelt.
C: Rear seat, center seating position
Installing a child rest raint system is not
recommended, although the A/ELR seat-
belt and an upper anchorage (tether an-
chorage) are provided in this position.
Some types of child restraints might not
be able to be secured firmly due to projec-
tion of the seat cushion.
In this seating position, you should use
only a child restrain t system that has a
bottom base that fits snugly against the
contours of the seat cushion and can be
securely retained using the seatbelt.
Children should be properly re-
strained at all times. Never allow a
child to stand up, or to kneel on any
seat. Unrestrained children will be
thrown forward during sudden stop
or in an accident and can be injured
seriously.
Additionally, children standing up
or kneeling on or in front of the front
seat are exposed another serious
danger. Since the SRS airbag de-
ploys with considerable speed and
force, the child could be injured or
even killed.
100127

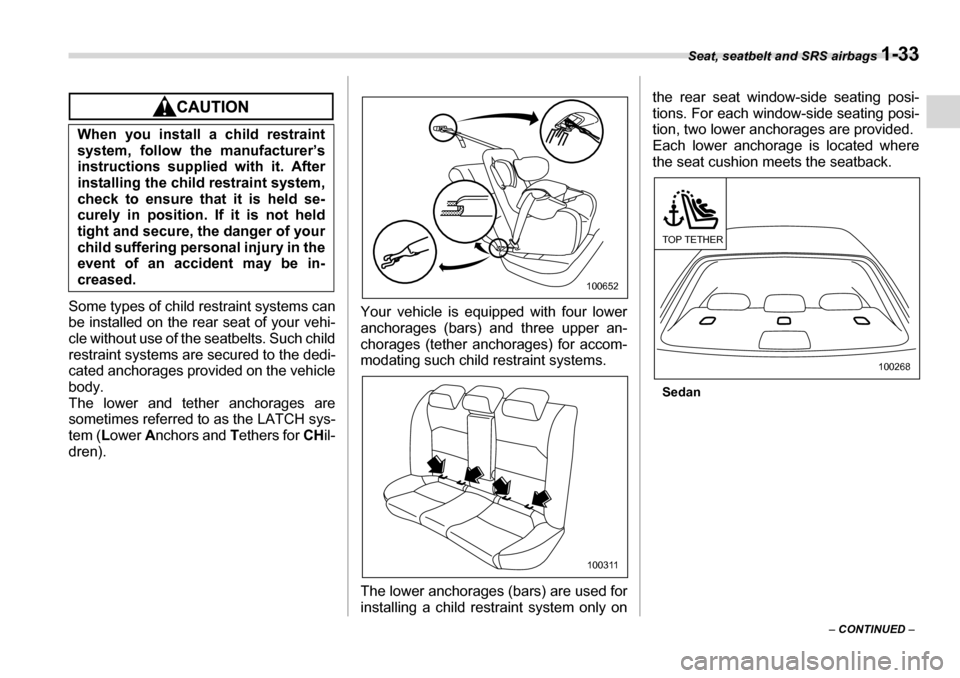

Seat, seatbelt and SRS airbags 1-33
– CONTINUED –
Some types of child restraint systems can
be installed on the rear seat of your vehi-
cle without use of the seatbelts. Such child
restraint systems are secured to the dedi-
cated anchorages provided on the vehicle
body.
The lower and tether anchorages are
sometimes referred to as the LATCH sys-tem ( Lower Anchors and Tethers for CHil-
dren). Your vehicle is equipped with four lower
anchorages (bars) and three upper an-
chorages (tether anchorages) for accom-modating such chil
d restraint systems.
The lower anchorages (bars) are used for
installing a child restraint system only on the rear seat window-side seating posi-
tions. For each window-side seating posi-
tion, two lower anchorages are provided.
Each lower anchorage is located where
the seat cushion meets the seatback.
Sedan
When you install a child restraint
system, follow the manufacturer’s
instructions supplied with it. After
installing the child restraint system,
check to ensure that it is held se-
curely in position. If it is not held
tight and secure, the danger of your
child suffering personal injury in the
event of an accident may be in-
creased.
100652
100311
TOP TETHER
100268

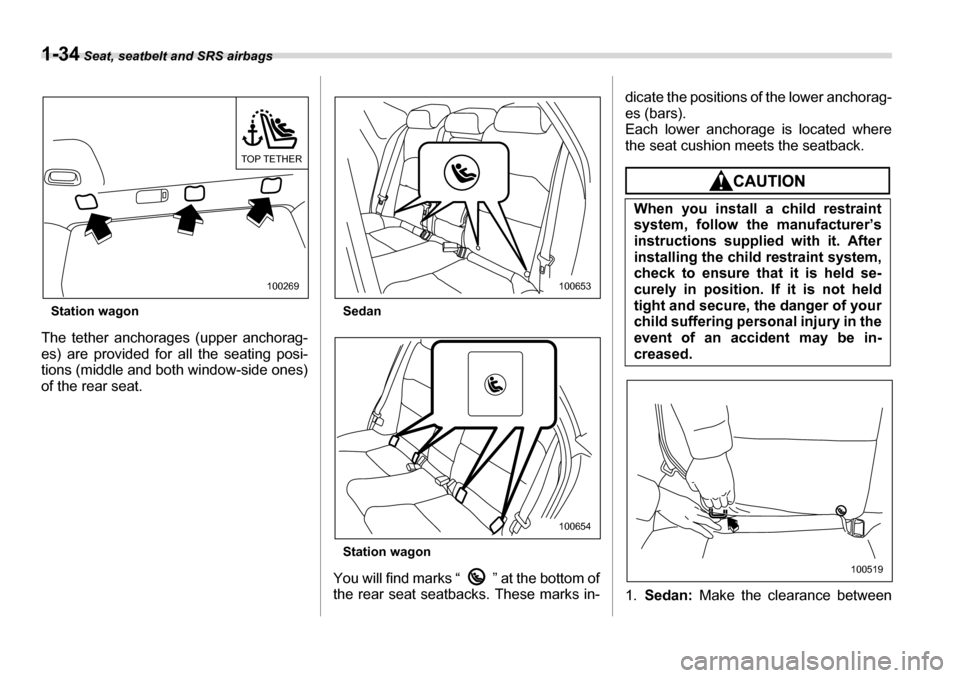

1-34 Seat, seatbelt and SRS airbags
Station wagon
The tether anchorages (upper anchorag-
es) are provided for all the seating posi-
tions (middle and both window-side ones)
of the rear seat. Sedan
Station wagon
You will find marks “ ” at the bottom of
the rear seat seatba cks. These marks in- dicate the positions of the lower anchorag-
es (bars).
Each lower anchorage is located where
the seat cushion meets the seatback.
0
1.
Sedan: Make the clearance between
TOP TETHER
100269100653
100654
When you install a child restraint
system, follow the manufacturer’s
instructions supplied with it. After
installing the child restraint system,
check to ensure that it is held se-
curely in position. If it is not held
tight and secure, the danger of your
child suffering personal injury in the
event of an accident may be in-
creased.
100519

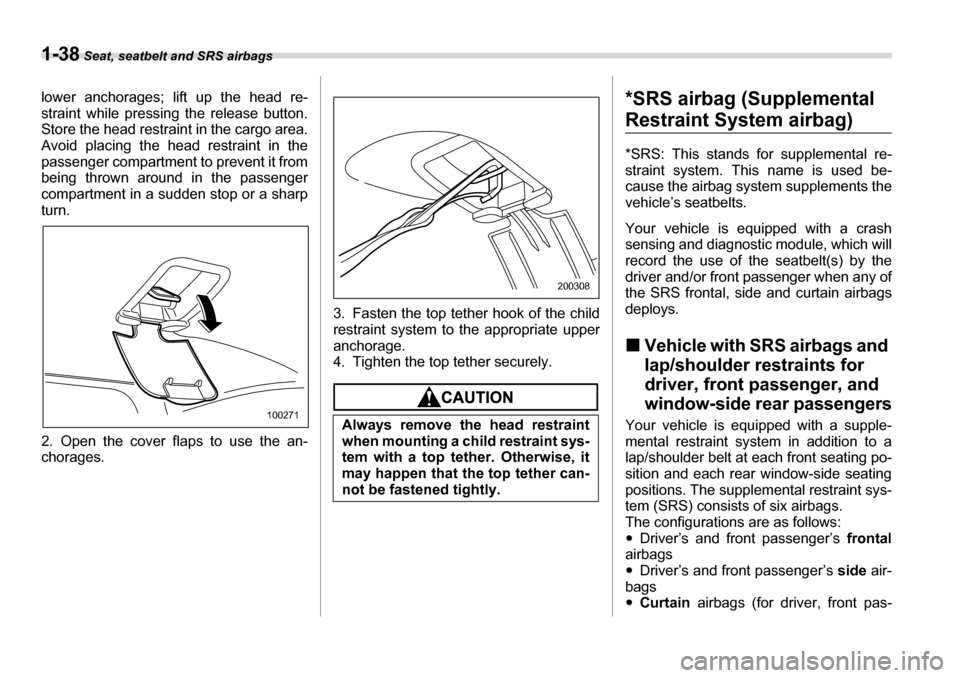

1-38 Seat, seatbelt and SRS airbags
lower anchorages; lift up the head re-
straint while pressing the release button.
Store the head restrain t in the cargo area.
Avoid placing the head restraint in the
passenger compartment to prevent it from
being thrown around in the passenger
compartment in a sudden stop or a sharp turn.
2. Open the cover flaps to use the an-
chorages. 3. Fasten the top tether hook of the child
restraint system to
the appropriate upper
anchorage.
4. Tighten the top tether securely.*SRS airbag (Supplemental
Restraint System airbag)
*SRS: This stands for supplemental re-
straint system. This name is used be-
cause the airbag system supplements the
vehicle’s seatbelts.
Your vehicle is equipped with a crash
sensing and diagnostic module, which will
record the use of the seatbelt(s) by the
driver and/or front passenger when any of
the SRS frontal, side and curtain airbags
deploys. „ Vehicle with SRS airbags and
lap/shoulder restraints for
driver, front passenger, and
window-side rear passengers
Your vehicle is equipped with a supple-
mental restraint system in addition to a
lap/shoulder belt at each front seating po-
sition and each rear window-side seating positions. The supplemental restraint sys-
tem (SRS) consists of six airbags.
The configurations are as follows: y Driver’s and front passenger’s frontal
airbags y Driver’s and front passenger’s side air-
bagsy Curtain airbags (for driver, front pas-
100271Always remove the head restraint
when mounting a child restraint sys-
tem with a top teth er. Otherwise, it
may happen that the top tether can-
not be fastened tightly.
200308

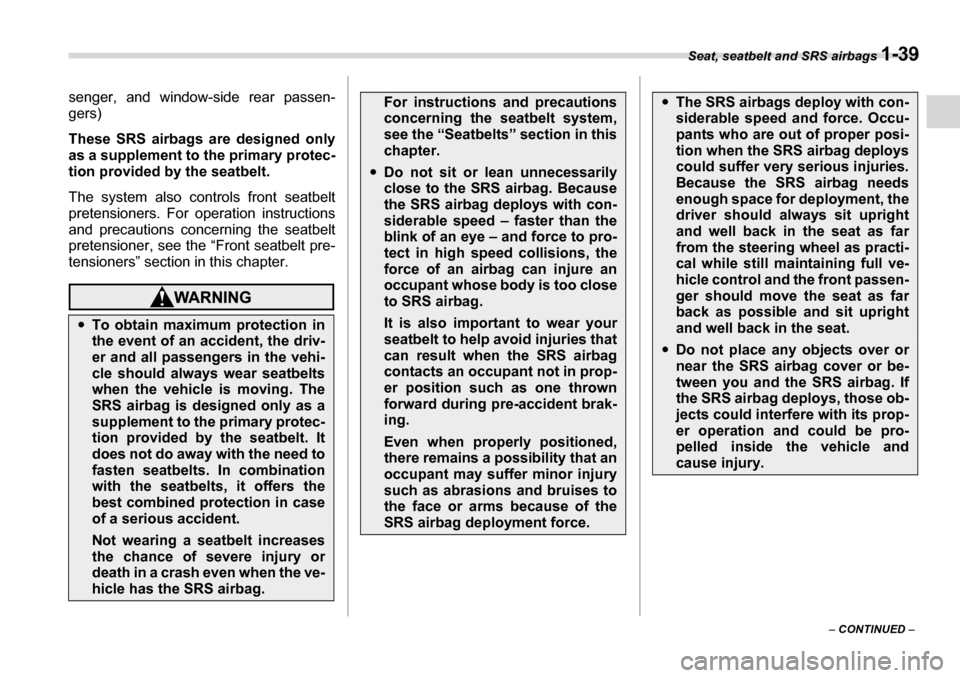

Seat, seatbelt and SRS airbags 1-39
– CONTINUED –
senger, and window-side rear passen-
gers)
These SRS airbags are designed only
as a supplement to the primary protec-
tion provided by the seatbelt.
The system also controls front seatbelt
pretensioners. For operation instructions
and precautions conc
erning the seatbelt
pretensioner, see the “Front seatbelt pre-
tensioners” section in this chapter.
yTo obtain maximum protection in
the event of an accident, the driv-
er and all passengers in the vehi-
cle should always wear seatbelts
when the vehicle is moving. The
SRS airbag is designed only as a
supplement to the primary protec-
tion provided by the seatbelt. It
does not do away with the need to
fasten seatbelts. In combination
with the seatbelts, it offers the
best combined protection in case
of a serious accident.
Not wearing a seatbelt increases
the chance of severe injury or
death in a crash even when the ve-
hicle has the SRS airbag.
For instructions and precautions
concerning the seatbelt system,
see the “Seatbelts” section in this
chapter.
yDo not sit or lean unnecessarily
close to the SRS airbag. Because
the SRS airbag deploys with con-
siderable speed – faster than the
blink of an eye – and force to pro-
tect in high speed collisions, the
force of an airbag can injure an
occupant whose body is too close to SRS airbag.
It is also important to wear your
seatbelt to help avoid injuries that
can result when the SRS airbag
contacts an occupant not in prop-
er position such as one thrown
forward during pre-accident brak-
ing.
Even when properly positioned,
there remains a possibility that an
occupant may suffer minor injury
such as abrasions and bruises to
the face or arms because of the
SRS airbag deployment force.
yThe SRS airbags deploy with con-
siderable speed and force. Occu-
pants who are out of proper posi-
tion when the SRS airbag deploys
could suffer very serious injuries.
Because the SRS airbag needs
enough space for deployment, the
driver should always sit upright
and well back in the seat as far
from the steering wheel as practi-
cal while still maintaining full ve-
hicle control and the front passen-
ger should move the seat as far
back as possible and sit upright
and well back in the seat.
yDo not place any objects over or
near the SRS airbag cover or be-
tween you and the SRS airbag. If
the SRS airbag deploys, those ob-
jects could interfere with its prop-
er operation and could be pro-
pelled inside the vehicle and
cause injury.

Seat, seatbelt and SRS airbags 1-53
– CONTINUED –
V
Examples of the types of accidents
in which the driver’s/driver’s and
front passenger’s SRS frontal air-
bag(s) will basically not deploy.
The driver’s and front passenger’s SRS
frontal airbags are designed basically not to deploy if the vehicle is struck from the
side or from behind, or if it rolls onto its
side or roof, or if it is involved in a low-
speed frontal collision.
1) First impact
2) Second impact
In an accident where the vehicle is impact-
ed more than once, the driver’s and/or
front passenger’s SRS frontal airbag(s)
will deploy only once on the first impact.
Example: In the case of a double collision,
first with another vehicle, then against a
concrete wall in immediate succession,
once either or both of the driver’s and front
passenger’s SRS frontal airbags is/are ac-
tivated on the first im pact, it/they will not
be activated on the second impact. „
SRS side airbag and SRS cur-
tain airbag
The SRS side airbag is stored in the door
side of each front seat seatback, which
bears an “SRS AIRBAG” label.
In a moderate to severe side impact colli-
sion, the SRS side airbag on the impacted
side of the vehicle deploys between the
occupant and the door panel and supple-
ments the seatbelt by reducing the impact
on the occupant’s chest and waist. The
SRS side airbag operates only for frontseat occupants.
The SRS curtain airbag on each side of
the cabin is stored in the roof side (be-
tween the front pillar and a point over the
rear seat). An “SRS AIRBAG” mark is lo-
cated at the top of each center pillar.
In a moderate to severe side impact colli-
sion, the SRS curtain airbag on the im-
pacted side of the vehicle deploys be-
tween the occupant and the side window
and supplements the seatbelt by reducing
the impact on the occupant’s head.
100279
2
1
100539
