2006 SSANGYONG REXTON rkstics

RKSTICS
undefined
8710-08
8710-08RKSTICS
GENERAL
1. SPECIFICATIONS
1) Electrical Performance
2) Characteristics of Radio Wave
0.0125 MHz
Channel width: below 12.5 KHz
Frequency bandwidth: below 8.5 KHz
Modulation method: FSK (Frequency Shift
Keying)
Receiving distance: Approx. 10 ~ 15 m (In
case there are not obstacles around the
system) 1.
2.
3.
4.
5.

undefined
8710-08
RKSTICS
3) Rated Load

RKSTICS
undefined
8710-08
4) Input Signals

undefined
8710-08
RKSTICS
5) Chattering of Input Signals
Vehicle speed input:
The vehicle speed is the average value of 4 pulse among 6 pulse inputs regardless of the
input for 1.0 second after IGI 1 ON. The time indicated in each function does not include the
vehicle speed calculating time.
20 ms target input:
Wiper motor A/S (parking) terminal
100 ms target input switch
All switches except wiper motor A/S (parking) terminal 1.
2.
3.
6) Time Tolerance
If not indicated, time tolerance will be 10%.
However, if less than 500 ms, time tolerance will be
100 ms.
The time indicated in each function does not include chattering processing time from switch
input changing point. 1.
2.

RKSTICS
undefined
8710-08
OVERVIEW AND OPERATION PROCESS
1. OVERVIEW
The RKSTICS (REKES + STICS (Super Time & Integrated Control System)) communicates
with the transmitter (remote controller) and other electronic systems to transmit and receive the
data.
The STICS also includes a diagnosis function that can inspect the error for related devices.
2. MAJOR CHANGES
Integration of Auto Light Sensor and Rain Sensor
The auto light sensor integrated rain sensor communicates with STICS.
Auto Washer Coupled Wiper
When pressing the auto washer switch, the washer fluid is sprayed on the windshield and the
wiper sweeps off 4 times, and then the washer fluid is sprayed and the wiper sweeps off 3
times again.
Communication with SPWM
The communication with SPWM is added due to the introduction of easy access function to
SPWM.

undefined
8710-08
RKSTICS
3. FUNCTIONS
Wiper and Washer Operations

RKSTICS
undefined
8710-08

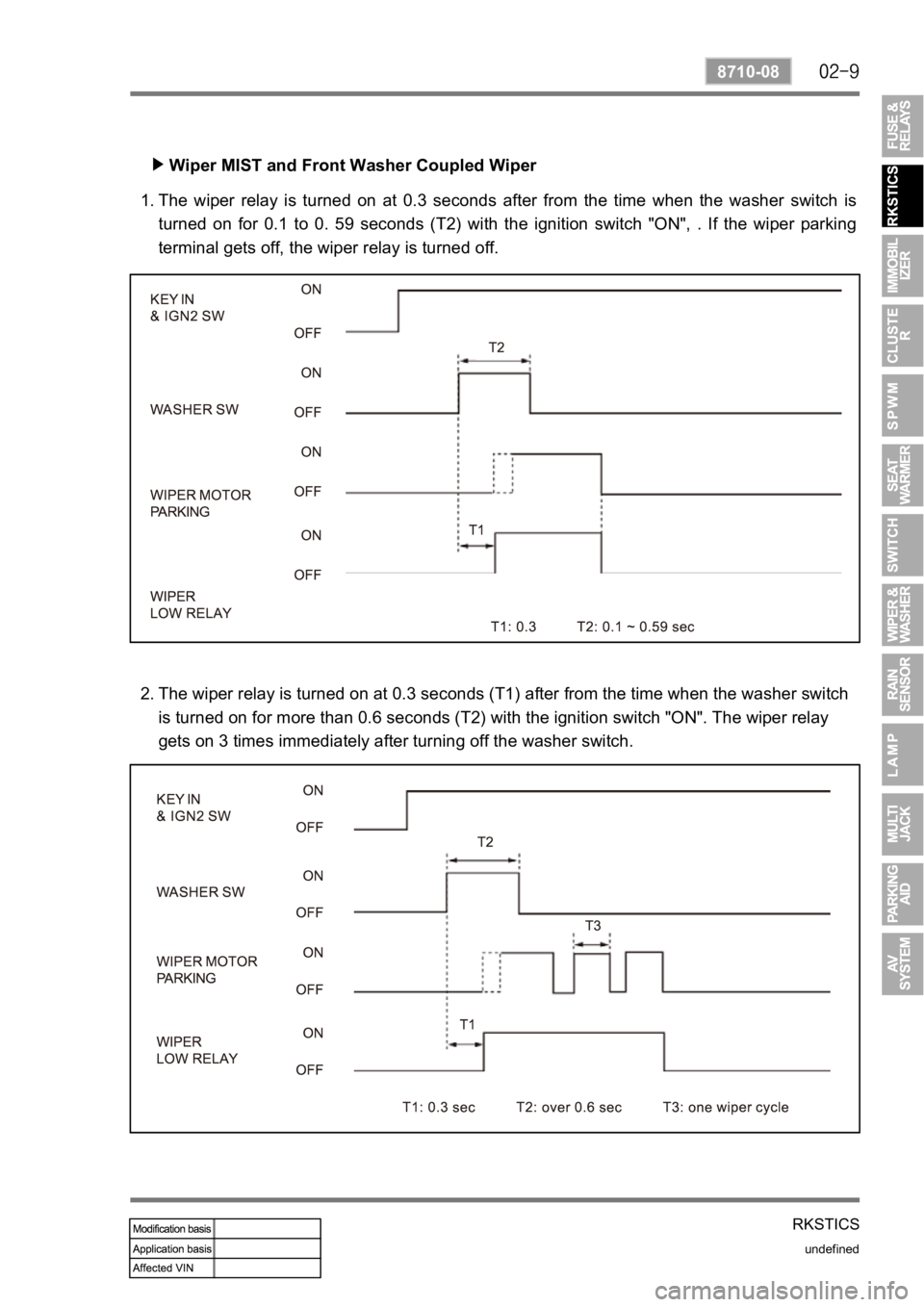

Wiper MIST and Front Washer Coupled Wiper
The wiper relay is turned on at 0.3 seconds after from the time when the washer switch is
turned on for 0.1 to 0. 59 seconds (T2) with the ignition switch "ON", . If the wiper parking
terminal gets off, the wiper relay is turned off. 1.
The wiper relay is turned on at 0.3 seconds (T1) after from the time when the washer switch
is turned on for more than 0.6 seconds (T2) with the ignition switch "ON". The wiper relay
gets on 3 times immediately after turning off the washer switch. 2.

undefined
8710-08
RKSTICS
When the washer switch is turned on for more than 0.6 seconds during the wiper operation
by AUTO switch, the wiper operates three times. When it is turned on for a certain period o
f
time (0.1 to 0.59 seconds), the wiper operates once. 3.
