2006 SSANGYONG REXTON engine

ENGINE INTAKE SYSTEM
undefined
1713-08
0000-00ENGINE INTAKE SYSTEM
GENERAL
1. SPECIFICATIONS
(1) Fastener Tightening Specifications

undefined
8710-08
RKSTICS
Speed Sensitive AUTO Wiper
For RKSTICS without the rain sensor, perform the following operation:
1. Controls the wiper intermittent operation by the values from the vehicle speed
and the volume.
Calculates and converts the Intermittent interval automatically by using the
AUTO
VOLUME when the ignition switch is in the "ON" position and the AUTO switch is in the
"ON" position.
The wipers are operated in vehicle speed sensitive mode when turning the AUTO switch to
the "ON" position with the engine running or starting the engine with the AUTO switch
positioned to "ON".
Intermittent interval (at 0 km/h): 3
0.5 ~ 19 2 seconds -
-
-
2. Vehicle speed calculation
[Input the vehicle speed]
It is calculated by the numbers of input pulses for one second.
1 [PULSE/SEC] =
1.41 [km/h] 60 [km/h] x 60 [sec]
637 x 4 PULSE
3. VOLUME calculation
The pause time of the vehicle speed sensitive AUTO wiper is calculated by the
AUTO
volume (input voltage). Each level has the hysteresis. -
4. Pause time calculation
- Pause time: the duration that wipers are stopped at parking position
- Elapsed time: the duration after the wiper motor started to operate from parking position
- The pause time is calculated by the vehicle speed and the VOLUME.

RKSTICS
undefined
8710-08
Windshield heated glass (deicer) switch
The front defogger output is "ON" when turning "ON" the front defogger (heated glass)
switch while the ignition switch is "ON" (with engine running).
The output stops when turning on the front defogger (heated glass) switch again during its
operation.
The output is "ON" only for 6 minutes when turning "ON" the front defogger (heated glass)
switch within 10 minutes after completion of output for 12 minutes. This can be done only
once.
The output is "OFF" when the ignition switch is "OFF". 1.
2.
3.
4.

undefined
8710-08
RKSTICS

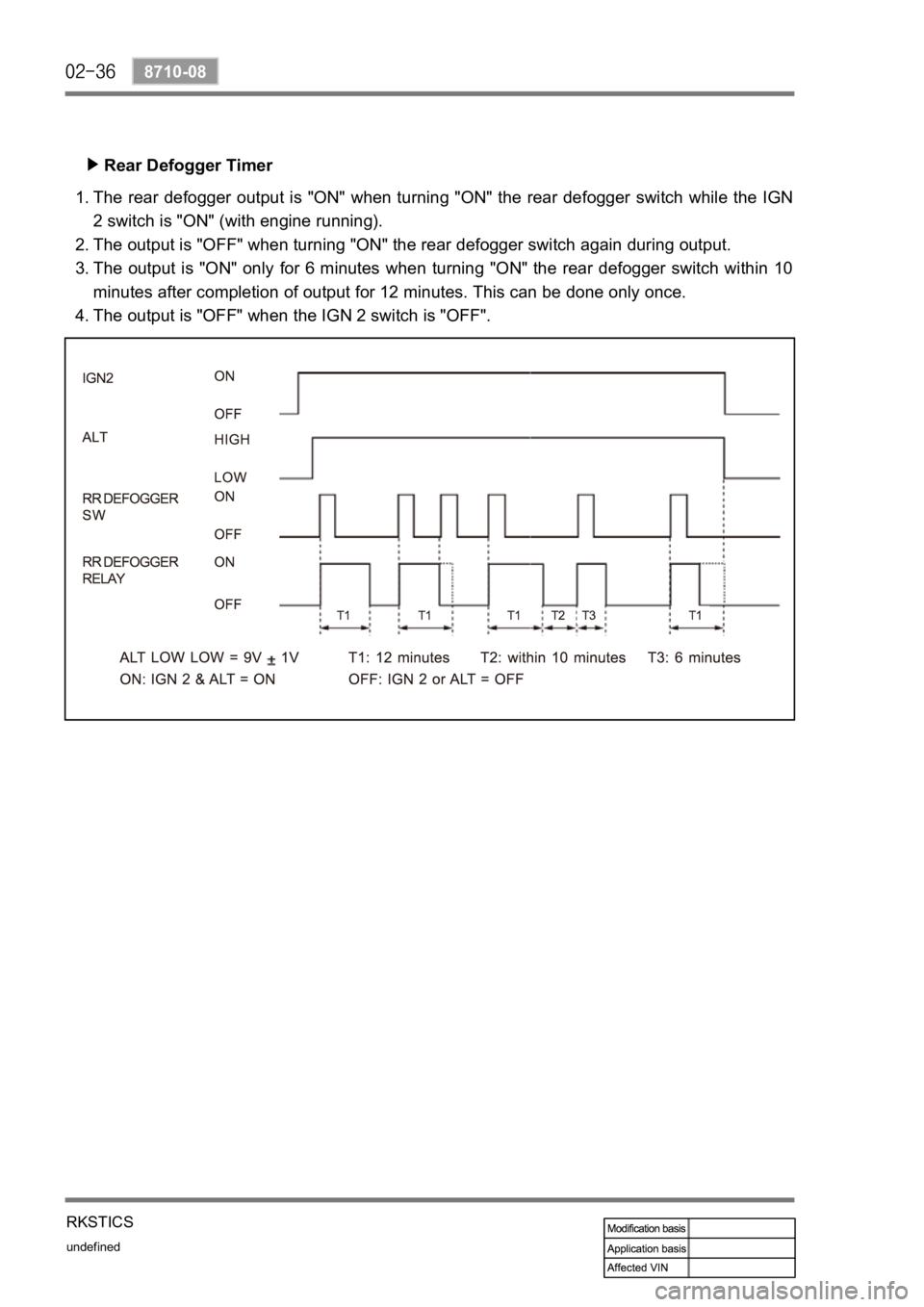

Rear Defogger Timer
The rear defogger output is "ON" when turning "ON" the rear defogger switch while the IGN
2 switch is "ON" (with engine running).
The output is "OFF" when turning "ON" the rear defogger switch again during output.
The output is "ON" only for 6 minutes when turning "ON" the rear defogger switch within 10
minutes after completion of output for 12 minutes. This can be done only once.
The output is "OFF" when the IGN 2 switch is "OFF". 1.
2.
3.
4.

undefined
8710-08
RKSTICS
Time Lag Power Window Control
The power window relay output is "ON" when turning on the ignition switch.
The power window relay output is "ON" for 30 seconds when turning off the ignition switch.
The power window relay output is "OFF" when opening the driver's door or the passenger's
door.
The power window relay is turned "OFF" when receiving the remote control key lock signal
(armed mode) during its extended operation period of 30 seconds. 1.
2.
3.
Definition of Terms
DOOR OPEN and DOOR CLOSE
DOOR OPEN: Any of all door switches (including hood and tailgate) is in "OPEN" position.
DOOR CLOSE: All door switches (including hood and tailgate) are in "CLOSE" position. 1.
The door lock/unlock operation does not affect the engine hood.
DOOR LOCK: Indicates that all door lock switches (including tailgate) are in LOCK positions.
DOOR UNLOCK: Indicates that any of all door lock switches (including tailgate) is in UNLOCK
position. 2.
