2006 SATURN VUE Owners Manual

The lever on the right side of the steering column
operates the windshield wipers. Push up or pull down
on the lever to place it in one of the following positions.
MIST or
8(Mist):Pull the lever down and release
it for a single wiping cycle. The lever will return to
its original position. For more cycles, hold the lever
down before releasing it.
OFF or
9(Off):Move the lever to this position to
turn off the wipers.
INT or
&(Intermittent):Move the lever to this
position to set a delay between wipes. To set for a
shorter or longer delay between wipes, turn the band
with the arrow pointing to the numbers (1, 2, or 3).
Select 3 for the most frequent movement; select 1 for
the least frequent.LO or
OO(Low):Move the lever to this position for
slow, steady wiping cycles.
HI or
OOOO(High):Move the lever to this
position for rapid wiping cycles.
Windshield Washer
{CAUTION:
In freezing weather, do not use your washer
until the windshield is warmed. Otherwise the
washer uid can form ice on the windshield,
blocking your vision.
Pull the windshield wiper lever toward you to operate
the windshield wipers. Washer uid will squirt onto
the windshield and the wipers will run for a few cycles
to clear the windshield. For more wash cycles, pull
the lever toward you and hold it there. Canada
3-9
ProCarManuals.com

Rear Window Wiper/Washer
The band on the wiper lever with the smaller arrow
operates the rear wiper/washer.
9(Off):Turn the band to this position to turn off
the rear wiper.
Z(Rear Wiper):Turn the band with the smaller
arrow to this position to turn on the rear wiper. To set
for a shorter or longer delay between wipes, turn
the other band with the larger arrow pointing to the
numbers (1, 2, or 3). Select 3 for the most frequent
movement; select 1 for the least frequent. The band
with the arrow pointing to the numbers (1, 2, or 3)
will affect both the front and rear wipers if they are
on at the same time.
Y(Wash):Turn and hold the band in this position
to spray washer uid on the rear window. The rear wiper
will also come on. Release the band when enough
uid has been sprayed on the window. The rear wiper
will run a few additional times after you release it.
The rear window washer uses the same uid bottle as
the windshield washer. However, the rear window
washer will run out of uid before the windshield washer.
If you can wash your windshield but not your rear
window, check the uid level.
Cruise Control
With cruise control, you can maintain a speed of
about 25 mph (40 km/h) or more without keeping
your foot on the accelerator. This can really help on
long trips. Cruise control does not work at speeds
below 25 mph (40 km/h).
{CAUTION:
Cruise control can be dangerous where you
cannot drive safely at a steady speed. So, do
not use your cruise control on winding roads
or in heavy traffic.
Cruise control can be dangerous on slippery
roads. On such roads, fast changes in tire
traction can cause excessive wheel slip, and
you could lose control. Do not use cruise
control on slippery roads.
3-10
ProCarManuals.com

Setting Cruise Control
{CAUTION:
If you leave your cruise control on when you
are not using cruise, you might hit a button
and go into cruise when you do not want to.
You could be startled and even lose control.
Keep the cruise control switch off until you
want to use cruise control.
The cruise control
buttons are located
on the steering wheel.
J(On/Off):Press this button to turn the cruise
control system on and off. There is a indicator light
on the button that will come on when cruise control
is active.
RES+ (Resume):Press this button to resume a set
speed and to accelerate the speed.
SET−(Set):Press this button to set a speed and to
decrease the speed.
[(Cancel):Press this button to cancel cruise control.
To set a speed do the following:
1. Press the on/off symbol to turn cruise control on.
The indicator light on the button will come on.
2. Get to the speed you want.
3. Press the SET−button and release it.
4. Take your foot off the accelerator pedal.
When the brakes are applied, the cruise control
shuts off.
3-11
ProCarManuals.com

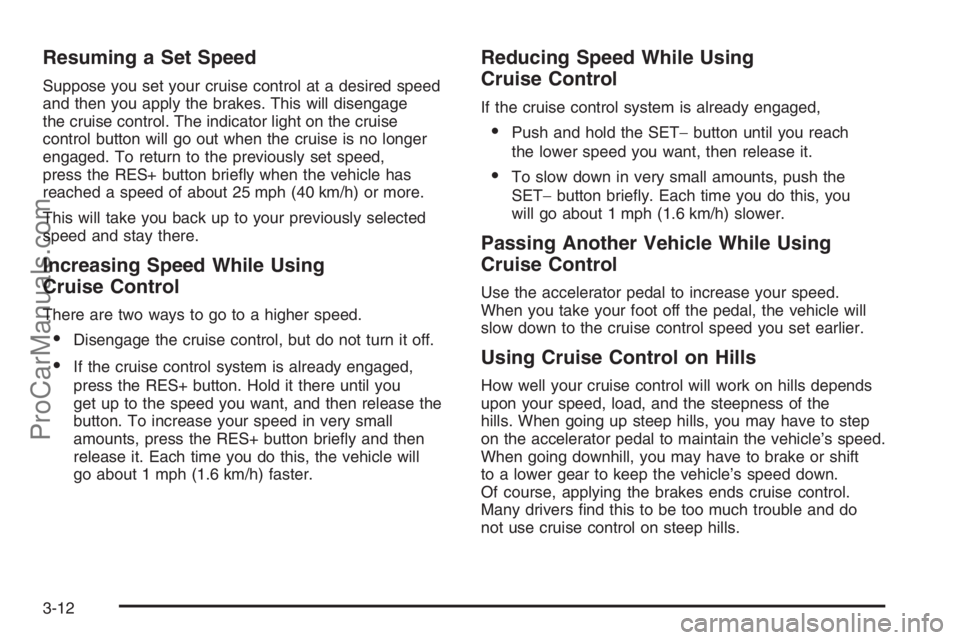

Resuming a Set Speed
Suppose you set your cruise control at a desired speed
and then you apply the brakes. This will disengage
the cruise control. The indicator light on the cruise
control button will go out when the cruise is no longer
engaged. To return to the previously set speed,
press the RES+ button briey when the vehicle has
reached a speed of about 25 mph (40 km/h) or more.
This will take you back up to your previously selected
speed and stay there.
Increasing Speed While Using
Cruise Control
There are two ways to go to a higher speed.
Disengage the cruise control, but do not turn it off.
If the cruise control system is already engaged,
press the RES+ button. Hold it there until you
get up to the speed you want, and then release the
button. To increase your speed in very small
amounts, press the RES+ button briey and then
release it. Each time you do this, the vehicle will
go about 1 mph (1.6 km/h) faster.
Reducing Speed While Using
Cruise Control
If the cruise control system is already engaged,
Push and hold the SET−button until you reach
the lower speed you want, then release it.
To slow down in very small amounts, push the
SET−button briey. Each time you do this, you
will go about 1 mph (1.6 km/h) slower.
Passing Another Vehicle While Using
Cruise Control
Use the accelerator pedal to increase your speed.
When you take your foot off the pedal, the vehicle will
slow down to the cruise control speed you set earlier.
Using Cruise Control on Hills
How well your cruise control will work on hills depends
upon your speed, load, and the steepness of the
hills. When going up steep hills, you may have to step
on the accelerator pedal to maintain the vehicle’s speed.
When going downhill, you may have to brake or shift
to a lower gear to keep the vehicle’s speed down.
Of course, applying the brakes ends cruise control.
Many drivers nd this to be too much trouble and do
not use cruise control on steep hills.
3-12
ProCarManuals.com

Ending Cruise Control
There are three ways to disengage the cruise control:
Step lightly on the brake pedal or clutch; when
cruise control disengages, the indicator light on
the cruise control button will go out.
Press the on/off button, this will turn off the cruise
control system.
Press the cancel button.
Erasing Speed Memory
When you turn off the cruise control or the ignition,
your cruise control set speed memory is erased.
Headlamps
The exterior lamp control is located on the turn
signal/multifunction lever.
O(Exterior Lamp Control):Turn the control with
this symbol on it to operate the exterior lamps.The exterior lamp control has the following
three positions:
AUTO (Automatic):Turn the control to this position to
put the headlamps in automatic mode. AUTO mode
will turn the exterior lamps on and off depending upon
how much light is available outside of the vehicle.
;(Parking Lamps):Turn the control to this position
to turn on the parking lamps together with the following:
Sidemarker Lamps
Taillamps
License Plate Lamps
Instrument Panel Lights
53(Headlamps):Turning the control to this
position turns on the headlamps, together with the
previously listed lamps and lights.
Lamps On Reminder
If you open the driver’s door with the ignition off and
the lamps on, you will hear a warning chime.
3-13
ProCarManuals.com

Daytime Running Lamps (DRL)
Daytime Running Lamps (DRL) can make it easier for
others to see the front of your vehicle during the
day. DRL can be helpful in many different driving
conditions, but they can be especially helpful in the short
periods after dawn and before sunset. Fully functional
daytime running lamps are required on all vehicles
rst sold in Canada.
The DRL system will make your low-beam headlamps
come on at a reduced brightness in daylight when
the following conditions are met:
The ignition is on,
the exterior lamp band is in AUTO,
the transaxle is not in PARK (P),
the light sensor determines it is daytime, and
the parking brake is released.When the DRL are on, the low-beam headlamps will be
on at a reduced brightness. The taillamps, sidemarker
and other lamps will not be on. The instrument panel will
not be lit up either.
When you turn the exterior lamp band to the headlamp
position, your regular headlamps will come on. The
other lamps that come on with your headlamps will also
come on.
When you turn off the headlamps, the regular lamps will
go off, and your low-beam headlamps will come on to
the reduced brightness.
To idle your vehicle with the DRL off, move the shift
lever to PARK (P). The DRL will stay off until you move
the shift lever out of PARK (P). To override the DRL
on manual transaxle vehicles, you must set the parking
brake while the ignition is off and then start your
vehicle. The DRL will stay off until you release the
parking brake.
As with any vehicle, you should turn on the regular
headlamp system when you need it.
3-14
ProCarManuals.com

Automatic Headlamp System
When it is dark enough outside, the headlamps will
come on automatically.
Your vehicle has a light
sensor located on top of
the instrument panel.
Make sure it is not
covered, or the headlamps
will be on when you
don’t need them.
The system may also turn on the headlamps when
driving through a parking garage or tunnel.
Fog Lamps
If your vehicle has this feature, use your fog lamps for
better visibility in foggy or misty conditions.
The button for your fog
lamps is located on the
instrument panel above
the radio.
Push the button to turn the fog lamps on or off.
When using fog lamps, the parking lamps or low-beam
headlamps must be on.
A light on the button will come on when the fog lamps
are on. Fog lamps will go off whenever the high-beam
headlamps are turned on. When the high-beam
headlamps are turned off, the fog lamps will come
on again.
Some localities have laws that require the headlamps
to be on along with the fog lamps.
3-15
ProCarManuals.com

Interior Lamps
The liftgate lamps are located on the bottom left and
right corner of the liftgate. They will come on when
the liftgate or any door is opened. The liftgate lamps
can be controlled by the dome lamp switch. See
Dome Lamp on page 3-16.
Instrument Panel Brightness
This feature controls the brightness of the instrument
panel lights.
The thumbwheel for
this feature is located
on the center of the
instrument panel.
Turn the thumbwheel to the right to brighten the lights
or to the left to dim them.
Dome Lamp
The dome lamp switch has three positions.
*(Off):The lamp will not come on as long as the
switch is in this position.
1(Automatic):The lamp will come on when a door
is opened. SeeEntry Lighting on page 3-16.
+(On):The lamp will stay on as long as the switch
is in this position.
Entry Lighting
If the dome lamp is in the AUTO position, the lamps
inside your vehicle will come on when any door is
opened. In addition, the lights will come on when the
remote keyless entry unlock button is pressed. It
will stay on for 20 seconds or until a door is opened.
After the door is opened the lights will remain on
and stay on for 20 seconds after the doors are closed,
or until you put the key in the ignition and turn the
key to RUN. The lights will then gradually dim until it
is no longer lit.
3-16
ProCarManuals.com
