Outlet Adjustment
Use the louvers located on the air outlets to change
the direction of the airow.
Operation Tips

Clear away any ice, snow, or leaves from the air
inlets at the base of the vehicle that may block
the ow of air into your vehicle.
Use of non-GM approved hood deectors may
adversely affect the performance of the system.
Keep the path under the front seats clear of
objects to help circulate the air inside of your
vehicle more effectively.
Passenger Compartment Air Filter
The passenger compartment air is routed through
a passenger compartment lter. The lter removes
certain particles from the air, including pollen and dust
particles. Reductions in airow, which may occur
more quickly in dusty areas, indicate that the lter
needs to be replaced.The lter should be replaced as part of routine
scheduled maintenance. SeeScheduled Maintenance
on page 6-4for replacement intervals. To nd out
what type of lter to use, seeNormal Maintenance
Replacement Parts on page 6-16.
The passenger compartment air lter can be accessed
from under the hood.
1. Remove the push
pins from the air lter
access panel.
2. Remove the air lter access panel.
3-22
ProCarManuals.com

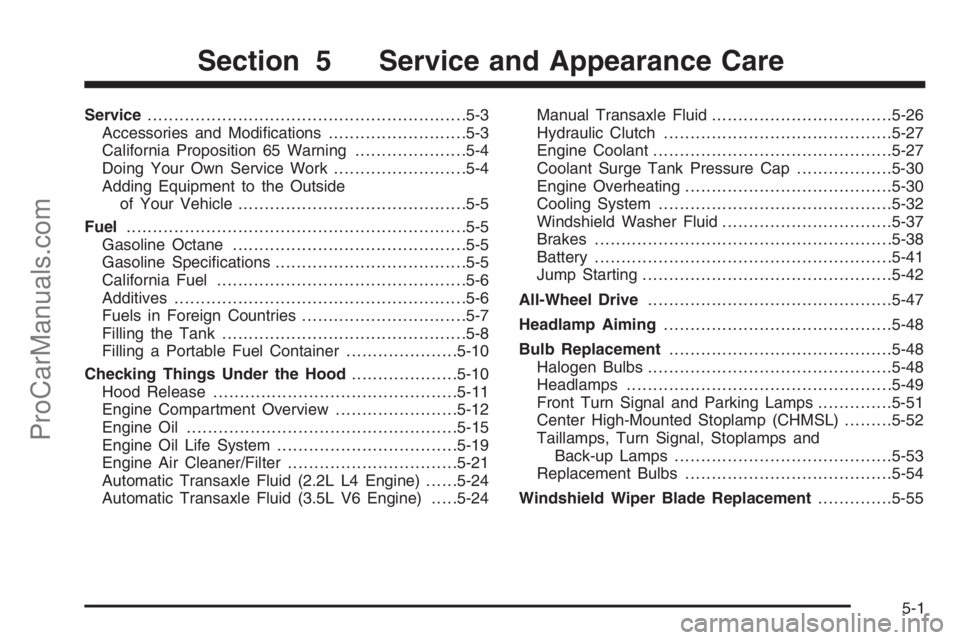

Service............................................................5-3
Accessories and Modications..........................5-3
California Proposition 65 Warning.....................5-4
Doing Your Own Service Work.........................5-4
Adding Equipment to the Outside
of Your Vehicle...........................................5-5
Fuel................................................................5-5
Gasoline Octane............................................5-5
Gasoline Specications....................................5-5
California Fuel...............................................5-6
Additives.......................................................5-6
Fuels in Foreign Countries...............................5-7
Filling the Tank..............................................5-8
Filling a Portable Fuel Container.....................5-10
Checking Things Under the Hood....................5-10
Hood Release..............................................5-11
Engine Compartment Overview.......................5-12
Engine Oil...................................................5-15
Engine Oil Life System..................................5-19
Engine Air Cleaner/Filter................................5-21
Automatic Transaxle Fluid (2.2L L4 Engine)......5-24
Automatic Transaxle Fluid (3.5L V6 Engine).....5-24Manual Transaxle Fluid..................................5-26
Hydraulic Clutch...........................................5-27
Engine Coolant.............................................5-27
Coolant Surge Tank Pressure Cap..................5-30
Engine Overheating.......................................5-30
Cooling System............................................5-32
Windshield Washer Fluid................................5-37
Brakes........................................................5-38
Battery........................................................5-41
Jump Starting...............................................5-42
All-Wheel Drive..............................................5-47
Headlamp Aiming...........................................5-48
Bulb Replacement..........................................5-48
Halogen Bulbs..............................................5-48
Headlamps..................................................5-49
Front Turn Signal and Parking Lamps..............5-51
Center High-Mounted Stoplamp (CHMSL).........5-52
Taillamps, Turn Signal, Stoplamps and
Back-up Lamps.........................................5-53
Replacement Bulbs.......................................5-54
Windshield Wiper Blade Replacement..............5-55
Section 5 Service and Appearance Care
5-1
ProCarManuals.com

A. Engine Air Cleaner/Filter. SeeEngine Air
Cleaner/Filter on page 5-21.
B. Engine Oil Dipstick. See “Checking Engine Oil”
underEngine Oil on page 5-15.
C. Engine Oil Fill Cap. See “When to Add Engine Oil”
underEngine Oil on page 5-15.
D. Remote Negative (−) Terminal. SeeJump Starting
on page 5-42.
E. Brake/Clutch Cylinder Fluid. SeeBrakes on
page 5-38andHydraulic Clutch on page 5-27.F. Underhood Fuse Block. SeeUnderhood Fuse Block
on page 5-96.
G. Battery. SeeBattery on page 5-41.
H. Remote Positive (+) Terminal. SeeJump Starting
on page 5-42.
I. Engine Coolant Surge Tank. See “Checking Coolant”
underEngine Coolant on page 5-27.
J. Windshield Washer Fluid Reservoir. See “Adding
Washer Fluid” underWindshield Washer Fluid
on page 5-37.
5-13
ProCarManuals.com

A. Engine Air Cleaner/Filter. SeeEngine
Air Cleaner/Filter on page 5-21.
B. Engine Oil Dipstick (Out of View). See “Checking
Engine Oil” underEngine Oil on page 5-15.
C. Engine Oil Fill Cap (Out of View). See “When to
Add Engine Oil” underEngine Oil on page 5-15.
D. Remote Negative (−) Terminal. SeeJump Starting
on page 5-42.
E. Battery. SeeBattery on page 5-41.
F. Underhood Fuse Block. SeeUnderhood Fuse
Block on page 5-96.
G. Remote Positive (+) Terminal (Out of View).
SeeJump Starting on page 5-42.
H. Engine Coolant Surge Tank. See “Checking Coolant”
underEngine Coolant on page 5-27.
I. Windshield Washer Fluid Reservoir. See “Adding
Washer Fluid” underWindshield Washer Fluid
on page 5-37.Engine Oil
Checking Engine Oil
It is a good idea to check your engine oil every time you
get fuel. In order to get an accurate reading, the oil
must be warm and the vehicle must be on level ground.
The engine oil dipstick handle is a yellow loop for
the 2.2L L4 engine and an orange loop for the
3.5L V6 engine. SeeEngine Compartment Overview
on page 5-12for the location of the engine oil dipstick.
1. Turn off the engine and give the oil several
minutes to drain back into the oil pan. If you do
not do this, the oil dipstick might not show the
actual level.
2. Pull out the dipstick and clean it with a paper towel
or cloth, then push it back in all the way. Remove it
again, keeping the tip down, and check the level.
5-15
ProCarManuals.com

Engine Air Cleaner/Filter
SeeEngine Compartment Overview on page 5-12for
the location of the engine air cleaner/lter.
When to Inspect the Engine
Air Cleaner/Filter
Inspect the air cleaner/lter at the MaintenanceII
intervals and replace it at the rst oil change
after each 50,000 mile (83 000 km) interval. See
Scheduled Maintenance on page 6-4for more
information. If you are driving in dusty/dirty conditions,
inspect the lter at each engine oil change.
How to Inspect the Engine
Air Cleaner/Filter
To inspect the air cleaner/lter remove the lter from
the vehicle and lightly shake the lter to release
loose dust and dirt. If the lter remains caked with
dirt, a new lter is required.To inspect or replace the engine air cleaner/lter,
do the following:
1. Unscrew the clamp on the air duct hose.
5-21
ProCarManuals.com

Scheduled Maintenance
Service MaintenanceIMaintenanceII
Change engine oil and lter. SeeEngine Oil on page 5-15. Reset oil life system.
SeeEngine Oil Life System on page 5-19.An Emission Control Service.••
Visually check for any leaks or damage.See footnote (j).••
Inspect engine air cleaner lter. If necessary, replace lter.
SeeEngine Air Cleaner/Filter on page 5-21.See footnote (l).•
Rotate tires and check ination pressures and wear. SeeTire Inspection and
Rotation on page 5-63and “Tire Wear Inspection” inAt Least Once a Month
on page 6-11.••
Inspect brake system.See footnote (a).••
Check engine coolant and windshield washer uid levels and add uid
as needed.••
Perform any needed additional services. See “Additional Required Services”
in this section.••
Inspect suspension and steering components.See footnote (b).•
Inspect engine cooling system.See footnote (c).•
Inspect wiper blades.See footnote (d).•
Inspect restraint system components.See footnote (e).•
Lubricate body components.See footnote (f).•
Replace passenger compartment air lter.See footnote (k).•
L4 engine: Inspect throttle system.See footnote (g).•
6-5
ProCarManuals.com

Additional Required Services
The following services should be performed at the rst maintenance service (IorII) after the indicated miles (kilometers)
shown for each item.
Additional Required Services
Service and Miles (Kilometers)25,000
(40 000)50,000
(80 000)75,000
(120 000)100,000
(160 000)125,000
(200 000)150,000
(240 000)
Inspect fuel system for damage
or leaks.• •••••
Inspect exhaust system for loose
or damaged components.• •••••
Replace engine air cleaner lter.
SeeEngine Air Cleaner/Filter
on page 5-21.•••
L4 engine: Change automatic
transaxle uid (severe service).
See footnote (h).•••
L4 engine: Change automatic
transaxle uid (normal service).•
V6 engine: Change automatic
transaxle uid (severe service).
See footnote (h).• •••••
V6 engine: Change automatic transaxle
uid (normal service).See footnote (m).••
6-6
ProCarManuals.com
