2006 SATURN VUE Owners Manual

If you have had a crash, do you need new belts or
LATCH system parts?
After a very minor collision, nothing may be necessary.
But if the belts were stretched, as they would be if worn
during a more severe crash, then you need new parts.
If the LATCH system was being used during a more
severe crash, you may need new LATCH system parts.
If belts are cut or damaged, replace them. Collision
damage also may mean you will need to have LATCH
system, safety belt or seat parts repaired or replaced.
New parts and repairs may be necessary even if the belt
or LATCH system was not being used at the time of
the collision.
If an airbag inates, you will need to replace airbag
system parts. See the part on the airbag system earlier
in this section.If the frontal airbags inate you will also need to replace
the driver and front passenger’s safety belt retractor
assembly. Be sure to do so. Then the new retractor
assembly will be there to help protect you in a collision.
After a crash you may need to replace the driver and
front passenger’s safety belt retractor assemblies, even
if the frontal airbags have not deployed. The driver
and front passenger’s safety belt retractor assemblies
contain the safety belt pretensioners. Have your
safety belt pretensioners checked if your vehicle has
been in a collision, or if your airbag readiness light stays
on after you start your vehicle or while you are driving.
SeeAirbag Readiness Light on page 3-28.
1-75
ProCarManuals.com

✍NOTES
1-76
ProCarManuals.com

Keys...............................................................2-2
Remote Keyless Entry System.........................2-3
Remote Keyless Entry System Operation...........2-4
Doors and Locks.............................................2-8
Door Locks....................................................2-8
Power Door Locks..........................................2-8
Delayed Locking.............................................2-9
Programmable Automatic Door Locks................2-9
Rear Door Security Locks..............................2-10
Lockout Protection........................................2-11
Liftgate........................................................2-11
Windows........................................................2-12
Power Windows............................................2-13
Sun Visors...................................................2-13
Theft-Deterrent Systems..................................2-14
Passlock
®....................................................2-14
Starting and Operating Your Vehicle................2-15
New Vehicle Break-In....................................2-15
Ignition Positions..........................................2-15
Starting the Engine.......................................2-16
Engine Coolant Heater..................................2-18
Automatic Transaxle Operation.......................2-19
Manual Transaxle Operation...........................2-22
Parking Brake..............................................2-24Shifting Into Park (P)
(Automatic Transaxle)................................2-25
Shifting Out of Park (P).................................2-26
Parking Your Vehicle
(Manual Transaxle)....................................2-26
Parking Over Things That Burn.......................2-27
Engine Exhaust............................................2-27
Running the Engine While Parked...................2-28
Mirrors...........................................................2-29
Automatic Dimming Rearview Mirror
with OnStar
®, Compass and
Temperature Display..................................2-29
Outside Power Mirrors...................................2-31
Outside Convex Mirror...................................2-31
OnStar
®System.............................................2-32
Storage Areas................................................2-34
Glove Box...................................................2-34
Cupholder(s)................................................2-34
Floor Console Storage Area...........................2-34
Center Console Storage Area.........................2-34
Cargo Area..................................................2-34
Roof Rack System........................................2-36
Sunroof.........................................................2-38
Section 2 Features and Controls
2-1
ProCarManuals.com

Keys
{CAUTION:
Leaving children in a vehicle with the ignition
key is dangerous for many reasons. They
could operate the power windows or other
controls or even make the vehicle move.
The children or others could be badly injured
or even killed. Do not leave the keys in a
vehicle with children.
2-2
ProCarManuals.com

One key is used for the ignition and all of the locks.
Key code information can be obtained only at the
retailer where your vehicle was purchased. These
code numbers can be used to make new keys.
Additional keys that are needed can be made at
any retail service facility provided you have the key
code information. Store this information in a safe
place, but not in your vehicle.
Have extra keys made. Your service parts department
can make extra keys for you.
Notice:If you ever lock your keys in your vehicle,
you may have to damage the vehicle to get in.
Be sure you have spare keys.Remote Keyless Entry System
The remote keyless entry system operates on a radio
frequency subject to Federal Communications
Commission (FCC) Rules and with Industry Canada.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
1. This device may not cause interference, and
2. This device must accept any interference received,
including interference that may cause undesired
operation of the device.
This device complies with RSS-210 of Industry Canada.
Operation is subject to the following two conditions:
1. This device may not cause interference, and
2. This device must accept any interference received,
including interference that may cause undesired
operation of the device.
Changes or modications to this system by other than
an authorized service facility could void authorization to
use this equipment.
2-3
ProCarManuals.com

At times you may notice a decrease in range. This is
normal for any remote keyless entry system. If the
transmitter does not work or if you have to stand closer
to your vehicle for the transmitter to work, try this:
Check the distance. You may be too far from your
vehicle. You may need to stand closer during
rainy or snowy weather.
Check the location. Other vehicles or objects may
be blocking the signal. Take a few steps to the
left or right, hold the transmitter higher, and
try again.
Check to determine if battery replacement or
resynchronization is necessary. See “Battery
Replacement” and “Resynchronization” under
Remote Keyless Entry System Operation
on page 2-4.
If you are still having trouble, see your Saturn
retailer or authorized service provider for service.
Remote Keyless Entry System
Operation
With this feature, you can lock and unlock the doors
from about 32 feet (10 m) away using the remote
keyless entry transmitter supplied with your vehicle.
Q(Lock):Press this
button on the remote
keyless entry transmitter
to lock the doors.
This also arms the
theft-deterrent system.
See “Theft-Deterrent
System” following for
information on arming
the theft-deterrent system.
Your vehicle can be programmed so that the parking
lamps or Daytime Running Lamps (DRL) will ash
and/or the horn will sound when you lock the doors with
the remote keyless entry transmitter. See your retailer
for more information on programming this feature.
2-4
ProCarManuals.com

"(Unlock):Press this button on the remote
keyless entry transmitter to unlock the driver’s
door. This also disarms the theft-deterrent system.
See “Theft-Deterrent System” following for information
on disarming the theft-deterrent system. Press the
button again within 5 seconds to unlock the rest of
the doors.
Your vehicle can be programmed so that the parking
lamps or DRL will ash and/or the horn will sound when
you unlock the doors with the remote keyless entry
transmitter. See your retailer for more information on
programming this feature.
L(Panic Alarm):Press the button with the horn
symbol when the ignition is turned off. The horn
will sound and the parking lamps or DRL and dome
lamp will ash for up to two minutes. To stop the
panic alarm, press this button again.
Theft-Deterrent System
The remote keyless entry transmitter is used to
arm/disarm the theft-deterrent system. Your vehicle’s
theft-deterrent system can be programmed to
three different modes.
Active Arming:The system will arm when the lock
button on the remote keyless entry transmitter is
pressed. The system will disarm when the unlock
button is pressed.
Passive Arming:The system will arm itself one minute
after the ignition is turned off and the driver’s door
has been opened and closed. If the lock button on the
transmitter is pressed before the minute has passed,
the system will arm immediately. The system will
disarm when the unlock button is pressed.
2-5
ProCarManuals.com

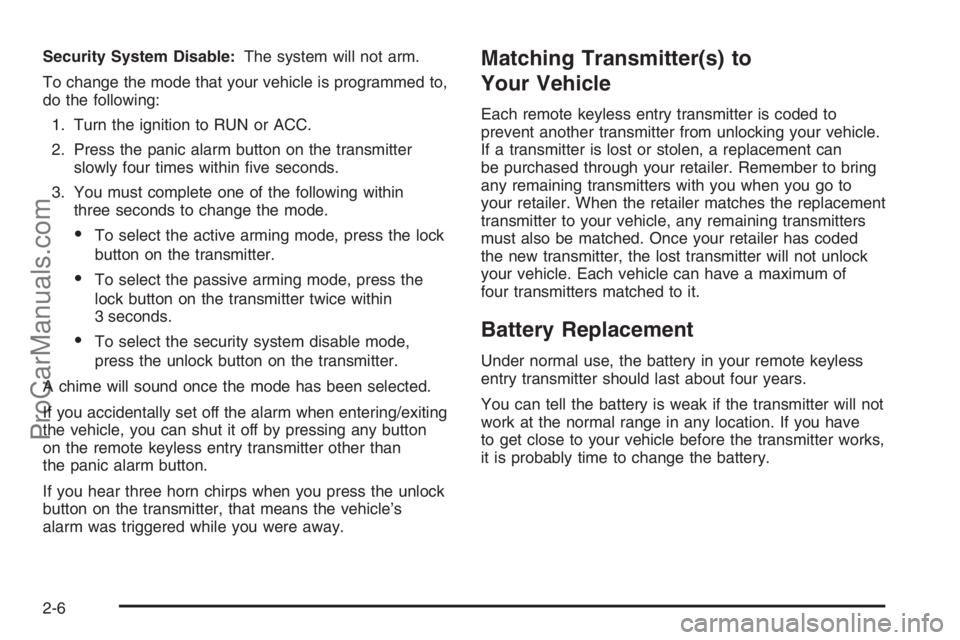

Security System Disable:The system will not arm.
To change the mode that your vehicle is programmed to,
do the following:
1. Turn the ignition to RUN or ACC.
2. Press the panic alarm button on the transmitter
slowly four times within ve seconds.
3. You must complete one of the following within
three seconds to change the mode.
To select the active arming mode, press the lock
button on the transmitter.
To select the passive arming mode, press the
lock button on the transmitter twice within
3 seconds.
To select the security system disable mode,
press the unlock button on the transmitter.
A chime will sound once the mode has been selected.
If you accidentally set off the alarm when entering/exiting
the vehicle, you can shut it off by pressing any button
on the remote keyless entry transmitter other than
the panic alarm button.
If you hear three horn chirps when you press the unlock
button on the transmitter, that means the vehicle’s
alarm was triggered while you were away.
Matching Transmitter(s) to
Your Vehicle
Each remote keyless entry transmitter is coded to
prevent another transmitter from unlocking your vehicle.
If a transmitter is lost or stolen, a replacement can
be purchased through your retailer. Remember to bring
any remaining transmitters with you when you go to
your retailer. When the retailer matches the replacement
transmitter to your vehicle, any remaining transmitters
must also be matched. Once your retailer has coded
the new transmitter, the lost transmitter will not unlock
your vehicle. Each vehicle can have a maximum of
four transmitters matched to it.
Battery Replacement
Under normal use, the battery in your remote keyless
entry transmitter should last about four years.
You can tell the battery is weak if the transmitter will not
work at the normal range in any location. If you have
to get close to your vehicle before the transmitter works,
it is probably time to change the battery.
2-6
