2006 SATURN VUE Owners Manual

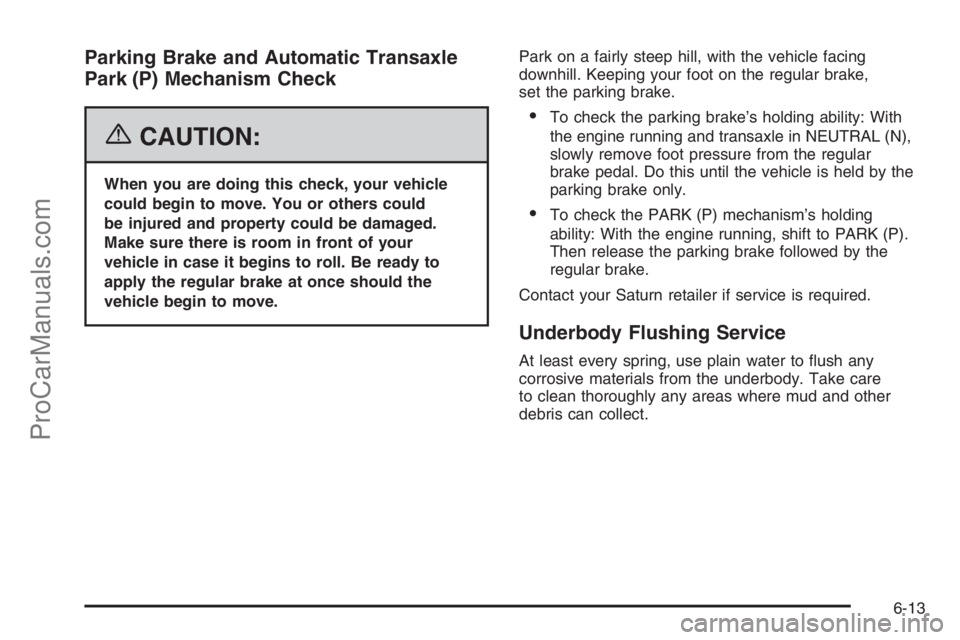

Parking Brake and Automatic Transaxle
Park (P) Mechanism Check
{CAUTION:
When you are doing this check, your vehicle
could begin to move. You or others could
be injured and property could be damaged.
Make sure there is room in front of your
vehicle in case it begins to roll. Be ready to
apply the regular brake at once should the
vehicle begin to move.Park on a fairly steep hill, with the vehicle facing
downhill. Keeping your foot on the regular brake,
set the parking brake.
To check the parking brake’s holding ability: With
the engine running and transaxle in NEUTRAL (N),
slowly remove foot pressure from the regular
brake pedal. Do this until the vehicle is held by the
parking brake only.
To check the PARK (P) mechanism’s holding
ability: With the engine running, shift to PARK (P).
Then release the parking brake followed by the
regular brake.
Contact your Saturn retailer if service is required.
Underbody Flushing Service
At least every spring, use plain water to ush any
corrosive materials from the underbody. Take care
to clean thoroughly any areas where mud and other
debris can collect.
6-13
ProCarManuals.com

Recommended Fluids and
Lubricants
Fluids and lubricants identied below by name,
part number, or specication may be obtained from
your retailer.
Usage Fluid/Lubricant
Engine Oil
(2.2L L4
engine)Engine oil which meets
GM Standard GM6094M and
displays the American Petroleum
Institute Certied for Gasoline
Engines starburst symbol.
GM Goodwrench
®oil meets all
the requirements for your vehicle.
To determine the proper viscosity
for your vehicle’s engine, see
Engine Oil on page 5-15.
Engine Oil
(3.5L V6
engine)Engine oil which displays the
American Petroleum Institute
Certied for Gasoline Engines
starburst symbol. GM Goodwrench
®
oil meets all the requirements
for your vehicle. To determine
the proper viscosity for your
vehicle’s engine, seeEngine Oil
on page 5-15.
Usage Fluid/Lubricant
Engine Coolant50/50 mixture of clean, drinkable
water and use only DEX-COOL
®
Coolant. SeeEngine Coolant
on page 5-27.
Hydraulic Brake
SystemDelco
®Supreme 11 Brake Fluid
or equivalent DOT-3 brake uid.
Windshield
WasherOptikleen
®Washer Solvent
Parking Brake
Cable GuidesChassis Lubricant
(GM Part No. 12377985, in
Canada 88901242) or lubricant
meeting requirements of NLGI #2,
Category LB or GC-LB.
Hydraulic
Clutch SystemDelco
®Supreme 11 Brake Fluid
or equivalent DOT-3 brake uid
(Saturn Part No. 21013073).
Manual
TransaxleDEXRON
®-III Automatic
Transmission Fluid. Look for
“Approved for the H-Specication”
on the label.
Automatic
Transaxle
(with 2.2L L4
engine)DEXRON
®-VI Automatic
Transmission Fluid.
6-14
ProCarManuals.com

Usage Fluid/Lubricant
Automatic
Transaxle
(with 3.5L V6
engine)ATF Z1 Automatic Transmission
Fluid (Saturn Part No. 22717466).
Rear Drive
Module and
Power
Transfer Unit
(except with
3.5L V6 engine)VERSATRAK
®Fluid
(GM Part No. U.S. 12378514, in
Canada 88901045).
Rear Drive
Module (with
3.5L V6 engine)VERSATRAK
®Fluid
(GM Part No. U.S. 12378514, in
Canada 88901045).
Transfer Case
(with 3.5L V6
engine)Synthetic Axle Lubricant
(GM Part No. U.S. 12378261, in
Canada 10953455).
Key Lock
CylindersMulti-Purpose Lubricant, Superlube
(GM Part No. U.S. 12346241, in
Canada 10953474).
Usage Fluid/Lubricant
Hood Latch
Assembly,
Secondary
Latch,
Pivots, Spring
Anchor, and
Release PawlLubriplate Lubricant Aerosol
(Saturn Part No. 21038869 or
GM Part No. U.S. 12346293,
in Canada 992723) or lubricant
meeting requirements of NLGI #2,
Category LB or GC-LB.
Hood, Liftgate
Door, and rear
folding seat
HingesMulti-Purpose Lubricant, Superlube
(GM Part No. U.S. 12346241, in
Canada 10953474).
Sunroof TrackLubriplate Lubricant Aerosol
(Saturn Part No. 21038869 or
GM Part No. U.S. 12346293,
in Canada 992723) or lubricant
meeting requirements of NLGI #2,
Category LB or GC-LB.
Weatherstrip
ConditioningDielectric Silicone Grease
(GM Part No. U.S. 12345579, in
Canada 992887).
6-15
ProCarManuals.com

Normal Maintenance Replacement Parts
Replacement parts identied below by name, part number, or specication can be obtained from your retailer.
Part Saturn Part Number ACDelco®Part Number
Engine Air Cleaner/Filter 22676970 A1627C
Engine Oil Filter
2.2L L4 12579143 PF456G
3.5L V6 12582255 —
Passenger Compartment Air Filter Element 22665802 CF109
Spark Plugs
2.2L L4 12599232 41-981
3.5L V6 12582002 —
Wiper Blades
Driver’s Side – 24 inches (60.0 cm) 22703508 —
Passenger’s Side – 19 inches (47.5 cm) 22703507 —
Rear – 11.0 inches (28.0 cm) 22665007 —
6-16
ProCarManuals.com

Maintenance Record
After the scheduled services are performed, record the date, odometer reading, who performed the service,
and the type of services performed in the boxes provided. SeeMaintenance Requirements on page 6-2.
Any additional information fromOwner Checks and Services on page 6-10can be added on the following
record pages. You should retain all maintenance receipts.
Maintenance Record
DateOdometer
ReadingServiced ByMaintenanceIor
MaintenanceIIServices Performed
6-17
ProCarManuals.com

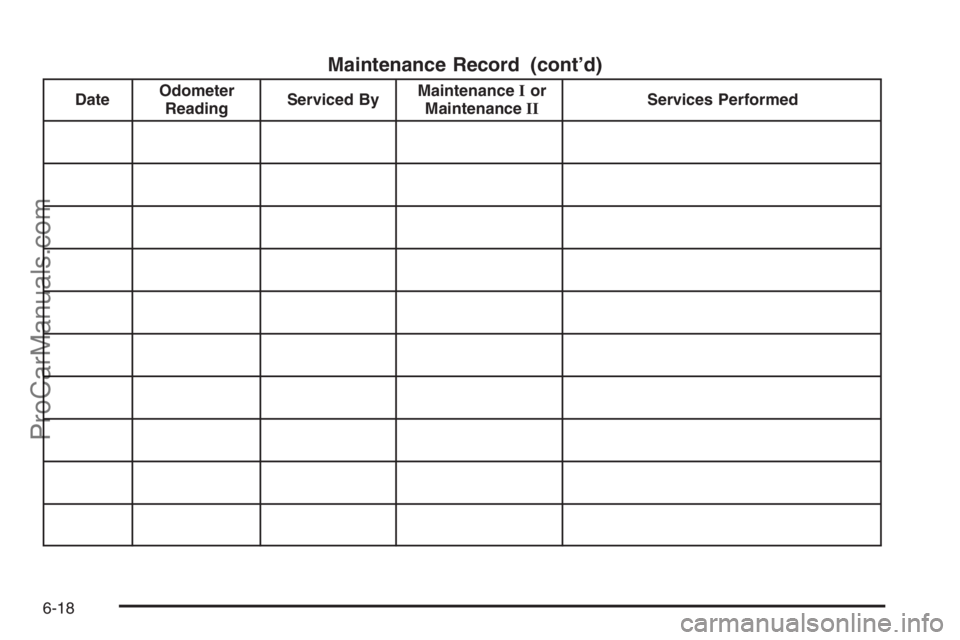

Maintenance Record (cont’d)
DateOdometer
ReadingServiced ByMaintenanceIor
MaintenanceIIServices Performed
6-18
ProCarManuals.com

Maintenance Record (cont’d)
DateOdometer
ReadingServiced ByMaintenanceIor
MaintenanceIIServices Performed
6-19
ProCarManuals.com

Maintenance Record (cont’d)
DateOdometer
ReadingServiced ByMaintenanceIor
MaintenanceIIServices Performed
6-20
