2006 MERCEDES-BENZ SPRINTER ignition

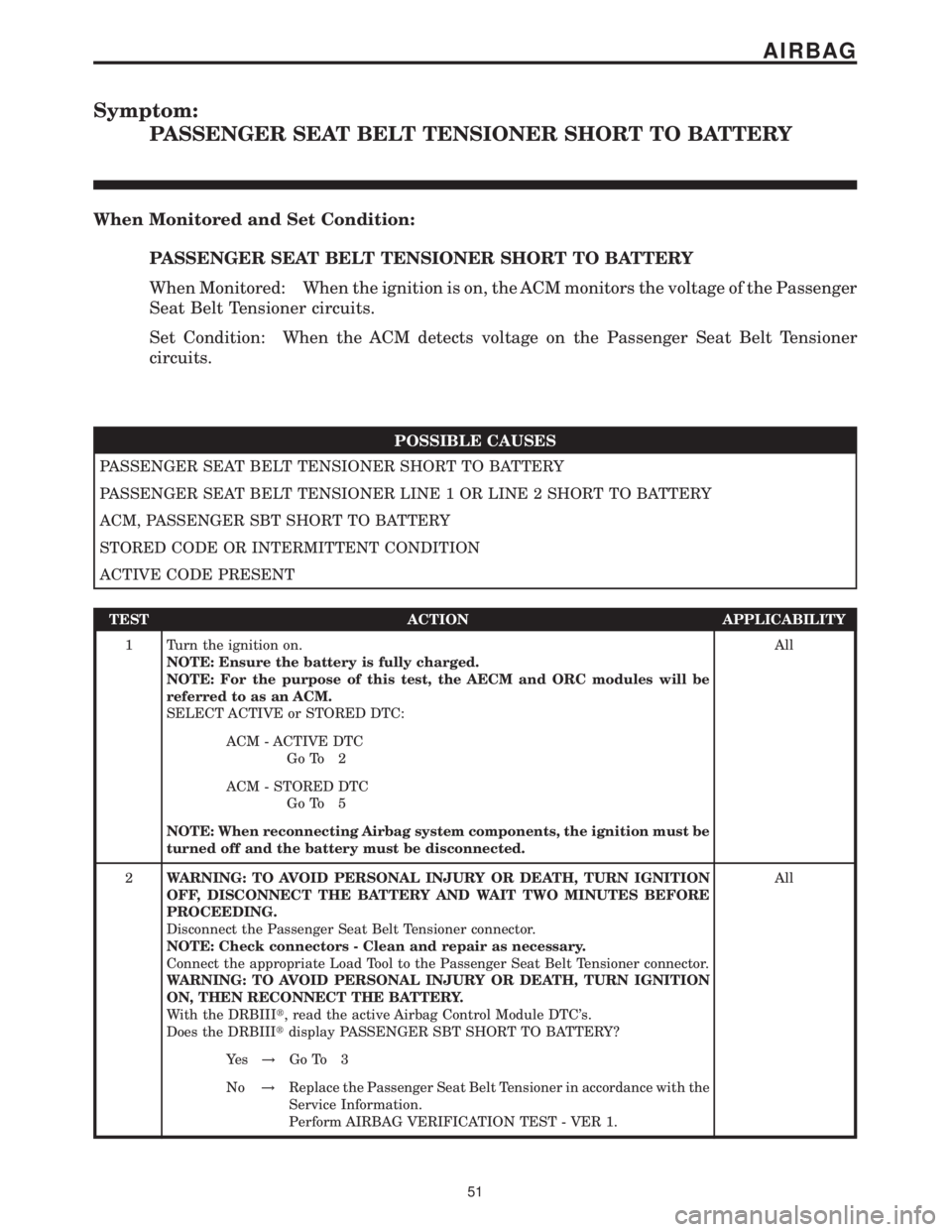

Symptom:
PASSENGER SEAT BELT TENSIONER SHORT TO BATTERY
When Monitored and Set Condition:
PASSENGER SEAT BELT TENSIONER SHORT TO BATTERY
When Monitored: When the ignition is on, the ACM monitors the voltage of the Passenger
Seat Belt Tensioner circuits.
Set Condition: When the ACM detects voltage on the Passenger Seat Belt Tensioner
circuits.
POSSIBLE CAUSES
PASSENGER SEAT BELT TENSIONER SHORT TO BATTERY
PASSENGER SEAT BELT TENSIONER LINE 1 OR LINE 2 SHORT TO BATTERY
ACM, PASSENGER SBT SHORT TO BATTERY
STORED CODE OR INTERMITTENT CONDITION
ACTIVE CODE PRESENT
TEST ACTION APPLICABILITY
1 Turn the ignition on.
NOTE: Ensure the battery is fully charged.
NOTE: For the purpose of this test, the AECM and ORC modules will be
referred to as an ACM.
SELECT ACTIVE or STORED DTC:All
ACM - ACTIVE DTC
Go To 2
ACM - STORED DTC
Go To 5
NOTE: When reconnecting Airbag system components, the ignition must be
turned off and the battery must be disconnected.
2WARNING: TO AVOID PERSONAL INJURY OR DEATH, TURN IGNITION
OFF, DISCONNECT THE BATTERY AND WAIT TWO MINUTES BEFORE
PROCEEDING.
Disconnect the Passenger Seat Belt Tensioner connector.
NOTE: Check connectors - Clean and repair as necessary.
Connect the appropriate Load Tool to the Passenger Seat Belt Tensioner connector.
WARNING: TO AVOID PERSONAL INJURY OR DEATH, TURN IGNITION
ON, THEN RECONNECT THE BATTERY.
With the DRBIIIt, read the active Airbag Control Module DTC's.
Does the DRBIIItdisplay PASSENGER SBT SHORT TO BATTERY?All
Ye s!Go To 3
No!Replace the Passenger Seat Belt Tensioner in accordance with the
Service Information.
Perform AIRBAG VERIFICATION TEST - VER 1.
51
AIRBAG

TEST ACTION APPLICABILITY
3WARNING: TO AVOID PERSONAL INJURY OR DEATH, TURN IGNITION
OFF, DISCONNECT THE BATTERY AND WAIT TWO MINUTES BEFORE
PROCEEDING.
Disconnect the Load Tool from the Passenger Seat Belt Tensioner connector.
Disconnect the Airbag Control Module Connector(s).
NOTE: Check connectors - Clean and repair as necessary.
Connect the appropriate Load Tool ACM Adaptor to the Airbag Control Module
connector(s).
WARNING: TO AVOID PERSONAL INJURY OR DEATH, TURN IGNITION
ON, THEN RECONNECT THE BATTERY.
Measure the voltage of the Passenger SBT Line 1 and Line 2 circuits between the
Passenger Seat Belt Tensioner connector and ground.
Is there any voltage on either circuit?All
Ye s!Repair the Passenger Seat Belt Tensioner Line 1 or Line 2 short
to battery.
Perform AIRBAG VERIFICATION TEST - VER 1.
No!Go To 4
4WARNING: IF THE AIRBAG CONTROL MODULE IS DROPPED AT ANY
TIME, IT MUST BE REPLACED. FAILURE TO TAKE THE PROPER PRE-
CAUTIONS COULD RESULT IN ACCIDENTAL AIRBAG DEPLOYMENT
AND PERSONAL INJURY OR DEATH.
If there are no possible causes remaining, view repair.All
Repair:
Replace the Airbag Control Module in accordance with the Service
Information.
Perform AIRBAG VERIFICATION TEST - VER 1.
52
AIRBAG

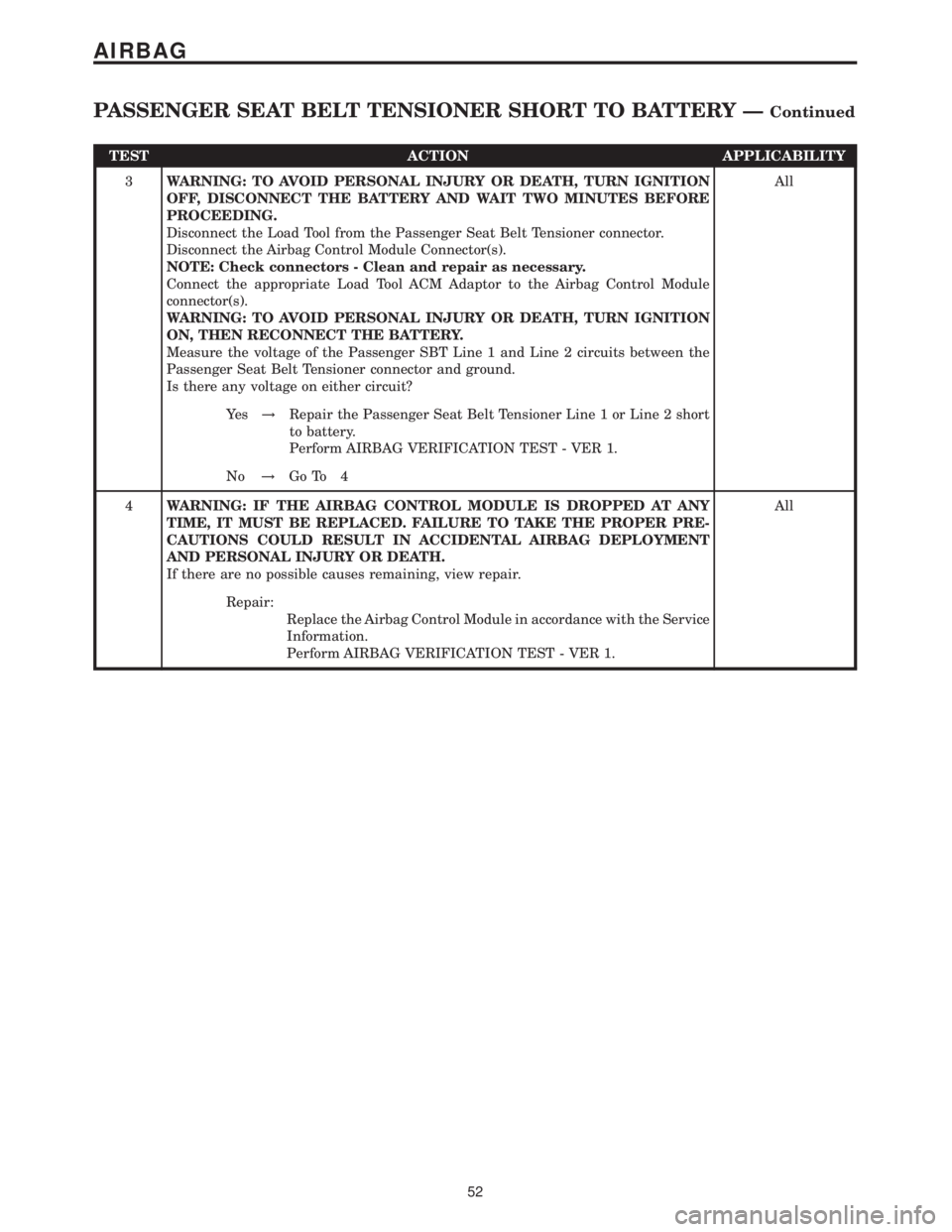

PASSENGER SEAT BELT TENSIONER SHORT TO BATTERY ÐContinued

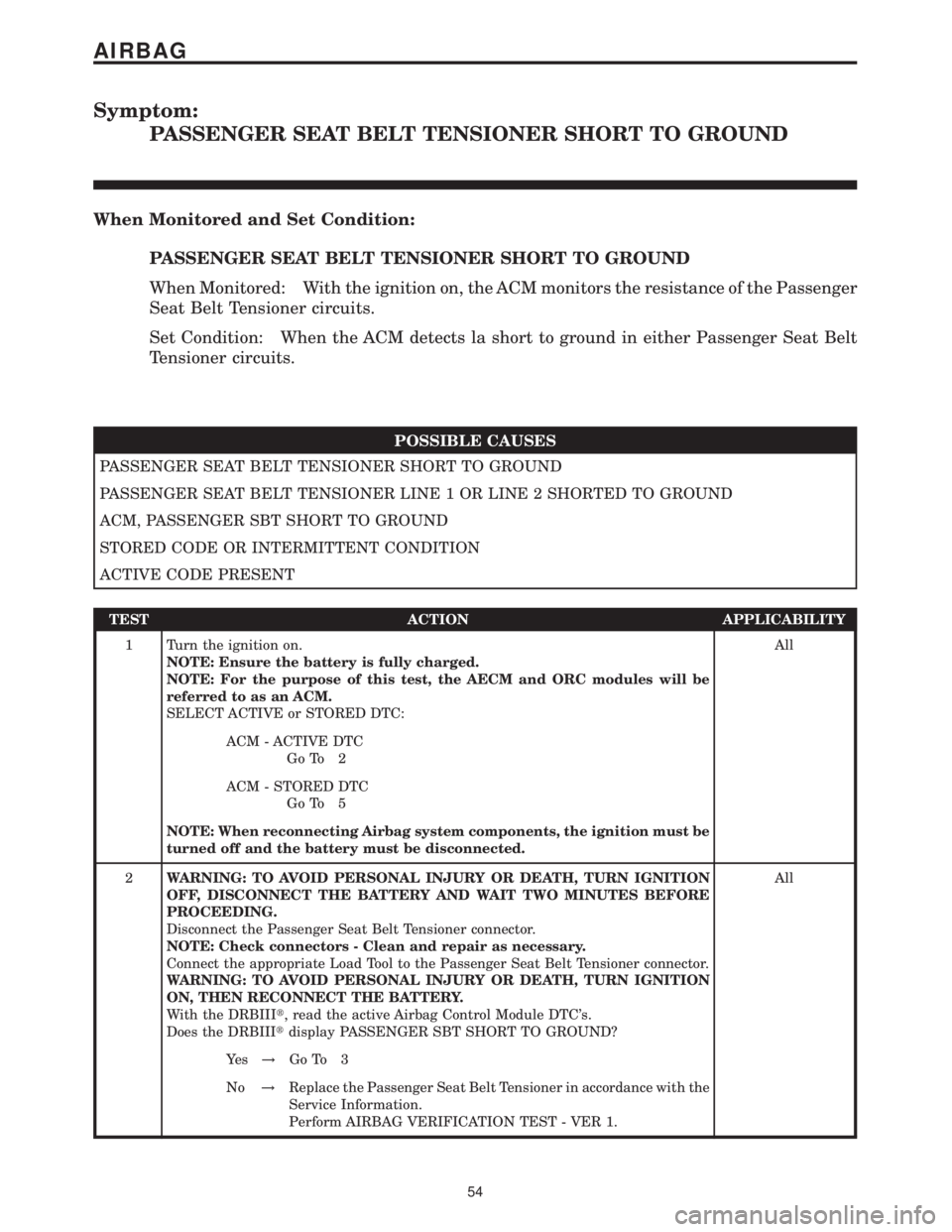

Symptom:
PASSENGER SEAT BELT TENSIONER SHORT TO GROUND
When Monitored and Set Condition:
PASSENGER SEAT BELT TENSIONER SHORT TO GROUND
When Monitored: With the ignition on, the ACM monitors the resistance of the Passenger
Seat Belt Tensioner circuits.
Set Condition: When the ACM detects la short to ground in either Passenger Seat Belt
Tensioner circuits.
POSSIBLE CAUSES
PASSENGER SEAT BELT TENSIONER SHORT TO GROUND
PASSENGER SEAT BELT TENSIONER LINE 1 OR LINE 2 SHORTED TO GROUND
ACM, PASSENGER SBT SHORT TO GROUND
STORED CODE OR INTERMITTENT CONDITION
ACTIVE CODE PRESENT
TEST ACTION APPLICABILITY
1 Turn the ignition on.
NOTE: Ensure the battery is fully charged.
NOTE: For the purpose of this test, the AECM and ORC modules will be
referred to as an ACM.
SELECT ACTIVE or STORED DTC:All
ACM - ACTIVE DTC
Go To 2
ACM - STORED DTC
Go To 5
NOTE: When reconnecting Airbag system components, the ignition must be
turned off and the battery must be disconnected.
2WARNING: TO AVOID PERSONAL INJURY OR DEATH, TURN IGNITION
OFF, DISCONNECT THE BATTERY AND WAIT TWO MINUTES BEFORE
PROCEEDING.
Disconnect the Passenger Seat Belt Tensioner connector.
NOTE: Check connectors - Clean and repair as necessary.
Connect the appropriate Load Tool to the Passenger Seat Belt Tensioner connector.
WARNING: TO AVOID PERSONAL INJURY OR DEATH, TURN IGNITION
ON, THEN RECONNECT THE BATTERY.
With the DRBIIIt, read the active Airbag Control Module DTC's.
Does the DRBIIItdisplay PASSENGER SBT SHORT TO GROUND?All
Ye s!Go To 3
No!Replace the Passenger Seat Belt Tensioner in accordance with the
Service Information.
Perform AIRBAG VERIFICATION TEST - VER 1.
54
AIRBAG

TEST ACTION APPLICABILITY
3WARNING: TO AVOID PERSONAL INJURY OR DEATH, TURN IGNITION
OFF, DISCONNECT THE BATTERY AND WAIT TWO MINUTES BEFORE
PROCEEDING.
Disconnect the Load Tool from the Passenger Seat Belt Tensioner connector.
Disconnect the Airbag Control Module Connector(s).
NOTE: Check connectors - Clean and repair as necessary.
Connect the appropriate Load Tool ACM Adaptor to the Airbag Control Module
connector(s).
Measure the resistance of the Passenger Seat Belt Tensioner Line 1 and Line 2
circuits between the Passenger SBT connector and ground.
Is the resistance below 10K Ohms on either circuit?All
Ye s!Repair the Passenger Seat Belt Tensioner Line 1 or Line 2 short
to ground.
Perform AIRBAG VERIFICATION TEST - VER 1.
No!Go To 4
4WARNING: IF THE AIRBAG CONTROL MODULE IS DROPPED AT ANY
TIME, IT MUST BE REPLACED. FAILURE TO TAKE THE PROPER PRE-
CAUTIONS COULD RESULT IN ACCIDENTAL AIRBAG DEPLOYMENT
AND PERSONAL INJURY OR DEATH.
If there are no possible causes remaining, view repair.All
Repair:
Replace the Airbag Control Module in accordance with the Service
Information.
Perform AIRBAG VERIFICATION TEST - VER 1.
5 With the DRBIIIt, record and erase all DTC's from all Airbag modules.
If equipped with Passenger Airbag On - Off switch, read the DTC's in all switch
positions.
If any ACTIVE codes are present they must be resolved before diagnosing any stored
codes.
WARNING: TO AVOID PERSONAL INJURY OR DEATH, TURN THE IGNI-
TION OFF, DISCONNECT THE BATTERY AND WAIT TWO MINUTES BE-
FORE PROCEEDING.
Using the wiring diagram/schematic as a guide, inspect the wiring and connectors.
Look for chaffed, pierced, pinched, or partially broken wires and broken, bent, pushed
out, spread, corroded, or contaminated terminals.
The following additional checks may assist you in identifying a possible intermittent
problem.
Reconnect any disconnected components and harness connector.
WARNING: TO AVOID PERSONAL INJURY OR DEATH, TURN THE IGNI-
TION ON, THEN RECONNECT THE BATTERY.
With the DRBIIItmonitor active codes as you work through the following steps.
WARNING: TO AVOID PERSONAL INJURY OR DEATH, MAINTAIN A SAFE
DISTANCE FROM ALL AIRBAGS WHILE PERFORMING THE FOLLOWING
STEPS.
Wiggle the wiring harness and connectors of the related airbag circuit or component.
If codes are related to the Driver circuits, rotate the steering wheel from stop to stop.
You have just attempted to simulate the condition that initially set the trouble code
message.
Did the DTC become active?All
Ye s!Select appropriate symptom from Symptom List.
No!No problem found at this time. Erase all codes before returning
vehicle to customer.
55
AIRBAG
PASSENGER SEAT BELT TENSIONER SHORT TO GROUND ÐContinued

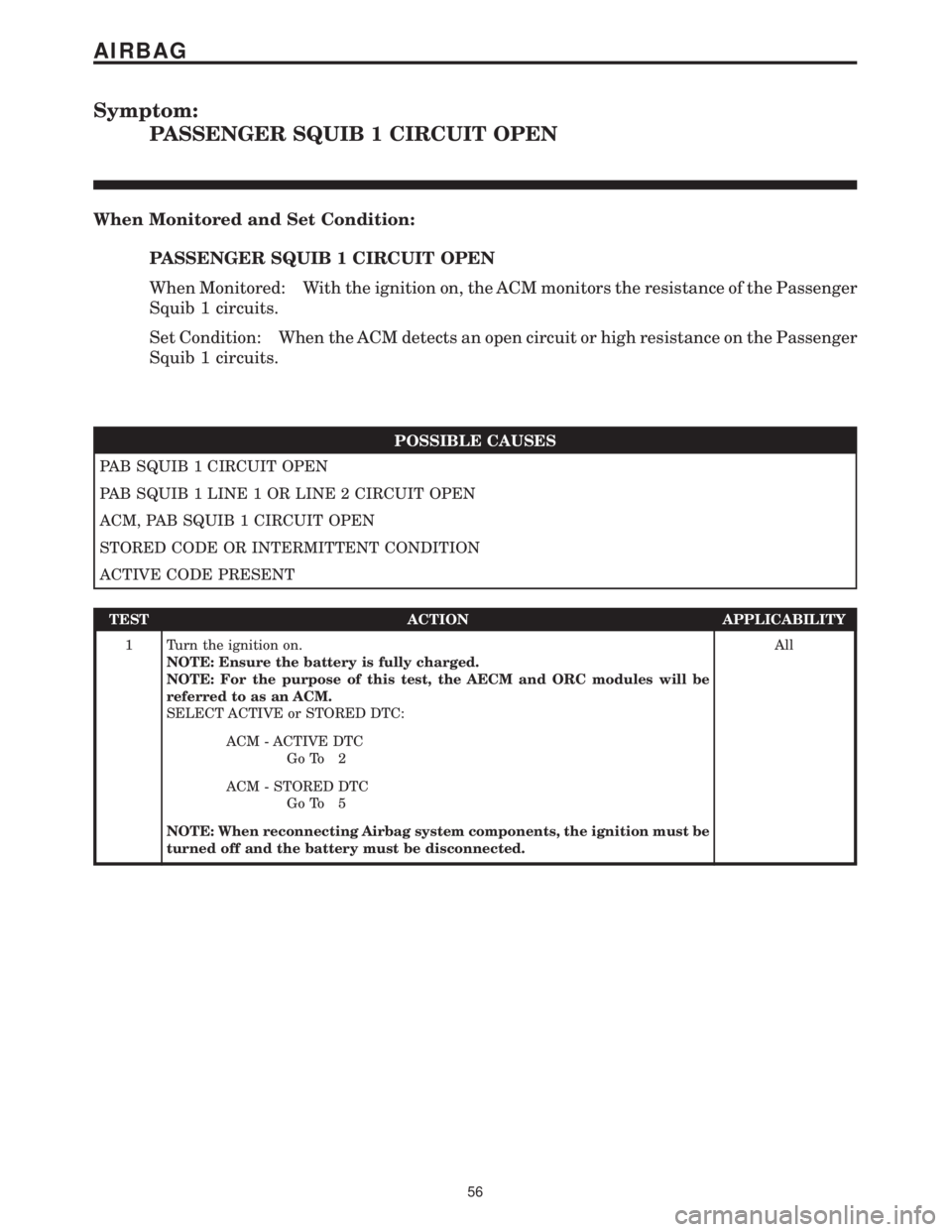

Symptom:
PASSENGER SQUIB 1 CIRCUIT OPEN
When Monitored and Set Condition:
PASSENGER SQUIB 1 CIRCUIT OPEN
When Monitored: With the ignition on, the ACM monitors the resistance of the Passenger
Squib 1 circuits.
Set Condition: When the ACM detects an open circuit or high resistance on the Passenger
Squib 1 circuits.
POSSIBLE CAUSES
PAB SQUIB 1 CIRCUIT OPEN
PAB SQUIB 1 LINE 1 OR LINE 2 CIRCUIT OPEN
ACM, PAB SQUIB 1 CIRCUIT OPEN
STORED CODE OR INTERMITTENT CONDITION
ACTIVE CODE PRESENT
TEST ACTION APPLICABILITY
1 Turn the ignition on.
NOTE: Ensure the battery is fully charged.
NOTE: For the purpose of this test, the AECM and ORC modules will be
referred to as an ACM.
SELECT ACTIVE or STORED DTC:All
ACM - ACTIVE DTC
Go To 2
ACM - STORED DTC
Go To 5
NOTE: When reconnecting Airbag system components, the ignition must be
turned off and the battery must be disconnected.
56
AIRBAG

TEST ACTION APPLICABILITY
2WARNING: TO AVOID PERSONAL INJURY OR DEATH, TURN THE IGNI-
TION OFF, DISCONNECT THE BATTERY AND WAIT TWO MINUTES BE-
FORE PROCEEDING.
Disconnect the Passenger Airbag connector(s).
NOTE: Check connectors - Clean and repair as necessary.
WARNING: TO AVOID PERSONAL INJURY OR DEATH, DO NOT PLACE AN
INTACT UNDEPLOYED AIRBAG FACE DOWN ON A HARD SURFACE, THE
AIRBAG WILL PROPEL INTO THE AIR IF ACCIDENTALLY DEPLOYED.
Connect the Load Tool to the Passenger Airbag connector(s).
WARNING: TO AVOID PERSONAL INJURY OR DEATH, TURN IGNITION
ON, THEN RECONNECT THE BATTERY.
With the DRBIIIt, read the active Airbag Control Module DTC's.
Does the DRBIIItshow PASSENGER SQUIB 1 CIRCUIT OPEN?All
Ye s!Go To 3
No!Replace the Passenger Airbag in accordance with the Service
Information.
Perform AIRBAG VERIFICATION TEST - VER 1.
3WARNING: TO AVOID PERSONAL INJURY OR DEATH, TURN THE IGNI-
TION OFF, DISCONNECT THE BATTERY AND WAIT TWO MINUTES BE-
FORE PROCEEDING.
Disconnect the Load Tool from the Passenger Airbag connector(s).
Disconnect the Airbag Control module connector(s).
NOTE: Check connectors - Clean and repair as necessary.
Connect the Load Tool ACM Adaptor to the Airbag Control Module connector(s).
Measure the resistance of the Passenger Squib 1 Line 1 and Line 2 circuit between
the ACM Adaptor and the Passenger Airbag connector.
Is the resistance below 1.0 ohms on both circuits?All
Ye s!Go To 4
No!Repair open or high resistance in Passenger Squib 1 Line 1 or
Line 2 circuits.
Perform AIRBAG VERIFICATION TEST - VER 1.
4WARNING: IF THE AIRBAG CONTROL MODULE IS DROPPED AT ANY
TIME, IT MUST BE REPLACED. FAILURE TO TAKE THE PROPER PRE-
CAUTIONS COULD RESULT IN ACCIDENTAL AIRBAG DEPLOYMENT
AND PERSONAL INJURY OR DEATH.
If there are no possible causes remaining, view repair.All
Repair:
Replace the Airbag Control Module in accordance with Service
Instructions.
Perform AIRBAG VERIFICATION TEST - VER 1.
57
AIRBAG

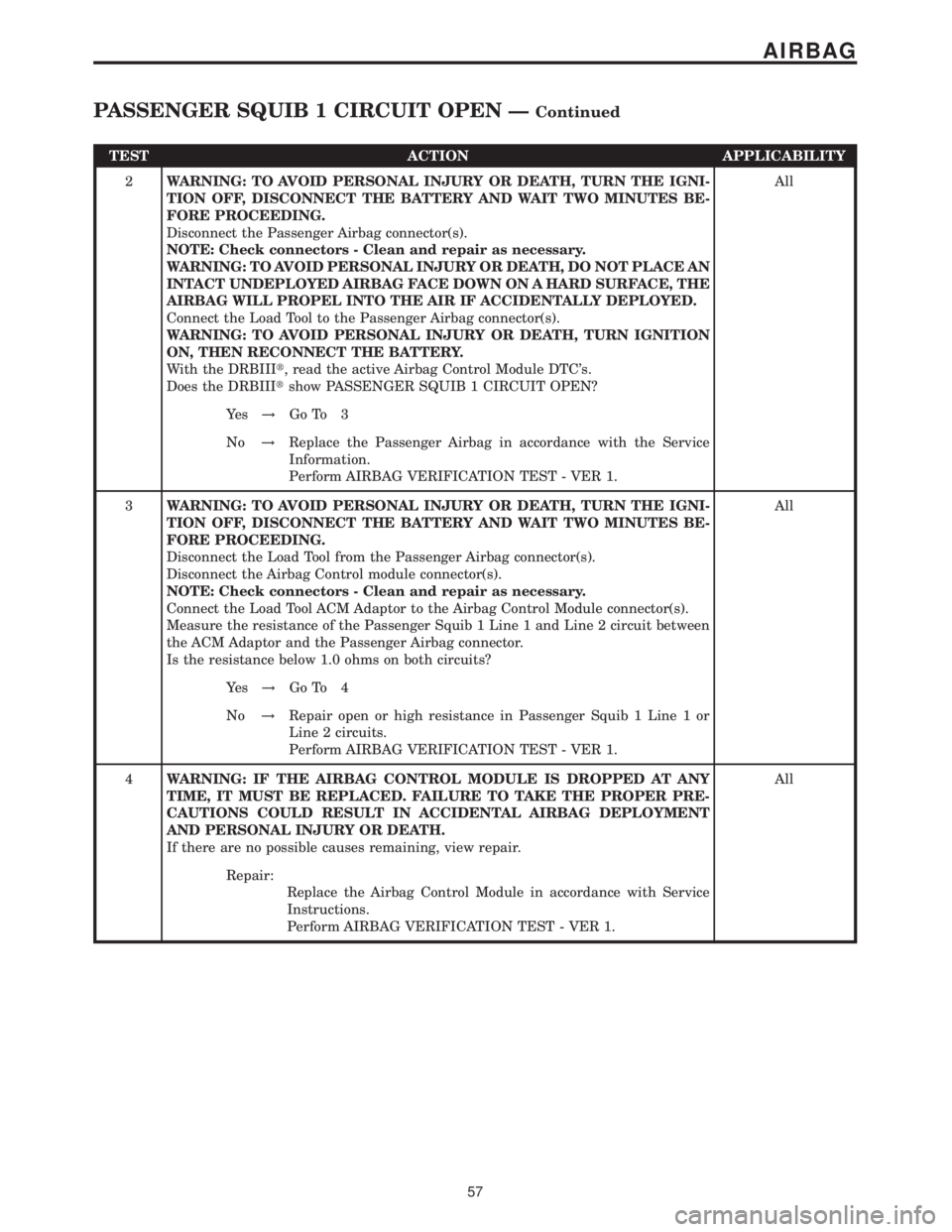

PASSENGER SQUIB 1 CIRCUIT OPEN ÐContinued

Symptom:
PASSENGER SQUIB 1 CIRCUIT SHORT
When Monitored and Set Condition:
PASSENGER SQUIB 1 CIRCUIT SHORT
When Monitored: With the ignition on, the ACM monitors the resistance between the
Passenger Squib 1 circuits.
Set Condition: When the ACM detects low resistance in the Passenger Squib 1 circuits.
POSSIBLE CAUSES
PAB SQUIB 1 CIRCUIT SHORT
PAB SQUIB 1 LINE 1 SHORT TO LINE 2
ACM, PAB SQUIB 1 CIRCUIT SHORT
STORED CODE OR INTERMITTENT CONDITION
ACTIVE CODE PRESENT
TEST ACTION APPLICABILITY
1 Turn the ignition on.
NOTE: Ensure the battery is fully charged.
NOTE: For the purpose of this test, the AECM and ORC modules will be
referred to as an ACM.
SELECT ACTIVE or STORED DTC:All
ACM - ACTIVE DTC
Go To 2
ACM - STORED DTC
Go To 5
NOTE: When reconnecting Airbag system components, the ignition must be
turned off and the battery must be disconnected.
59
AIRBAG

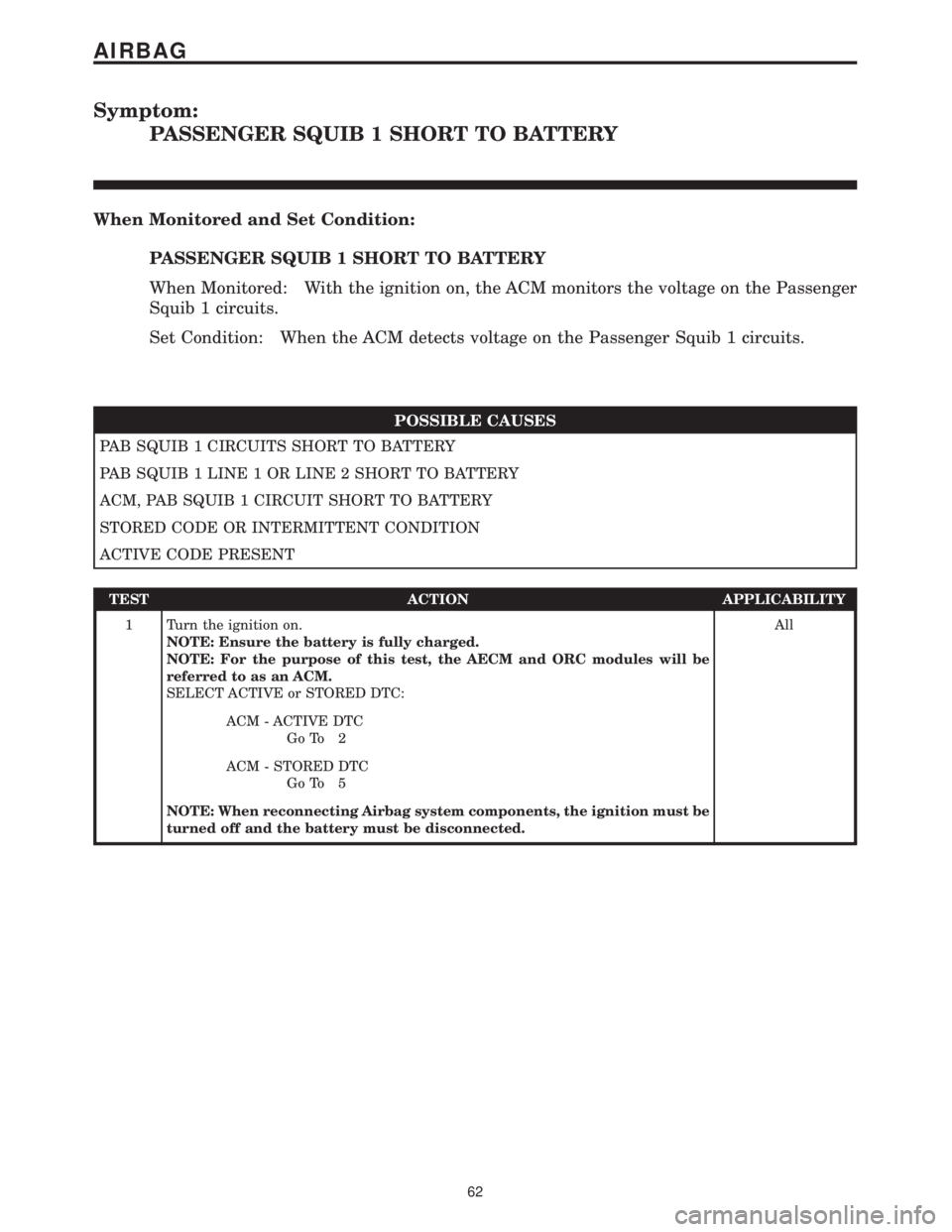

Symptom:
PASSENGER SQUIB 1 SHORT TO BATTERY
When Monitored and Set Condition:
PASSENGER SQUIB 1 SHORT TO BATTERY
When Monitored: With the ignition on, the ACM monitors the voltage on the Passenger
Squib 1 circuits.
Set Condition: When the ACM detects voltage on the Passenger Squib 1 circuits.
POSSIBLE CAUSES
PAB SQUIB 1 CIRCUITS SHORT TO BATTERY
PAB SQUIB 1 LINE 1 OR LINE 2 SHORT TO BATTERY
ACM, PAB SQUIB 1 CIRCUIT SHORT TO BATTERY
STORED CODE OR INTERMITTENT CONDITION
ACTIVE CODE PRESENT
TEST ACTION APPLICABILITY
1 Turn the ignition on.
NOTE: Ensure the battery is fully charged.
NOTE: For the purpose of this test, the AECM and ORC modules will be
referred to as an ACM.
SELECT ACTIVE or STORED DTC:All
ACM - ACTIVE DTC
Go To 2
ACM - STORED DTC
Go To 5
NOTE: When reconnecting Airbag system components, the ignition must be
turned off and the battery must be disconnected.
62
AIRBAG
