2006 MERCEDES-BENZ SPRINTER relay

FUSE BLOCK NO. 1 C2
CAV CIRCUIT FUNCTION
1 14BK/RD FUSED IGNITION SWITCH OUTPUT (RUN)
2 14BK/YL FUSED IGNITION SWITCH OUTPUT (START)
3 16GY/DG FUSED IGNITION SWITCH OUTPUT (ACC OFF)
4 14BK FUSED IGNITION SWITCH OUTPUT (RUN-START)
FUSE BLOCK NO. 1 C3 - BLACK
CAV CIRCUIT FUNCTION
1- -
2 16BK/VT FUSED IGNITION SWITCH OUTPUT (RUN-START)
3 12VT IGNITION SWITCH OUTPUT (START)
4- -
5 12RD FUSED B(+)
FUSE BLOCK NO. 1 C4 - BLACK
CAV CIRCUIT FUNCTION
1 16RD/BL FUSED B(+)
2 14RD/BK (OBD) FUSED B(+)
3- -
4 16BK/RD ENGINE CONTROL RELAY OUTPUT
5 16WT FUSED HIGH BEAM SWITCH OUTPUT
6- -
7 16BK/YL FUSED IGNITION SWITCH OUTPUT (RUN-START)
8 16BK/YL/WT FOG LAMP RELAY SIGNAL
9- -
10 16WT FUSED HIGH BEAM SWITCH OUTPUT
11 16RD/YL FUSED IGNITION SWITCH OUTPUT (RUN-START)
12 16BR/BK WIPER MOTOR CONTROL
13 - -
14 16WT/BL/RD FUSED IGNITION SWITCH OUTPUT (RUN-START)
15 - -
FUSE BLOCK NO. 1 C5 - BLACK
CAV CIRCUIT FUNCTION
1 16BK/BL/WT FUSED IGNITION SWITCH (RUN-START)
2 12BK/BL FUSED ENGINE CONTROL RELAY OUTPUT
3 18YL FUSED HEADLAMP SWITCH OUTPUT
4 16GY/BK LEFT LAMP RELAY OUTPUT
5 16BK/DG RIGHT TURN SIGNAL
6 16GY/RD RIGHT LAMP RELAY OUTPUT
7 16GY/DG LAMP DRIVER
8 16BK/WT LEFT TURN SIGNAL
9- -
10 - -
11 - -
12 - -
13 16YL FUSED HEADLAMP SWITCH OUTPUT
14 16BK/VT/RD WASHER ON/OFF SWITCH OUTPUT
15 18YL/BL ENGINE CONTROL RELAY SIGNAL
VA8W-80 CONNECTOR PIN-OUTS 8W - 80 - 49

HEADLAMP ASSEMBLY-LEFT - BLACK
CAV CIRCUIT FUNCTION
1 16GY/DG/RD LAMP DRIVER
2 16YL/WT FOG LAMP RELAY OUTPUT
3 16BR GROUND
4 16BR GROUND
5 16VT/WT HEADLAMP ADJUST SWITCH OUTPUT
6 16BK/WT LEFT TURN SIGNAL
7 18YL/DG (DRL) DAYTIME RUNNING LAMPS RELAY-LEFT SIDE OUT-
PUT
7 18YL (EXCEPT DRL) HEADLAMP SWITCH OUTPUT
8 16BR GROUND
9 16WT FUSED HIGH BEAM SWITCH OUTPUT
10 16GY/BK LEFT LAMP RELAY OUTPUT
HEADLAMP ASSEMBLY-RIGHT - BLACK
CAV CIRCUIT FUNCTION
1 16GY/DG/RD LAMP DRIVER
2 16YL/WT FOG LAMP RELAY OUTPUT
3 16BR GROUND
4 16BR GROUND
5 16VT/WT HEADLAMP ADJUST SWITCH OUTPUT
6 16BK/DG RIGHT TURN SIGNAL
7 18YL/DG (DRL) DAYTIME RUNNING LAMP RELAY-RIGHT SIDE OUT-
PUT
7 18YL (EXCEPT DRL) HEADLAMP SWITCH OUTPUT
8 16BR GROUND
9 16WT FUSED HIGH BEAM SWITCH OUTPUT
10 16GY/RD RIGHT LAMP RELAY OUTPUT
HEATED SEAT MODULE-DRIVER
CAV CIRCUIT FUNCTION
1 16VT/DG HEATED SEAT SWITCH-DRIVER LOW OUTPUT
2 16VT/RD S366 COMMON CIRCUIT
3 16VT/RD S366 COMMON CIRCUIT
4 16BR GROUND
VA8W-80 CONNECTOR PIN-OUTS 8W - 80 - 51

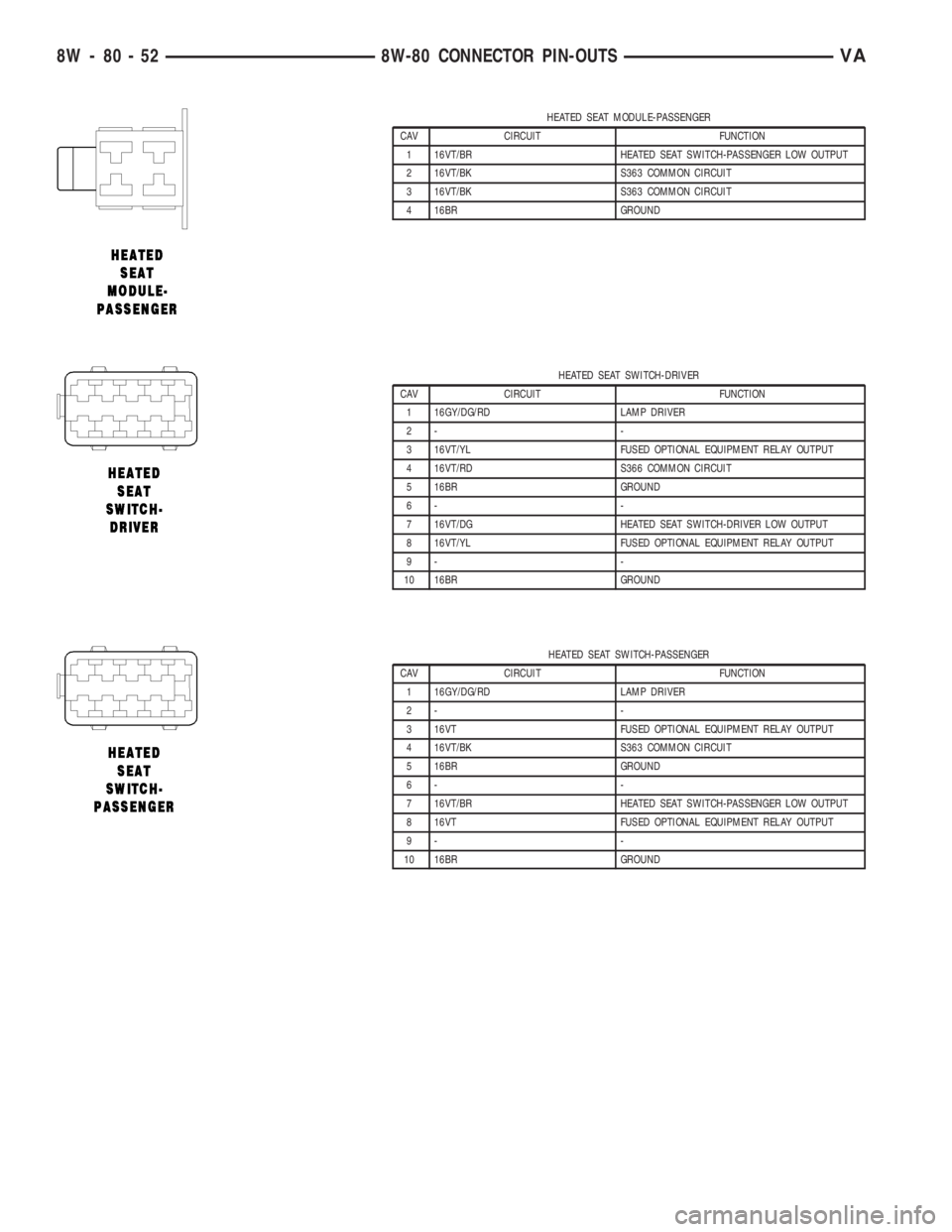

HEATED SEAT MODULE-PASSENGER
CAV CIRCUIT FUNCTION
1 16VT/BR HEATED SEAT SWITCH-PASSENGER LOW OUTPUT
2 16VT/BK S363 COMMON CIRCUIT
3 16VT/BK S363 COMMON CIRCUIT
4 16BR GROUND
HEATED SEAT SWITCH-DRIVER
CAV CIRCUIT FUNCTION
1 16GY/DG/RD LAMP DRIVER
2- -
3 16VT/YL FUSED OPTIONAL EQUIPMENT RELAY OUTPUT
4 16VT/RD S366 COMMON CIRCUIT
5 16BR GROUND
6- -
7 16VT/DG HEATED SEAT SWITCH-DRIVER LOW OUTPUT
8 16VT/YL FUSED OPTIONAL EQUIPMENT RELAY OUTPUT
9- -
10 16BR GROUND
HEATED SEAT SWITCH-PASSENGER
CAV CIRCUIT FUNCTION
1 16GY/DG/RD LAMP DRIVER
2- -
3 16VT FUSED OPTIONAL EQUIPMENT RELAY OUTPUT
4 16VT/BK S363 COMMON CIRCUIT
5 16BR GROUND
6- -
7 16VT/BR HEATED SEAT SWITCH-PASSENGER LOW OUTPUT
8 16VT FUSED OPTIONAL EQUIPMENT RELAY OUTPUT
9- -
10 16BR GROUND
8W - 80 - 52 8W-80 CONNECTOR PIN-OUTSVA

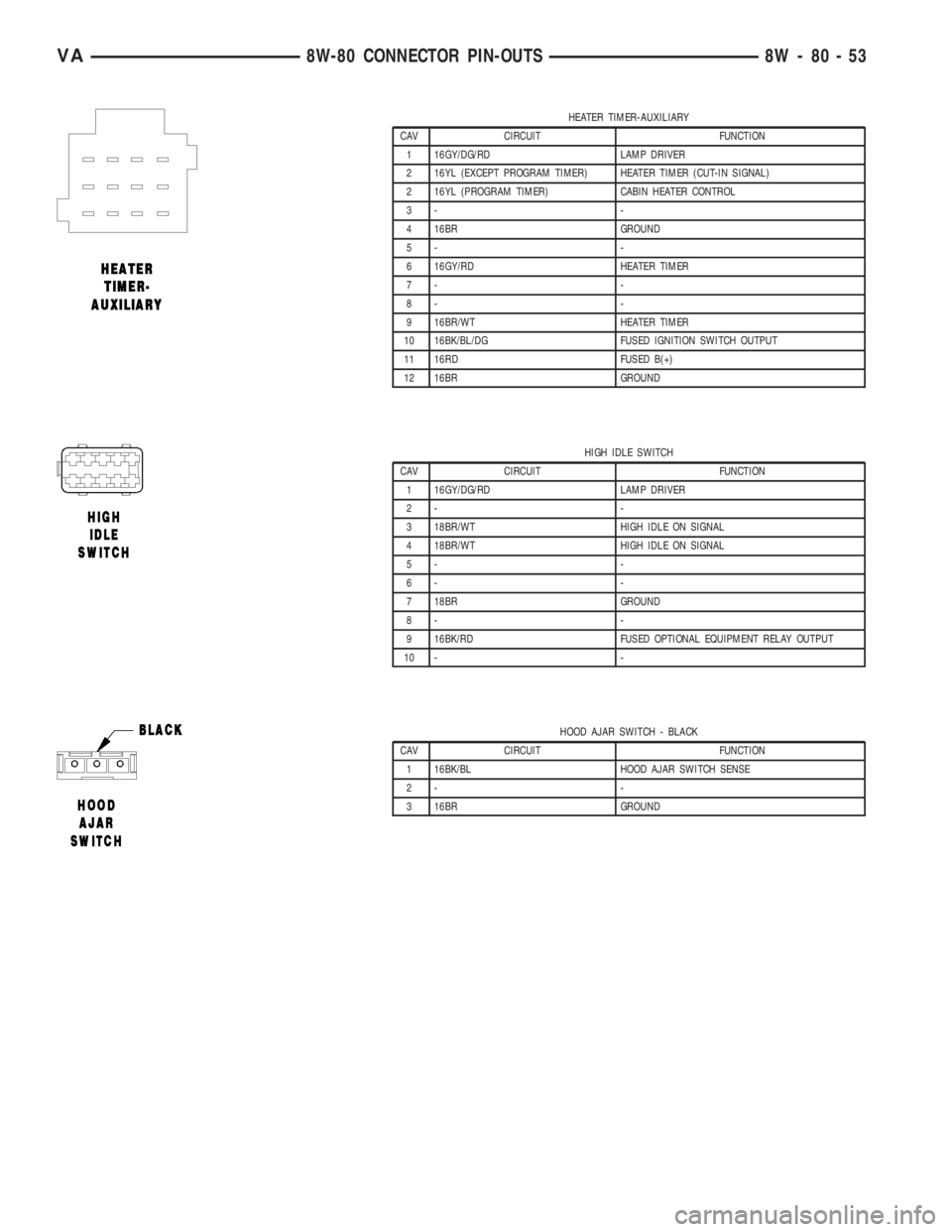

HEATER TIMER-AUXILIARY
CAV CIRCUIT FUNCTION
1 16GY/DG/RD LAMP DRIVER
2 16YL (EXCEPT PROGRAM TIMER) HEATER TIMER (CUT-IN SIGNAL)
2 16YL (PROGRAM TIMER) CABIN HEATER CONTROL
3- -
4 16BR GROUND
5- -
6 16GY/RD HEATER TIMER
7- -
8- -
9 16BR/WT HEATER TIMER
10 16BK/BL/DG FUSED IGNITION SWITCH OUTPUT
11 16RD FUSED B(+)
12 16BR GROUND
HIGH IDLE SWITCH
CAV CIRCUIT FUNCTION
1 16GY/DG/RD LAMP DRIVER
2- -
3 18BR/WT HIGH IDLE ON SIGNAL
4 18BR/WT HIGH IDLE ON SIGNAL
5- -
6- -
7 18BR GROUND
8- -
9 16BK/RD FUSED OPTIONAL EQUIPMENT RELAY OUTPUT
10 - -
HOOD AJAR SWITCH - BLACK
CAV CIRCUIT FUNCTION
1 16BK/BL HOOD AJAR SWITCH SENSE
2- -
3 16BR GROUND
VA8W-80 CONNECTOR PIN-OUTS 8W - 80 - 53

HORN
CAV CIRCUIT FUNCTION
1 18RD/DG FUSED B(+)
2 18BR GROUND
3 18BK/BL SIREN SIGNAL CONTROL
HORN (VTSS)
CAV CIRCUIT FUNCTION
1 16BK/BR HORN RELAY OUTPUT
2 16BK/YL FUSED IGNITION SWITCH OUTPUT (RUN-START)
IGNITION LOCK SWITCH - BLACK
CAV CIRCUIT FUNCTION
1 20BR GROUND
2 20BL/BK KEY-IN IGNITION SWITCH SIGNAL
INSTRUMENT CLUSTER C1
CAV CIRCUIT FUNCTION
1 20BR FUEL LEVEL SENSOR SIGNAL RETURN
2 20BR/DG AMBIENT TEMPERATURE SENSOR SIGNAL RETURN
4 20WT/GY K-IC/ATC/HBM/CHM
5 20BR/BK PARK BRAKE INDICATOR SIGNAL
7 20BK/DG RIGHT TURN SIGNAL
10 20BL/BK FUEL LEVEL SENSOR SIGNAL (+)
11 20BL/DG AMBIENT TEMPERATURE SENSOR SIGNAL (+)
14 20DG/WT/BL ENGINE COOLANT LEVEL SWITCH SIGNAL
15 20BR/WT FRONT COURTESY LAMPS CONTROL
16 20YL/RD SEAT BELT SWITCH SIGNAL
17 20DG CAN C BUS (-)
18 20DG/WT CAN C BUS (+)
8W - 80 - 54 8W-80 CONNECTOR PIN-OUTSVA

INSTRUMENT CLUSTER C2 - WHITE
CAV CIRCUIT FUNCTION
1- -
2- -
3 20RD/YL FUSED B(+)
4 20BR/WT BRAKE WEAR SENSOR SIGNAL
5- -
6 18BR GROUND
7 20GY/DG/RD LAMP DRIVER
8 20BL/WT FUSED HIGH BEAM SWITCH OUTPUT
9 20BL/RD/WT VEHICLE SPEED SENSOR OUTPUT
10 20BK FUSED IGNITION SWITCH OUTPUT (RUN-START)
11 20BL/BK KEY-IN IGNITION SWITCH SIGNAL
12 - -
13 20BK/WT LEFT TURN SIGNAL
14 20BR/YL BRAKE FLUID LEVEL INDICATOR SIGNAL
15 20BL GENERATOR MONITOR SIGNAL
16 20YL AIRBAG WARNING INDICATOR DRIVER
17 - -
18 20BL/VT D(+) RELAY NO. 1 CONTROL
18 20BL/VT D(+) RELAY NO. 1 CONTROL
INSTRUMENT PANEL SOCKET - BLACK
CAV CIRCUIT FUNCTION
1 16BR GROUND
2 16RD FUSED B(+)
INTAKE AIR PRESSURE SENSOR (OBD)
CAV CIRCUIT FUNCTION
1 20BR/RD INTAKE PRESSURE SENSOR GROUND
2 20VT/DG INTAKE PRESSURE SENSOR SIGNAL
3 20VT/RD INTAKE PRESSURE SENSOR 5 VOLT SUPPLY
VA8W-80 CONNECTOR PIN-OUTS 8W - 80 - 55

LOCKER SWITCH NO. 1
CAV CIRCUIT FUNCTION
1 16GY/DG/RD LAMP DRIVER
2- -
3 16BK/RD FUSED OPTIONAL EQUIPMENT RELAY OUTPUT
4 16BR/BK LOCKER SWITCH NO. 2 OUTPUT
5- -
6- -
7 16VT/YL DIFFERENTIAL LOCK SOLENOID CONTROL
8- -
9- -
10 20BR GROUND
LOCKER SWITCH NO. 2
CAV CIRCUIT FUNCTION
1 16BR/BK LOCKER SWITCH NO. 2 OUTPUT
2 16BK/RD FUSED OPTIONAL EQUIPMENT RELAY OUTPUT
LOW FUEL PRESSURE SENSOR - BLACK
CAV CIRCUIT FUNCTION
1 18GY/DG LOW FUEL PRESSURE SENSOR 5 VOLT SUPPLY
2 18GY/YL LOW FUEL PRESSURE SENSOR GROUND
3 18GY/RD LOW FUEL PRESSURE SENSOR SIGNAL
MAP/READING LAMP SWITCH
CAV CIRCUIT FUNCTION
1 16GY/DG/RD LAMP DRIVER
2- -
3 16RD/YL FUSED B(+)
4- -
5- -
6- -
7 16RD/YL MAP/READING LAMP SWITCH OUTPUT
8- -
9- -
10 16BR GROUND
8W - 80 - 62 8W-80 CONNECTOR PIN-OUTSVA

OXYGEN SENSOR (OBD)
CAV CIRCUIT FUNCTION
1 20DG/BK O2 1/1 PUMP CELL SIGNAL
2 20GY/WT O2 1/1 VIRTUAL GROUND
3 20GY/BL O2 1/1 HEATER CONTROL
4 20RD/DG FUSED ENGINE CONTROL RELAY OUTPUT
5 20DG/YL O2 1/1 PUMP CELL CONTROL
6 20GY O2 1/1 SENSOR CELL SIGNAL
PANIC ALARM SWITCH - BLACK
CAV CIRCUIT FUNCTION
1 18GY/DG/RD LAMP DRIVER
2- -
3 18BR GROUND
4- -
5- -
6- -
7 18GY/WT PANIC SWITCH SENSE
8- -
9- -
10 18BR GROUND
PARKING BRAKE SWITCH
CAV CIRCUIT FUNCTION
1 20BR/BK PARK BRAKE INDICATOR SIGNAL
2 16BR GROUND
3- -
4- -
5- -
6- -
7- -
8- -
9- -
10 - -
8W - 80 - 66 8W-80 CONNECTOR PIN-OUTSVA
