2006 MERCEDES-BENZ SPRINTER sensor

TEST ACTION APPLICABILITY
8 Turn the ignition off.
Disconnect the CAB harness connector.
Turn the ignition on.
Measure the voltage of both affected Wheel Speed Sensor circuits in the CAB harness
connector.
Is there any voltage present?All
Ye s!Repair the affected Wheel Speed Sensor circuit for a short to
voltage.
Perform ABS VERIFICATION TEST - VER 1.
No!Go To 9
9 Turn the ignition off.
Disconnect the CAB harness connector.
Measure the resistance between ground and both affected Wheel Speed Sensor
circuits in the CAB harness connector.
Is the resistance below 5.0 ohms?All
Ye s!Repair the affected Wheel Speed Sensor circuit for a short to
ground.
Perform ABS VERIFICATION TEST - VER 1.
No!Go To 10
10 Turn the ignition off.
Disconnect the CAB harness connector.
Measure the resistance between the affected Wheel Speed Sensor circuits in the CAB
harness connector.
Is the resistance over 1,800 ohms?All
Ye s!Repair the affected Wheel Speed Sensor circuit for an open.
Perform ABS VERIFICATION TEST - VER 1.
No!Go To 11
11 Turn the ignition off.
Disconnect the CAB harness connector.
Measure the resistance between the affected Wheel Speed Sensor circuits in the CAB
harness connector.
Is the resistance under 1,100 ohms?All
Ye s!Repair the affected Wheel Speed Sensor circuits for a short to
each other.
Perform ABS VERIFICATION TEST - VER 1.
No!Go To 12
12 Turn the ignition off.
Disconnect the CAB harness connector.
Measure the resistance between the affected Wheel Speed Sensor circuits in the CAB
harness connector.
Is the resistance between 1,100 and 1,800 ohms?All
Ye s!Go To 13
No!Replace the Wheel Speed Sensor in accordance with the Service
Information.
Perform ABS VERIFICATION TEST - VER 1.
34
BRAKES (CAB)
INCORRECT TONE WHEEL ÐContinued

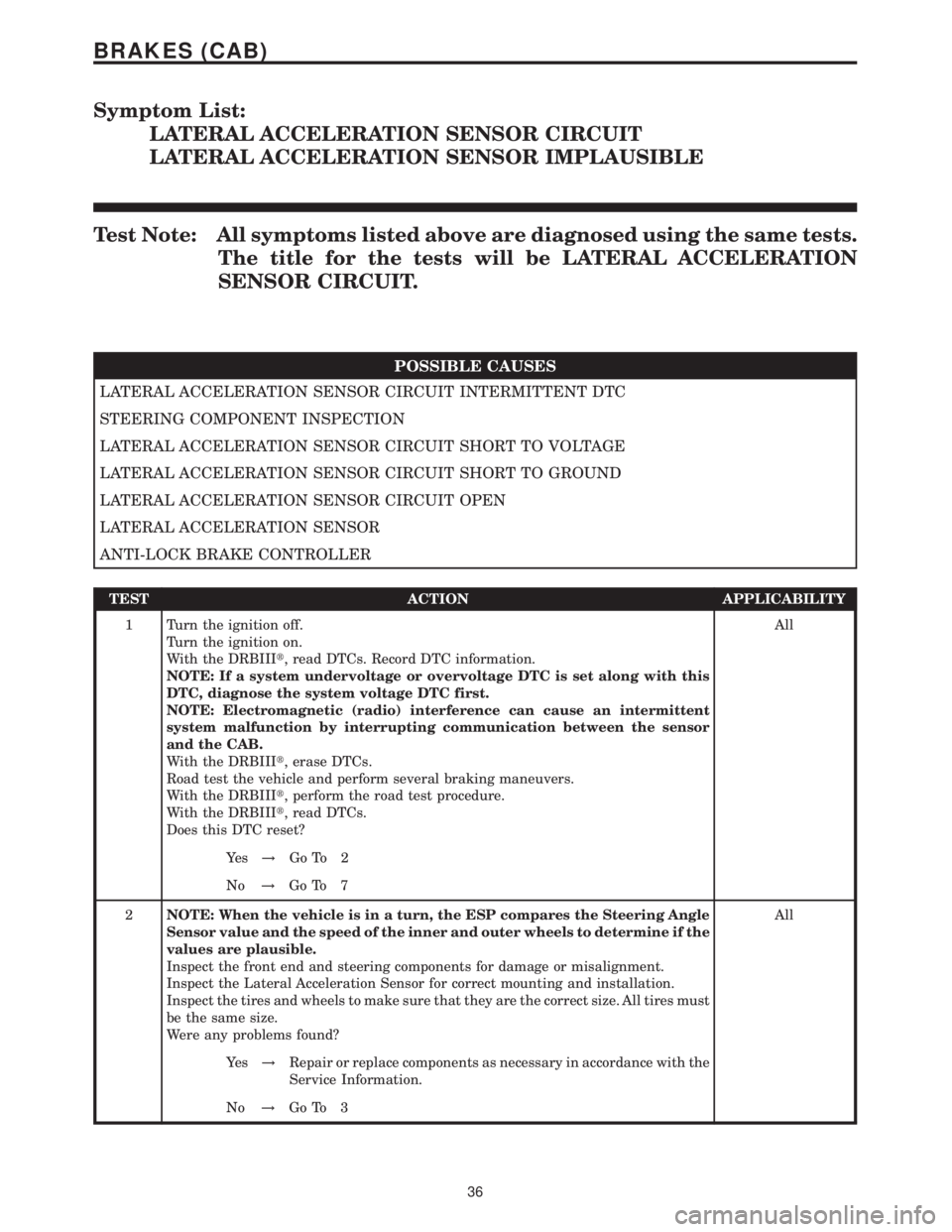

Symptom List:
LATERAL ACCELERATION SENSOR CIRCUIT
LATERAL ACCELERATION SENSOR IMPLAUSIBLE
Test Note: All symptoms listed above are diagnosed using the same tests.
The title for the tests will be LATERAL ACCELERATION
SENSOR CIRCUIT.
POSSIBLE CAUSES
LATERAL ACCELERATION SENSOR CIRCUIT INTERMITTENT DTC
STEERING COMPONENT INSPECTION
LATERAL ACCELERATION SENSOR CIRCUIT SHORT TO VOLTAGE
LATERAL ACCELERATION SENSOR CIRCUIT SHORT TO GROUND
LATERAL ACCELERATION SENSOR CIRCUIT OPEN
LATERAL ACCELERATION SENSOR
ANTI-LOCK BRAKE CONTROLLER
TEST ACTION APPLICABILITY
1 Turn the ignition off.
Turn the ignition on.
With the DRBIIIt, read DTCs. Record DTC information.
NOTE: If a system undervoltage or overvoltage DTC is set along with this
DTC, diagnose the system voltage DTC first.
NOTE: Electromagnetic (radio) interference can cause an intermittent
system malfunction by interrupting communication between the sensor
and the CAB.
With the DRBIIIt, erase DTCs.
Road test the vehicle and perform several braking maneuvers.
With the DRBIIIt, perform the road test procedure.
With the DRBIIIt, read DTCs.
Does this DTC reset?All
Ye s!Go To 2
No!Go To 7
2NOTE: When the vehicle is in a turn, the ESP compares the Steering Angle
Sensor value and the speed of the inner and outer wheels to determine if the
values are plausible.
Inspect the front end and steering components for damage or misalignment.
Inspect the Lateral Acceleration Sensor for correct mounting and installation.
Inspect the tires and wheels to make sure that they are the correct size. All tires must
be the same size.
Were any problems found?All
Ye s!Repair or replace components as necessary in accordance with the
Service Information.
No!Go To 3
36
BRAKES (CAB)

TEST ACTION APPLICABILITY
3 Turn the ignition off.
Disconnect the Lateral Acceleration Sensor harness connector.
Disconnect the CAB harness connector.
Turn the ignition on.
Measure the voltage on all 4 of the Lateral Acceleration Sensor signal circuits.
Measure the voltage of the Lateral Acceleration Sensor ground circuit.
There should be no voltage present on any of the circuits.
Measure the resistance between the Lateral Acceleration supply circuit and all 4 of
the Lateral Acceleration Sensor signal circuits.
The resistance between the circuits should be above 5.0 ohms.
Were there any problems found?All
Ye s!Repair the Lateral Acceleration Sensor circuit(s) for a short to
voltage.
No!Go To 4
4 Turn the ignition off.
Disconnect the Lateral Acceleration Sensor harness connector.
Disconnect the CAB harness connector.
Measure the resistance between the Lateral Acceleration Sensor ground and the 4
Lateral Acceleration Sensor signal circuits.
Measure the resistance between ground and the 4 Lateral Acceleration Sensor signal
circuits.
Measure the resistance between ground and the Lateral Acceleration Sensor supply
circuit.
Is the resistance below 5.0 ohms for any of the circuits?All
Ye s!Repair the Lateral Acceleration Sensor circuit(s) for a short to
ground.
No!Go To 5
5 Turn the ignition off.
Disconnect the Lateral Acceleration Sensor harness connector.
Disconnect the CAB harness connector.
Measure the resistance of the Lateral Acceleration Sensor supply circuit.
Measure the resistance of the Lateral Acceleration Sensor ground circuit.
Measure the resistance of the 4 Lateral Acceleration Sensor signal circuits.
Is the resistance above 5.0 ohms for any of the circuits?All
Ye s!Repair the Lateral Acceleration Sensor circuit(s) for an open
No!Go To 6
6 Turn the ignition off.
Disconnect the Lateral Acceleration Sensor harness connector.
Inspect the harness and connectors related to this circuit. If any problems are found,
repair as necessary.
If no problems are found, replace the Lateral Acceleration Sensor in accordance with
the Service Information.
With the DRBIIIt, clear DTCs.
With the DRBIIIt, perform the road test procedure.
With the DRBIIIt, read DTCs.
Does this DTC reset?All
Ye s!Replace the CAB in accordance with the Service Information.
No!Test Complete.
37
BRAKES (CAB)
LATERAL ACCELERATION SENSOR CIRCUIT ÐContinued

TEST ACTION APPLICABILITY
7 The condition that set this DTC is not present at this time.
Monitor the DRBIIItwhile wiggle testing the related harness and connectors. Look
for any related parameters to change or for the DTC to reset.
Inspect the related harness and connectors.
Look for any chafed, pierced, pinched, or partially broken wires.
Look for broken, bent, pushed out, or corroded terminals.
Were any problems found?All
Ye s!Repair as necessary.
No!Test Complete.
38
BRAKES (CAB)
LATERAL ACCELERATION SENSOR CIRCUIT ÐContinued

Symptom:
LATERAL ACCELERATION SENSOR INTERNAL FAULT
POSSIBLE CAUSES
LATERAL ACCELERATION SENSOR CIRCUIT INTERMITTENT DTC
LATERAL ACCELERATION SENSOR
TEST ACTION APPLICABILITY
1 Turn the ignition off.
Turn the ignition on.
With the DRBIIIt, read DTCs. Record DTC information.
NOTE: If a system undervoltage or overvoltage DTC is set along with this
DTC, diagnose the system voltage DTC first.
NOTE: Electromagnetic (radio) interference can cause an intermittent
system malfunction by interrupting communication between the sensor
and the CAB.
With the DRBIIIt, erase DTCs.
Road test the vehicle and perform several steering and braking maneuvers.
With the DRBIIIt, perform the road test procedure.
With the DRBIIIt, read DTCs.
Does this DTC reset?All
Ye s!Replace the Lateral Acceleration Sensor in accordance with the
Service Information.
No!Go To 2
2 The condition that set this DTC is not present at this time.
Monitor the DRBIIItwhile wiggle testing the related harness and connectors. Look
for any related parameters to change or for the DTC to reset.
Inspect the related harness and connectors.
Look for any chafed, pierced, pinched, or partially broken wires.
Look for broken, bent, pushed out, or corroded terminals.
Were any problems found?All
Ye s!Repair as necessary.
No!Test Complete.
39
BRAKES (CAB)

Symptom List:
LEFT FRONT WHEEL SPEED SENSOR CIRCUIT
LEFT REAR WHEEL SPEED SENSOR CIRCUIT
RIGHT FRONT WHEEL SPEED SENSOR CIRCUIT
RIGHT REAR WHEEL SPEED SENSOR CIRCUIT
Test Note: All symptoms listed above are diagnosed using the same tests.
The title for the tests will be LEFT FRONT WHEEL SPEED
SENSOR CIRCUIT.
When Monitored and Set Condition:
LEFT FRONT WHEEL SPEED SENSOR CIRCUIT
When Monitored: Ignition On - Continuously
Set Condition: When the value of the wheel speed sensor circuit is open or shorted.
POSSIBLE CAUSES
INTERMITTENT WHEEL SPEED SENSOR CIRCUIT DTC
DAMAGED CAB/CAB HARNESS CONNECTOR
WHEEL SPEED SENSOR CIRCUIT SHORT TO VOLTAGE
WHEEL SPEED SENSOR CIRCUIT SHORT TO GROUND
WHEEL SPEED SENSOR CIRCUIT OPEN
WHEEL SPEED SENSOR CIRCUITS SHORTED TOGETHER
ANTI-LOCK BRAKE CONTROLLER
TEST ACTION APPLICABILITY
1NOTE: If a system undervoltage or overvoltage DTC is set along with this
DTC, diagnose the system voltage DTC first.
Turn the ignition on.
With the DRBIIIt, read DTCs.
With the DRBIIIt, erase DTCs.
Turn the ignition off.
Turn the ignition on.
With the DRBIIIt, read DTCs.
Does the DRBIIItdisplay any WHEEL SPEED SENSOR CIRCUIT DTCs?All
Ye s!Go To 2
No!Go To 7
43
BRAKES (CAB)

TEST ACTION APPLICABILITY
2 Turn the ignition off.
Disconnect the CAB harness connector.
Inspect the CAB/CAB harness connector for damage.
Is there any broken, bent, pushed out, corroded or spread terminals?All
Ye s!Repair as necessary.
Perform ABS VERIFICATION TEST - VER 1.
No!Go To 3
3 Turn the ignition off.
Disconnect the CAB harness connector.
Turn the ignition on.
Measure the voltage of both affected Wheel Speed Sensor circuits in the CAB harness
connector.
NOTE: If the wheel is rotating, voltage will be present.
Is there any voltage present?All
Ye s!Repair the affected Wheel Speed Sensor circuit for a short to
voltage.
Perform ABS VERIFICATION TEST - VER 1.
No!Go To 4
4 Turn the ignition off.
Disconnect the CAB harness connector.
Measure the resistance between ground and both affected Wheel Speed Sensor
circuits in the CAB harness connector.
Is the resistance below 5.0 ohms?All
Ye s!Repair the affected Wheel Speed Sensor circuit for a short to
ground.
Perform ABS VERIFICATION TEST - VER 1.
No!Go To 5
5 Turn the ignition off.
Disconnect the CAB harness connector.
Measure the resistance between the affected Wheel Speed Sensor circuits in the CAB
harness connector.
Is the resistance over 1,800 ohms?All
Ye s!Repair the affected Wheel Speed Sensor circuit for an open.
Perform ABS VERIFICATION TEST - VER 1.
No!Go To 6
6 Turn the ignition off.
Disconnect the CAB harness connector.
Measure the resistance between the affected Wheel Speed Sensor circuits in the CAB
harness connector.
Is the resistance under 1,100 ohms?All
Ye s!Repair the affected Wheel Speed Sensor circuits for a short to
each other.
Perform ABS VERIFICATION TEST - VER 1.
No!Replace the Controller Antilock Brake in accordance with the
Service Information.
Perform ABS VERIFICATION TEST - VER 1.
44
BRAKES (CAB)
LEFT FRONT WHEEL SPEED SENSOR CIRCUIT ÐContinued

TEST ACTION APPLICABILITY
7 Turn the ignition off.
Visually inspect the related wiring harness.
Look for any chafed, pierced, pinched, or partially broken wires.
Look for broken, bent, pushed out, or corroded terminals.
Were any problems found?All
Ye s!Repair as necessary.
Perform ABS VERIFICATION TEST - VER 1.
No!Test Complete.
45
BRAKES (CAB)
LEFT FRONT WHEEL SPEED SENSOR CIRCUIT ÐContinued
