2006 MERCEDES-BENZ SLR display

154 Controls in detailAudio systemTrack search backward
Presse button.SEEK RWD
will appear on the display.
Track search will run the tape back-
ward to the start of the track currently
playing and switch to Play.
Stopping track search

Pressd, c, f or
ebutton.
The cassette will switch over to Play.Scanning


Starting scan
Press2 button.SC will appear on the display.
Each track on the cassette will be
played briefly in ascending order.


Stopping scan
Press2, d, c, f or
ebutton.
The system will switch to Play.Fast forward/reverse


Starting cassette fast forward mode
Pressd button.FORWARD
will appear on the display.


Starting cassette fast reverse mode
Pressc button.REWIND
will appear on the display.
The cassette will automatically switch over
to the play mode at the end or beginning of
the tape.


Stopping the cassette fast forward/re-
verse mode
Pressd, c, f or
ebutton.
The cassette will switch over to the
play mode.

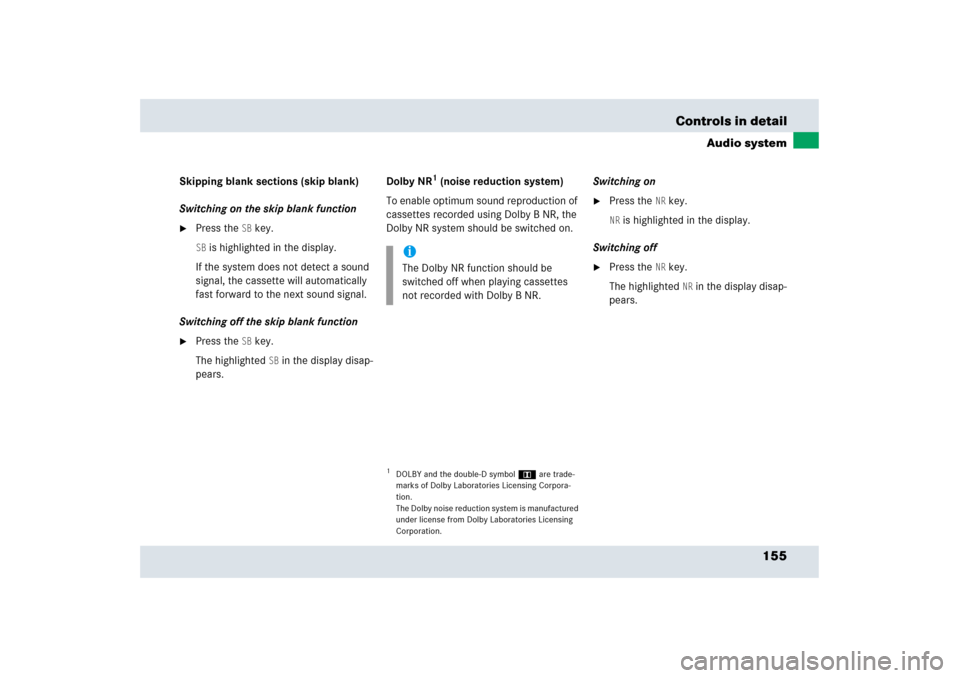

155 Controls in detail
Audio system
Skipping blank sections (skip blank)
Switching on the skip blank function
Press the
SB key.
SB is highlighted in the display.
If the system does not detect a sound
signal, the cassette will automatically
fast forward to the next sound signal.
Switching off the skip blank function

Press the
SB key.
The highlighted
SB in the display disap-
pears.Dolby NR
1 (noise reduction system)
To enable optimum sound reproduction of
cassettes recorded using Dolby B NR, the
Dolby NR system should be switched on.Switching on

Press the
NR key.
NR is highlighted in the display.
Switching off

Press the
NR key.
The highlighted
NR in the display disap-
pears.
1DOLBY and the double-D symbolÙ are trade-
marks of Dolby Laboratories Licensing Corpora-
tion.
The Dolby noise reduction system is manufactured
under license from Dolby Laboratories Licensing
Corporation.iThe Dolby NR function should be
switched off when playing cassettes
not recorded with Dolby B NR.

156 Controls in detailAudio systemCD changer operation
General notes
Should excessively high temperatures oc-
cur while in CD mode,
CD TEMP HIGH
will
appear on the display and the CD will be
muted. The unit will then switch back to
the last operating mode used until the tem-
perature has decreased to a safe operating
level.
Should excessively low temperatures oc-
cur while in CD mode,
CD TEMP LOW
will ap-
pear on the display, but the CD will
continue to play.
Handle CDs carefully to prevent interfer-
ence during playback. Avoid fingerprints
and dust on CDs. Do not write on CDs or
apply any labels or other material to them.Only use original CDs. Using copied CDs
may create problems during playback.
Clean CDs from time to time with a com-
mercially available cleaning cloth. Do not
use solvents, anti-static sprays, etc. for
cleaning. Replace the CD in its case after
use. Protect CDs from heat and direct sun-
light.
Only use CDs, which bear the label shown
and that conform to the compact disc
digital audio standard (IEC 60908). You
can therefore only use CDs with a maxi-
mum thickness of 1.3 mm.
iUse of CDs which do not meet this
standard may cause damage to the CD
changer. Do not play single-CDs
(80 mm) with an adapter.
Your CD drive has been designed to
play CDs which correspond to the
IEC 60908 standard.
If you insert thicker data carriers, e.g.
ones that have data on both sides (one
side with DVD data, the other side with
audio data), they cannot be ejected and
will damage the drive.Warning!
G
The CD changer is a Class 1 laser product.
There is a danger of invisible laser radiation
if the cover is opened or damaged.
Do not remove the cover. The CD changer
does not contain any parts which can be ser-
viced by the user. For safety reasons, have
any service work which may be necessary
performed only by qualified personnel.

157 Controls in detail
Audio system
Operational readiness of CD changer
The CD changer is located in the trunk on
the left side.
1CD changer
The CD changer can be operated from the
front control panel of the radio. A loaded
magazine must be installed to play CDs.Loading/unloading a CD magazine

Slide changer door to the right and
press eject buttong.
1CD
2CD changer
3CD tray
4CD magazine

The CD magazine4 will be ejected.

Remove CD magazine and pull
CD tray3 fully out.

Place CD1 in recess of CD tray, label
side up.

Push CD tray into CD magazine in di-
rection of arrow.

Push magazine into CD changer2 in
direction of arrow and close sliding
door.
Playing CDs

Pressi button.CD will appear on the display.
The last CD listened to will then start play-
ing at the point where it was switched off.
After the last track on a CD has finished,
the next CD is automatically played.iCDs which have been inserted improp-
erly or are unreadable will not be
played.
You do not need to place CDs in all six
CD trays.
The lowest tray is magazine slot num-
ber 1 and the highest tray is magazine
slot number 6.

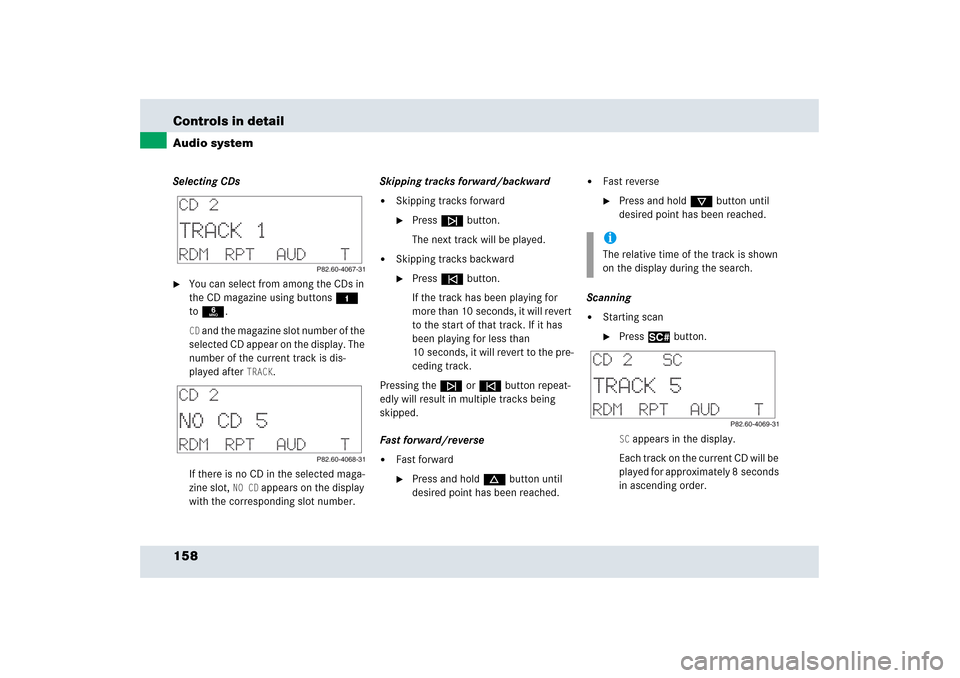

158 Controls in detailAudio systemSelecting CDs
You can select from among the CDs in
the CD magazine using buttons4
to6.CD and the magazine slot number of the
selected CD appear on the display. The
number of the current track is dis-
played after
TRACK
.
If there is no CD in the selected maga-
zine slot,
NO CD
appears on the display
with the corresponding slot number.Skipping tracks forward/backward


Skipping tracks forward
Pressf button.
The next track will be played.


Skipping tracks backward
Presse button.
If the track has been playing for
more than 10 seconds, it will revert
to the start of that track. If it has
been playing for less than
10 seconds, it will revert to the pre-
ceding track.
Pressing thef or ebutton repeat-
edly will result in multiple tracks being
skipped.
Fast forward/reverse


Fast forward
Press and holdd button until
desired point has been reached.


Fast reverse
Press and holdc button until
desired point has been reached.
Scanning


Starting scan
Press2 button.SC appears in the display.
Each track on the current CD will be
played for approximately 8 seconds
in ascending order.
iThe relative time of the track is shown
on the display during the search.

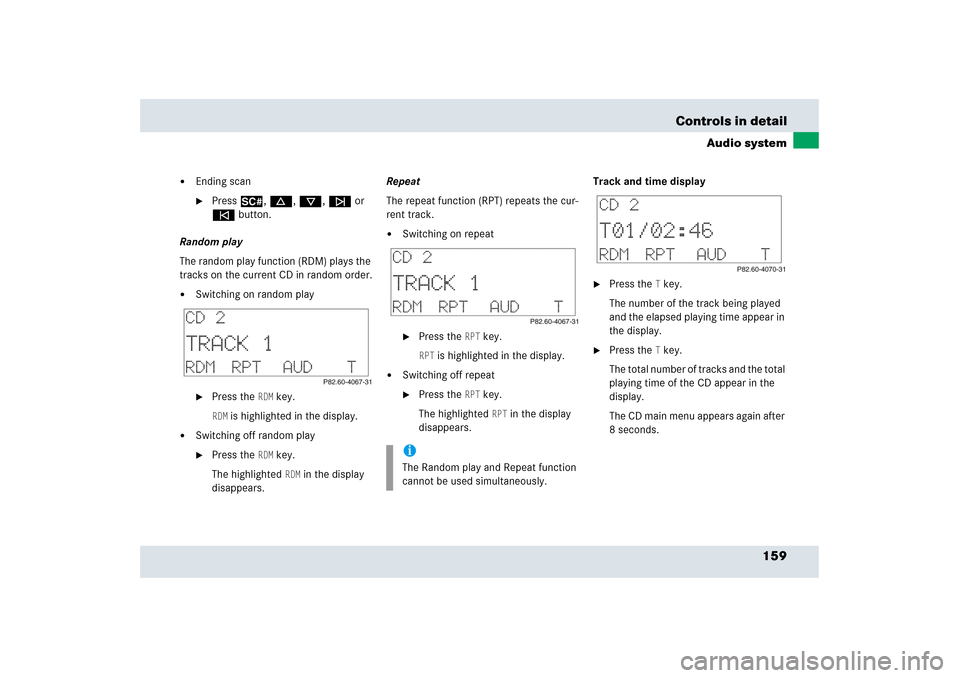

159 Controls in detail
Audio system


Ending scan
Press2, d, c, f or
ebutton.
Random play
The random play function (RDM) plays the
tracks on the current CD in random order.


Switching on random play
Press the
RDM
key.
RDM
is highlighted in the display.


Switching off random play
Press the
RDM
key.
The highlighted RDM
in the display
disappears.Repeat
The repeat function (RPT) repeats the cur-
rent track.


Switching on repeat
Press the
RPT
key.
RPT
is highlighted in the display.


Switching off repeat
Press the
RPT
key.
The highlighted RPT
in the display
disappears.Track and time display

Press the
T key.
The number of the track being played
and the elapsed playing time appear in
the display.

Press the
T key.
The total number of tracks and the total
playing time of the CD appear in the
display.
The CD main menu appears again after
8 seconds.
iThe Random play and Repeat function
cannot be used simultaneously.

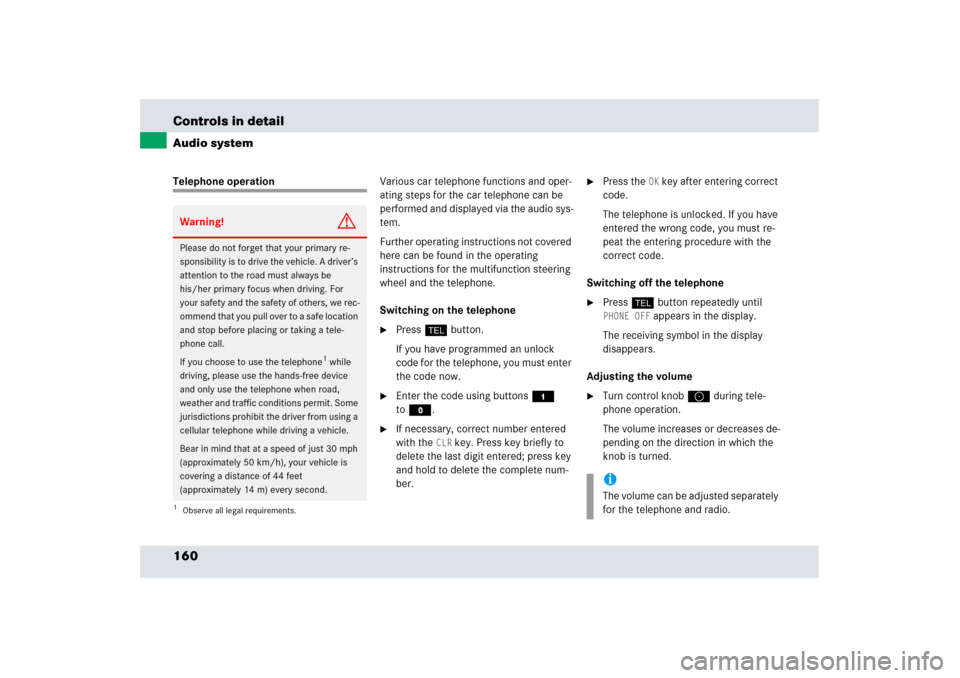

160 Controls in detailAudio systemTelephone operationVarious car telephone functions and oper-
ating steps for the car telephone can be
performed and displayed via the audio sys-
tem.
Further operating instructions not covered
here can be found in the operating
instructions for the multifunction steering
wheel and the telephone.
Switching on the telephone

Pressh button.
If you have programmed an unlock
code for the telephone, you must enter
the code now.

Enter the code using buttons4
toM.

If necessary, correct number entered
with the
CLR
key. Press key briefly to
delete the last digit entered; press key
and hold to delete the complete num-
ber.

Press the
OK key after entering correct
code.
The telephone is unlocked. If you have
entered the wrong code, you must re-
peat the entering procedure with the
correct code.
Switching off the telephone

Pressh button repeatedly until PHONE OFF
appears in the display.
The receiving symbol in the display
disappears.
Adjusting the volume

Turn control knoba during tele-
phone operation.
The volume increases or decreases de-
pending on the direction in which the
knob is turned.
Warning!
G
Please do not forget that your primary re-
sponsibility is to drive the vehicle. A driver’s
attention to the road must always be
his/her primary focus when driving. For
your safety and the safety of others, we rec-
ommend that you pull over to a safe location
and stop before placing or taking a tele-
phone call.
If you choose to use the telephone
1 while
driving, please use the hands-free device
and only use the telephone when road,
weather and traffic conditions permit. Some
jurisdictions prohibit the driver from using a
cellular telephone while driving a vehicle.
Bear in mind that at a speed of just 30 mph
(approximately 50 km/h), your vehicle is
covering a distance of 44 feet
(approximately 14 m) every second.
1Observe all legal requirements.
iThe volume can be adjusted separately
for the telephone and radio.

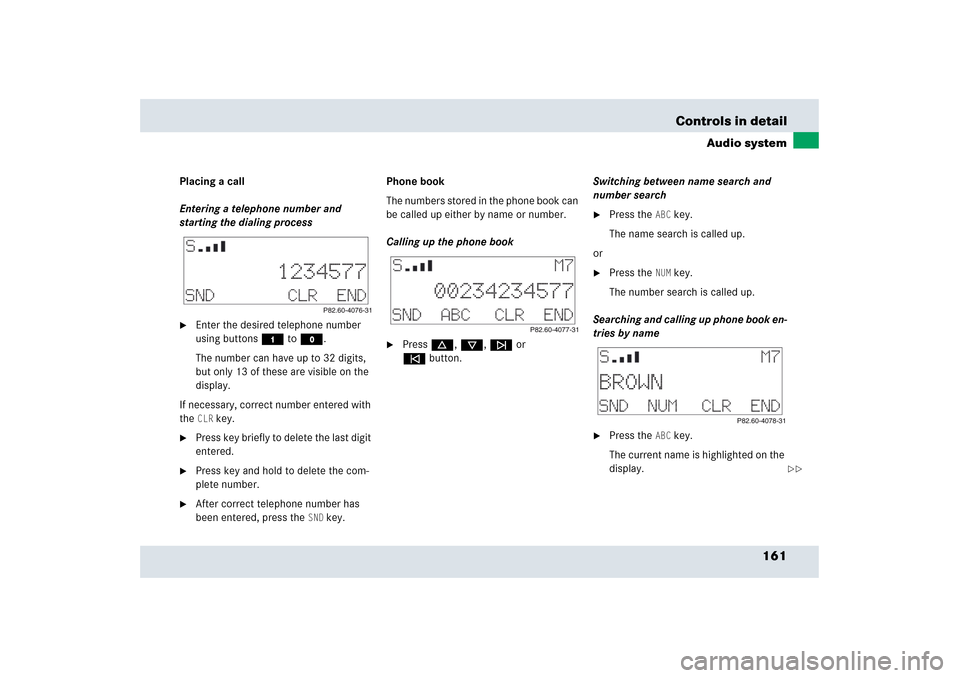

161 Controls in detail
Audio system
Placing a call
Entering a telephone number and
starting the dialing process
Enter the desired telephone number
using buttons4 toM.
The number can have up to 32 digits,
but only 13 of these are visible on the
display.
If necessary, correct number entered with
the CLR
key.

Press key briefly to delete the last digit
entered.

Press key and hold to delete the com-
plete number.

After correct telephone number has
been entered, press the
SND
key.Phone book
The numbers stored in the phone book can
be called up either by name or number.
Calling up the phone book

Pressd, c, f or
ebutton.Switching between name search and
number search

Press the
ABC
key.
The name search is called up.
or

Press the
NUM
key.
The number search is called up.
Searching and calling up phone book en-
tries by name

Press the
ABC
key.
The current name is highlighted on the
display.
