2006 MERCEDES-BENZ SLR display

213 Controls in detail
Useful features

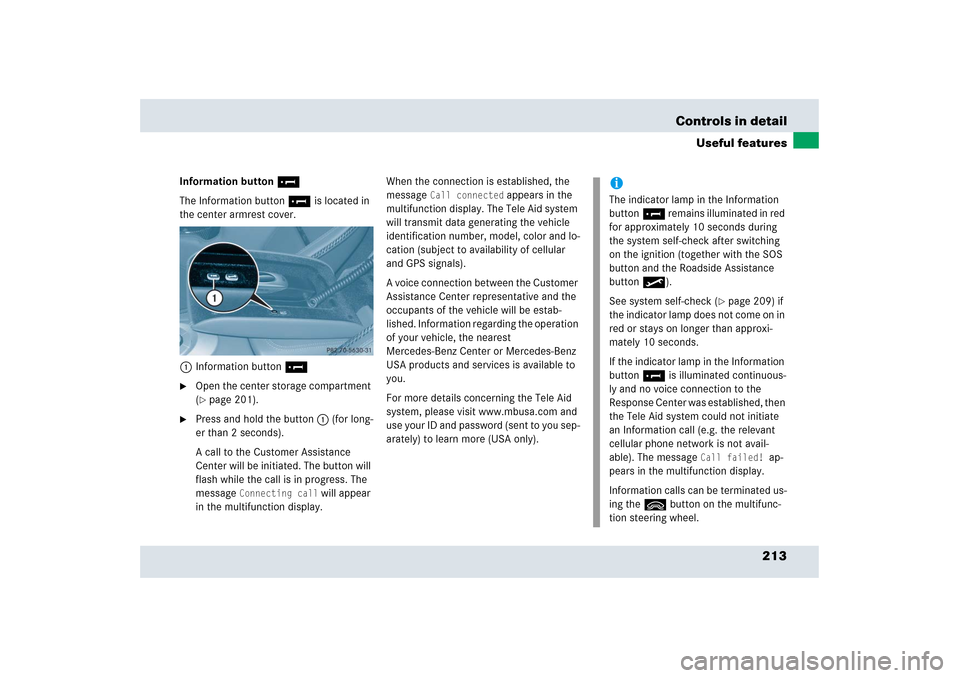

Information button ¡
The Information button¡ is located in
the center armrest cover.
1Information button¡
Open the center storage compartment
(page 201).

Press and hold the button1 (for long-
er than 2 seconds).
A call to the Customer Assistance
Center will be initiated. The button will
flash while the call is in progress. The
message
Connecting call
will appear
in the multifunction display.When the connection is established, the
message
Call connected
appears in the
multifunction display. The Tele Aid system
will transmit data generating the vehicle
identification number, model, color and lo-
cation (subject to availability of cellular
and GPS signals).
A voice connection between the Customer
Assistance Center representative and the
occupants of the vehicle will be estab-
lished. Information regarding the operation
of your vehicle, the nearest
Mercedes-Benz Center or Mercedes-Benz
USA products and services is available to
you.
For more details concerning the Tele Aid
system, please visit www.mbusa.com and
use your ID and password (sent to you sep-
arately) to learn more (USA only).
iThe indicator lamp in the Information
button¡ remains illuminated in red
for approximately 10 seconds during
the system self-check after switching
on the ignition (together with the SOS
button and the Roadside Assistance
button•).
See system self-check (
page 209) if
the indicator lamp does not come on in
red or stays on longer than approxi-
mately 10 seconds.
If the indicator lamp in the Information
button¡ is illuminated continuous-
ly and no voice connection to the
Response Center was established, then
the Tele Aid system could not initiate
an Information call (e.g. the relevant
cellular phone network is not avail-
able). The message
Call failed!
ap-
pears in the multifunction display.
Information calls can be terminated us-
ing the ìbutton on the multifunc-
tion steering wheel.

215 Controls in detail
Useful features

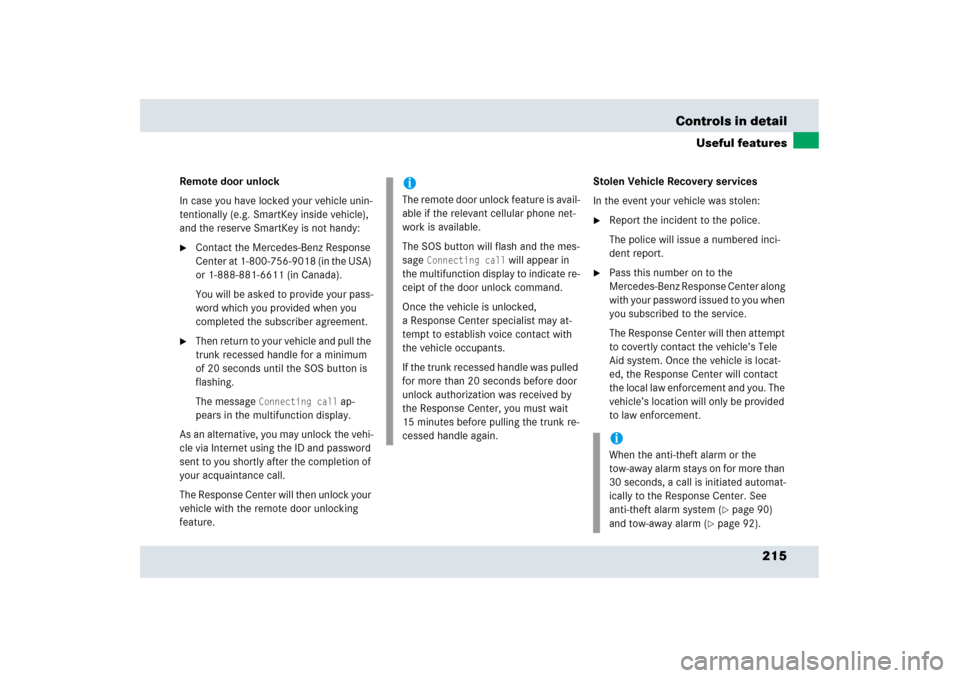

Remote door unlock
In case you have locked your vehicle unin-
tentionally (e.g. SmartKey inside vehicle),
and the reserve SmartKey is not handy:
Contact the Mercedes-Benz Response
Center at 1-800-756-9018 (in the USA)
or 1-888-881-6611 (in Canada).
You will be asked to provide your pass-
word which you provided when you
completed the subscriber agreement.

Then return to your vehicle and pull the
trunk recessed handle for a minimum
of 20 seconds until the SOS button is
flashing.
The message
Connecting call
ap-
pears in the multifunction display.
As an alternative, you may unlock the vehi-
cle via Internet using the ID and password
sent to you shortly after the completion of
your acquaintance call.
The Response Center will then unlock your
vehicle with the remote door unlocking
feature.Stolen Vehicle Recovery services
In the event your vehicle was stolen:

Report the incident to the police.
The police will issue a numbered inci-
dent report.

Pass this number on to the
Mercedes-Benz Response Center along
with your password issued to you when
you subscribed to the service.
The Response Center will then attempt
to covertly contact the vehicle’s Tele
Aid system. Once the vehicle is locat-
ed, the Response Center will contact
the local law enforcement and you. The
vehicle’s location will only be provided
to law enforcement.
iThe remote door unlock feature is avail-
able if the relevant cellular phone net-
work is available.
The SOS button will flash and the mes-
sage
Connecting call
will appear in
the multifunction display to indicate re-
ceipt of the door unlock command.
Once the vehicle is unlocked,
a Response Center specialist may at-
tempt to establish voice contact with
the vehicle occupants.
If the trunk recessed handle was pulled
for more than 20 seconds before door
unlock authorization was received by
the Response Center, you must wait
15 minutes before pulling the trunk re-
cessed handle again.
iWhen the anti-theft alarm or the
tow-away alarm stays on for more than
30 seconds, a call is initiated automat-
ically to the Response Center. See
anti-theft alarm system (
page 90)
and tow-away alarm (
page 92).

231 Operation
Driving instructions
Driving instructions
Drive sensibly – save fuel
Fuel consumption, to a great extent,
depends on driving habits and operating
conditions.
To save fuel you should:

Keep tires at the recommended tire
inflation pressures.


Remove unnecessary loads.


Allow engine to warm up under low
load use.


Avoid frequent acceleration and decel-
eration.


Have all maintenance work performed
at the intervals specified in the
Maintenance Booklet and as required
by the maintenance service display.
Contact an authorized Mercedes-Benz
Center.
Fuel consumption is also increased by
driving in cold weather, in stop-and-go
traffic, on short trips and in hilly area.
Drinking and driving
Pedals
Warning!
G
Drinking and driving and/or taking drugs
and driving are very dangerous combina-
tions. Even a small amount of alcohol or
drugs can affect your reflexes, perceptions
and judgment.
The possibility of a serious or even fatal
accident are greatly increased when you
drink or take drugs and drive.
Do not drink or take drugs and drive or allow
anyone to drive who has been drinking or
taking drugs.
Warning!
G
Keep driver’s foot area clear at all times.
Objects stored in this area may impair pedal
movement.

267 Operation
Tires and wheels
Checking tire inflation pressure
electronically
The tire inflation pressure monitor only
functions on wheels that are equipped with
the proper electronic sensors. It monitors
the tire inflation pressure, as selected by
the driver, in all four tires. A warning is
issued to alert you to a decrease in tire
inflation pressure in one or more of the
tires.
You can call up the tire inflation pressure
monitoring display using the control
system (
page 137).

Switch on the ignition (
page 40).

Press buttonè orÿ on the
multifunction steering wheel
repeatedly until the standard display
menu appears in the multifunction
display (
page 117).

Press button k repeatedly until the
current tire inflation pressures for each
tire appear in the multifunction display.
iAfter you have reactivated the tire infla-
tion pressure monitor, the current tire
inflation pressures will only be shown
after a few minutes driving time.
During this time you will see the
following message in the multifunction
display:Tire pressure
displayed only
after driving
a few minutesiPossible differences between the read-
ings of a tire inflation pressure gauge of
an air hose, e.g. gas station equipment,
and the vehicle’s control system can
occur. The readings issued by the
control system are more precise.
iYou can select the unit of measure
(bar/psi) used for the tire inflation
pressure by changing the setting in the
control system (
page 137).


269 Operation
Tires and wheels
Reactivating the tire inflation pressure
monitor
The tire inflation pressure monitor must be
reactivated in the following situations:

If you have changed the tire inflation
pressure


If you have replaced the wheels or tires


If you have installed new wheels or
tires

Using the tire placard on the driver’s
door B-pillar or, if available, the inside
of the fuel filler flap, make sure the tire
inflation pressure of all four tires is cor-
rect.

Press button k repeatedly until you
see the current tire inflation pressures
for each tire appear in the multifunc-
tion display or the following message
appears in the multifunction display:Tire pressure
displayed only
after driving
a few minutes

Press the reset button on the instru-
ment cluster (
page 29).
The following message will appear in
the multifunction display:
Monitor current
tire pressure?

Do not overload the tires by exceeding the
specified load limit or vehicle capacity
weight as indicated on the placard on the
driver’s door B-pillar. Overloading the tires
can overheat them, possibly causing a
blowout.
iIf you are transporting a deflated tire
and/or additional wheel sensors in the
vehicle, do not activate the tire inflation
pressure monitor until

the deflated tire and/or additional
wheel sensors are no longer in the
vehicle


you have inflated the tire to the
correct tire inflation pressure


270 OperationTires and wheels

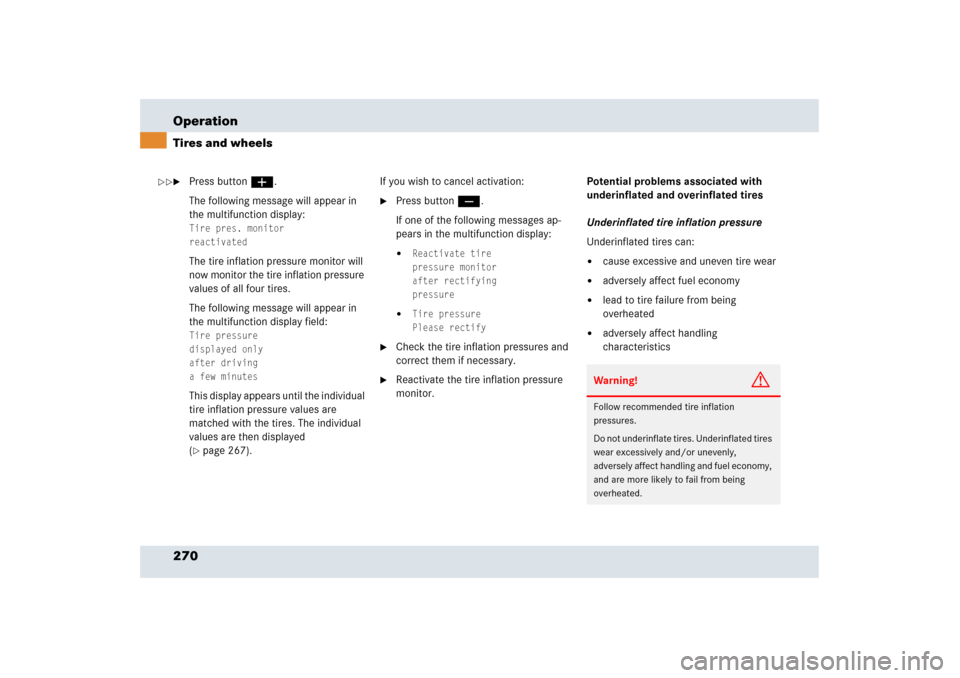

Press button æ.
The following message will appear in
the multifunction display:Tire pres. monitor

reactivated

The tire inflation pressure monitor will
now monitor the tire inflation pressure
values of all four tires.
The following message will appear in
the multifunction display field:
Tire pressure
displayed only
after driving
a few minutesThis display appears until the individual
tire inflation pressure values are
matched with the tires. The individual
values are then displayed
(page 267).If you wish to cancel activation:

Press button ç.
If one of the following messages ap-
pears in the multifunction display:

Reactivate tire
pressure monitor
after rectifying
pressure


Tire pressure

Please rectify


Check the tire inflation pressures and
correct them if necessary.

Reactivate the tire inflation pressure
monitor.Potential problems associated with
underinflated and overinflated tires
Underinflated tire inflation pressure
Underinflated tires can:


cause excessive and uneven tire wear


adversely affect fuel economy


lead to tire failure from being
overheated


adversely affect handling
characteristicsWarning!
G
Follow recommended tire inflation
pressures.
Do not underinflate tires. Underinflated tires
wear excessively and/or unevenly,
adversely affect handling and fuel economy,
and are more likely to fail from being
overheated.


289 Operation
Maintenance
Maintenance
In order to maintain the performance and
safety of your SLR, we strongly recom-
mend that you have your vehicle serviced
by an authorized Mercedes-Benz Center,
every 12 months, even if the vehicle has
covered less than 10 000 miles
(15 000 km) in that time.
The maintenance service indicator will
notify you when your next maintenance
service is due within the next 12 months or
10 000 miles (15 000 km), whichever
comes sooner.
Failure to have the vehicle maintained in
accordance with the Maintenance Booklet
and maintenance service indicator at the
designated times/mileage will result in
vehicle damage not covered by the
Mercedes-Benz Limited Warranty.Before your next maintenance service is
due, one of the following messages will ap-
pear in the right multifunction display while
you are driving or when you switch on the
ignition:
Service in .. days
Service in .. miles

When the maintenance service is due, the
following message appears in the multi-
function display:
Carry out Service
Clearing the maintenance service indicator message
The maintenance service indicator mes-
sage is automatically cleared after 30 sec-
onds when you switch on the ignition. You
can also clear it yourself.
1Reset button
Press reset button 1.
The maintenance service indicator
message is cleared and the standard
display appears in the multifunction
display (
page 117).

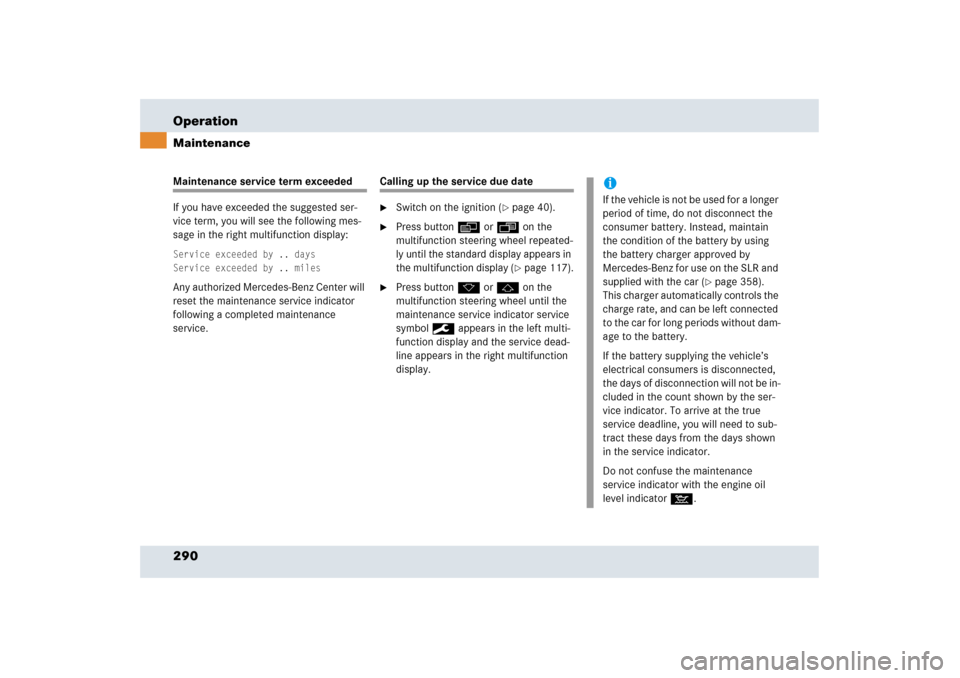

290 OperationMaintenanceMaintenance service term exceeded
If you have exceeded the suggested ser-
vice term, you will see the following mes-
sage in the right multifunction display:Service exceeded by .. days
Service exceeded by .. milesAny authorized Mercedes-Benz Center will
reset the maintenance service indicator
following a completed maintenance
service.
Calling up the service due date
Switch on the ignition (
page 40).

Press buttonè orÿ on the
multifunction steering wheel repeated-
ly until the standard display appears in
the multifunction display (
page 117).

Press button k or j on the
multifunction steering wheel until the
maintenance service indicator service
symbol 9 appears in the left multi-
function display and the service dead-
line appears in the right multifunction
display.
iIf the vehicle is not be used for a longer
period of time, do not disconnect the
consumer battery. Instead, maintain
the condition of the battery by using
the battery charger approved by
Mercedes-Benz for use on the SLR and
supplied with the car (
page 358).
This charger automatically controls the
charge rate, and can be left connected
to the car for long periods without dam-
age to the battery.
If the battery supplying the vehicle’s
electrical consumers is disconnected,
the days of disconnection will not be in-
cluded in the count shown by the ser-
vice indicator. To arrive at the true
service deadline, you will need to sub-
tract these days from the days shown
in the service indicator.
Do not confuse the maintenance
service indicator with the engine oil
level indicator:.
