248 OperationEngine compartmentChecking the engine oil level
When checking the oil level,

the vehicle must be parked on level
ground


the engine must be at normal operating
temperature (min. 80°C)

Wait for at least 30 seconds with
engine still at idle.

Measure engine oil level with engine
still at idle.The dipstick and the cap are located on the
passenger side in the engine compart-
ment.
1Dipstick
2Filler cap

Pull out dipstick1 and wipe it off.

Reinsert the dipstick fully into the
guide.

Pull out the dipstick again after
3 seconds.
DipstickThe engine oil level must be between the
lower (min) and upper (max) marks.
Top up the engine oil if necessary.iThe difference in level between the up-
per and lower marks represents a
volume of about 2.1 US qt (2.0 l).

249 Operation
Engine compartment
Adding engine oil

Using a rag, unscrew filler cap2 from
filler neck.

Add engine oil as required. Be careful
not to overfill with oil.Be careful not to spill any oil when adding.
Avoid environmental damage caused by oil
entering the ground or water.

Screw the filler cap back on filler neck.
You will find further information about en-
gine oil in the “Technical data” section
(
page 378) and (
page 377).
Transmission fluid level
The transmission fluid level does not need
to be checked. If you notice transmission
fluid loss or gear shifting malfunctions,
have an authorized Mercedes-Benz Center
check the transmission.
Warning!
G
The filler cap on the filler neck could be hot.
Use a rag when you unscrew the filler cap.
Otherwise you could burn yourself.
!Only use approved engine oils and oil
filters required for vehicles with
Maintenance System. For a listing of
approved engine oils and oil filters,
refer to the Factory Approved Service
Products pamphlet in your vehicle
literature portfolio, or contact an
authorized Mercedes-Benz Center.
Using engine oils and oil filters of
specification other than those
expressly required for the Maintenance
System, or changing of oil and oil filter
at change intervals longer than those
called for by the Maintenance System
will result in engine damage not cov-
ered by the Mercedes-Benz Limited
Warranty.
!Excess oil must be siphoned or drained
off. It could cause damage to the
engine and catalytic converter not
covered by the Mercedes-Benz Limited
Warranty.

250 OperationEngine compartmentCoolant
The engine coolant is a mixture of water
and anticorrosion/antifreeze. To check
the coolant level, the vehicle must be
parked on level ground and the engine
must be cool.
The coolant expansion tank is located on
the passenger side of the engine compart-
ment.
1Expansion tank

Using a rag, turn cap slowly approxi-
mately one half turn to the left to
release any excess pressure.

Continue turning the cap to the left and
remove it.
The coolant level is correct if the level

for cold coolant: reaches the upper
mark on the bracing rib of the ex-
pansion tank (arrow)


for warm coolant: is approximately
0.4 in (1 cm) higher

Add coolant as required.

Replace and tighten cap.
For more information, see “Coolants”
(
page 381).
Warning!
G
In order to avoid any possibly serious burns:

Use extreme caution when opening the
hood if there are any signs of steam or
coolant leaking from the cooling system,
or if the coolant temperature gauge indi-
cates that the coolant is overheated.


Do not remove pressure cap on coolant
reservoir if coolant temperature is
above 194°F (90°C). Allow engine to
cool down before removing cap. The
coolant reservoir contains hot fluid and
is under pressure.


Using a rag, slowly open the cap
approximately
1/2 turn to relieve excess
pressure. If opened immediately, scald-
ing hot fluid and steam will be blown out
under pressure.


Do not spill antifreeze on hot engine
parts. Antifreeze contains ethylene
glycol which may burn if it comes into
contact with hot engine parts.

251 OperationTrunk
Trunk
Batteries
Your vehicle is equipped with two batter-
ies.

Starter battery in the trunk


Consumer battery in the trunk
These batteries should always be suffi-
ciently charged in order to achieve its rat-
ed service life. A flat battery must be fully
recharged. Refer to Maintenance Booklet
for battery maintenance intervals.
If you use your vehicle mostly for
short-distance trips, you will need to have
the battery charge checked more
frequently.
When replacing batteries, always use bat-
teries approved by Mercedes-Benz. Have
this work only carried out by an authorized
Mercedes-Benz Center.
If you do not intend to operate your vehicle
for an extended period of time, consult an
authorized Mercedes-Benz Center about
steps you need to observe.For more information on battery mainte-
nance, see “Batteries” (
page 356).
G
Observe all safety instructions
and precautions when handling
automotive batteries.
A
Risk of explosion.
D
Keep flames or sparks away
from battery. Do not smoke.
B
Battery acid is caustic. Do not
allow it to come into contact
with skin, eyes or clothing.
In case it does, immediately
flush affected area with clean
water and seek medical help if
necessary.
E
Wear eye protection.
C
Keep children away.
F
Follow the instructions in this
Operator’s Manual.
!You must not jump start the vehicle,
otherwise the vehicle electrical sys-
tems could be damaged.

252 OperationTrunkWindshield washer system and head-lamp cleaning system
Fluid for the windshield washer system and
the headlamp cleaning system is supplied
from the windshield washer reservoir. It
has a capacity of approximately
7.4USqt(7l).
During all seasons, add MB Windshield
Washer Concentrate “S” to water. Premix
the windshield washer fluid in a suitable
container.
Refill the reservoir with MB Windshield
Washer Concentrate and water (or
commercially available premixed
windshield washer solvent/antifreeze,
depending on ambient temperatures).
Always use washer solvent/antifreeze
where temperatures may fall below the
freezing point. Failure to do so could
result in damage to the washer
system/reservoir.The washer fluid reservoir is located in the
trunk underneath the floor on the left hand
side.
1Quick-release fasteners
2Loop

Lift up the interior floor panel by
loop2.

Turn the quick-release fasteners
counterclockwise1 and remove the
cover.
!Only use washer fluid which is suitable
for plastic lenses. Improper washer
fluid can damage the plastic lenses of
the headlamps.Warning!
G
Washer solvent/antifreeze is highly flamma-
ble. Do not spill washer solvent/antifreeze
on hot engine parts, because it may ignite
and burn. You could be seriously burned.

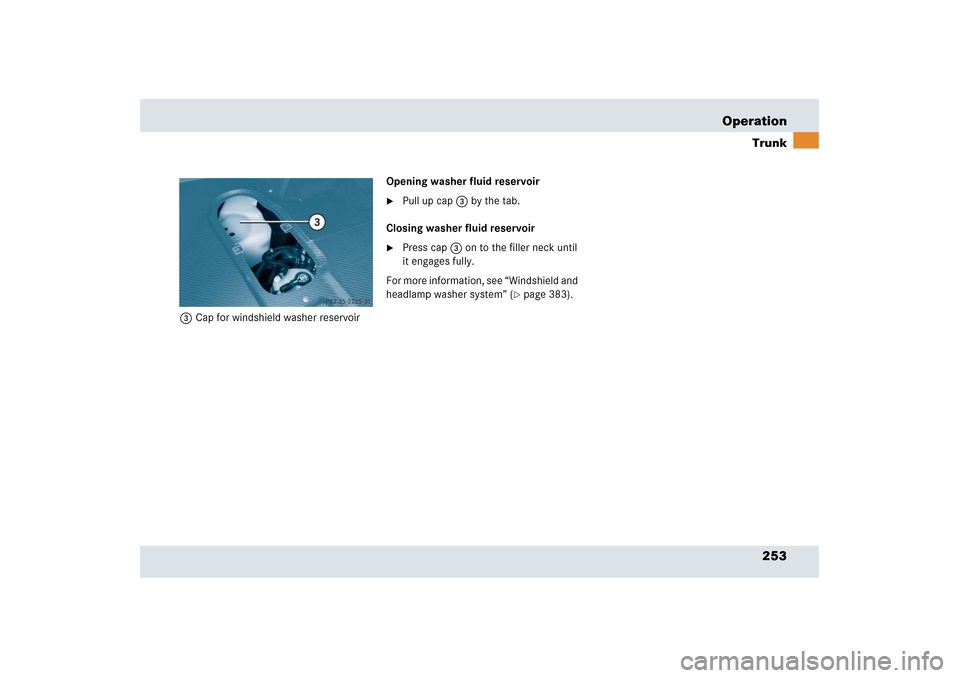

253 OperationTrunk
3Cap for windshield washer reservoirOpening washer fluid reservoir

Pull up cap3 by the tab.
Closing washer fluid reservoir

Press cap3 on to the filler neck until
it engages fully.
For more information, see “Windshield and
headlamp washer system” (
page 383).

254 OperationTires and wheelsFor safety reasons, only use tires and rims
which have been tested and approved by
Mercedes-Benz for use on SLR vehicles.
See an authorized Mercedes-Benz Center
for information on tested and
recommended rims and tires for summer
and winter operation. They can also offer
advice concerning tire service and
purchase.
Retreaded tires are not tested or recom-
mended by Mercedes-Benz, since previous
damage cannot always be recognized on
retreads. The operating safety of the
vehicle cannot be assured when such tires
are used.
Important guidelines

For the first 100 miles (160 km) avoid
high-speed cornering. Do not exceed a
speed of 125 mph (200 km/h).
1


Only use sets of tires and rims of the
same type and make.


Tires must be of the correct size for the
rim.


Regularly check the tires and rims for
damage. Dented or bent rims can
cause tire inflation pressure loss and
damage to the tire beads.
Warning!
G
Replace rims or tires with the same designa-
tion, manufacturer and type as shown on the
original part. See an authorized
Mercedes-Benz Center for further informa-
tion. If incorrectly sized rims and tires are
mounted:

The wheel brakes or suspension
components can be damaged.


The operating clearance of the wheels
and the tires may no longer be correct.
Warning!
G
Worn, old tires can cause accidents. If the
tire tread is badly worn, or if the tires have
sustained damage, replace them.
Have worn or damaged tires replaced in
pairs (front pair or rear pair) an make sure
the tires rotate in the direction specified
(page 257). Otherwise, the driving stabili-
ty of the vehicle will be adversely affected,
especially when driving at high speeds.
When replacing rims, only use Genuine
Mercedes-Benz wheel bolts specified for the
particular rim type. Failure to do so can
result in the bolts loosening and possibly an
accident.
!A wheel change should only be carried
out at an authorized Mercedes-Benz
Center. Otherwise there is a danger of
damaging the vehicle by jacking it up
incorrectly.
1Please always drive carefully and obey applicable
speed limits.

255 Operation
Tires and wheels


If vehicle is heavily loaded, check tire
inflation pressure and correct as
required.


Do not allow your tires to wear down
too far. Adhesion properties on wet
roads are sharply reduced at tread
depths under
1/8in (3 mm).


When replacing individual tires, you
should mount new tires on the front
wheels first (on vehicles with
same-sized wheels all around).
Tire care and maintenanceRegularly check your tire inflation pressure
at least once a month. For more informa-
tion on checking tire inflation pressure,
see “Recommended tire inflation pres-
sure” (
page 264).
Tire inspection
Every time you check your tire inflation
pressure, you should also inspect your
tires for the following:


excessive treadwear (
page 256)


cord or fabric showing through the
tire’s rubber


bumps, bulges, cuts, cracks or splits in
the tread or side of the tireReplace the tire if you find any of the above
conditions.
Life of tire
The service life of a tire is dependent upon
varying factors including but not limited to:


Driving style


Tire inflation pressure


Distance driven
Warning!
G
Regularly check the tires for damage. Dam-
aged tires can cause tire inflation pressure
loss. As a result, you could lose control of
your vehicle.
Worn, old tires can cause accidents. If the
tire tread is badly worn, or if the tires have
sustained damage, replace them.
Have worn or damaged tires replaced in
pairs (front pair or rear pair) an make sure
the tires rotate in the direction specified
(page 257). Otherwise, the driving stabili-
ty of the vehicle will be adversely affected,
especially when driving at high speeds.
Warning!
G
Have worn or damaged tires replaced in
pairs (front pair or rear pair) an make sure
the tires rotate in the direction specified
(page 257). Otherwise, the driving stabili-
ty of the vehicle will be adversely affected,
especially when driving at high speeds.
Warning!
G
Tires should be replaced after 6 years,
regardless of the remaining tread.
