2006 MERCEDES-BENZ SLR Owner's Manual

336 Practical hintsWhat to do if ...Left display
Right display
Possible cause/
consequence
Possible solution
H
Tire pressure
Check tires
The tire inflation
pressure in one or
more tires is already
below the minimum
value.
The tire inflation
pressure in one or
more tires is low.

Carefully bring the vehicle to a halt, avoiding abrupt steering and
braking maneuvers. Observe the traffic situation around you.

Check the tires. If no damage visible, check and correct tire infla-
tion pressure as required.

Temporarily repair tire using TIREFIT (
page 351) or contact
Roadside Assistance. If tire cannot be temporarily repaired using
TIREFIT, contact Roadside Assistance.

Have the damaged wheel repaired or replaced at an authorized
Mercedes-Benz Center.
Warning!
G
Do not drive with a flat tire. A flat tire affects
the ability to steer or brake the vehicle. You
may lose control of the vehicle.
Continued driving with a flat tire will cause
excessive heat build-up and possibly a fire.
Warning!
G
Have worn or damaged tires replaced in
pairs (front pair or rear pair) an make sure
the tires rotate in the direction specified
(page 257). Otherwise, the driving stabili-
ty of the vehicle will be adversely affected,
especially when driving at high speeds.

337 Practical hints
What to do if ...
Left display
Right display
Possible cause/
consequence
Possible solution
H
Tire pressure, FL
Caution
Tire defect
The left front tire is
deflating.

Carefully bring the vehicle to a halt, avoiding abrupt steering and
braking maneuvers. Observe the traffic situation around you.

Temporarily repair tire using TIREFIT (
page 351) or contact
Roadside Assistance. If tire cannot be temporarily repaired using
TIREFIT, contact Roadside Assistance.

Have the damaged wheel repaired or replaced at an authorized
Mercedes-Benz Center.
Tire pressure, FL
Check
tires
The left front tire in-
flation pressure is
low.

Carefully bring the vehicle to a halt.

Check the tires. If no damage visible, check and correct tire infla-
tion pressure as required.

If necessary, have the wheel repaired or replaced at an authorized
Mercedes-Benz Center.
Warning!
G
Do not drive with a flat tire. A flat tire affects
the ability to steer or brake the vehicle. You
may lose control of the vehicle.
Continued driving with a flat tire will cause
excessive heat build-up and possibly a fire.
Warning!
G
Have worn or damaged tires replaced in
pairs (front pair or rear pair) an make sure
the tires rotate in the direction specified
(page 257).
Otherwise, the driving stability of the vehicle
will be adversely affected, especially when
driving at high speeds.

338 Practical hintsWhat to do if ...Left display
Right display
Possible cause/
consequence
Possible solution
H
Tire pressure, FR
Caution
Tire defect
The right front tire is
deflating.

Carefully bring the vehicle to a halt, avoiding abrupt steering and
braking maneuvers. Observe the traffic situation around you.

Temporarily repair tire using TIREFIT (
page 351) or contact
Roadside Assistance. If tire cannot be temporarily repaired using
TIREFIT, contact Roadside Assistance.

Have the damaged wheel repaired or replaced at an authorized
Mercedes-Benz Center.
Tire pressure, FR
Check
tires
The right front tire in-
flation pressure is
low.

Carefully bring the vehicle to a halt.

Check the tires. If no damage visible, check and correct tire infla-
tion pressure as required.

If necessary, have the wheel repaired or replaced at an authorized
Mercedes-Benz Center.
Warning!
G
Do not drive with a flat tire. A flat tire affects
the ability to steer or brake the vehicle. You
may lose control of the vehicle.
Continued driving with a flat tire will cause
excessive heat build-up and possibly a fire.
Warning!
G
Have worn or damaged tires replaced in
pairs (front pair or rear pair) an make sure
the tires rotate in the direction specified
(page 257).
Otherwise, the driving stability of the vehicle
will be adversely affected, especially when
driving at high speeds.

339 Practical hints
What to do if ...
Left display
Right display
Possible cause/
consequence
Possible solution
H
Tire pressure, RL
Caution
Tire defect
The left rear tire is
deflating.

Carefully bring the vehicle to a halt, avoiding abrupt steering and
braking maneuvers. Observe the traffic situation around you.

Temporarily repair tire using TIREFIT (
page 351) or contact
Roadside Assistance. If tire cannot be temporarily repaired using
TIREFIT, contact Roadside Assistance.

Have the damaged wheel repaired or replaced at an authorized
Mercedes-Benz Center.
Tire pressure, RL
Check
tires
The left rear tire infla-
tion pressure is low.

Carefully bring the vehicle to a halt.

Check the tires. If no damage visible, check and correct tire infla-
tion pressure as required.

If necessary, have the wheel repaired or replaced at an authorized
Mercedes-Benz Center.
Warning!
G
Do not drive with a flat tire. A flat tire affects
the ability to steer or brake the vehicle. You
may lose control of the vehicle.
Continued driving with a flat tire will cause
excessive heat build-up and possibly a fire.
Warning!
G
Have worn or damaged tires replaced in
pairs (front pair or rear pair) an make sure
the tires rotate in the direction specified
(page 257).
Otherwise, the driving stability of the vehicle
will be adversely affected, especially when
driving at high speeds.

340 Practical hintsWhat to do if ...Left display
Right display
Possible cause/
consequence
Possible solution
H
Tire pressure, RR
Caution
Tire defect
The right rear tire is
deflating.

Carefully bring the vehicle to a halt, avoiding abrupt steering and
braking maneuvers. Observe the traffic situation around you.

Temporarily repair tire using TIREFIT (
page 351) or contact
Roadside Assistance. If tire cannot be temporarily repaired using
TIREFIT, contact Roadside Assistance.

Have the damaged wheel repaired or replaced at an authorized
Mercedes-Benz Center.
Tire pressure, RR
Check
tires
The right rear tire in-
flation pressure is
low.

Carefully bring the vehicle to a halt.

Check the tires. If no damage visible, check and correct tire infla-
tion pressure as required.

If necessary, have the wheel repaired or replaced at an authorized
Mercedes-Benz Center.
Warning!
G
Do not drive with a flat tire. A flat tire affects
the ability to steer or brake the vehicle. You
may lose control of the vehicle.
Continued driving with a flat tire will cause
excessive heat build-up and possibly a fire.
Warning!
G
Have worn or damaged tires replaced in
pairs (front pair or rear pair) an make sure
the tires rotate in the direction specified
(page 257).
Otherwise, the driving stability of the vehicle
will be adversely affected, especially when
driving at high speeds.

341 Practical hints
What to do if ...
Left display
Right display
Possible cause/
consequence
Possible solution
Ê
Close
trunk lid
This message will appear when-
ever the trunk lid is open.

Close the trunk lid (
page 101).
W
Washer fluid
Check level
The washer fluid level has
dropped to about
1/3 of total
reservoir capacity.

Add washer fluid (
page 252).

342 Practical hintsWhere will I find ...?First aid kit
The first aid kit is located on the right-hand
side in the trunk.
1First aid kit
2Retaining strap
Open the retaining strap2.

Remove the first aid kit1.TIREFIT kit, electric air pump, towing
eye bolt and vehicle literature portfolio
The TIREFIT kit, the electric air pump, the
vehicle literature portfolio and the towing
eye bolt are located on the right-hand side
underneath the floor in the trunk.
1Vehicle literature portfolio
2TIREFIT kit, electrical air pump
3Towing eye bolt
iCheck expiration dates and contents
for completeness at least once a year
and replace missing/expired items.
iWhen your SLR is delivered, you will
find the vehicle literature portfolio in
the rear storage compartment
(page 201). For permanent storage
in the vehicle, keep the vehicle litera-
ture portfolio in the storage compart-
ment in the trunk.
!Your vehicle is equipped with a front
towing eye bolt only.
You cannot tow other vehicles with
your vehicle.

343 Practical hints
Where will I find ...?

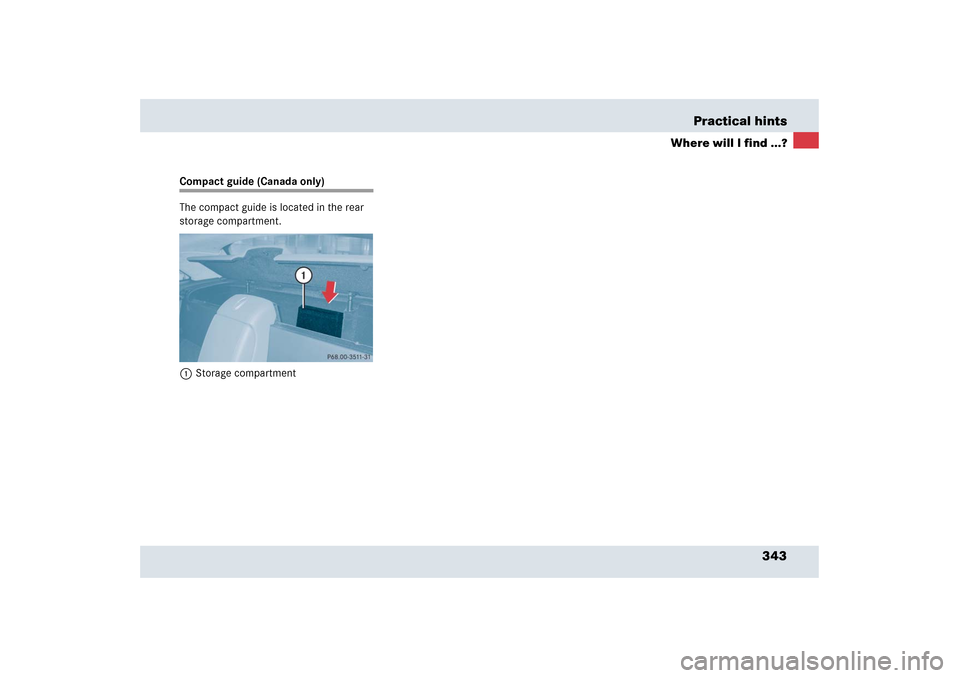

Compact guide (Canada only)
The compact guide is located in the rear
storage compartment.
1Storage compartment
