2006 MERCEDES-BENZ SLR Owner's Manual

136 Controls in detailControl systemVehicle submenu
Access the
Vehicle
submenu via the
Settings
menu. Use the
Vehicle
submenu
to make general vehicle settings.
The following functions are available:Setting radio station selection mode
Use the
Press button in audio mode
func-
tion to select the manual or memory sta-
tion selection mode for the radio
(
page 123).

Move the selection marker with button
æ or ç to the
Vehicle
submenu.

Press button j or k repeatedly
until you see this message in the left
display:
Press button in audio mode.
The selection marker is on the current
setting.

Press button æ or ç to select
the desired station selection mode.
You can select:

Memory,
selects next stored station


Station search
, selects next re-
ceivable station
Function
Page
Setting station selection mode
(radio)
136
Setting automatic locking
136
Tire inflation pressure display
137

137 Controls in detail
Control system
Setting automatic locking
Use this function to activate or deactivate
the automatic central locking. With the
automatic central locking system
activated, the vehicle is centrally locked at
vehicle speeds of approximately
9mph(15km/h).
Move the selection marker with button
æ or ç to the
Vehicle
submenu.

Press button j or k repeatedly
until you see the following message in
the left display:
Automatic door lock
.
The selection marker is on the current
setting.

Press button æ or ç to switch Automatic door lock
On or
Off
.Tire inflation pressure display
Use this function to set the unit for the tire
inflation pressure display.

Move the selection marker with button
æ or ç to the
Vehicle
submenu.

Press button j or k repeatedly
until you see the following message in
the left display:
Tire pres. display
.
The selection marker is on the current
setting.

Press button æ or ç to select
the desired tire inflation pressure unit.
Trip computer menu
Use the trip computer menu to call up
statistical data on your vehicle.
The following information is available:Function
Page
Fuel consumption statistics after
start
138
Fuel consumption statistics since
last reset
138
Calling up range (distance to emp-
ty)
139
iThe last function called up will reap-
pear the next time you enter the trip
computer menu.

138 Controls in detailControl systemFuel consumption statistics after start
Press button ÿ or è repeatedly
until you see the first function of the
Trip computer menu.

Press button j or k repeatedly
until you see the following message in
the left display:
From start
.
1Distance driven since start
2Average speed since start
3Time elapsed since start
4Average fuel consumption since startFuel consumption since last reset

Press button ÿ or è repeatedly
until you see the first function of the
Trip computer menu.

Press button j or k repeatedly
until you see the following message in
the left display:
From reset.
1Distance driven since last reset
2Average speed since last reset
3Time elapsed since last reset
4Average fuel consumption since last
reset
Resetting fuel consumption statistics
Press button ÿ or è repeatedly
until you see the first function of the
Trip computer menu.

Press button j or k repeatedly
until you see the reading that you want
to reset in the left display.

Press and hold the reset button in the
instrument cluster (
page 113) until
the value is reset to 0.
iAll statistics stored since the last en-
gine start will be reset approximately
four hours after the SmartKey in the
starter switch is turned to position0 or
removed from the starter switch.
Resetting will not occur if you turn the
SmartKey back to position1 or2 with-
in this time period.

139 Controls in detail
Control system
Calling up range (distance to empty)
Press button ÿ or è repeatedly
until you see the first function of the
Trip computer menu.

Press button j or k repeatedly
until you see this message in the left
display:
Range
.
In the right display you will see the cal-
culated range based on the current fuel
tank level. Your driving style will affect
the accuracy of the calculated range.
TEL menu
You can use the functions in the
TEL
menu
to operate your telephone, provided it is
connected to a hands-free system and
switched on.

Switch on the telephone and the radio.

Press button ÿ or è on the
steering wheel repeatedly until you see
the
TEL
menu in the left display.
Which messages will appear in the right
display field depends on whether your tele-
phone is switched on or off:


If the telephone is off, the message in
the multifunction display is:
TEL OFF
.
iIf the reserve fuel level has been
reached, the range may no longer
shown.
Warning!
G
A driver’s attention to the road must always
be his/her primary focus when driving. For
your safety and the safety of others, we rec-
ommend that you pull over to a safe location
and stop before placing or taking a tele-
phone call. If you choose to use the tele-
phone while driving, please use the
hands-free device and only use the tele-
phone when weather, road, and traffic con-
ditions permit.
Some jurisdictions prohibit the driver from
using a cellular telephone while driving a ve-
hicle.
Bear in mind that at a speed of just 30 mph
(approximately 50 km/h), your vehicle is
covering a distance of 44 feet
(approximately 14 m) every second.
Never operate radio transmitters equipped
with a built-in or attached antenna (i.e. with-
out being connected to an external antenna)
from inside the vehicle while the engine is
running. Doing so could lead to a malfunc-
tion of the vehicle’s electronic system, pos-
sibly resulting in an accident and/or
personal injury.

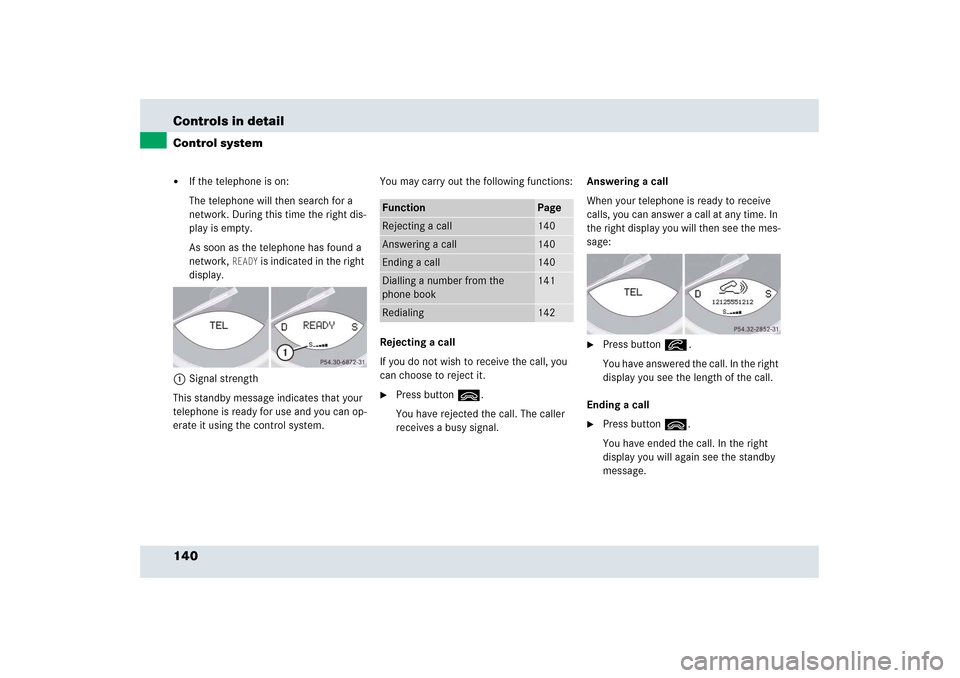

140 Controls in detailControl system

If the telephone is on:
The telephone will then search for a
network. During this time the right dis-
play is empty.
As soon as the telephone has found a
network,
READY
is indicated in the right
display.
1Signal strength
This standby message indicates that your
telephone is ready for use and you can op-
erate it using the control system.You may carry out the following functions:
Rejecting a call
If you do not wish to receive the call, you
can choose to reject it.

Press button ì.
You have rejected the call. The caller
receives a busy signal. Answering a call
When your telephone is ready to receive
calls, you can answer a call at any time. In
the right display you will then see the mes-
sage:

Press button í.
You have answered the call. In the right
display you see the length of the call.
Ending a call

Press button ì.
You have ended the call. In the right
display you will again see the standby
message.
Function
Page
Rejecting a call
140
Answering a call
140
Ending a call
140
Dialling a number from the
phone book
141
Redialing
142

141 Controls in detail
Control system
Dialing a number from the phone book
If your telephone is ready to receive calls,
you may select and dial a number from the
phone book at any time.
Press button ÿ or è repeatedly
until you see the
TEL
menu in the left
display.
In the right display you will see the
standby message.

Press button j or k.
The control system reads the phone
book which is stored in the telephone.
This may take up to 30 seconds. In the
right display you will see this message Please wait
.
When the message
Please wait
disap-
pears, the phone book has been load-
ed.

Press button j or k repeatedly
until the desired name appears in the
right display.
The stored names are displayed in
ascending or descending alphabetical
order.

Press button í.
The system dials the selected phone
number.


If the connection is successful, the
name of the party you called and the
duration of the call will appear in the
multifunction display.


If no connection is made, the control
system stores the dialed number in the
redial memory.
iIf you press and hold j or k for
longer than 1 second, the system
scrolls rapidly through the list of names
until you release the button again.
Cancel the quick search mode by
pressing ì.

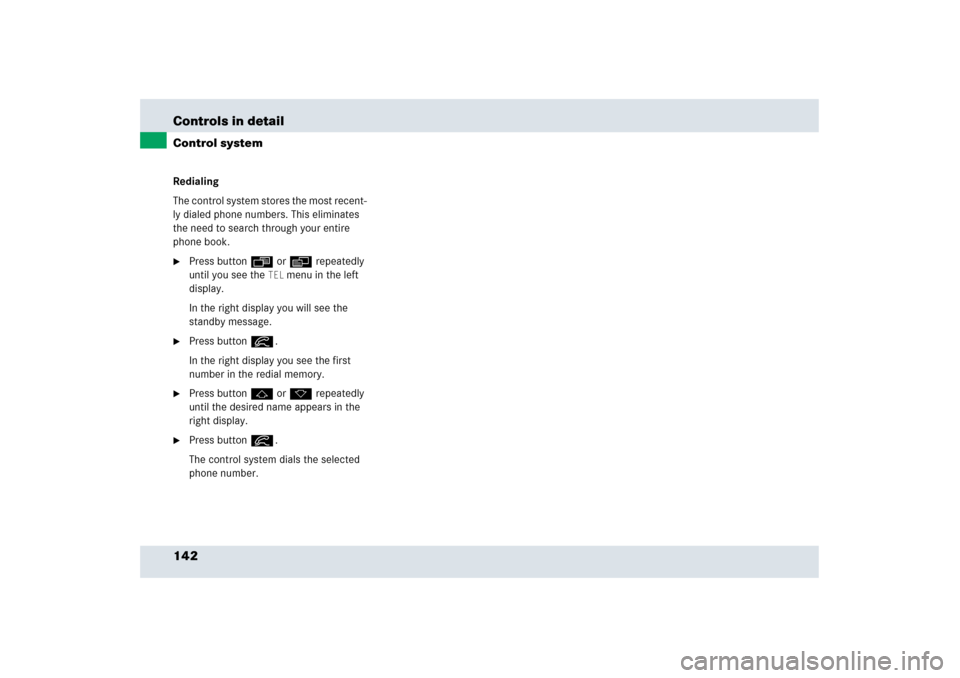

142 Controls in detailControl systemRedialing
The control system stores the most recent-
ly dialed phone numbers. This eliminates
the need to search through your entire
phone book.
Press button ÿ or è repeatedly
until you see the
TEL
menu in the left
display.
In the right display you will see the
standby message.

Press button í.
In the right display you see the first
number in the redial memory.

Press button j or k repeatedly
until the desired name appears in the
right display.

Press button í.
The control system dials the selected
phone number.

143 Controls in detail
Audio system
Audio system
Audio and telephone, operation
These instructions are intended to help
you become familiar with your
Mercedes-Benz audio system. They con-
tain useful tips and a detailed description
of the user functions.
Operating safety
Location of the audio system
The audio system control panel is located
behind a cover in the upper part of the cen-
ter console.
1Cover
Briefly press on the lower part of
cover1.
The cover opens automatically.
Warning!
G
In order to avoid distraction which could
lead to an accident, the driver should enter
system settings with the vehicle at a stand-
still and operate the system only when road
and traffic conditions permit. Always pay full
attention to traffic conditions first before
operating system controls while driving.
Bear in mind that at a speed of just 30 mph
(approximately 50 km/h), your car is cover-
ing a distance of 44 feet (approximately
14 m) every second.
Warning!
G
Any alterations made to electronic compo-
nents can cause malfunctions.
The radio, amplifier, CD changer and
telephone are interconnected. When one of
the components is not operational or has
not been removed/replaced properly, the
function of other components may be im-
paired.
This condition might seriously impair the
operating safety of your vehicle.
We recommend that you have any service
work on electronic components carried out
by an authorized Mercedes-Benz Center.
