2006 MERCEDES-BENZ SLR ECO mode

13 Introduction
Product information
Product information
Please observe the following in your own
best interest:
We recommend using Genuine
Mercedes-Benz parts as well as conversion
parts and accessories explicitly approved
by us for your vehicle model.
We have tested these parts to determine
their reliability, safety and special suitabili-
ty for Mercedes-Benz vehicles.We are unable to make an assessment for
other products and therefore cannot be
held responsible for them, even if in indi-
vidual cases an official approval or authori-
zation by governmental or other agencies
should exist. Use of such parts and acces-
sories could adversely affect the safety,
performance or reliability of your vehicle.
Please do not use them.Genuine Mercedes-Benz parts as well as
conversion parts and accessories ap-
proved by us are available at an authorized
Mercedes-Benz Center where you will re-
ceive comprehensive information, also on
permissible technical modifications, and
where proper installation will be per-
formed.

84 Safety and SecurityDriving safety systemsSwitching on the ESP
®

Press switch1 again.
The ESP
® warning lampv in the
speedometer goes out.
You are now again in normal driving
mode with the ESP
® switched on.
Electrohydraulic brake system
The electrohydraulic brake system com-
bines a hydraulic brake circuit with elec-
tronically controlled brake servo
assistance. You have increased braking
safety and improved braking comfort.
Warning!
G
When the v ABS/ESP
® warning lamp is
illuminated continuously, the ESP
® is
switched off.
Adapt your speed and driving to the prevail-
ing road conditions and to the non-operating
status of the ESP
®.
!Avoid spinning of a drive wheel for an
extended period with the ESP
®
switched off. This may cause serious
damage to the drivetrain which is not
covered by the Mercedes-Benz Limited
Warranty.
Warning!
G
Never ignore a brake malfunction indicated
in the speedometer display, for example by
the ; (USA only) or 3 (Canada only)
indicator lamp. Refer to the “Practical hints”
section (
page 300). Also read and ob-
serve the messages in the instrument clus-
ter multifunction display (
page 319).
Warning!
G
The electrohydraulic brake system requires
electrical power to operate.
A malfunction in the vehicle’s power supply
or electrical system may impair brake sys-
tem operation and switch it into its emer-
gency operation mode. In such a case, the
red brake warning lamp (
page 300)
comes on and warning messages
(
page 319) appear in the multifunction
display while driving. To brake, the driver
must then apply significantly greater brake
pedal pressure and depress the pedal much
further to obtain the expected braking ef-
fect. If necessary, apply full pressure to the
brake pedal. Stopping distance is increased!
If there is a malfunction in the electrohy-
draulic brake system, we recommend that
the vehicle be transported with all wheels
off the ground using flatbed or appropriate
wheel lift/dolly equipment.

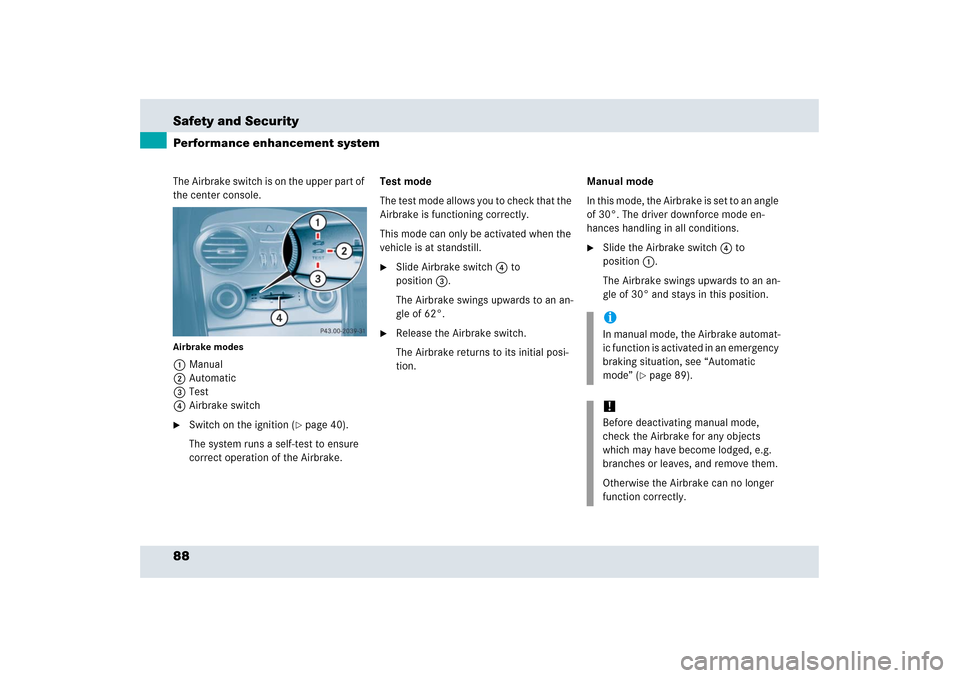

88 Safety and SecurityPerformance enhancement systemThe Airbrake switch is on the upper part of
the center console.Airbrake modes1Manual
2Automatic
3Test
4Airbrake switch
Switch on the ignition (
page 40).
The system runs a self-test to ensure
correct operation of the Airbrake.Test mode
The test mode allows you to check that the
Airbrake is functioning correctly.
This mode can only be activated when the
vehicle is at standstill.

Slide Airbrake switch4 to
position3.
The Airbrake swings upwards to an an-
gle of 62°.

Release the Airbrake switch.
The Airbrake returns to its initial posi-
tion.Manual mode
In this mode, the Airbrake is set to an angle
of 30°. The driver downforce mode en-
hances handling in all conditions.

Slide the Airbrake switch4 to
position1.
The Airbrake swings upwards to an an-
gle of 30° and stays in this position.iIn manual mode, the Airbrake automat-
ic function is activated in an emergency
braking situation, see “Automatic
mode” (
page 89).
!Before deactivating manual mode,
check the Airbrake for any objects
which may have become lodged, e.g.
branches or leaves, and remove them.
Otherwise the Airbrake can no longer
function correctly.

117 Controls in detail
Control system
Control system
The control system is activated as soon as
the SmartKey in the starter switch is
turned to position1. The control system
enables you to

call up information about your vehicle


change vehicle settings
For example, you can use the control sys-
tem to find out when your vehicle is next
due for service, to set the language for
messages in the instrument cluster dis-
play, and much more.
The control system relays information to
the multifunction display.
Multifunction display
The multifunction display consists of the
display fields in the speedometer and the
tachometer. In its default state, the left
display field shows the outside tempera-
ture and main odometer, while the trip
odometer and the clock appears in the
right display field. This default setting is re-
ferred to as the standard display.Standard display1Main odometer
2Outside temperature
3Current gear selector lever posi-
tion/gear range
4Trip odometer
5Automatic transmission shift program
mode
6Clock
Warning!
G
A driver’s attention to the road and traffic
conditions must always be his/her primary
focus when driving.
For your safety and the safety of others, se-
lecting features through the multifunction
steering wheel should only be done by the
driver when traffic and road conditions per-
mit it to be done safely.
Bear in mind that at a speed of just 30 mph
(approximately 50 km/h), your vehicle is
covering a distance of 44 feet (approximate-
ly 14 m) every second.

126 Controls in detailControl systemSettings menu
In the
Settings
menu there are two func-
tions:


The To reset:
Press reset button for
3 seconds
function with which you can
reset all the settings to those set at the
factory.


A collection of submenus with which
you can make individual settings for
your vehicle.

Press button è or ÿ repeatedly
until the
Settings...
menu appears in
the left display.
The following settings and submenus are
available:Resetting all settings
You can reset all the functions of all sub-
menus to the factory settings.

Press the reset button in the instru-
ment cluster (
page 113) for approxi-
mately 3 seconds.
In the right display you will see the re-
quest to press the reset button again to
confirm.

Press the reset button again.
The functions of all the submenus will
reset to factory settings.
Function
Page
Resetting all settings
126
Submenus in the Settings menu
127
Resetting the functions of a sub-
menu
127
Instrument cluster submenu
129
Time submenu
131
Lighting submenu
132
Vehicle submenu
136
iThe settings you have changed will not
be reset unless you confirm the action
by pressing the reset button a second
time. After approximately 5 seconds,
the
Settings...
menu reappears in
the multifunction display.
For safety reasons, the
Light circuit
Headlamp mode
in the
Lighting
sub-
menu is not reset while driving.

133 Controls in detail
Control system

Press buttonæ orç to select
manual operation (
Manual
) or daytime
running lamp mode (
Constant
)
activated.
With daytime running lamp mode activated
and the exterior lamp switch in
positionM orU, the low beam
headlamps are switched on when the
engine is running.
In low ambient light conditions the
following lamps will switch on additionally:


Parking lamps


Tail lamps


License plate lamps


Side marker lampsFor more information on the daytime
running lamp mode, see “Daytime running
lamp mode” (
page 107).Setting locator lighting
With the locator lighting feature activated
and the exterior lamp switch in
positionU, the following lamps will
switch on during darkness when the vehi-
cle is unlocked with the SmartKey:


Parking lamps


Tail lamps


License plate lamps


Side marker lamps


Front fog lamps
The locator lighting switches off when the
driver’s door is opened.
If you do not open a door after unlocking
the vehicle with the SmartKey the lamps
will switch off automatically after approxi-
mately 40 seconds.
iIf you turn the exterior lamp switch to
another position, the corresponding
lamp(s) will switch on.
For safety reasons, resetting the Lighting
submenu to factory settings
(
page 127) will not reset the daytime
running lamp mode.
The following message appears in the
right display:
Cannot be fully reset
to factory settings when driving
.

141 Controls in detail
Control system

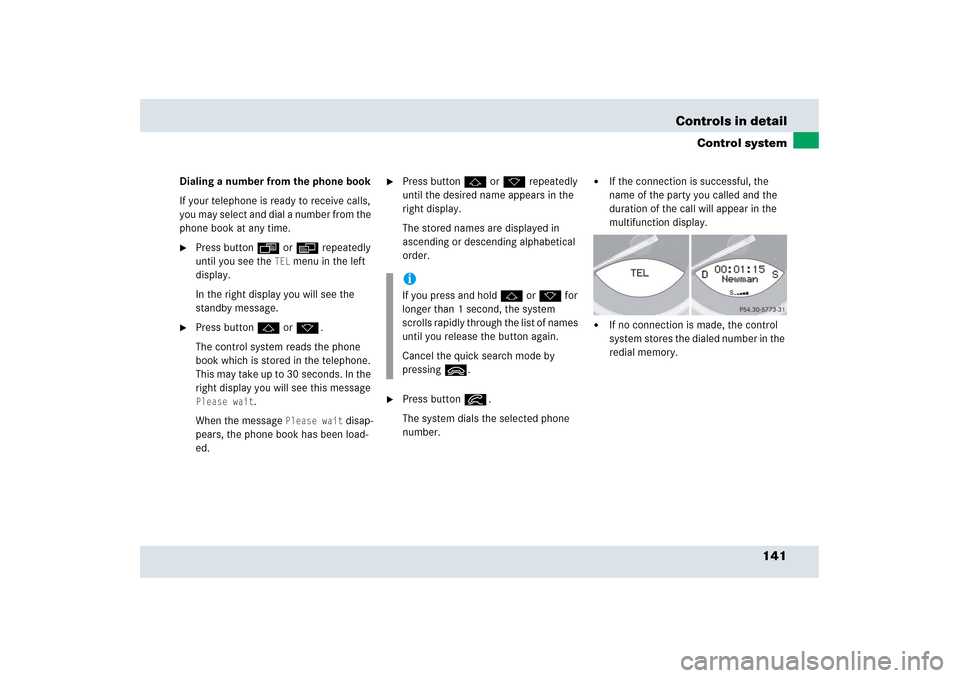

Dialing a number from the phone book
If your telephone is ready to receive calls,
you may select and dial a number from the
phone book at any time.
Press button ÿ or è repeatedly
until you see the
TEL
menu in the left
display.
In the right display you will see the
standby message.

Press button j or k.
The control system reads the phone
book which is stored in the telephone.
This may take up to 30 seconds. In the
right display you will see this message Please wait
.
When the message
Please wait
disap-
pears, the phone book has been load-
ed.

Press button j or k repeatedly
until the desired name appears in the
right display.
The stored names are displayed in
ascending or descending alphabetical
order.

Press button í.
The system dials the selected phone
number.


If the connection is successful, the
name of the party you called and the
duration of the call will appear in the
multifunction display.


If no connection is made, the control
system stores the dialed number in the
redial memory.
iIf you press and hold j or k for
longer than 1 second, the system
scrolls rapidly through the list of names
until you release the button again.
Cancel the quick search mode by
pressing ì.

148 Controls in detailAudio systemBalance
Regardless of operating mode, press
the
AUD
key repeatedly until
BALANCE

appears on the display.

Press
L or
R key to shift sound accord-
ingly to the left or right speakers.
or

Press both
L and
R keys simultaneously
to reset the Balance to its center level.Returning audio functions to factory
settings

Regardless of operating mode, press
and hold
AUD
key longer than
2 seconds. RESET
will appear on the
display.
All settings for bass, treble and balance
are returned to the center level and the
volume is set to a predefined level.Audio system sound selection (EXT)*

Regardless of operating mode, press
the
AUD
key.
The sound settings menu appears on
the display.

Press the
EXT
key.

Press one of the function keys.
