2006 MERCEDES-BENZ SLR odometer

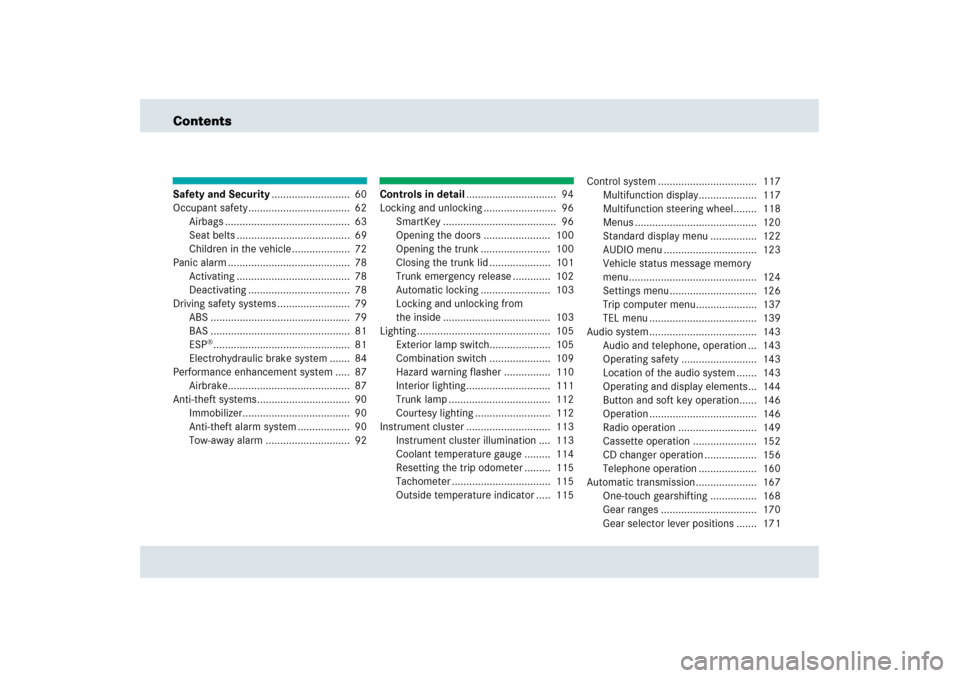

ContentsSafety and Security........................... 60
Occupant safety................................... 62
Airbags ........................................... 63
Seat belts ....................................... 69
Children in the vehicle .................... 72
Panic alarm .......................................... 78
Activating ....................................... 78
Deactivating ................................... 78
Driving safety systems ......................... 79
ABS ................................................ 79
BAS ................................................ 81
ESP
®............................................... 81
Electrohydraulic brake system ....... 84
Performance enhancement system ..... 87
Airbrake.......................................... 87
Anti-theft systems................................ 90
Immobilizer..................................... 90
Anti-theft alarm system .................. 90
Tow-away alarm ............................. 92
Controls in detail............................... 94
Locking and unlocking ......................... 96
SmartKey ....................................... 96
Opening the doors ....................... 100
Opening the trunk ........................ 100
Closing the trunk lid ..................... 101
Trunk emergency release ............. 102
Automatic locking ........................ 103
Locking and unlocking from
the inside ..................................... 103
Lighting.............................................. 105
Exterior lamp switch..................... 105
Combination switch ..................... 109
Hazard warning flasher ................ 110
Interior lighting............................. 111
Trunk lamp ................................... 112
Courtesy lighting .......................... 112
Instrument cluster ............................. 113
Instrument cluster illumination .... 113
Coolant temperature gauge ......... 114
Resetting the trip odometer ......... 115
Tachometer .................................. 115
Outside temperature indicator ..... 115Control system .................................. 117
Multifunction display.................... 117
Multifunction steering wheel........ 118
Menus .......................................... 120
Standard display menu ................ 122
AUDIO menu ................................ 123
Vehicle status message memory
menu............................................ 124
Settings menu .............................. 126
Trip computer menu..................... 137
TEL menu ..................................... 139
Audio system ..................................... 143
Audio and telephone, operation ... 143
Operating safety .......................... 143
Location of the audio system ....... 143
Operating and display elements... 144
Button and soft key operation...... 146
Operation ..................................... 146
Radio operation ........................... 149
Cassette operation ...................... 152
CD changer operation .................. 156
Telephone operation .................... 160
Automatic transmission ..................... 167
One-touch gearshifting ................ 168
Gear ranges ................................. 170
Gear selector lever positions ....... 171

15 Introduction
Operator’s Manual
Important notice for California
retail buyers and lessees of Mercedes-Benz automobiles
Under California law you may be entitled to
a replacement of your vehicle or a refund
of the purchase price or lease price, if
Mercedes-Benz USA, LLC and/or its au-
thorized repair or service facilities fail to fix
one or more substantial defects or mal-
functions in the vehicle that are covered by
its express warranty after a reasonable
number of repair attempts. During the pe-
riod of 18 months from original delivery of
the vehicle or the accumulation of
18 000 miles (approx. 29 000 km) on the
odometer of the vehicle, whichever occurs
first, a reasonable number of repair at-
tempts is presumed for a retail buyer or
lessee if one or more of the following oc-
curs: (1) the same substantial defect or mal-
function results in a condition that is
likely to cause death or serious bodily
injury if the vehicle is driven, that de-
fect or malfunction has been subject to
repair two or more times, and you have
directly notified Mercedes-Benz USA,
LLC in writing of the need for its repair,
(2) the same substantial defect or mal-
function of a less serious nature than
category (1) has been subject to repair
four or more times and you have direct-
ly notified us in writing of the need for
its repair, or(3) the vehicle is out of service by reason
of repair of the same or different sub-
stantial defects or malfunctions for a
cumulative total of more than
30 calendar days.
Written notification should be sent to us,
not a dealer, at Mercedes-Benz USA, LLC,
Customer Assistance Center,
Attn: SLR Liaison, Three Paragon Drive,
Montvale, NJ 07645-0350.

29 At a glance
Instrument cluster
Item
Page
1
Coolant temperature gauge
with
114
DCoolant temperature
warning lamp
302
2
Speedometer with;Brake warning lamp,
USA only
300
3Brake warning lamp,
Canada only
300
vABS/ESP
® warning
lamp
298
>Gearshift indicator
lamp
303
303
LLeft turn signal
indicator lampKRight turn signal
indicator lamp
Item
Page
3
Left multifunction display
with

Outside temperature
115


Main odometer
117
4
Reset button
113
5
Tachometer with
115
AHigh beam headlamp
indicator
109
?Engine malfunction in-
dicator lamp, USA only
301
±Engine malfunction in-
dicator lamp, Canada
only
301
-Antilock Brake System
(ABS) indicator lamp
299
XTire pressure warning
lamp
305
Item
Page
1Supplemental
Restraint System (SRS)
indicator lamp
304
304
6
Right multifunction display
with

Current gear selector lever
position/gear range
117,
170,
171


Trip odometer
117


Automatic transmission
shift program mode
117,
173


Clock
131
=Engine oil temperature
indicator
303
7
Fuel gauge withAFuel reserve warning
lamp
303

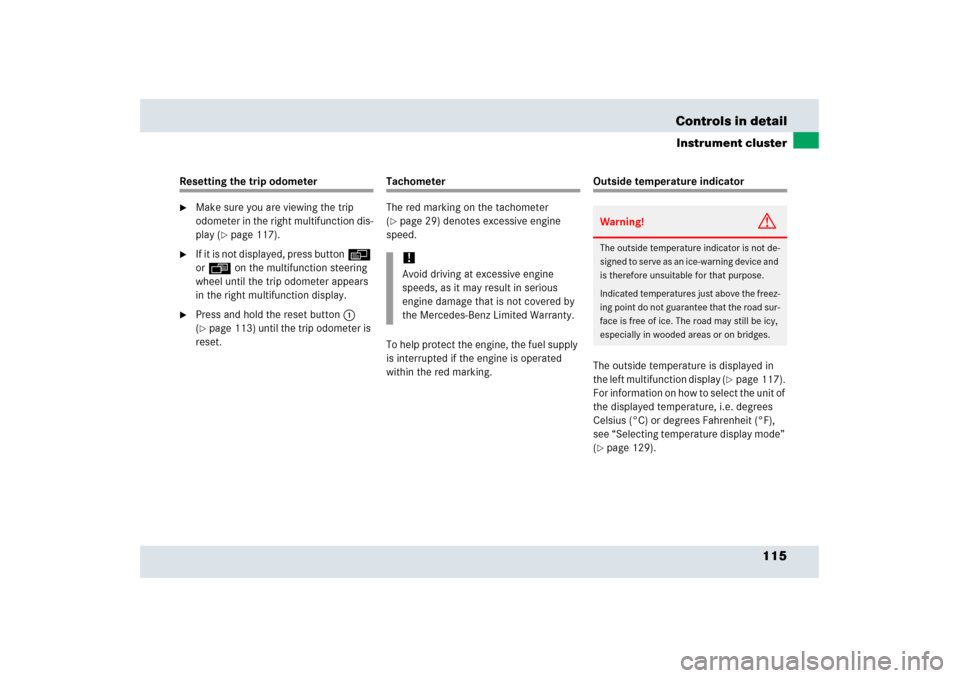

115 Controls in detail
Instrument cluster
Resetting the trip odometer
Make sure you are viewing the trip
odometer in the right multifunction dis-
play (
page 117).

If it is not displayed, press buttonè
orÿ on the multifunction steering
wheel until the trip odometer appears
in the right multifunction display.

Press and hold the reset button1
(page 113) until the trip odometer is
reset.
Tachometer
The red marking on the tachometer
(page 29) denotes excessive engine
speed.
To help protect the engine, the fuel supply
is interrupted if the engine is operated
within the red marking.
Outside temperature indicator
The outside temperature is displayed in
the left multifunction display (
page 117).
For information on how to select the unit of
the displayed temperature, i.e. degrees
Celsius (°C) or degrees Fahrenheit (°F),
see “Selecting temperature display mode”
(
page 129).
!Avoid driving at excessive engine
speeds, as it may result in serious
engine damage that is not covered by
the Mercedes-Benz Limited Warranty.
Warning!
G
The outside temperature indicator is not de-
signed to serve as an ice-warning device and
is therefore unsuitable for that purpose.
Indicated temperatures just above the freez-
ing point do not guarantee that the road sur-
face is free of ice. The road may still be icy,
especially in wooded areas or on bridges.

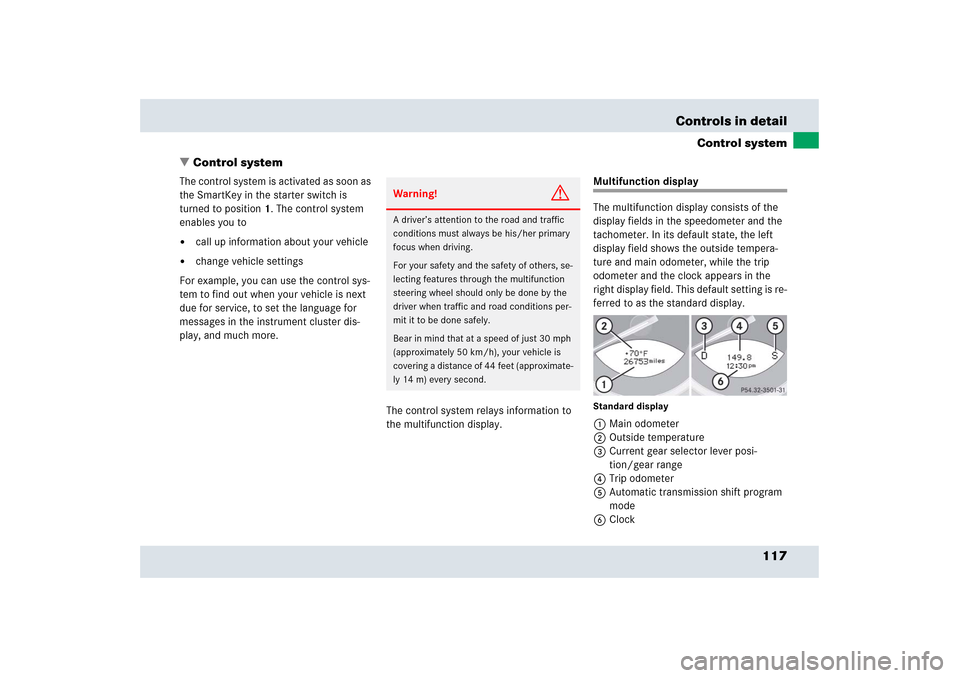

117 Controls in detail
Control system
Control system
The control system is activated as soon as
the SmartKey in the starter switch is
turned to position1. The control system
enables you to

call up information about your vehicle


change vehicle settings
For example, you can use the control sys-
tem to find out when your vehicle is next
due for service, to set the language for
messages in the instrument cluster dis-
play, and much more.
The control system relays information to
the multifunction display.
Multifunction display
The multifunction display consists of the
display fields in the speedometer and the
tachometer. In its default state, the left
display field shows the outside tempera-
ture and main odometer, while the trip
odometer and the clock appears in the
right display field. This default setting is re-
ferred to as the standard display.Standard display1Main odometer
2Outside temperature
3Current gear selector lever posi-
tion/gear range
4Trip odometer
5Automatic transmission shift program
mode
6Clock
Warning!
G
A driver’s attention to the road and traffic
conditions must always be his/her primary
focus when driving.
For your safety and the safety of others, se-
lecting features through the multifunction
steering wheel should only be done by the
driver when traffic and road conditions per-
mit it to be done safely.
Bear in mind that at a speed of just 30 mph
(approximately 50 km/h), your vehicle is
covering a distance of 44 feet (approximate-
ly 14 m) every second.

122 Controls in detailControl system
Standard display menu
The left display field shows the outside
temperature and main odometer, while the
trip odometer and the clock appears in the
right display field. This is the standard dis-
play.
Standard display1Main odometer
2Outside temperature
3Current gear selector lever posi-
tion/gear range
4Trip odometer
5Automatic transmission shift program
mode
6Clock
If you see another display, press
buttonè orÿ repeatedly until
the standard display appears.

Press buttonk orj to select
the functions in the standard display
menu.
iThe headings used in the menus table
are designed to facilitate navigation
within the system and are not
necessarily identical to those shown in
the control system displays.
The first function displayed in each
menu will automatically show you
which part of the system you are in.
iYou can have the outside temperature
displayed instead of the digital
speedometer. You can select the
setting in the submenu
Inst. cluster

via the function
Select display

(
page 130).

399 Index
PASSENGER AIRBAG OFF 75, 306
Seat belt telltale 29, 304
SRS 29, 63, 304
Tire pressure monitor 29, 305
Turn signals 29
Language, Setting 130
License plate lamp
Messages in the multifunction
display 331
Replacing bulbs 348
License plate lamps 349
Light sensor
Messages in the multifunction
display 331
Lighter see Cigarette lighter
Lighting
Exterior 105
Interior 111
Limp Home Mode, Automatic
transmission 178
Loading see Vehicle loading
Location
Audio system 143
Compact guide (Canada only) 343
Telephone 201
Vehicle literature portfolio 342Locator lighting 108, 133
Loss of
Keys 99
Service and Warranty Information
Booklet 367
Low beam headlamps 105
Messages in the multifunction
display 331
Replacing bulbs 348
Switching on 52
Lubricants 377
M
Main odometer 29
Maintenance 289, 356
Calling up service indicator 291
Resetting service indicator 291
Service indicator 289
Service term exceeded 290
Manual gearshift program, Automatic
transmission 176
Manual headlamp mode see Headlamps
Map pocket in passenger footwell 200Maximum load rating, Tires 282
Maximum loaded vehicle weight 282
Maximum tire inflation pressure 282
Mechanical key 344
Menus see Control system menus
Messages in display see Multifunction dis-
play messages 307
Microphone, Hands-free 33
Mirrors 179
Adjusting 44
Auto-dimming 179
Exterior rear view mirror 44
Interior rear view mirror 44
MON 241, 387
Motor Octane Number see MON
Multifunction display 117, 387
Changing settings see Control system
menus and Control system
submenus 117
Left 29
Right 29
Selecting language 130

400 IndexMultifunction display messages
ABS 309
ACL malfunction 312
Airbrake 315
Battery, Vehicle 315
Brake pads 318
Coolant 323
Cruise control 310
Differential 326
Display 327
Doors 327
Electrohydraulic brake system 319
Engine 328
Engine oil 328
ESP
®
310
Fuel system 329
Hood 329
Lamps 330
Parking brake 322
Reserve fuel 329
Seat belt 334
Service brake 322
SmartKey 329
Telephone 329
Tires 335
Trunk lid 341Washer fluid 341
Multifunction steering wheel 30, 118,
387
Button operation 118
Gearshift control, Automatic
transmission 174
N
Net, parcel 201
New vehicle break-in 230
Night security illumination 108, 134
Normal occupant weight 282
Number, Vehicle Identification
(VIN) 368, 389
O
Occupant distribution 282
Occupant safety
Airbags 63
BabySmart
TM airbag deactivation
system 75
Children and airbags 64
Children in the vehicle 72
Fastening the seat belts 46
Infant and child restraint systems 73
Seat belts 69
Octane number 388Odometer
Main 117
Trip 115
Oil level see Engine oil, Checking level
Oil see Engine oil
One-touch gearshifting, Automatic
transmission 168
Operating safety
Audio system 143
Vehicle 20
Operator’s manual 342
Outside temperature see Displays
Overdue maintenance service 290
Overhead control panel 33
Overspeed range, Engine 115, 388
P
Panic alarm 78
Parcel net in trunk 201
Parking 57, 234
Parking brake 32
Engaging 57
Message in the multifunction
display 322
Releasing 50
