247 Operation
Engine compartment
Closing
Pull the hood upwards in the center,
against the resistance of the gas-filled
spring struts.

Hold the front center part of the hood
with both hands and push it back-
wards. After pushing the hood back-
wards about half-way, you will feel the
hood passing a crest and the resulting
force pulling the hood away from you.
At that point, let go of the hood and let
it fall onto the latches.
The hood should now be locked and en-
tirely closed.

Check that the hood is properly closed.
If the hood is not properly engaged, re-
peat the closing procedure.
Engine oil
The amount of oil your engine needs will
depend on a number of factors, including
driving style. Higher oil consumption can
occur when

the vehicle is new


the vehicle is driven frequently at
higher engine speeds
Engine oil consumption checks should only
be made after the vehicle break-in period.
Oil consumption of the SLR is slightly high-
er than other vehicles. Please check the
engine oil level frequently.
Warning!
G
Be careful that you do not close the hood on
anyone.
!Make sure the rollers at the rear of the
hood are engaged and the guide pins
line up with the guide holes. Otherwise
the hood may be damaged.
!Do not use any special lubricant addi-
tives, as these may damage the drive
assemblies. Using special additives not
approved by Mercedes-Benz may
cause damage not covered by the
Mercedes-Benz Limited Warranty.

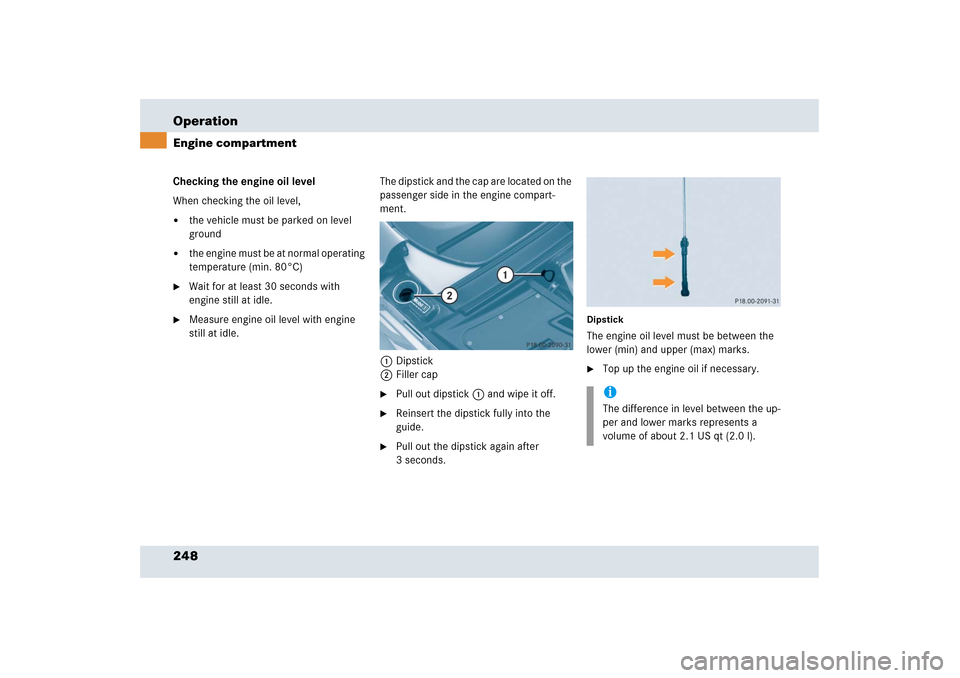

248 OperationEngine compartmentChecking the engine oil level
When checking the oil level,

the vehicle must be parked on level
ground


the engine must be at normal operating
temperature (min. 80°C)

Wait for at least 30 seconds with
engine still at idle.

Measure engine oil level with engine
still at idle.The dipstick and the cap are located on the
passenger side in the engine compart-
ment.
1Dipstick
2Filler cap

Pull out dipstick1 and wipe it off.

Reinsert the dipstick fully into the
guide.

Pull out the dipstick again after
3 seconds.
DipstickThe engine oil level must be between the
lower (min) and upper (max) marks.
Top up the engine oil if necessary.iThe difference in level between the up-
per and lower marks represents a
volume of about 2.1 US qt (2.0 l).

249 Operation
Engine compartment
Adding engine oil

Using a rag, unscrew filler cap2 from
filler neck.

Add engine oil as required. Be careful
not to overfill with oil.Be careful not to spill any oil when adding.
Avoid environmental damage caused by oil
entering the ground or water.

Screw the filler cap back on filler neck.
You will find further information about en-
gine oil in the “Technical data” section
(
page 378) and (
page 377).
Transmission fluid level
The transmission fluid level does not need
to be checked. If you notice transmission
fluid loss or gear shifting malfunctions,
have an authorized Mercedes-Benz Center
check the transmission.
Warning!
G
The filler cap on the filler neck could be hot.
Use a rag when you unscrew the filler cap.
Otherwise you could burn yourself.
!Only use approved engine oils and oil
filters required for vehicles with
Maintenance System. For a listing of
approved engine oils and oil filters,
refer to the Factory Approved Service
Products pamphlet in your vehicle
literature portfolio, or contact an
authorized Mercedes-Benz Center.
Using engine oils and oil filters of
specification other than those
expressly required for the Maintenance
System, or changing of oil and oil filter
at change intervals longer than those
called for by the Maintenance System
will result in engine damage not cov-
ered by the Mercedes-Benz Limited
Warranty.
!Excess oil must be siphoned or drained
off. It could cause damage to the
engine and catalytic converter not
covered by the Mercedes-Benz Limited
Warranty.

250 OperationEngine compartmentCoolant
The engine coolant is a mixture of water
and anticorrosion/antifreeze. To check
the coolant level, the vehicle must be
parked on level ground and the engine
must be cool.
The coolant expansion tank is located on
the passenger side of the engine compart-
ment.
1Expansion tank

Using a rag, turn cap slowly approxi-
mately one half turn to the left to
release any excess pressure.

Continue turning the cap to the left and
remove it.
The coolant level is correct if the level

for cold coolant: reaches the upper
mark on the bracing rib of the ex-
pansion tank (arrow)


for warm coolant: is approximately
0.4 in (1 cm) higher

Add coolant as required.

Replace and tighten cap.
For more information, see “Coolants”
(
page 381).
Warning!
G
In order to avoid any possibly serious burns:

Use extreme caution when opening the
hood if there are any signs of steam or
coolant leaking from the cooling system,
or if the coolant temperature gauge indi-
cates that the coolant is overheated.


Do not remove pressure cap on coolant
reservoir if coolant temperature is
above 194°F (90°C). Allow engine to
cool down before removing cap. The
coolant reservoir contains hot fluid and
is under pressure.


Using a rag, slowly open the cap
approximately
1/2 turn to relieve excess
pressure. If opened immediately, scald-
ing hot fluid and steam will be blown out
under pressure.


Do not spill antifreeze on hot engine
parts. Antifreeze contains ethylene
glycol which may burn if it comes into
contact with hot engine parts.

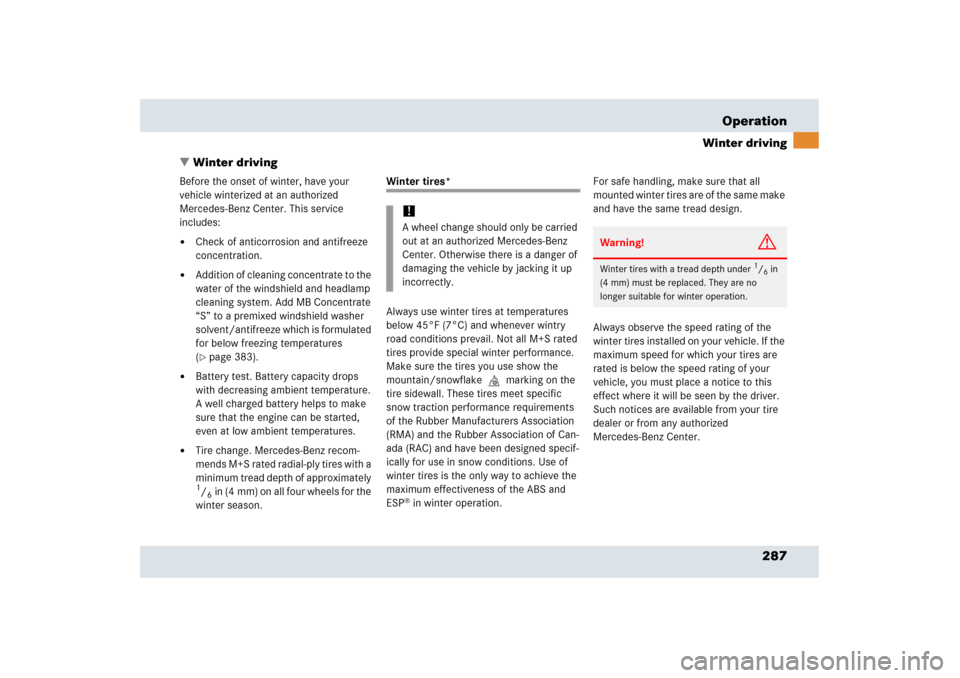

287 Operation
Winter driving
Winter driving
Before the onset of winter, have your
vehicle winterized at an authorized
Mercedes-Benz Center. This service
includes:

Check of anticorrosion and antifreeze
concentration.


Addition of cleaning concentrate to the
water of the windshield and headlamp
cleaning system. Add MB Concentrate
“S” to a premixed windshield washer
solvent/antifreeze which is formulated
for below freezing temperatures
(page 383).


Battery test. Battery capacity drops
with decreasing ambient temperature.
A well charged battery helps to make
sure that the engine can be started,
even at low ambient temperatures.


Tire change. Mercedes-Benz recom-
mends M+S rated radial-ply tires with a
minimum tread depth of approximately 1/6in (4 mm) on all four wheels for the
winter season.
Winter tires*
Always use winter tires at temperatures
below 45°F (7°C) and whenever wintry
road conditions prevail. Not all M+S rated
tires provide special winter performance.
Make sure the tires you use show the
mountain/snowflake.marking on the
tire sidewall. These tires meet specific
snow traction performance requirements
of the Rubber Manufacturers Association
(RMA) and the Rubber Association of Can-
ada (RAC) and have been designed specif-
ically for use in snow conditions. Use of
winter tires is the only way to achieve the
maximum effectiveness of the ABS and
ESP
® in winter operation.For safe handling, make sure that all
mounted winter tires are of the same make
and have the same tread design.
Always observe the speed rating of the
winter tires installed on your vehicle. If the
maximum speed for which your tires are
rated is below the speed rating of your
vehicle, you must place a notice to this
effect where it will be seen by the driver.
Such notices are available from your tire
dealer or from any authorized
Mercedes-Benz Center.!A wheel change should only be carried
out at an authorized Mercedes-Benz
Center. Otherwise there is a danger of
damaging the vehicle by jacking it up
incorrectly.
Warning!
G
Winter tires with a tread depth under
1/6in
(4 mm) must be replaced. They are no
longer suitable for winter operation.

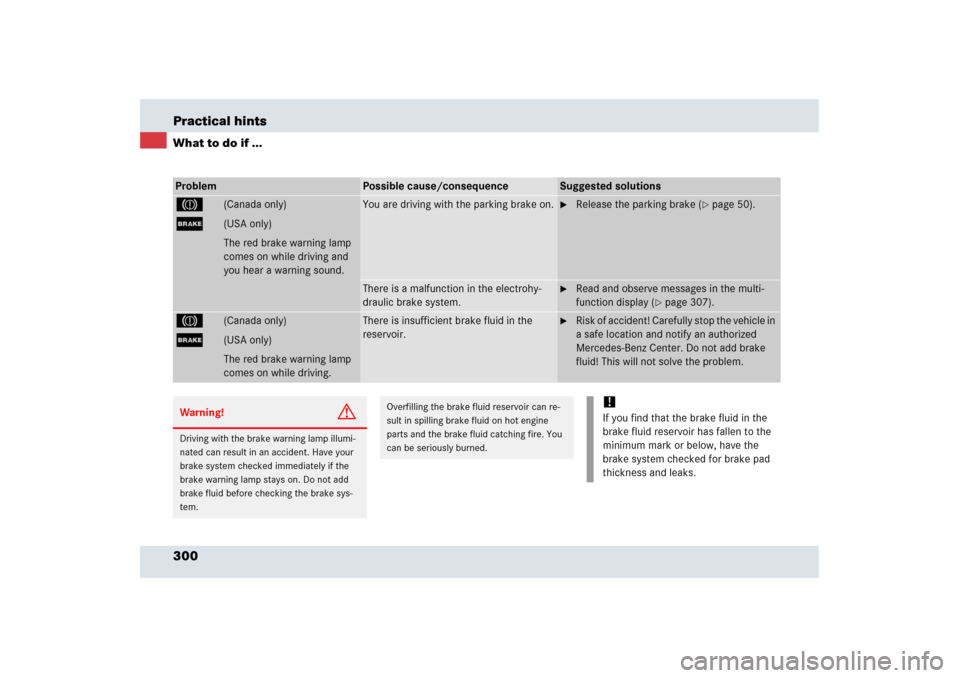

300 Practical hintsWhat to do if ...Problem
Possible cause/consequence
Suggested solutions
3
(Canada only)
;
(USA only)
The red brake warning lamp
comes on while driving and
you hear a warning sound.
You are driving with the parking brake on.

Release the parking brake (
page 50).
There is a malfunction in the electrohy-
draulic brake system.

Read and observe messages in the multi-
function display (
page 307).
3
(Canada only)
;
(USA only)
The red brake warning lamp
comes on while driving.
There is insufficient brake fluid in the
reservoir.

Risk of accident! Carefully stop the vehicle in
a safe location and notify an authorized
Mercedes-Benz Center. Do not add brake
fluid! This will not solve the problem.
Warning!
G
Driving with the brake warning lamp illumi-
nated can result in an accident. Have your
brake system checked immediately if the
brake warning lamp stays on. Do not add
brake fluid before checking the brake sys-
tem.
Overfilling the brake fluid reservoir can re-
sult in spilling brake fluid on hot engine
parts and the brake fluid catching fire. You
can be seriously burned.
!If you find that the brake fluid in the
brake fluid reservoir has fallen to the
minimum mark or below, have the
brake system checked for brake pad
thickness and leaks.

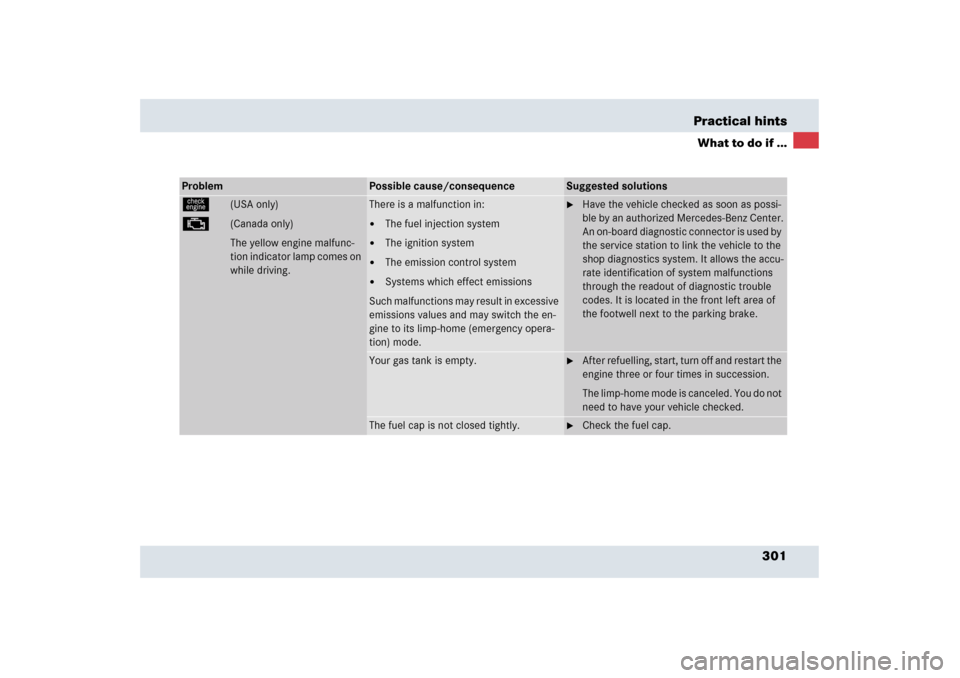

301 Practical hints
What to do if ...
Problem
Possible cause/consequence
Suggested solutions
ú
(USA only)
±
(Canada only)
The yellow engine malfunc-
tion indicator lamp comes on
while driving.
There is a malfunction in:

The fuel injection system


The ignition system


The emission control system


Systems which effect emissions
Such malfunctions may result in excessive
emissions values and may switch the en-
gine to its limp-home (emergency opera-
tion) mode.

Have the vehicle checked as soon as possi-
ble by an authorized Mercedes-Benz Center.
An on-board diagnostic connector is used by
the service station to link the vehicle to the
shop diagnostics system. It allows the accu-
rate identification of system malfunctions
through the readout of diagnostic trouble
codes. It is located in the front left area of
the footwell next to the parking brake.
Your gas tank is empty.

After refuelling, start, turn off and restart the
engine three or four times in succession.
The limp-home mode is canceled. You do not
need to have your vehicle checked.
The fuel cap is not closed tightly.

Check the fuel cap.

302 Practical hintsWhat to do if ...Problem
Possible cause/consequence
Suggested solution
D
The red coolant warning lamp
comes on when the engine is
running.
There is insufficient coolant in the reservoir.

Immediately add coolant to prevent
engine from overheating
(page 250).
If this warning lamp comes on frequently,
there is a leak in the cooling system.

Have the cooling system checked by
an authorized Mercedes-Benz Center.
If the coolant level is correct, the electric
radiator fan may be broken.

If the coolant temperature is below
248°F (120°C), you can continue
driving to the nearest authorized
Mercedes-Benz Center.

Avoid high engine loads (e.g. driving
uphill) and stop-and-go driving.
D
The red coolant warning lamp
comes on while driving and you
hear a warning sound.
The coolant temperature has exceeded
248°F (120°C).

Stop as soon as possible in a safe lo-
cation and allow the engine and cool-
ant to cool down.
Warning!
G
Driving when your engine is badly overheat-
ed can cause some fluids which may have
leaked into the engine compartment to
catch fire. You could be seriously burned.
Steam from an overheated engine can cause
serious burns and can occur just by opening
the engine hood. Stay away from the engine
if you see or hear steam coming from it.
Turn off the engine, get out of the vehicle
and do not stand near the vehicle until the
engine has cooled down.
