ContentsAt the gas station............................... 241
Refueling ...................................... 241
Check regularly and before
a long trip ..................................... 242
Engine compartment.......................... 244
Hood ............................................ 244
Engine oil...................................... 247
Transmission fluid level ................ 249
Coolant......................................... 250
Trunk ................................................. 251
Batteries....................................... 251
Windshield washer system and
headlamp cleaning system ........... 252
Tires and wheels ................................ 254
Important guidelines .................... 254
Tire care and maintenance ........... 255
Direction of rotation ..................... 257
Loading the vehicle ...................... 257
Recommended tire inflation
pressure ....................................... 264
Checking tire inflation pressure ... 266
Tire labeling .................................. 271
Load identification........................ 275
DOT, Tire Identification Number
(TIN) ............................................. 276
Maximum tire load ....................... 277Maximum tire inflation pressure .. 278
Uniform Tire Quality Grading
Standards (U.S. vehicles) ............. 279
Tire ply material ........................... 281
Tire and loading terminology ........ 281
Rotating tires ............................... 284
Anti-theft wheel nuts .................... 285
Winter driving .................................... 287
Winter tires* ................................ 287
Snow chains ................................. 288
Maintenance ...................................... 289
Clearing the maintenance
service indicator message............ 289
Maintenance service term
exceeded ..................................... 290
Calling up the service due date .... 290
Resetting the maintenance
service indicator........................... 291
Vehicle care ....................................... 292
Cleaning and care of the vehicle .. 292
Vehicle washing ........................... 293
Practical hints................................. 296
What to do if ... .................................. 298
Lamps in instrument cluster ........ 298
Lamp in center console................ 306
Vehicle status messages in the
multifunction display.................... 307
Symbol messages ........................ 315
Where will I find ...? ........................... 342
First aid kit ................................... 342
TIREFIT kit, electric air pump,
towing eye bolt and
vehicle literature portfolio ............ 342
Compact guide (Canada only) ...... 343
Unlocking in an emergency ............... 344
Unlocking the vehicle................... 344
Replacing SmartKey batteries ........... 346
Replacing bulbs ................................. 348
Front lamps.................................. 349
Rear lamps ................................... 349
Replacing the wiper blades................ 350
Removing wiper blades ................ 350
Installing wiper blades ................. 350

92 Safety and SecurityAnti-theft systemsTow-away alarm
Once the tow-away alarm is armed, a visual
and audible alarm will be triggered when
someone attempts to raise the vehicle.Arming tow-away alarm

Lock your vehicle with the SmartKey.
The tow-away alarm is automatically
armed after about 30 seconds.Disarming tow-away alarm
To prevent triggering the tow-away alarm,
switch off the tow-away alarm feature
before towing the vehicle, or when parking
on a surface subject to movement, such as
a ferry or auto train.
The button is located on the lower part of
the center console.
1Tow-away alarm off button
2Indicator lamp
iThe tow-away protection alarm is
triggered, for example, if the vehicle is
lifted on one side.
If the alarm stays on for more than
30 seconds, a call to the Response
Center is initiated automatically by the
Tele Aid system (
page 215) provided
Tele Aid service was subscribed to and
properly activated, and that necessary
cellular service and GPS coverage are
available.
iWhen you unlock your vehicle, the
tow-away protection disarms
automatically. The tow-away alarm
remains disarmed until you lock the
vehicle again.

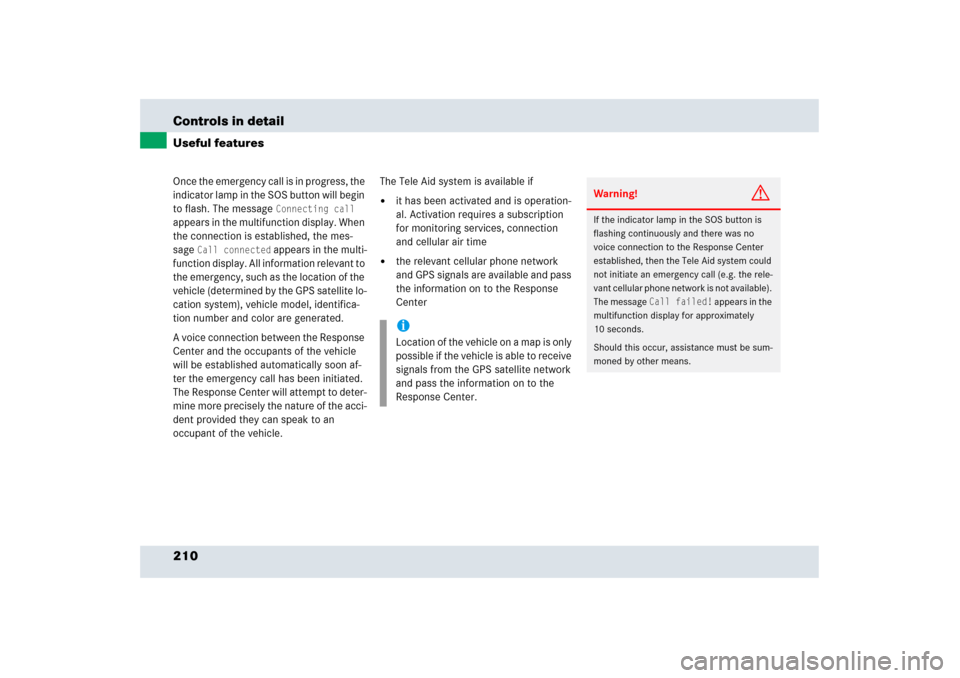

210 Controls in detailUseful featuresOnce the emergency call is in progress, the
indicator lamp in the SOS button will begin
to flash. The message
Connecting call

appears in the multifunction display. When
the connection is established, the mes-
sage
Call connected
appears in the multi-
function display. All information relevant to
the emergency, such as the location of the
vehicle (determined by the GPS satellite lo-
cation system), vehicle model, identifica-
tion number and color are generated.
A voice connection between the Response
Center and the occupants of the vehicle
will be established automatically soon af-
ter the emergency call has been initiated.
The Response Center will attempt to deter-
mine more precisely the nature of the acci-
dent provided they can speak to an
occupant of the vehicle.The Tele Aid system is available if


it has been activated and is operation-
al. Activation requires a subscription
for monitoring services, connection
and cellular air time


the relevant cellular phone network
and GPS signals are available and pass
the information on to the Response
CenteriLocation of the vehicle on a map is only
possible if the vehicle is able to receive
signals from the GPS satellite network
and pass the information on to the
Response Center.
Warning!
G
If the indicator lamp in the SOS button is
flashing continuously and there was no
voice connection to the Response Center
established, then the Tele Aid system could
not initiate an emergency call (e.g. the rele-
vant cellular phone network is not available).
The message
Call failed!
appears in the
multifunction display for approximately
10 seconds.
Should this occur, assistance must be sum-
moned by other means.

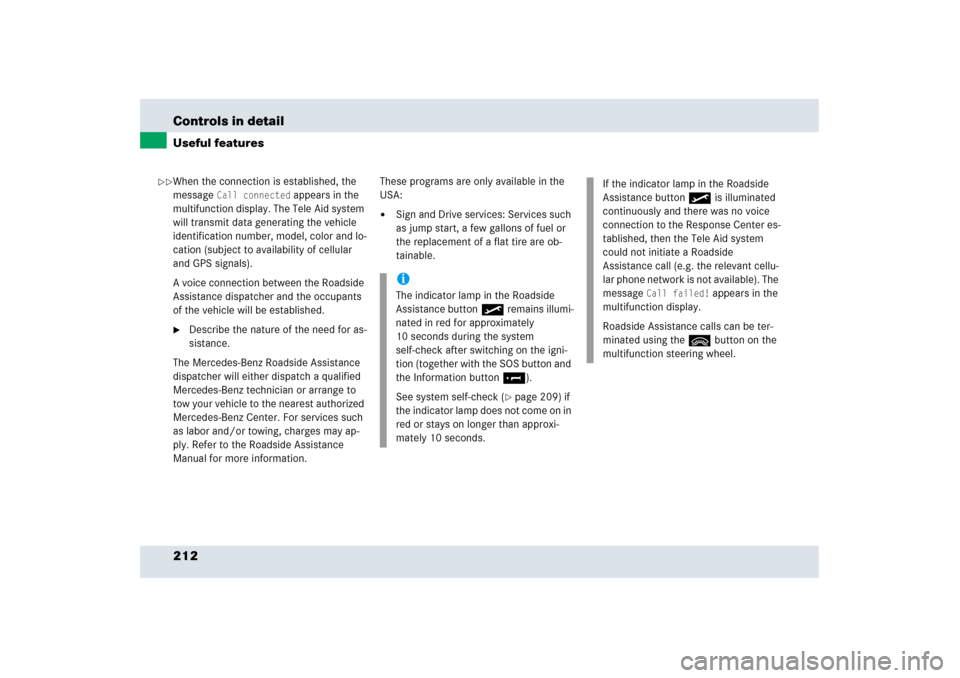

212 Controls in detailUseful featuresWhen the connection is established, the
message
Call connected
appears in the
multifunction display. The Tele Aid system
will transmit data generating the vehicle
identification number, model, color and lo-
cation (subject to availability of cellular
and GPS signals).
A voice connection between the Roadside
Assistance dispatcher and the occupants
of the vehicle will be established.

Describe the nature of the need for as-
sistance.
The Mercedes-Benz Roadside Assistance
dispatcher will either dispatch a qualified
Mercedes-Benz technician or arrange to
tow your vehicle to the nearest authorized
Mercedes-Benz Center. For services such
as labor and/or towing, charges may ap-
ply. Refer to the Roadside Assistance
Manual for more information.These programs are only available in the
USA:


Sign and Drive services: Services such
as jump start, a few gallons of fuel or
the replacement of a flat tire are ob-
tainable.iThe indicator lamp in the Roadside
Assistance button• remains illumi-
nated in red for approximately
10 seconds during the system
self-check after switching on the igni-
tion (together with the SOS button and
the Information button¡).
See system self-check (
page 209) if
the indicator lamp does not come on in
red or stays on longer than approxi-
mately 10 seconds.
If the indicator lamp in the Roadside
Assistance button• is illuminated
continuously and there was no voice
connection to the Response Center es-
tablished, then the Tele Aid system
could not initiate a Roadside
Assistance call (e.g. the relevant cellu-
lar phone network is not available). The
message
Call failed!
appears in the
multifunction display.
Roadside Assistance calls can be ter-
minated using the ìbutton on the
multifunction steering wheel.


213 Controls in detail
Useful features
Information button ¡
The Information button¡ is located in
the center armrest cover.
1Information button¡
Open the center storage compartment
(page 201).

Press and hold the button1 (for long-
er than 2 seconds).
A call to the Customer Assistance
Center will be initiated. The button will
flash while the call is in progress. The
message
Connecting call
will appear
in the multifunction display.When the connection is established, the
message
Call connected
appears in the
multifunction display. The Tele Aid system
will transmit data generating the vehicle
identification number, model, color and lo-
cation (subject to availability of cellular
and GPS signals).
A voice connection between the Customer
Assistance Center representative and the
occupants of the vehicle will be estab-
lished. Information regarding the operation
of your vehicle, the nearest
Mercedes-Benz Center or Mercedes-Benz
USA products and services is available to
you.
For more details concerning the Tele Aid
system, please visit www.mbusa.com and
use your ID and password (sent to you sep-
arately) to learn more (USA only).
iThe indicator lamp in the Information
button¡ remains illuminated in red
for approximately 10 seconds during
the system self-check after switching
on the ignition (together with the SOS
button and the Roadside Assistance
button•).
See system self-check (
page 209) if
the indicator lamp does not come on in
red or stays on longer than approxi-
mately 10 seconds.
If the indicator lamp in the Information
button¡ is illuminated continuous-
ly and no voice connection to the
Response Center was established, then
the Tele Aid system could not initiate
an Information call (e.g. the relevant
cellular phone network is not avail-
able). The message
Call failed!
ap-
pears in the multifunction display.
Information calls can be terminated us-
ing the ìbutton on the multifunc-
tion steering wheel.

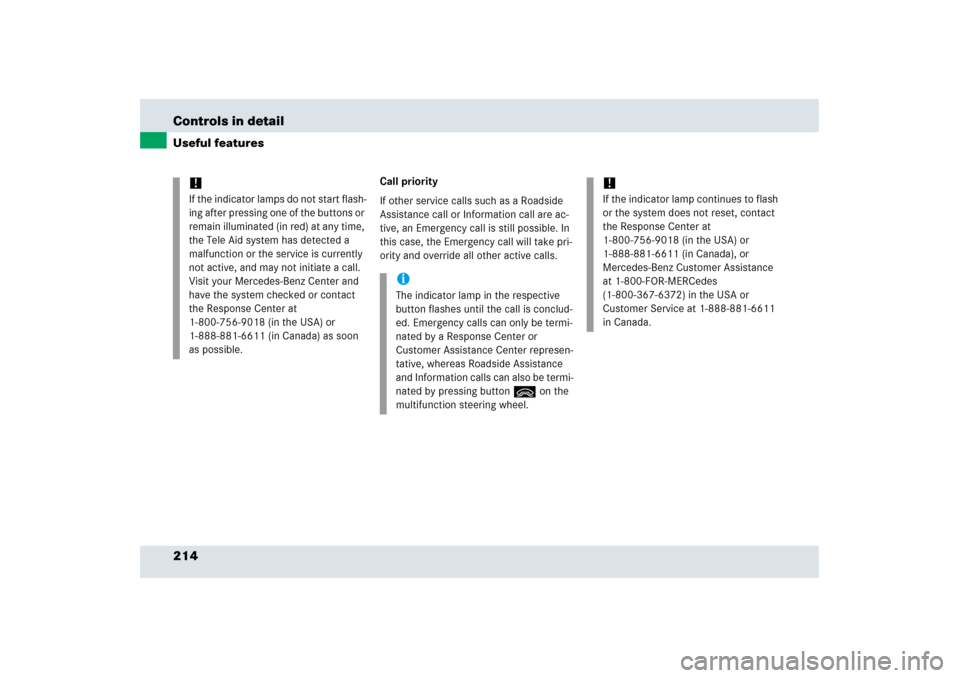

214 Controls in detailUseful features
Call priority
If other service calls such as a Roadside
Assistance call or Information call are ac-
tive, an Emergency call is still possible. In
this case, the Emergency call will take pri-
ority and override all other active calls.
!If the indicator lamps do not start flash-
ing after pressing one of the buttons or
remain illuminated (in red) at any time,
the Tele Aid system has detected a
malfunction or the service is currently
not active, and may not initiate a call.
Visit your Mercedes-Benz Center and
have the system checked or contact
the Response Center at
1-800-756-9018 (in the USA) or
1-888-881-6611 (in Canada) as soon
as possible.
iThe indicator lamp in the respective
button flashes until the call is conclud-
ed. Emergency calls can only be termi-
nated by a Response Center or
Customer Assistance Center represen-
tative, whereas Roadside Assistance
and Information calls can also be termi-
nated by pressing button ì on the
multifunction steering wheel.
!If the indicator lamp continues to flash
or the system does not reset, contact
the Response Center at
1-800-756-9018 (in the USA) or
1-888-881-6611 (in Canada), or
Mercedes-Benz Customer Assistance
at 1-800-FOR-MERCedes
(1-800-367-6372) in the USA or
Customer Service at 1-888-881-6611
in Canada.

242 OperationAt the gas station
Replace fuel cap by turning it clockwise
until it audibly engages.

Close the fuel filler flap until you hear
the latch close shut.
Check regularly and before a long trip
1Coolant
2Engine oil
3Brake fluidCoolant
For normal replenishing, use water (pota-
ble water quality). For more information,
see “Coolant” (
page 250) and see “Fu-
els, coolants, lubricants, etc.”
(
page 377).
Engine oil level
For more information on engine oil level,
see “Engine oil” (
page 247).
Brake fluid
iMore information on gasoline can be
found in the Factory Approved Service
Products pamphlet.
Leaving the engine running and the fuel
cap open can cause theú malfunc-
tion indicator lamp (USA only) or
the± malfunction indicator lamp
(Canada only) to illuminate.
For more information, see “Practical
hints” (
page 301).
iOpening the hood, see (
page 244).
!If you find that the brake fluid in the
brake fluid reservoir has fallen to the
minimum mark or below, have the
brake system checked for brake pad
thickness and leaks immediately.
Notify an authorized Mercedes-Benz
Center immediately. Do not add brake
fluid as this will not solve the problem.
For more information, see “Practical
hints” (
page 300).


289 Operation
Maintenance
Maintenance
In order to maintain the performance and
safety of your SLR, we strongly recom-
mend that you have your vehicle serviced
by an authorized Mercedes-Benz Center,
every 12 months, even if the vehicle has
covered less than 10 000 miles
(15 000 km) in that time.
The maintenance service indicator will
notify you when your next maintenance
service is due within the next 12 months or
10 000 miles (15 000 km), whichever
comes sooner.
Failure to have the vehicle maintained in
accordance with the Maintenance Booklet
and maintenance service indicator at the
designated times/mileage will result in
vehicle damage not covered by the
Mercedes-Benz Limited Warranty.Before your next maintenance service is
due, one of the following messages will ap-
pear in the right multifunction display while
you are driving or when you switch on the
ignition:
Service in .. days
Service in .. miles

When the maintenance service is due, the
following message appears in the multi-
function display:
Carry out Service
Clearing the maintenance service indicator message
The maintenance service indicator mes-
sage is automatically cleared after 30 sec-
onds when you switch on the ignition. You
can also clear it yourself.
1Reset button
Press reset button 1.
The maintenance service indicator
message is cleared and the standard
display appears in the multifunction
display (
page 117).
