2006 MERCEDES-BENZ SLR snow chains

ContentsAt the gas station............................... 241
Refueling ...................................... 241
Check regularly and before
a long trip ..................................... 242
Engine compartment.......................... 244
Hood ............................................ 244
Engine oil...................................... 247
Transmission fluid level ................ 249
Coolant......................................... 250
Trunk ................................................. 251
Batteries....................................... 251
Windshield washer system and
headlamp cleaning system ........... 252
Tires and wheels ................................ 254
Important guidelines .................... 254
Tire care and maintenance ........... 255
Direction of rotation ..................... 257
Loading the vehicle ...................... 257
Recommended tire inflation
pressure ....................................... 264
Checking tire inflation pressure ... 266
Tire labeling .................................. 271
Load identification........................ 275
DOT, Tire Identification Number
(TIN) ............................................. 276
Maximum tire load ....................... 277Maximum tire inflation pressure .. 278
Uniform Tire Quality Grading
Standards (U.S. vehicles) ............. 279
Tire ply material ........................... 281
Tire and loading terminology ........ 281
Rotating tires ............................... 284
Anti-theft wheel nuts .................... 285
Winter driving .................................... 287
Winter tires* ................................ 287
Snow chains ................................. 288
Maintenance ...................................... 289
Clearing the maintenance
service indicator message............ 289
Maintenance service term
exceeded ..................................... 290
Calling up the service due date .... 290
Resetting the maintenance
service indicator........................... 291
Vehicle care ....................................... 292
Cleaning and care of the vehicle .. 292
Vehicle washing ........................... 293
Practical hints................................. 296
What to do if ... .................................. 298
Lamps in instrument cluster ........ 298
Lamp in center console................ 306
Vehicle status messages in the
multifunction display.................... 307
Symbol messages ........................ 315
Where will I find ...? ........................... 342
First aid kit ................................... 342
TIREFIT kit, electric air pump,
towing eye bolt and
vehicle literature portfolio ............ 342
Compact guide (Canada only) ...... 343
Unlocking in an emergency ............... 344
Unlocking the vehicle................... 344
Replacing SmartKey batteries ........... 346
Replacing bulbs ................................. 348
Front lamps.................................. 349
Rear lamps ................................... 349
Replacing the wiper blades................ 350
Removing wiper blades ................ 350
Installing wiper blades ................. 350

79 Safety and Security
Driving safety systems
Driving safety systems
In this section you will find information on
the following driving safety systems:

ABS (A
ntilock B
rake S
ystem)


BAS (B
rake A
ssist S
ystem)


ESP
® (E
lectronic S
tability P
rogram)


Electrohydraulic brake system
ABS
The Antilock Brake System (ABS) regulates
the brake pressure so that the wheels do
not lock during braking. This allows you to
maintain the ability to steer your vehicle.
The ABS is functional above a speed of ap-
proximately 5 mph (8 km/h) independent
of road surface conditions.
On slippery road surfaces, the ABS will re-
spond even to light brake pressure.
iIn winter operation, the maximum ef-
fectiveness of the ABS, the BAS, the
ESP
®, and the electrohydraulic brake
system is only achieved with winter
tires (page 287) or snow chains as
required.
Warning!
G
The following factors increase the risk of ac-
cidents:

Excessive speed, especially in turns


Wet and slippery road surfaces


Following another vehicle too closely
The ABS, BAS, ESP
®, and electrohydraulic
brake system cannot reduce this risk.
Always adjust your driving style to the pre-
vailing road and weather conditions.
Warning!
G
Do not pump the brake pedal. Use firm,
steady brake pedal pressure instead. Pump-
ing the brake pedal defeats the purpose of
the ABS and significantly reduces braking
effectiveness.

83 Safety and Security
Driving safety systems
Switching off the ESP
®
To improve the vehicle’s traction, turn off
the ESP
® in driving situations where it
would be advantageous to have the drive
wheels spin and thus cut into surfaces for
better grip such as:


when driving with snow chains


in deep snow


in sand or gravelWhen you switch off the ESP
®


the ESP
® does not stabilize the vehicle


the engine output is not limited, which
allows the drive wheels to spin and
thus cut into surfaces for better grip


the traction control will still brake a
spinning wheel


the ESP
® continues to operate when
you are braking
Turn on the ESP
® immediately if the afore-
mentioned circumstances do not apply
anymore.The switch is located on the lower part of
the center console.
1ESP
® switch (off/on)

Press switch1.
The v ABS/ESP
® warning lamp in
the instrument cluster comes on.
The ESP
® is deactivated.
Warning!
G
The ESP
® should not be switched off during
normal driving other than in the circum-
stances described below. Disabling of the
system will reduce vehicle stability in stan-
dard driving maneuvers.
iWhen the ESP
® is switched off and one
or more drive wheels are spinning, the
v ABS/ESP® warning lamp in the
instrument cluster flashes. However,
the ESP
® will then not stabilize the ve-
hicle.

87 Safety and Security
Performance enhancement system
Performance enhancement system
Airbrake
The Airbrake enhances the vehicle’s driv-
ing stability. It adapts the aerodynamics of
the vehicle to the driving conditions ac-
cording to the speed and the mode set.
This is achieved using a moveable spoiler.
The Airbrake is located at the rear edge of
the trunk lid.Warning!
G
When operating the Airbrake, make sure
there is no danger of anyone being harmed
by the Airbrake operation (i.e. raising and
lowering of flap). Be especially careful when
small children are around.
Warning!
G
The following factors increase the risk of ac-
cidents:

Excessive speed, especially in turns


Wet and slippery road surfaces


Following another vehicle too closely
The Airbrake cannot reduce this risk.
Always adjust your driving style to the pre-
vailing road and weather conditions.
iIf the ESP
® is active, the Airbrake is
automatically deactivated.
iIn winter operation, the maximum ef-
fectiveness of the Airbrake is only
achieved with winter tires (M + S tires)
or snow chains as required.

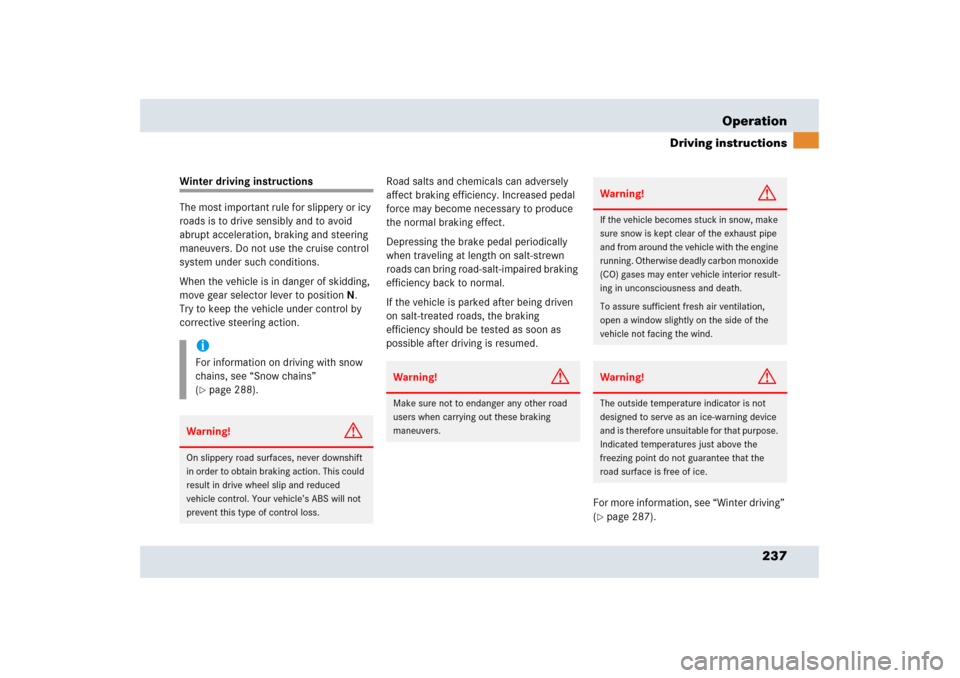

237 Operation
Driving instructions
Winter driving instructions
The most important rule for slippery or icy
roads is to drive sensibly and to avoid
abrupt acceleration, braking and steering
maneuvers. Do not use the cruise control
system under such conditions.
When the vehicle is in danger of skidding,
move gear selector lever to positionN.
Try to keep the vehicle under control by
corrective steering action.Road salts and chemicals can adversely
affect braking efficiency. Increased pedal
force may become necessary to produce
the normal braking effect.
Depressing the brake pedal periodically
when traveling at length on salt-strewn
roads can bring road-salt-impaired braking
efficiency back to normal.
If the vehicle is parked after being driven
on salt-treated roads, the braking
efficiency should be tested as soon as
possible after driving is resumed.
For more information, see “Winter driving”
(
page 287).
iFor information on driving with snow
chains, see “Snow chains”
(page 288).
Warning!
G
On slippery road surfaces, never downshift
in order to obtain braking action. This could
result in drive wheel slip and reduced
vehicle control. Your vehicle’s ABS will not
prevent this type of control loss.
Warning!
G
Make sure not to endanger any other road
users when carrying out these braking
maneuvers.
Warning!
G
If the vehicle becomes stuck in snow, make
sure snow is kept clear of the exhaust pipe
and from around the vehicle with the engine
running. Otherwise deadly carbon monoxide
(CO) gases may enter vehicle interior result-
ing in unconsciousness and death.
To assure sufficient fresh air ventilation,
open a window slightly on the side of the
vehicle not facing the wind.Warning!
G
The outside temperature indicator is not
designed to serve as an ice-warning device
and is therefore unsuitable for that purpose.
Indicated temperatures just above the
freezing point do not guarantee that the
road surface is free of ice.

288 OperationWinter drivingSnow chains
Snow chains should only be driven on
snow-covered roads at speeds not to
exceed 30 mph (50 km/h). Remove chains
as soon as possible when driving on roads
without snow.Please observe the following guidelines
when using snow chains:


Use of snow chains is not permissible
with all wheel/tire combinations.


Snow chains should only be used on
the rear wheels. Follow the manufac-
turer’s mounting instructions.


Only use snow chains that are
approved by Mercedes-Benz. Your
authorized Mercedes-Benz Center will
be glad to advise you on this subject.


Use of snow chains may be prohibited
depending on location. Always check
local and state laws before installing
snow chains.
iWhen driving with snow chains, you
may wish to deactivate the ESP
®
(
page 83) before setting the vehicle
in motion. This will improve the
vehicle’s traction.
!Use of snow chains is not permissible
with tire sizes:

255/35 ZR19 (96Y) XL


295/30 ZR19 (100Y) XL


295/35 ZR18 (99Y)

372 Technical dataRims and tiresMixed size tires
Turbine-style
10-spoke-style*
5-spoke-style*
Front axle:Rims (light alloy)
9J x 19
9J x 18
9J x 18
Wheel offset
1.83 in (46.5 mm)
1.77 in (45 mm)
1.77 in (45 mm)
Summer tires (radial-ply tires)
255/35 ZR19 (96Y) XL
1
245/40 ZR18 (93Y)
245/40 ZR18 (93Y)
Rear axle:Rims (light alloy)
11
1/2 J x 19
11
1/2 J x 18
11
1/2 J x 18
Wheel offset
1.77 in (45 mm)
1.73 in (44 mm)
1.73 in (44 mm)
Summer tires (radial-ply tires)
295/30 ZR19 (100Y) XL
1
295/35 ZR18 (99Y)
1
1Must not be used with snow chains.
295/35 ZR18 (99Y)
1
!Only use Michelin tires of the sizes and
types noted above. They are the only
tires approved for use on the SLR. Use
of tires not specially approved for the
SLR could result in unanticipated per-
formance characteristics. For more in-
formation, contact an authorized
Mercedes-Benz Center.

402 IndexSeat belt force limiter 72
Seat belts 62
Children in the vehicle 72
Fastening seat belts 46
Message in the multifunction
display 334
Proper use of 48
Safety guidelines 67
Telltale 69, 304
Seating capacity 259
Seats 42
Selector lever see Gear selector lever
Self-test
BabySmart
TM airbag deactivation
system 75
Lamps in the instrument cluster 298
Tele Aid 209
Service and warranty information 14
Service intervals see Service indicator
Service life
Tires 255
Vehicle batteries 251
Service see Maintenance
Service, Parts 366Settings
Control system menus 120
Control system submenus 121
Factory, SmartKey 98
Individual, Vehicle 126
Menus and submenus 119
Resetting all, Control system 126
Selective, SmartKey 98
Time 131
Shift program mode selector switch, Auto-
matic transmission 173
Shifting, Automatic transmission 167
Side air vents 31
Side marker lamps
Messages in the multifunction
display 332
Replacing bulbs 349
Side windows see Power windows
Sidewall 283
SmartKey see Key, SmartKey
Snow chains 288
Snow tires* 287
Spare fuses 363
Spare parts service 366
Speed setting
Cruise control 199Speedometer 29
SRS 62, 389
Indicator lamp 29, 304
Messages in the multifunction
display 312
Standing lamps 105
Standing water, Driving trough 238
Start button 49
Starter battery 251, 356
Starter switch 27, 40
Starting difficulties, Engine 50
Starting the engine 49
Steering wheel 43
Buttons 30
Steering wheel gearshift control
Automatic transmission 174
Indicator lamp 303
Stolen Vehicle Recovery services 215
Storage compartments 200
Armrest 200
Center 201
Map pocket, Passenger footwell 200
Parcel net in trunk 201
Rear 201
Storing tires 256
Submenus see Control system submenus
