52 Getting startedDrivingAfter a cold start, the transmission engag-
es at a higher revolution. This allows the
catalytic converter to reach its operating
temperature earlier.
Switching on headlamps
Low beam headlamps
The exterior lamp switch is located on the
dashboard to the left of the steering wheel.Exterior lamp switch1Lights off
2Low beam headlamps on
Turn switch toB.
For more information on headlamps, see
“Lighting” (
page 105).
!If you hear a warning signal and the
message:Release
parking brakeappears in the multifunction display
when driving off, you have forgotten to
release the parking brake.
Release the parking brake.!Do not run cold engine at high engine
speed. Running a cold engine at high
engine speed may shorten the service
life of the engine.
!Simultaneously depressing the acceler-
ator pedal and applying the brake re-
duces engine performance and causes
premature brake and drivetrain wear.iYou can open a locked door from the
inside. Open door only when conditions
are safe to do so.
You can deactivate the automatic lock-
ing using the control system
(page 137).


64 Safety and SecurityOccupant safety

Adjust the driver seat as far as possible
rearward, still permitting proper opera-
tion of vehicle controls. The distance
from the center of the driver’s breast-
bone to the center of the airbag cover on
the steering wheel must be at least ten
inches (25 cm) or more. You should be
able to accomplish this by a combina-
tion of adjustments to the seat and
steering wheel. If you have any prob-
lems, please see an authorized
Mercedes-Benz Center.


Do not lean with your head or chest
close to the steering wheel or dash-
board.


Keep hands on the outside of steering
wheel rim. Placing hands and arms in-
side the rim can increase the risk and
potential severity of hand/arm injury
when driver front airbag inflates.


Adjust the front passenger seat as far as
possible rearward from the dashboard
when the seat is occupied.


Occupants, especially children, should
never lean their heads in the area of the
door where the head-thorax airbag in-
flates. This could result in serious inju-
ries or death should the airbag be
triggered. Always sit nearly upright,
properly use the seat belts and appropri-
ate size infant or child restraint system.


Children 12 years old and under must
never ride in this vehicle, except in a
Mercedes-Benz authorized
BabySmart
TM compatible child seat,
which operates with the BabySmart
TM
system installed in the vehicle to deacti-
vate the passenger front airbag when it
is properly installed. Otherwise they will
be struck by the airbag when it inflates
in a crash. If this happens, serious or fa-
tal injury will result.
Failure to follow these instructions can
result in severe injuries to you or other
occupants.
If you sell your vehicle, it is important that
you make the buyer aware of this safety
information. Be sure to give the buyer this
Operator’s Manual.

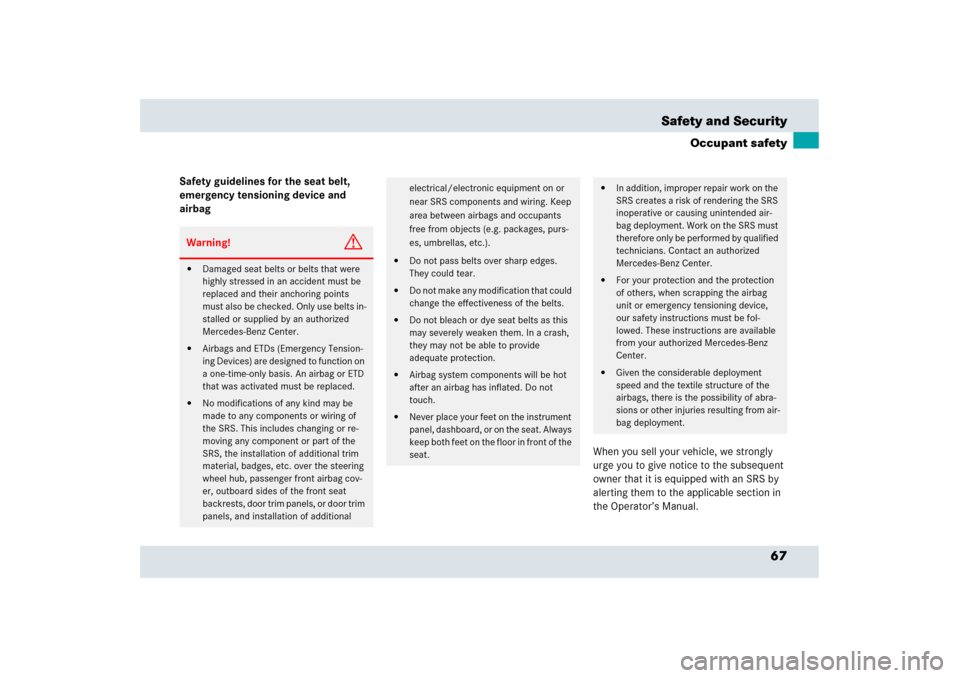

67 Safety and Security
Occupant safety
Safety guidelines for the seat belt,
emergency tensioning device and
airbag
When you sell your vehicle, we strongly
urge you to give notice to the subsequent
owner that it is equipped with an SRS by
alerting them to the applicable section in
the Operator’s Manual.Warning!
G


Damaged seat belts or belts that were
highly stressed in an accident must be
replaced and their anchoring points
must also be checked. Only use belts in-
stalled or supplied by an authorized
Mercedes-Benz Center.


Airbags and ETDs (Emergency Tension-
ing Devices) are designed to function on
a one-time-only basis. An airbag or ETD
that was activated must be replaced.


No modifications of any kind may be
made to any components or wiring of
the SRS. This includes changing or re-
moving any component or part of the
SRS, the installation of additional trim
material, badges, etc. over the steering
wheel hub, passenger front airbag cov-
er, outboard sides of the front seat
backrests, door trim panels, or door trim
panels, and installation of additional
electrical/electronic equipment on or
near SRS components and wiring. Keep
area between airbags and occupants
free from objects (e.g. packages, purs-
es, umbrellas, etc.).


Do not pass belts over sharp edges.
They could tear.


D o n o t m a k e a n y m o d i f i c a t i o n t h a t c o u l d
change the effectiveness of the belts.


Do not bleach or dye seat belts as this
may severely weaken them. In a crash,
they may not be able to provide
adequate protection.


Airbag system components will be hot
after an airbag has inflated. Do not
touch.


Never place your feet on the instrument
panel, dashboard, or on the seat. Always
keep both feet on the floor in front of the
seat.


In addition, improper repair work on the
SRS creates a risk of rendering the SRS
inoperative or causing unintended air-
bag deployment. Work on the SRS must
therefore only be performed by qualified
technicians. Contact an authorized
Mercedes-Benz Center.


For your protection and the protection
of others, when scrapping the airbag
unit or emergency tensioning device,
our safety instructions must be fol-
lowed. These instructions are available
from your authorized Mercedes-Benz
Center.


Given the considerable deployment
speed and the textile structure of the
airbags, there is the possibility of abra-
sions or other injuries resulting from air-
bag deployment.

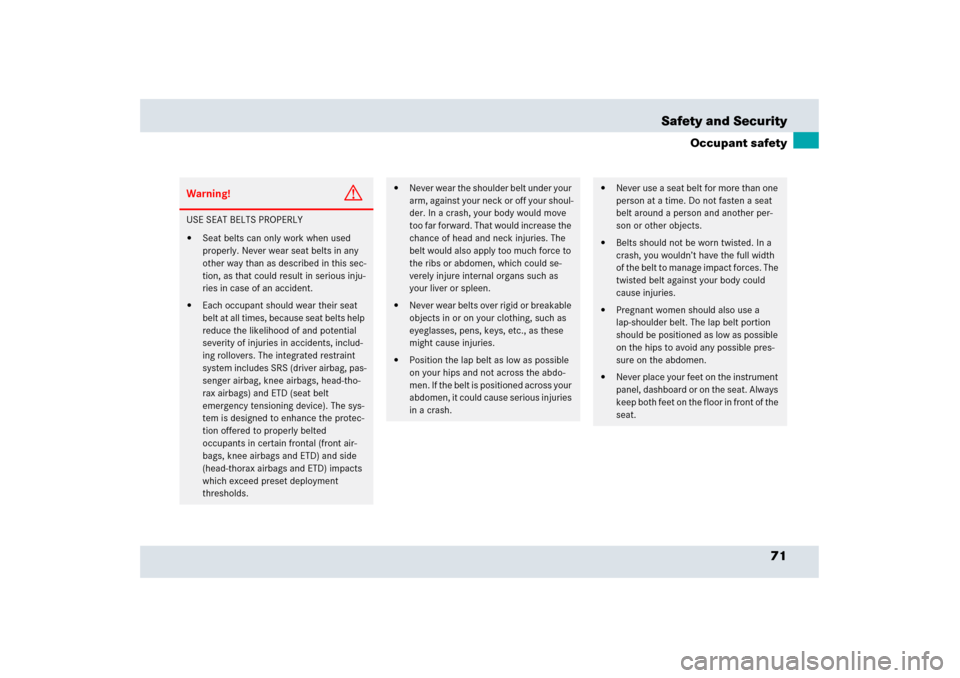

71 Safety and Security
Occupant safety
Warning!
G
USE SEAT BELTS PROPERLY

Seat belts can only work when used
properly. Never wear seat belts in any
other way than as described in this sec-
tion, as that could result in serious inju-
ries in case of an accident.


Each occupant should wear their seat
belt at all times, because seat belts help
reduce the likelihood of and potential
severity of injuries in accidents, includ-
ing rollovers. The integrated restraint
system includes SRS (driver airbag, pas-
senger airbag, knee airbags, head-tho-
rax airbags) and ETD (seat belt
emergency tensioning device). The sys-
tem is designed to enhance the protec-
tion offered to properly belted
occupants in certain frontal (front air-
bags, knee airbags and ETD) and side
(head-thorax airbags and ETD) impacts
which exceed preset deployment
thresholds.


Never wear the shoulder belt under your
arm, against your neck or off your shoul-
der. In a crash, your body would move
too far forward. That would increase the
chance of head and neck injuries. The
belt would also apply too much force to
the ribs or abdomen, which could se-
verely injure internal organs such as
your liver or spleen.


Never wear belts over rigid or breakable
objects in or on your clothing, such as
eyeglasses, pens, keys, etc., as these
might cause injuries.


Position the lap belt as low as possible
on your hips and not across the abdo-
men. If the belt is positioned across your
abdomen, it could cause serious injuries
in a crash.


Never use a seat belt for more than one
person at a time. Do not fasten a seat
belt around a person and another per-
son or other objects.


Belts should not be worn twisted. In a
crash, you wouldn’t have the full width
of the belt to manage impact forces. The
twisted belt against your body could
cause injuries.


Pregnant women should also use a
lap-shoulder belt. The lap belt portion
should be positioned as low as possible
on the hips to avoid any possible pres-
sure on the abdomen.


Never place your feet on the instrument
panel, dashboard or on the seat. Always
keep both feet on the floor in front of the
seat.

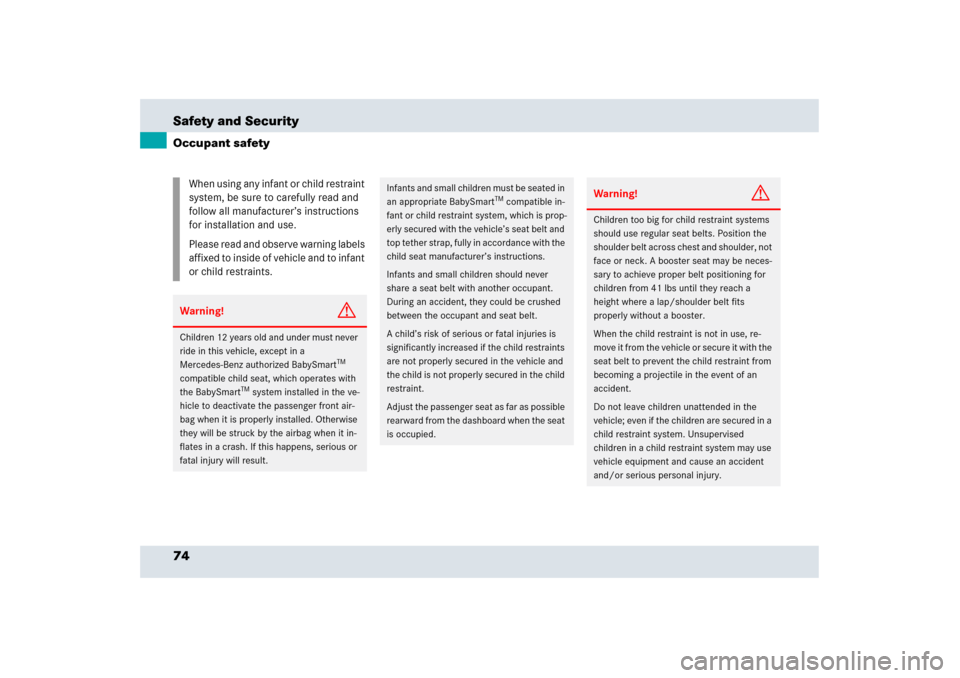

74 Safety and SecurityOccupant safety
When using any infant or child restraint
system, be sure to carefully read and
follow all manufacturer’s instructions
for installation and use.
Please read and observe warning labels
affixed to inside of vehicle and to infant
or child restraints.Warning!
G
Children 12 years old and under must never
ride in this vehicle, except in a
Mercedes-Benz authorized BabySmart
TM
compatible child seat, which operates with
the BabySmart
TM system installed in the ve-
hicle to deactivate the passenger front air-
bag when it is properly installed. Otherwise
they will be struck by the airbag when it in-
flates in a crash. If this happens, serious or
fatal injury will result.
Infants and small children must be seated in
an appropriate BabySmart
TM compatible in-
fant or child restraint system, which is prop-
erly secured with the vehicle’s seat belt and
top tether strap, fully in accordance with the
child seat manufacturer’s instructions.
Infants and small children should never
share a seat belt with another occupant.
During an accident, they could be crushed
between the occupant and seat belt.
A child’s risk of serious or fatal injuries is
significantly increased if the child restraints
are not properly secured in the vehicle and
the child is not properly secured in the child
restraint.
Adjust the passenger seat as far as possible
rearward from the dashboard when the seat
is occupied.
Warning!
G
Children too big for child restraint systems
should use regular seat belts. Position the
shoulder belt across chest and shoulder, not
face or neck. A booster seat may be neces-
sary to achieve proper belt positioning for
children from 41 lbs until they reach a
height where a lap/shoulder belt fits
properly without a booster.
When the child restraint is not in use, re-
m o v e i t f r o m t h e v e h i c l e o r s e c u r e i t w i t h t h e
seat belt to prevent the child restraint from
becoming a projectile in the event of an
accident.
Do not leave children unattended in the
vehicle; even if the children are secured in a
child restraint system. Unsupervised
children in a child restraint system may use
vehicle equipment and cause an accident
and/or serious personal injury.

105 Controls in detail
Lighting
Lighting
For information on how to switch on the
headlamps and use the turn signals, see
“Switching on headlamps” (
page 52)
and (
page 53).
Exterior lamp switch
The exterior lamp switch is located on the
dashboard to the left of the steering wheel.
MOff
UAutomatic headlamp mode
CParking lamps (also tail lamps,
license plate lamps, side marker
lamps, instrument panel lamps)
BLow beam headlamps (or high
beam headlamps when the
combination switch is pushed
forward) and parking lampsˆStanding lamps, right (turn left one
stop)
‚Standing lamps, left (turn left two
stops)
iIf you drive in countries where vehicles
drive on the other side of the road than
the country where the vehicle is regis-
tered, you must have the headlamps
modified for symmetrical low beams.
Relevant information can be obtained
at your authorized Mercedes-Benz
Center.
iIf you remove the SmartKey from the
starter switch and open the driver’s
door while the parking lamps or low
beam headlamps are switched on, then

a warning sounds


$ appears in the left multifunc-
tion display


the message
Turn off lamps
appears in right multifunction dis-
play

179 Controls in detail
Good visibility
Good visibility
For information on the windshield wipers,
see (
page 54) and adjusting the mirrors,
see (page 44).
Headlamp cleaning system
The switch is located on the left side of the
dashboard.
1To clean the headlamps
Switch on the ignition (
page 40).

Press switch 1.
The headlamps are cleaned with a
high-pressure water jet.For information on filling up the washer
reservoir, see “Windshield washer system
and headlamp cleaning system”
(
page 252).
Rear view mirrors
For more information on setting the rear
view mirrors, see “Mirrors” (
page 44).
Auto-dimming mirror
The reflection brightness of the interior
rear view mirror will respond automatically
to glare when


the ignition is switched on
and


incoming light from headlamps falls on
the sensor in the interior rear view
mirror.
The rear view mirror will not react if


reverse gearR is engaged


the interior lighting is turned on
Warning!
G
The auto-dimming function does not react if
incoming light is not aimed directly at sen-
sors in the interior rear view mirror.
Glare can endanger you and others.Warning!
G
In case of an accident, liquid electrolyte may
escape from the mirror housing if the mirror
glass breaks.
Electrolyte has an irritating effect. Do not
allow the liquid to come into contact with
eyes, skin, clothing, or respiratory system.
In case it does, immediately flush affected
area with water, and seek medical help if
necessary.
