112 Controls in detailLightingManual control
Switching interior lighting on
Press switch3.
The interior lighting switches on.
Switching interior lighting off

Press switch 3 again.
The interior lighting switches off.
Reading lamps
The reading lamps are integrated into the
interior rear view mirror.

Press reading lamp switch1or2 to
switch on the desired reading lamp.

Press reading lamp switch1or2
again to switch off the respective read-
ing lamp.
Trunk lamp
The trunk lamp switches on if the trunk is
opened.
If you leave the trunk open for an extended
period of time, the trunk lamp will switch
off automatically after approximately
10 minutes.
Courtesy lighting
For better orientation in the dark, courtesy
lamps will illuminate the interior of your
vehicle.
When you open a door:

the driver’s and passenger’s footwells
If the SmartKey is in starter switch
position1:


the center console
!Make sure the interior lighting is
switched off when leaving the vehicle.
iThe setting selected for the interior
lighting is used for the trunk lighting as
well.
iThe center console is lit from the
interior rear view mirror.

179 Controls in detail
Good visibility
Good visibility
For information on the windshield wipers,
see (
page 54) and adjusting the mirrors,
see (page 44).
Headlamp cleaning system
The switch is located on the left side of the
dashboard.
1To clean the headlamps
Switch on the ignition (
page 40).

Press switch 1.
The headlamps are cleaned with a
high-pressure water jet.For information on filling up the washer
reservoir, see “Windshield washer system
and headlamp cleaning system”
(
page 252).
Rear view mirrors
For more information on setting the rear
view mirrors, see “Mirrors” (
page 44).
Auto-dimming mirror
The reflection brightness of the interior
rear view mirror will respond automatically
to glare when


the ignition is switched on
and


incoming light from headlamps falls on
the sensor in the interior rear view
mirror.
The rear view mirror will not react if


reverse gearR is engaged


the interior lighting is turned on
Warning!
G
The auto-dimming function does not react if
incoming light is not aimed directly at sen-
sors in the interior rear view mirror.
Glare can endanger you and others.Warning!
G
In case of an accident, liquid electrolyte may
escape from the mirror housing if the mirror
glass breaks.
Electrolyte has an irritating effect. Do not
allow the liquid to come into contact with
eyes, skin, clothing, or respiratory system.
In case it does, immediately flush affected
area with water, and seek medical help if
necessary.

180 Controls in detailGood visibility
Sun visors
The sun visors protect you from sun glare
while driving.
1Mirror cover
2Mirror lamp
3Mounting
4Holder for gas cards

Swing sun visor down when you experi-
ence glare.

To use illuminated mirror, lift up mirror
cover1.
!Electrolyte drops coming into contact
with the vehicle paint finish can be
completely removed only while in the
liquid state and by applying plenty of
water.Warning!
G
Exercise care when using the passen-
ger-side exterior rear view mirror. The mirror
surface is convex (outwardly curved surface
for a wider field of view). Objects in mirror
are closer than they appear. Check your
interior rear view mirror or glance over your
shoulder before changing lanes.
Warning!
G
Do not use the vanity mirror while driving.
Keep the mirrors in the sun visors closed
while vehicle is in motion. Reflected glare
can endanger you and others.
iIf sun visor is disengaged from
mounting3 with mirror cover1
open, mirror lamp2 will switch off.

181 Controls in detail
Good visibility
Rear window defroster
The rear window defroster uses a large
amount of power. To keep the battery
drain to a minimum, switch off the
defroster as soon as the rear window is
clear. The defroster is automatically
deactivated after approximately
6 to 17 minutes of operation depending on
the outside temperature.
Activating
Press buttonF on the climate
control panel (
page 184).
The indicator lamp on the button
comes on.Deactivating

Press buttonF again.
The indicator lamp on the button goes
out.
iIf sunlight enters through a side
window, close mirror cover1
(if open), disengage sun visor from
mounting3 and pivot to the side.
Warning!
G
Any accumulation of snow and ice should be
removed from the rear window before
driving. Visibility could otherwise be
impaired, endangering you and others.
!If the rear window defroster switches
off too soon and the indicator lamp
starts flashing, this means that too
many electrical consumers are
operating simultaneously and there is
insufficient voltage in the battery. The
system responds automatically by
deactivating the rear window defroster.
As soon as the battery has sufficient
voltage, the rear window defroster
automatically turns itself back on.

208 Controls in detailUseful featuresTele Aid
Shortly after the completion of your Tele
Aid acquaintance call, you will receive a
user ID and password. By visiting
www.mbusa.com and selecting “Tele Aid”
(USA only), you will have access to account
information, remote door unlock, and
more.The Tele Aid system
(Tele
matic A
larm I
dentification on
D
emand)
The Tele Aid system consists of three
types of response:

automatic and manual emergency


Roadside Assistance


information
The Tele Aid system is operational provid-
ing that the vehicle’s battery is charged,
properly connected, not damaged and cel-
lular and GPS coverage is available.
The speaker volume of a Tele Aid call can
be adjusted when using the volume control
on the audio system or on the multifunc-
tion steering wheel. To raise, turn the rota-
ry volume control on the audio system
clockwise or press buttonæ on the
multifunction steering wheel. To lower,
turn the rotary volume control on the audio
system control counterclockwise or pressbuttonç on the multifunction steering
wheel.

To activate, press the SOS button, the
Roadside Assistance button• or
the Information button¡, depend-
ing on the type of response required.
!The initial activation of the Tele Aid sys-
tem may only be performed by com-
pleting the subscriber agreement and
placing an acquaintance call using the
¡button. Failure to complete either
of these steps will result in a system
that is not activated.
If you have any questions regarding ac-
tivation, please call the Response
Center at 1-800-756-9018 (in the USA)
or 1-888-881-6611 (in Canada).
iThe SOS button is located above the in-
side rear view mirror.
The Roadside Assistance button•
and the Information button¡ are
located in the center storage compart-
ment (
page 201).
!The Tele Aid system utilizes the cellular
network for communication and the
GPS (G
lobal P
ositioning S
ystem) satel-
lites for vehicle location. If either of
these signals are unavailable, the Tele
Aid system may not function and if this
occurs, assistance must be summoned
by other means.

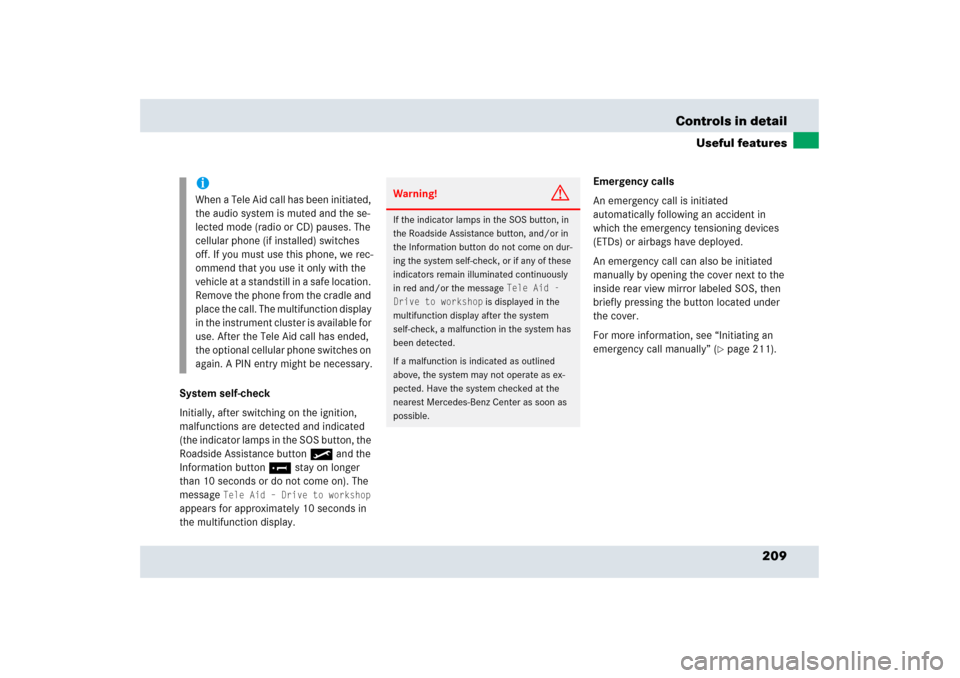

209 Controls in detail
Useful features
System self-check
Initially, after switching on the ignition,
malfunctions are detected and indicated
(the indicator lamps in the SOS button, the
Roadside Assistance button• and the
Information button¡ stay on longer
than 10 seconds or do not come on). The
message
Tele Aid – Drive to workshop

appears for approximately 10 seconds in
the multifunction display.Emergency calls
An emergency call is initiated
automatically following an accident in
which the emergency tensioning devices
(ETDs) or airbags have deployed.
An emergency call can also be initiated
manually by opening the cover next to the
inside rear view mirror labeled SOS, then
briefly pressing the button located under
the cover.
For more information, see “Initiating an
emergency call manually” (
page 211).
iWhen a Tele Aid call has been initiated,
the audio system is muted and the se-
lected mode (radio or CD) pauses. The
cellular phone (if installed) switches
off. If you must use this phone, we rec-
ommend that you use it only with the
vehicle at a standstill in a safe location.
Remove the phone from the cradle and
place the call. The multifunction display
in the instrument cluster is available for
use. After the Tele Aid call has ended,
the optional cellular phone switches on
again. A PIN entry might be necessary.
Warning!
G
If the indicator lamps in the SOS button, in
the Roadside Assistance button, and/or in
the Information button do not come on dur-
ing the system self-check, or if any of these
indicators remain illuminated continuously
in red and/or the message
Tele Aid -
Drive to workshop
is displayed in the
multifunction display after the system
self-check, a malfunction in the system has
been detected.
If a malfunction is indicated as outlined
above, the system may not operate as ex-
pected. Have the system checked at the
nearest Mercedes-Benz Center as soon as
possible.

216 Controls in detailUseful featuresGarage door opener
The integrated remote control is capable of
operating up to three separately controlled
devices. It provides a convenient way to re-
place up to three hand-held remote con-
trols used to operate devices such as
garage door openers, gate openers, or oth-
er devices compatible with HomeLink
® or
some other systems.
Before the integrated remote control can
be used, it must be programmed to the ga-
rage door opener, gate operator or other
device you wish to operate. See the follow-
ing instructions for programming informa-
tion.
Interior rear view mirror with integrated re-
mote control1Indicator lamp
2 3 4Signal transmitter button
Needed for programming (not part of vehi-
cle equipment):
5Hand-held remote control of ga-
rage door opener, gate operator
or other device
6Hand-held remote control but-
ton
Warning!
G
Before programming the integrated remote
control to a garage door opener or gate
operator, make sure people and objects are
out of the way of the device to prevent po-
tential harm or damage. When programming
a garage door opener, the door moves up or
down. When programming a gate operator,
the gate opens or closes.
Do not use the integrated remote control
with any garage door opener that lacks
safety stop and reverse features as required
by U.S. federal safety standards (this
includes any garage door opener model
manufactured before April 1, 1982).
A garage door that cannot detect an object
- signaling the door to stop and reverse -
does not meet current U.S. federal safety
standards.

398 IndexInstrument cluster 28, 113, 387
Illumination brightness 113
Lamps 298
Messages in display see Multifunction
display messages
Multifunction display 117
Instrument lighting 113
Instrument panel see Instrument cluster
Instruments and controls see Cockpit
Interior lighting 111
Delayed switch-off 135
Interior rear view mirror 44
Auto-dimming 179
Interior storage spaces see Storage com-
partments
J
Jacking up the vehicle 351
Jump starting 356K
Key, Mechanical 344
Key, SmartKey
Battery check lamp 98
Checking the batteries 99
Factory setting 98
Locking/unlocking 96
Locking/unlocking, Global setting 98
Locking/unlocking, Selective
setting 98
Loss of 99
Messages in the multifunction
display 329
Opening and closing the
windows 195, 196
Positions in starter switch 40
Remote control 96
Replacing the batteries 346
Turning off the engine 58
Unlocking, Trunk 99
Kickdown 173, 387
Kilopascal 282
Knee airbags 68L
Labels
Certification 368
Emission control label 368
Vacuum line routing 368
Lamps
Exterior 348
Lamps, exterior
Messages in the multifunction
display 330
Lamps, indicator and warning
ABS 29, 299
ABS/ESP
®
29, 298
Airbrake 29, 303
Battery, SmartKey 98
Brake 29, 300
Center console 306
Coolant 29, 302
Engine malfunction 29, 301
Engine oil temperature 29, 303
Fog lamps 108
Fuel reserve 29, 303
Gearshift 29, 303
High beam 29
Instrument cluster 298
Maintenance service indicator 289
