2006 MERCEDES-BENZ SL600 Owner's Manual

440 Technical dataRims and tiresMOExtended tires*
SL 500
SL 500 (Sport Package*)
SL 600
SL 600 (Sport Package*)
Front axle:
Rims (light alloy)
8.5 J x 18 H2
Wheel offset
1.18 in (30 mm)
Summer tires
1,2
1Radial-ply tires2Must be used in conjunction with Tire Pressure Monitoring System (U.S. vehicles) or Run Flat Indicator
(Canada vehicles) only.
255/40 R18 95Y MOExtended
Winter tires
1,2,4
255/40 R18 95V M+S .MOExtended
Rear axle:
Rims (light alloy)
9.5 J x 18 H2
Wheel offset
1.22 in (31 mm)
Summer tires
1,2,3
3Must not be used with snow chains.
285/35 R18 97Y MOExtended
Winter tires
1,2,3,4
4Not available as factory equipment.
285/35 R18 97V M+S .MOExtended

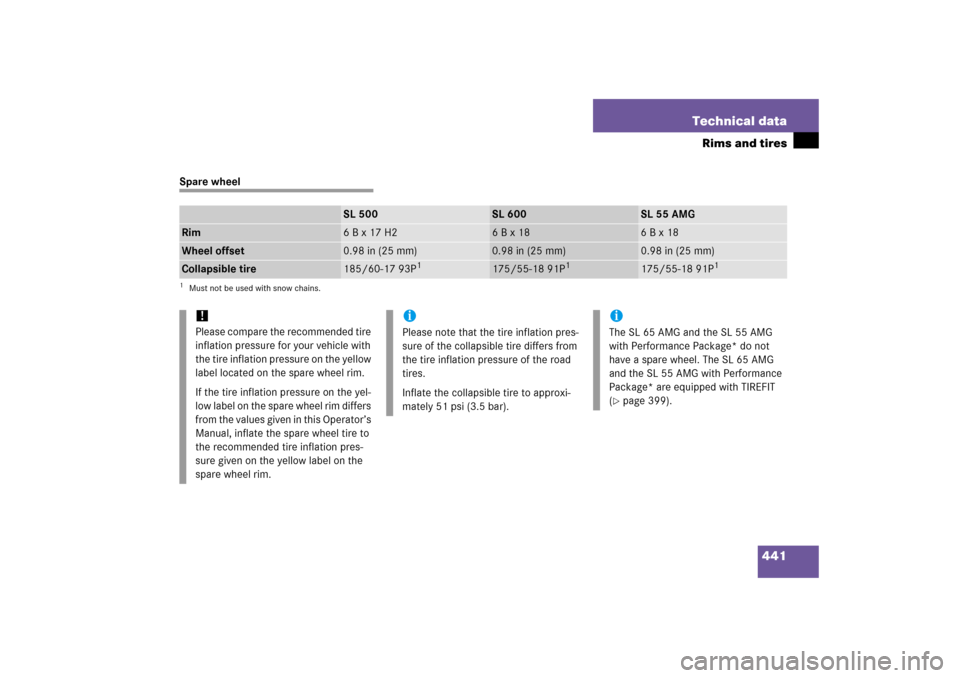

441 Technical data
Rims and tires
Spare wheel
SL 500
SL 600
SL 55 AMG
Rim
6 B x 17 H2
6 B x 18
6 B x 18
Wheel offset
0.98 in (25 mm)
0.98 in (25 mm)
0.98 in (25 mm)
Collapsible tire
185/60-17 93P
1
1Must not be used with snow chains.
175/55-18 91P
1
175/55-18 91P
1
!Please compare the recommended tire
inflation pressure for your vehicle with
the tire inflation pressure on the yellow
label located on the spare wheel rim.
If the tire inflation pressure on the yel-
low label on the spare wheel rim differs
from the values given in this Operator’s
Manual, inflate the spare wheel tire to
the recommended tire inflation pres-
sure given on the yellow label on the
spare wheel rim.
iPlease note that the tire inflation pres-
sure of the collapsible tire differs from
the tire inflation pressure of the road
tires.
Inflate the collapsible tire to approxi-
mately 51 psi (3.5 bar).
iThe SL 65 AMG and the SL 55 AMG
with Performance Package* do not
have a spare wheel. The SL 65 AMG
and the SL 55 AMG with Performance
Package* are equipped with TIREFIT
(page 399).

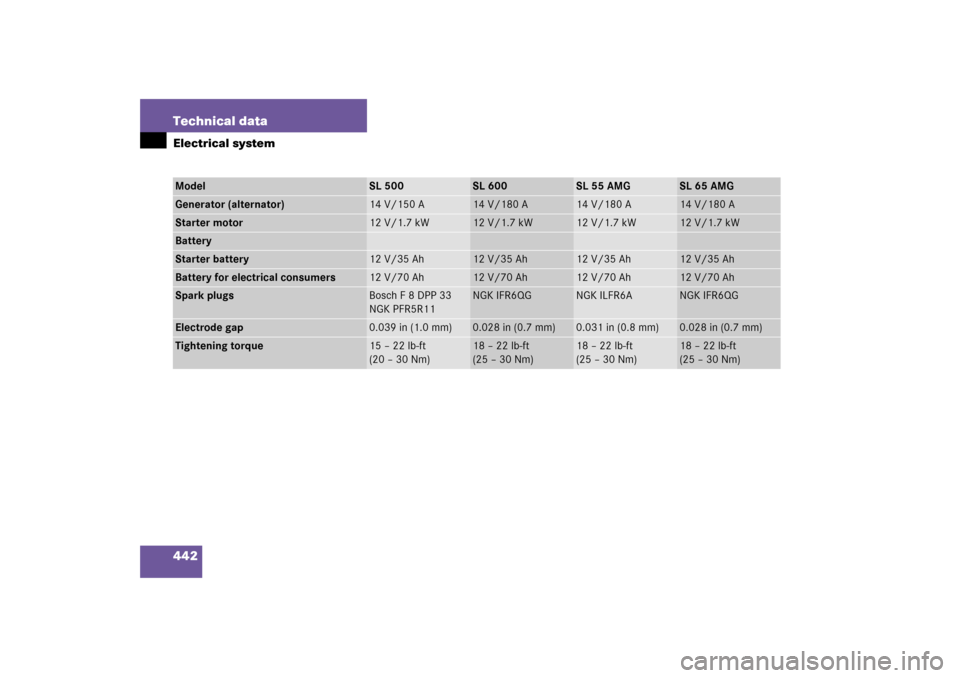

442 Technical dataElectrical systemModel
SL 500
SL 600
SL 55 AMG
SL 65 AMG
Generator (alternator)
14 V/150 A
14 V/180 A
14 V/180 A
14 V/180 A
Starter motor
12 V/1.7 kW
12 V/1.7 kW
12 V/1.7 kW
12 V/1.7 kW
BatteryStarter battery
12 V/35 Ah
12 V/35 Ah
12 V/35 Ah
12 V/35 Ah
Battery for electrical consumers
12 V/70 Ah
12 V/70 Ah
12 V/70 Ah
12 V/70 Ah
Spark plugs
Bosch F 8 DPP 33
NGK PFR5R11
NGK IFR6QG
NGK ILFR6A
NGK IFR6QG
Electrode gap
0.039 in (1.0 mm)
0.028 in (0.7 mm)
0.031 in (0.8 mm)
0.028 in (0.7 mm)
Tightening torque
15 – 22 lb-ft
(20 – 30 Nm)
18 – 22 lb-ft
(25 – 30 Nm)
18 – 22 lb-ft
(25 – 30 Nm)
18 – 22 lb-ft
(25 – 30 Nm)

443 Technical data
Main dimensions
Main dimensions
Model
SL 500
SL 600
SL 55 AMG
SL 65 AMG
Overall vehicle length
178.5 in (4 535 mm)
178.5 in (4 535 mm)
178.5 in (4 535 mm)
178.5 in (4 535 mm)
Overall vehicle length when
opening/closing hardtop
185.6 in (4 713 mm)
185.6 in (4 713 mm)
185.6 in (4 713 mm)
185.6 in (4 713 mm)
Overall vehicle width
(exterior rear view mirrors folded out)
80.5 in (2 045 mm)
80.5 in (2 045 mm)
80.5 in (2 045 mm)
80.5 in (2 045 mm)
Overall vehicle height
51.0 in (1 295 mm)
51.0 in (1 295 mm)
51.0 in (1 295 mm)
51.0 in (1 295 mm)
Overall vehicle height when
opening/closing hardtop
65.9 in (1 674 mm)
65.9 in (1 674 mm)
65.9 in (1 674 mm)
65.9 in (1 674 mm)
Wheelbase
100.8 in (2 560 mm)
100.8 in (2 560 mm)
100.8 in (2 560 mm)
100.8 in (2 560 mm)
Track, front
61.4 in (1 559 mm)
61.4 in (1 559 mm)
61.8 in (1 569 mm)
61.8 in (1 569 mm)
Track, rear
60.5 in (1 537 mm)
60.5 in (1 537 mm)
61.1 in (1 551 mm)
61.1 in (1 551 mm)

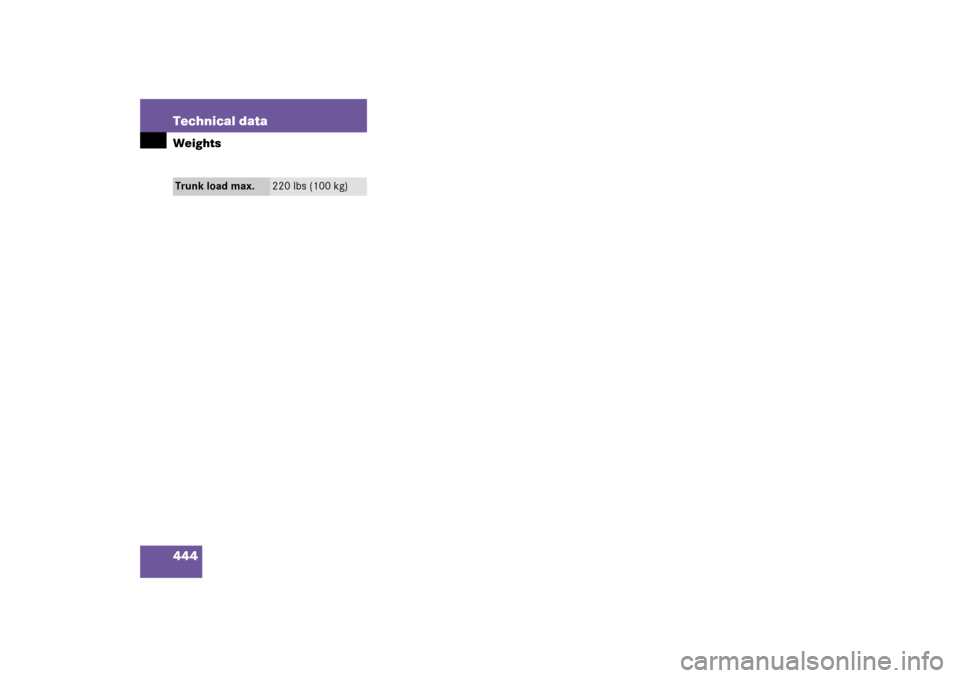

444 Technical dataWeightsTrunk load max.
220 lbs (100 kg)

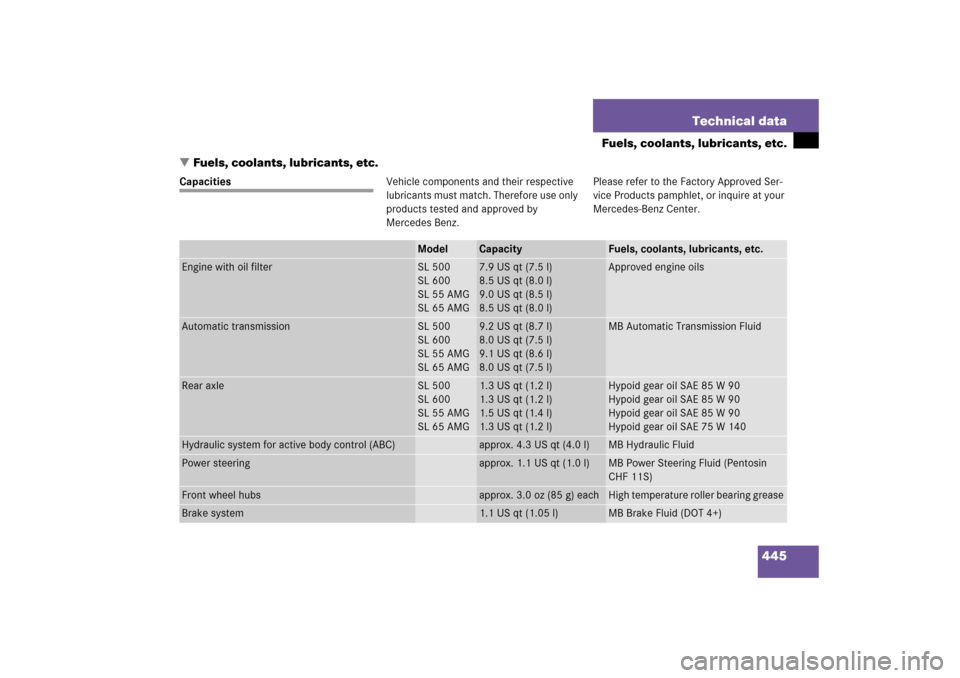

445 Technical data
Fuels, coolants, lubricants, etc.
Fuels, coolants, lubricants, etc.
CapacitiesVehicle components and their respective
lubricants must match. Therefore use only
products tested and approved by
Mercedes Benz.Please refer to the Factory Approved Ser-
vice Products pamphlet, or inquire at your
Mercedes-Benz Center.
Model
Capacity
Fuels, coolants, lubricants, etc.
Engine with oil filter
SL 500
SL 600
SL 55 AMG
SL 65 AMG
7.9 US qt (7.5 l)
8.5 US qt (8.0 l)
9.0 US qt (8.5 l)
8.5 US qt (8.0 l)
Approved engine oils
Automatic transmission
SL 500
SL 600
SL 55 AMG
SL 65 AMG
9.2 US qt (8.7 l)
8.0 US qt (7.5 l)
9.1 US qt (8.6 l)
8.0 US qt (7.5 l)
MB Automatic Transmission Fluid
Rear axle
SL 500
SL 600
SL 55 AMG
SL 65 AMG
1.3 US qt (1.2 l)
1.3 US qt (1.2 l)
1.5 US qt (1.4 l)
1.3 US qt (1.2 l)
Hypoid gear oil SAE 85 W 90
Hypoid gear oil SAE 85 W 90
Hypoid gear oil SAE 85 W 90
Hypoid gear oil SAE 75 W 140
Hydraulic system for active body control (ABC)
approx. 4.3 US qt (4.0 l)
MB Hydraulic Fluid
Power steering
approx. 1.1 US qt (1.0 l)
MB Power Steering Fluid (Pentosin
CHF 11S)
Front wheel hubs
approx. 3.0 oz (85 g) each
High temperature roller bearing grease
Brake system
1.1 US qt (1.05 l)
MB Brake Fluid (DOT 4+)

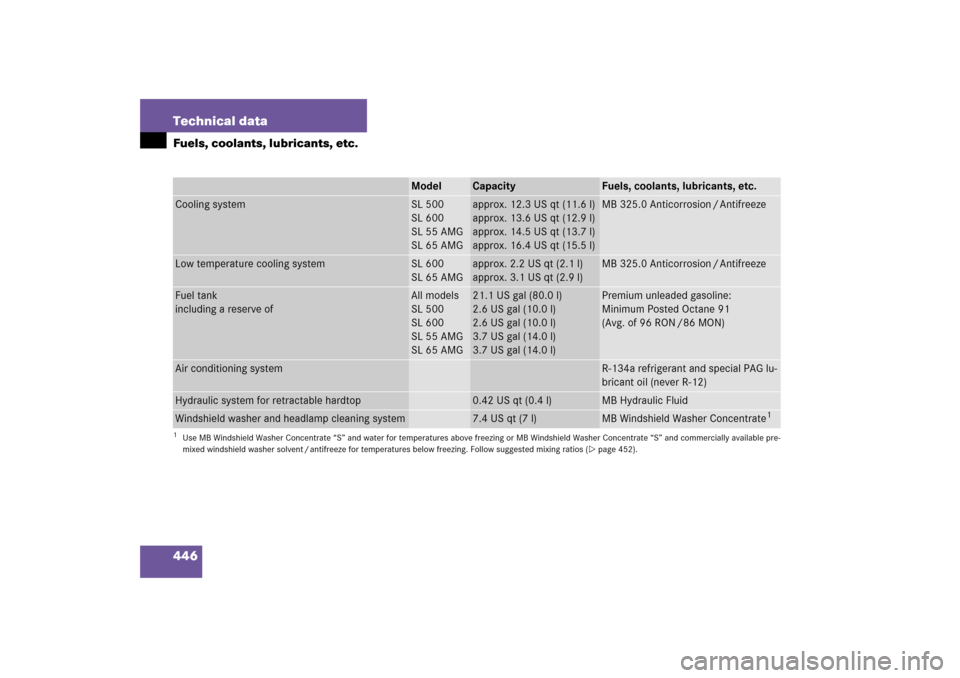

446 Technical dataFuels, coolants, lubricants, etc.
Model
Capacity
Fuels, coolants, lubricants, etc.
Cooling system
SL 500
SL 600
SL 55 AMG
SL 65 AMG
approx. 12.3 US qt (11.6 l)
approx. 13.6 US qt (12.9 l)
approx. 14.5 US qt (13.7 l)
approx. 16.4 US qt (15.5 l)
MB 325.0 Anticorrosion / Antifreeze
Low temperature cooling system
SL 600
SL 65 AMG
approx. 2.2 US qt (2.1 l)
approx. 3.1 US qt (2.9 l)
MB 325.0 Anticorrosion / Antifreeze
Fuel tank
including a reserve of
All models
SL 500
SL 600
SL 55 AMG
SL 65 AMG
21.1 US gal (80.0 l)
2.6 US gal (10.0 l)
2.6 US gal (10.0 l)
3.7 US gal (14.0 l)
3.7 US gal (14.0 l)
Premium unleaded gasoline:
Minimum Posted Octane 91
(Avg. of 96 RON /86 MON)
Air conditioning system
R-134a refrigerant and special PAG lu-
bricant oil (never R-12)
Hydraulic system for retractable hardtop
0.42 US qt (0.4 l)
MB Hydraulic Fluid
Windshield washer and headlamp cleaning system
7.4 US qt (7 l)
MB Windshield Washer Concentrate
1
1Use MB Windshield Washer Concentrate “S” and water for temperatures above freezing or MB Windshield Washer Concentrate “S” and commercially available pre-
mixed windshield washer solvent / antifreeze for temperatures below freezing. Follow suggested mixing ratios (page 452).

447 Technical data
Fuels, coolants, lubricants, etc.
Engine oils
Engine oils are specifically tested for their
suitability in our engines and durability for
our service intervals. Therefore, only use
approved engine oils and oil filters re-
quired for vehicles with Maintenance
System (U.S. vehicles) or FSS (Canada
vehicles). For a listing of approved engine
oils and oil filters, refer to the Factory Ap-
proved Service Products pamphlet, or con-
tact an authorized Mercedes-Benz Center.
Engine oil additives
Do not blend oil additives with engine oil.
They may damage the engine.
Damage or malfunctions resulting from
blending oil additives are not covered by
the Mercedes-Benz Limited Warranty.Air conditioning refrigerant
R-134a (HFC) refrigerant and special PAG
lubricating oil are used in the air condition-
er system.
Never use R-12 (CFC) or mineral-based lu-
bricating oil. Otherwise damage to the
system will occur.
Brake fluid
During vehicle operation, the boiling point
of the brake fluid is continuously reduced
through the absorption of moisture from
the atmosphere.
Only brake fluid approved by
Mercedes-Benz is recommended. Your
authorized Mercedes-Benz Center will
provide you with additional information.
!Using engine oils and oil filters of spec-
ification other than those expressly re-
quired for the Maintenance System
(U.S. vehicles) or FSS (Canada vehi-
cles), or changing oil and oil filter at
change intervals longer than those
called for by the Maintenance System
(U.S. vehicles) or FSS (Canada
vehicles) will result in engine damage
not covered by the Mercedes-Benz
Limited Warranty.
Please follow Maintenance System
(U.S. vehicles) or FSS (Canada vehi-
cles) recommendations for scheduled
oil changes. Failure to do so could re-
sult in engine damage not covered by
the Mercedes-Benz Limited Warranty.
Warning!
G
Under extremely strenuous operating condi-
tions, this moisture content can lead to the
formation of bubbles in the system, thus
reducing the system’s efficiency.
Therefore, the brake fluid must be replaced
regularly. Refer to your vehicle’s Mainte-
nance Booklet for replacement interval.
