2006 MERCEDES-BENZ SL600 Owner's Manual

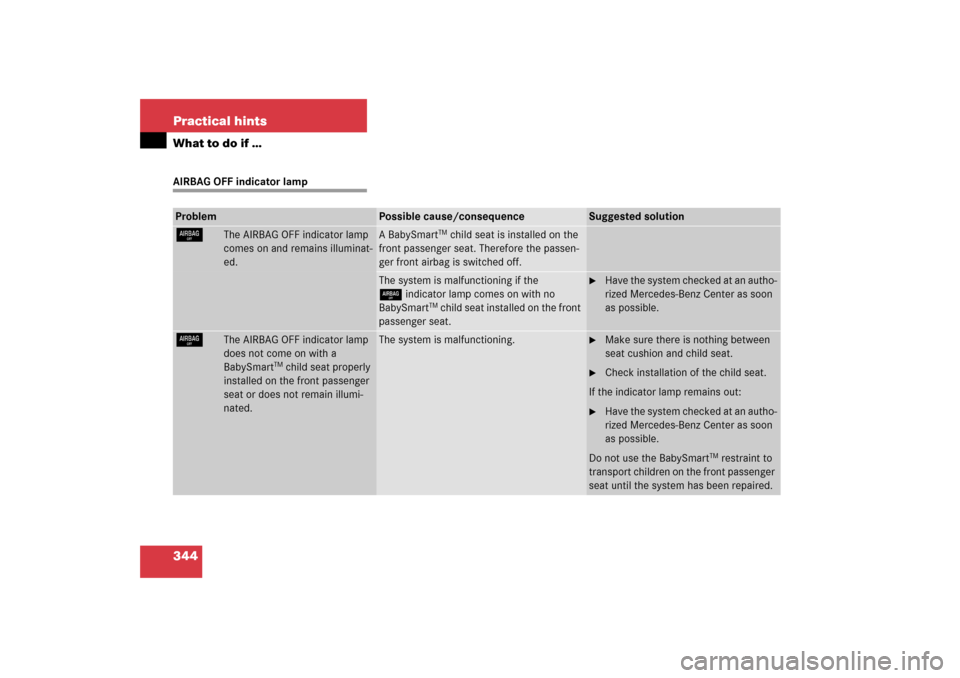

344 Practical hintsWhat to do if …AIRBAG OFF indicator lampProblem
Possible cause/consequence
Suggested solution
7
The AIRBAG OFF indicator lamp
comes on and remains illuminat-
ed.
A BabySmart
TM child seat is installed on the
front passenger seat. Therefore the passen-
ger front airbag is switched off.
The system is malfunctioning if the
7indicator lamp comes on with no
BabySmart
TM child seat installed on the front
passenger seat.

Have the system checked at an autho-
rized Mercedes-Benz Center as soon
as possible.
7
The AIRBAG OFF indicator lamp
does not come on with a
BabySmart
TM child seat properly
installed on the front passenger
seat or does not remain illumi-
nated.
The system is malfunctioning.

Make sure there is nothing between
seat cushion and child seat.

Check installation of the child seat.
If the indicator lamp remains out:

Have the system checked at an autho-
rized Mercedes-Benz Center as soon
as possible.
Do not use the BabySmart
TM restraint to
transport children on the front passenger
seat until the system has been repaired.

345 Practical hints
What to do if …
Vehicle status messages in the multi-function display
Warning and malfunction messages ap-
pear in the in the multifunction display lo-
cated in the instrument cluster.
Certain warning and malfunction messag-
es are accompanied by an audible signal.
Address these messages accordingly and
follow the additional instructions given in
this Operator’s Manual.
Selecting the vehicle status message
memory menu in the control system
(page 144) displays both cleared and
uncleared messages.
High-priority messages appear in the mul-
tifunction display in red color.Certain messages of high priority cannot
be cleared from the multifunction display
using the reset button (
page 24) or but-
ton j, k, ÿ, or è on the
multifunction steering wheel.
Other messages of high priority and mes-
sages of less immediate priority can be
cleared from the multifunction display us-
ing the reset button or button j, k,
ÿ, or è on the multifunction steer-
ing wheel. They are then stored in the vehi-
cle status message memory (
page 144).
Remember that clearing a message will not
correct the condition that caused the mes-
sage to appear.
Warning!
G
All categories of messages contain impor-
tant information which should be taken note
of and, where a malfunction is indicated, ad-
dressed as soon as possible at an autho-
rized Mercedes-Benz Center.
Failure to repair condition noted may cause
damage not covered by the Mercedes-Benz
Limited Warranty, or result in property dam-
age or personal injury.Warning!
G
No messages will be displayed if either the
instrument cluster or the multifunction dis-
play is inoperative. Contact your nearest au-
thorized Mercedes-Benz Center.

346 Practical hintsWhat to do if …On the pages that follow, you will find a
compilation of the most important warning
and malfunction messages that may ap-
pear in the multifunction display.
For your convenience the messages are di-
vided into two sections:

Text messages (
page 347)


Symbol messages (
page 359)
iSwitching on the ignition causes all in-
strument cluster lamps (except high
beam headlamp indicator lamp and
turn signal indicator lamps unless acti-
vated) as well as the multifunction dis-
play to come on. Make sure the lamps
and the multifunction display are in
working order before starting your jour-
ney.

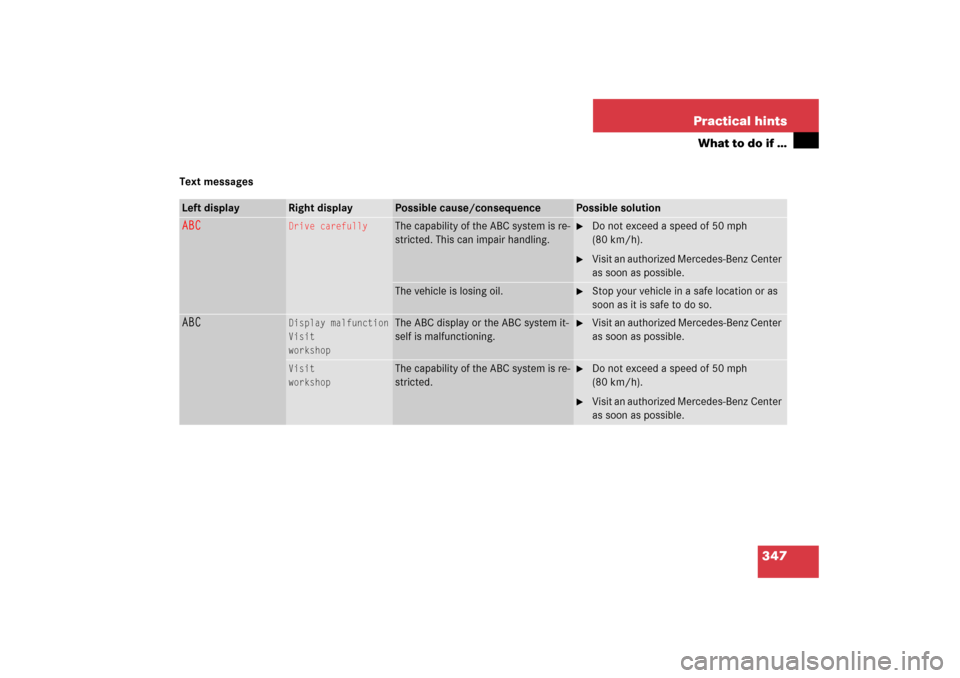

347 Practical hints
What to do if …
Text messagesLeft display
Right display
Possible cause/consequence
Possible solution
ABC
Drive carefully
The capability of the ABC system is re-
stricted. This can impair handling.

Do not exceed a speed of 50 mph
(80 km/h).

Visit an authorized Mercedes-Benz Center
as soon as possible.
The vehicle is losing oil.

Stop your vehicle in a safe location or as
soon as it is safe to do so.
ABC
Display malfunction
Visit
workshop
The ABC display or the ABC system it-
self is malfunctioning.

Visit an authorized Mercedes-Benz Center
as soon as possible.
Visit
workshop
The capability of the ABC system is re-
stricted.

Do not exceed a speed of 50 mph
(80 km/h).

Visit an authorized Mercedes-Benz Center
as soon as possible.

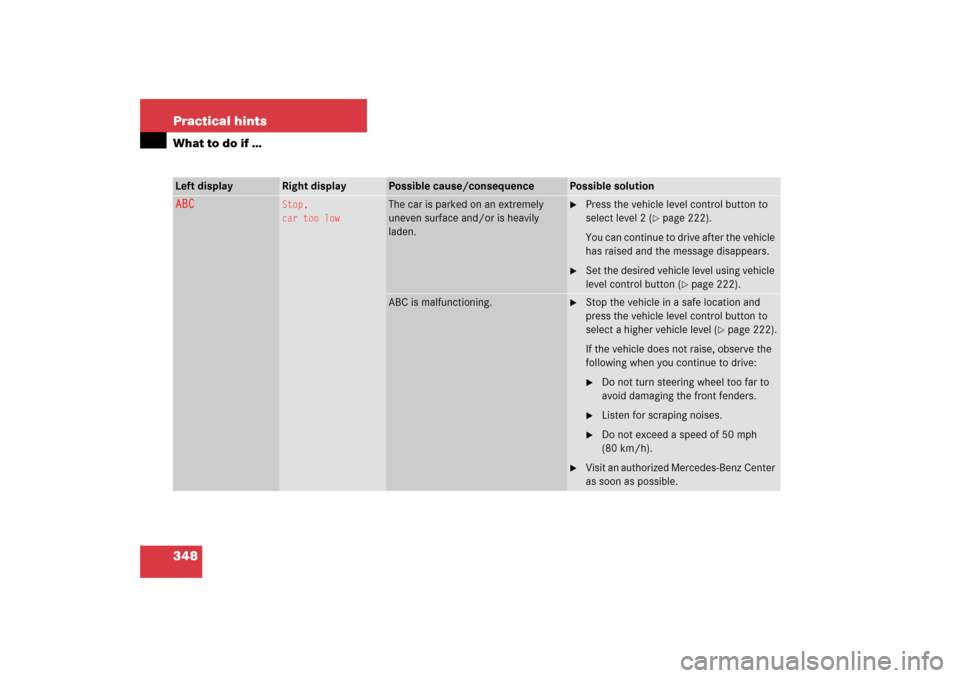

348 Practical hintsWhat to do if …Left display
Right display
Possible cause/consequence
Possible solution
ABC
Stop,
car too low
The car is parked on an extremely
uneven surface and/or is heavily
laden.

Press the vehicle level control button to
select level 2 (
page 222).
You can continue to drive after the vehicle
has raised and the message disappears.

Set the desired vehicle level using vehicle
level control button (
page 222).
ABC is malfunctioning.

Stop the vehicle in a safe location and
press the vehicle level control button to
select a higher vehicle level (
page 222).
If the vehicle does not raise, observe the
following when you continue to drive:

Do not turn steering wheel too far to
avoid damaging the front fenders.

Listen for scraping noises.

Do not exceed a speed of 50 mph
(80 km/h).

Visit an authorized Mercedes-Benz Center
as soon as possible.

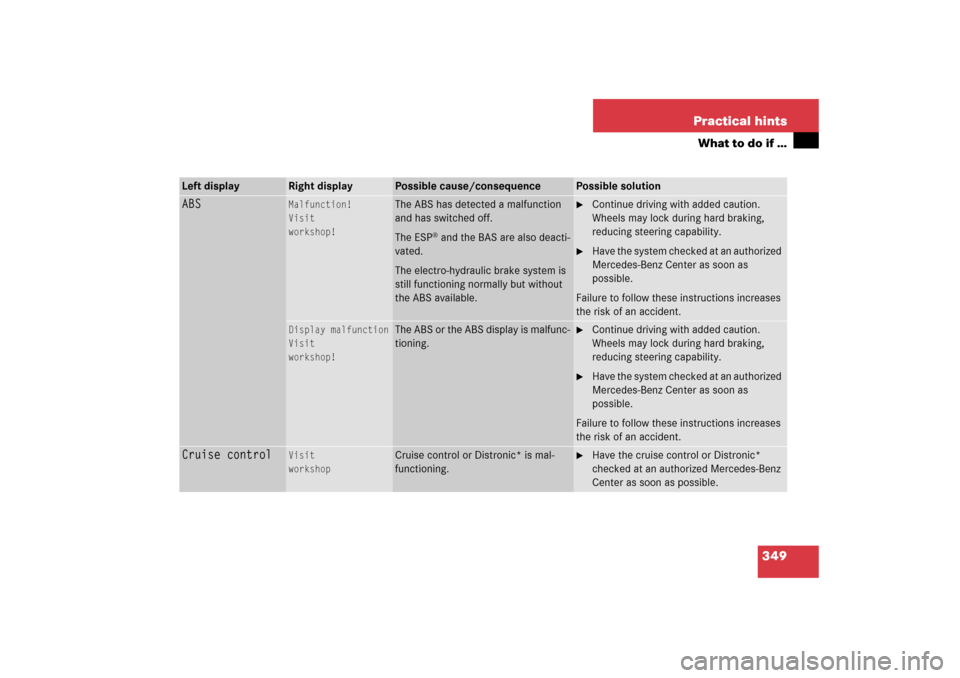

349 Practical hints
What to do if …
Left display
Right display
Possible cause/consequence
Possible solution
ABS
Malfunction!
Visit
workshop!
The ABS has detected a malfunction
and has switched off.
The ESP
® and the BAS are also deacti-
vated.
The electro-hydraulic brake system is
still functioning normally but without
the ABS available.

Continue driving with added caution.
Wheels may lock during hard braking,
reducing steering capability.

Have the system checked at an authorized
Mercedes-Benz Center as soon as
possible.
Failure to follow these instructions increases
the risk of an accident.
Display malfunction
Visit
workshop!
The ABS or the ABS display is malfunc-
tioning.

Continue driving with added caution.
Wheels may lock during hard braking,
reducing steering capability.

Have the system checked at an authorized
Mercedes-Benz Center as soon as
possible.
Failure to follow these instructions increases
the risk of an accident.
Cruise control
Visit
workshop
Cruise control or Distronic* is mal-
functioning.

Have the cruise control or Distronic*
checked at an authorized Mercedes-Benz
Center as soon as possible.

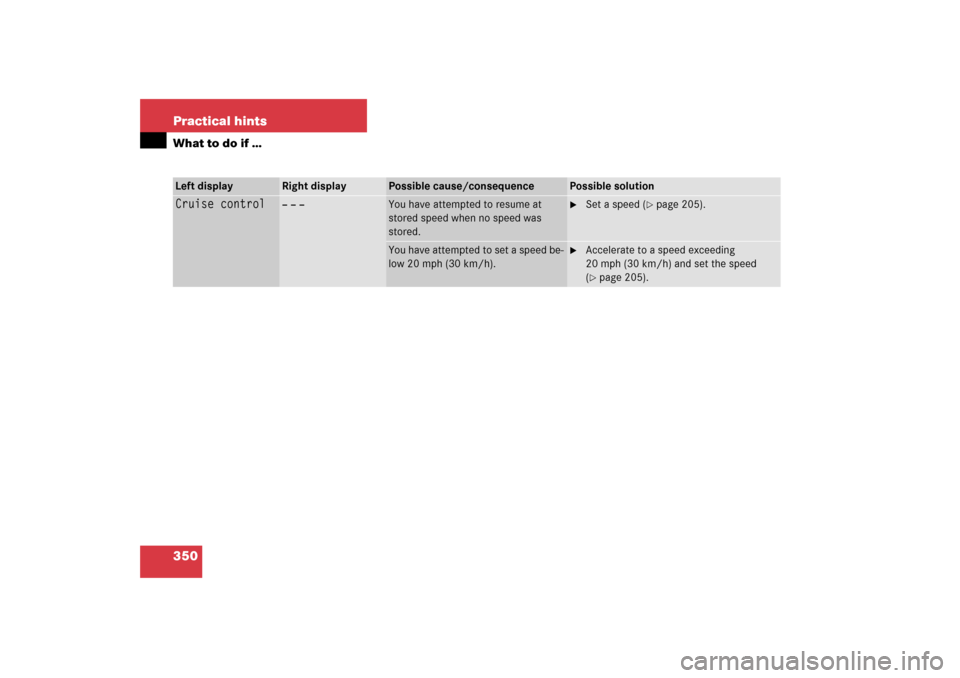

350 Practical hintsWhat to do if …Left display
Right display
Possible cause/consequence
Possible solution
Cruise control
– – –
You have attempted to resume at
stored speed when no speed was
stored.

Set a speed (
page 205).
You have attempted to set a speed be-
low 20 mph (30 km/h).

Accelerate to a speed exceeding
20 mph (30 km/h) and set the speed
(page 205).

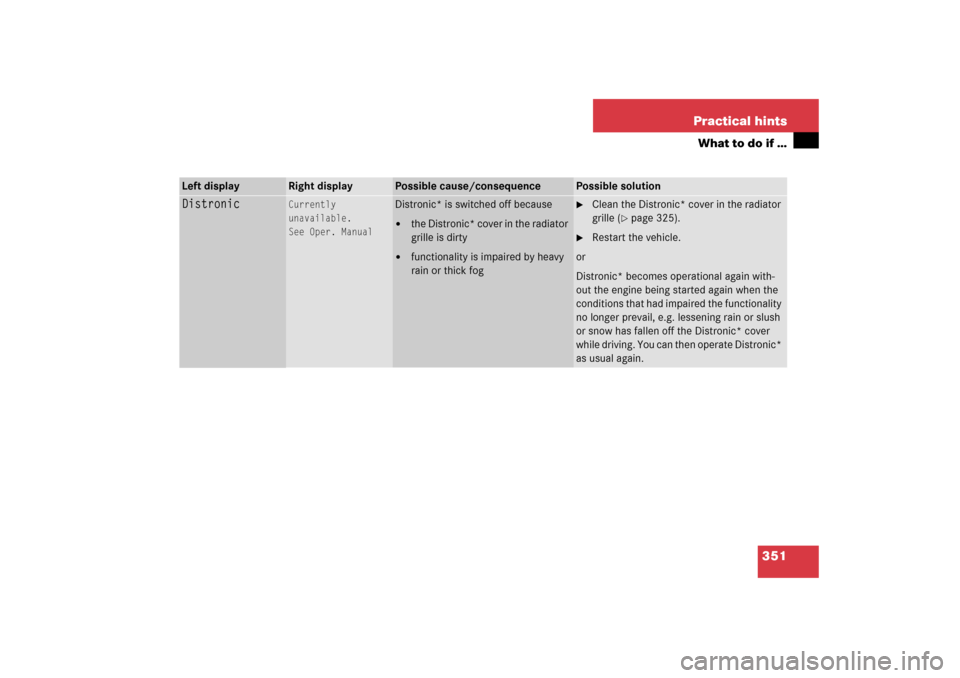

351 Practical hints
What to do if …
Left display
Right display
Possible cause/consequence
Possible solution
Distronic
Currently
unavailable.
See Oper. Manual
Distronic* is switched off because

the Distronic* cover in the radiator
grille is dirty


functionality is impaired by heavy
rain or thick fog

Clean the Distronic* cover in the radiator
grille (
page 325).

Restart the vehicle.
or
Distronic* becomes operational again with-
out the engine being started again when the
conditions that had impaired the functionality
no longer prevail, e.g. lessening rain or slush
or snow has fallen off the Distronic* cover
while driving. You can then operate Distronic*
as usual again.
