24 At a glanceInstrument cluster

25 At a glance
Instrument cluster
Item
Page
1
Coolant temperature
gauge with:DCoolant temperature
warning lamp
336
2
Speedometer with:;Brake warning lamp,
USA only
334
3Brake warning lamp,
Canada onlyvABS/ESP
® warning
lamp
332
EDistronic* indicator
lamp
1 (white) or
warning lamp (red)
1Vehicles without Distronic*: Warning lamp without
function. It illuminates when the ignition is on. It
should go out when the engine is running.
338
Item
Page
KRight turn signal indi-
cator lampLLeft turn signal indi-
cator lamp
3
Left multifunction display
with:

Trip odometer
133


Main odometer
Stored speed for

Cruise control


Distronic*
204
143
4
Reset button

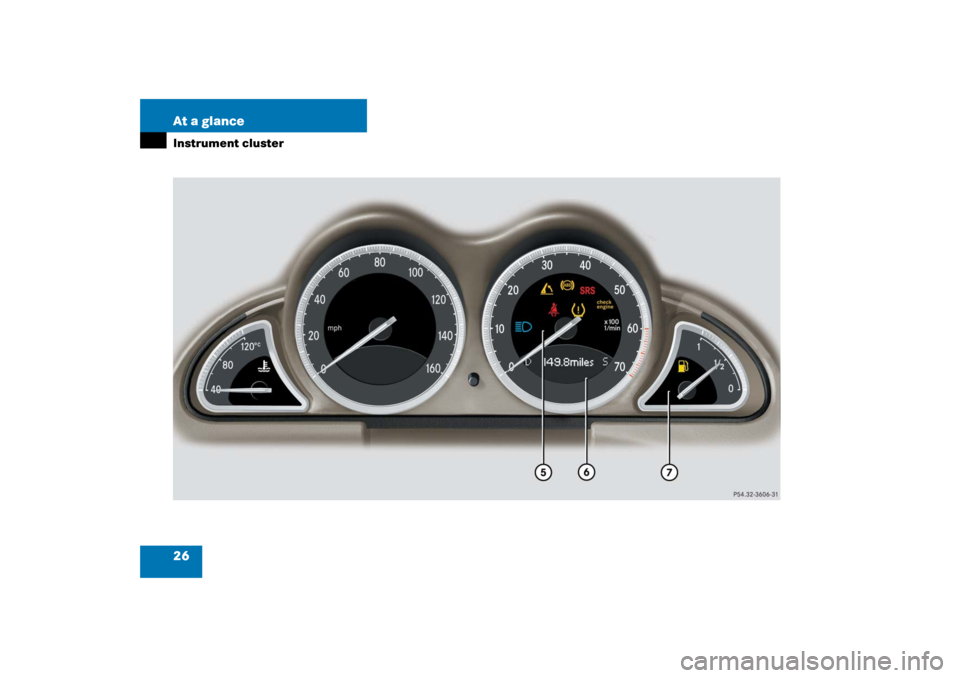

26 At a glanceInstrument cluster

27 At a glance

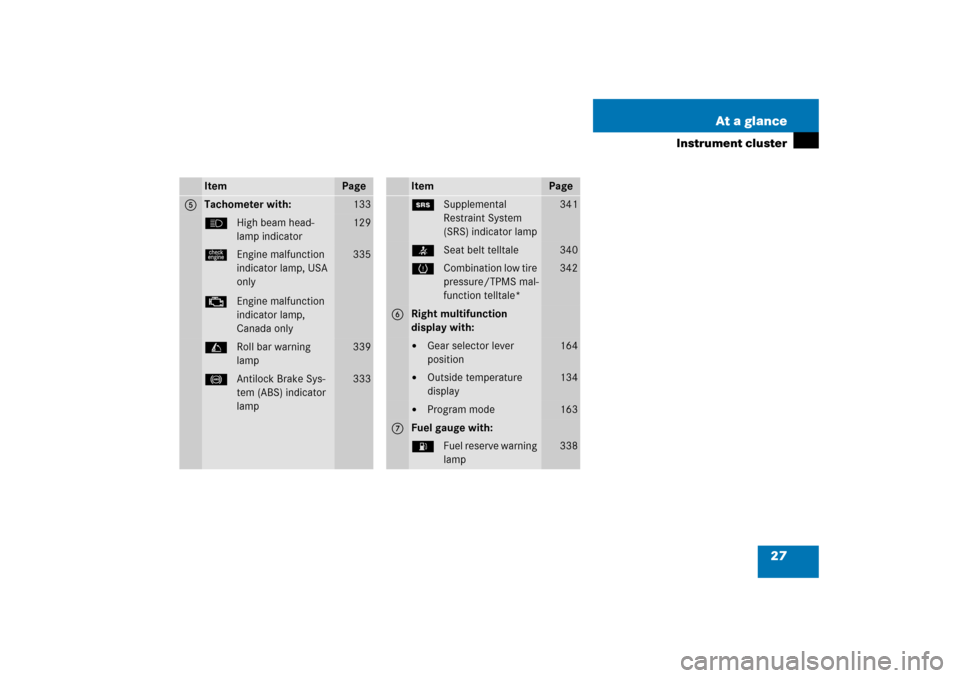

Instrument cluster
Item
Page
5
Tachometer with:
133
AHigh beam head-
lamp indicator
129
úEngine malfunction
indicator lamp, USA
only
±Engine malfunction
indicator lamp,
Canada only
335
CRoll bar warning
lamp
339
-Antilock Brake Sys-
tem (ABS) indicator
lamp
333
Item
Page
1Supplemental
Restraint System
(SRS) indicator lamp
341
340
XCombination low tire
pressure/TPMS mal-
function telltale*
342
6
Right multifunction
display with:

Gear selector lever
position
164


Outside temperature
display
134


Program mode
163
7
Fuel gauge with:AFuel reserve warning
lamp
338

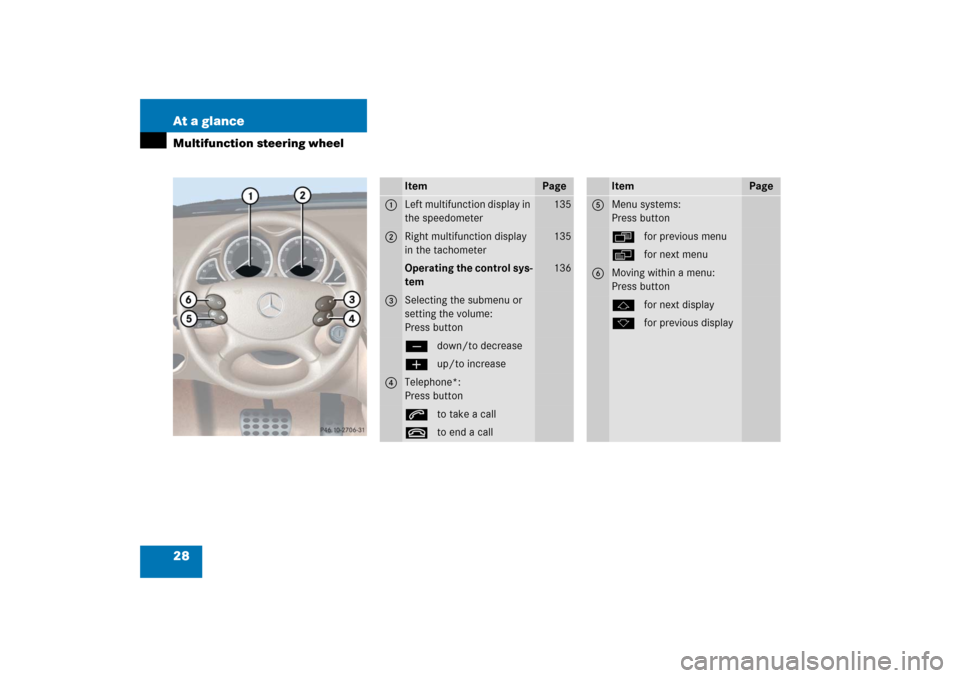

28 At a glanceMultifunction steering wheel
Item
Page
1
Left multifunction display in
the speedometer
135
2
Right multifunction display
in the tachometer
135
Operating the control sys-
tem
136
3
Selecting the submenu or
setting the volume:
Press buttonçdown/to decreaseæup/to increase
4
Telephone*:
Press buttonsto take a calltto end a call
Item
Page
5
Menu systems:
Press buttonÿfor previous menuèfor next menu
6
Moving within a menu:
Press buttonjfor next displaykfor previous display

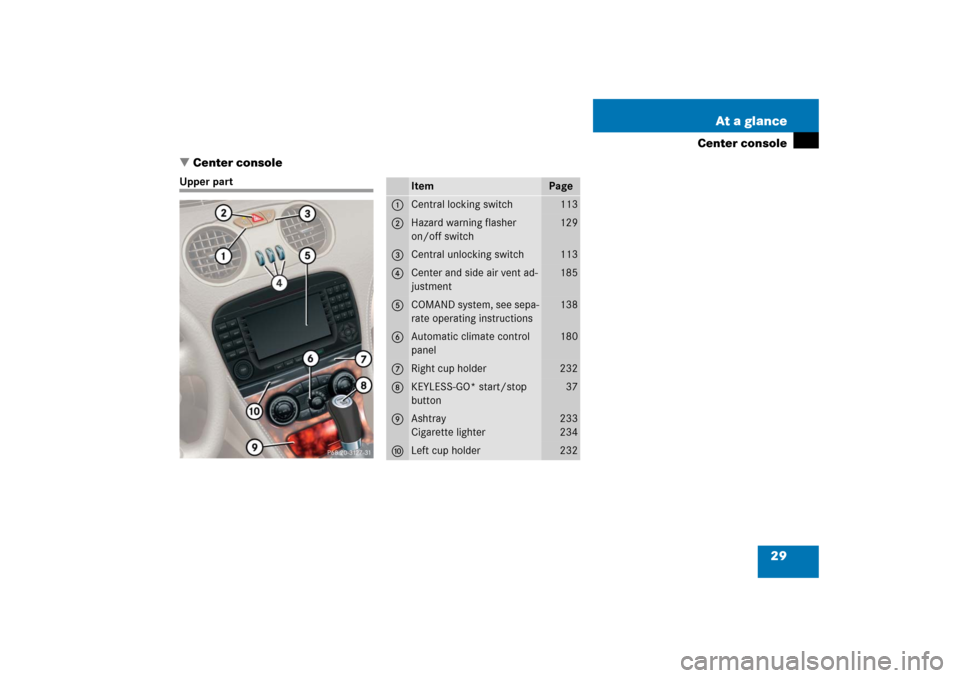

29 At a glance
Center console
Center console
Upper part
Item
Page
1
Central locking switch
113
2
Hazard warning flasher
on/off switch
129
3
Central unlocking switch
113
4
Center and side air vent ad-
justment
185
5
COMAND system, see sepa-
rate operating instructions
138
6
Automatic climate control
panel
180
7
Right cup holder
232
8
KEYLESS-GO* start/stop
button
37
9
Ashtray
Cigarette lighter
233
234
a
Left cup holder
232

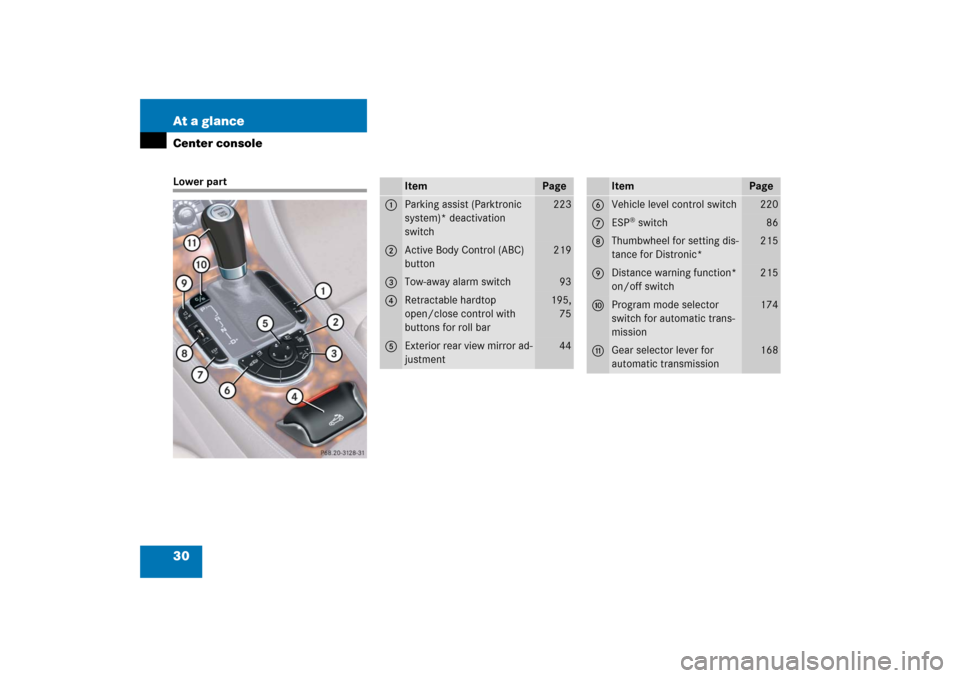

30 At a glanceCenter consoleLower part
Item
Page
1
Parking assist (Parktronic
system)* deactivation
switch
223
2
Active Body Control (ABC)
button
219
3
Tow-away alarm switch
93
4
Retractable hardtop
open/close control with
buttons for roll bar
195,
75
5
Exterior rear view mirror ad-
justment
44
Item
Page
6
Vehicle level control switch
220
7
ESP
® switch
86
8
Thumbwheel for setting dis-
tance for Distronic*
215
9
Distance warning function*
on/off switch
215
a
Program mode selector
switch for automatic trans-
mission
174
b
Gear selector lever for
automatic transmission
168

31 At a glance
Overhead control panel
Overhead control panel
Item
Page
1
Left reading lamp on/off
130
2
Temperature sensor for au-
tomatic climate control
180
3
Right reading lamp on/off
130
4
Interior lighting control
130
5
Rear view mirror
44, 177
6
Garage door opener
247
7
Hands-free microphone for
Tele Aid (emergency call
system), telephone* and
voice control system* (see
separate operating instruc-
tions)
237
8
Tele Aid (emergency call
system) button
238
