2006 MERCEDES-BENZ R500 Owner's Manual

64 Getting startedParking and lockingYou have now completed your first drive.
You have properly stopped and parked
your vehicle. End your drive as follows.Warning!
G
With the engine not running, there is no
power assistance for the brake and the
steering system. In this case, it is important
to keep in mind that a considerably higher
degree of effort is necessary to brake and
steer the vehicle.
Warning!
G
Do not park this vehicle in areas where com-
bustible materials such as grass, hay or
leaves can come into contact with the hot
exhaust system, as these materials could be
ignited and cause a vehicle fire.
To reduce the risk of personal injury as a re-
sult of vehicle movement, before turning off
the engine and leaving the vehicle always:

Keep right foot on brake pedal.


Firmly depress parking brake pedal.


Shift the automatic transmission to
positionP.


Slowly release brake pedal.


When parked on an incline, turn front
wheel towards the road curb.


Turn the SmartKey in the starter switch
to position0 and remove the SmartKey
from the starter switch, or press the
start / stop button (vehicles with
KEYLESS-GO*).


Take the SmartKey or the SmartKey with
KEYLESS-GO* and lock vehicle when
leaving.

65 Getting started
Parking and locking
Parking brake
1Parking brake pedal
2Release handle
Step firmly on parking brake pedal1.
When the engine is running, the warn-
ing lamp; (USA only) or3
(Canada only) in the instrument cluster
comes on.
Switching off headlamps
Turn the exterior lamp switch toM.
For more information, see “Lighting”
(
page 147).
Warning!
G
When leaving the vehicle, always remove the
SmartKey or SmartKey with KEYLESS-GO*
from the starter switch, take it with you and
lock the vehicle. Do not leave children unat-
tended in the vehicle, or with access to an
unlocked vehicle. Children could release the
parking brake and/or shift the automatic
transmission out of positionP, either of
which could result in an accident and/or
serious personal injury.
Warning!
G
Getting out of your vehicle with the auto-
matic transmission not fully engaged in
positionP is dangerous. Also, when parked
on an incline, positionP alone may not pre-
vent your vehicle from moving, possibly hit-
ting people or objects.
Always set the parking brake in addition to
shifting to positionP (
page 199).
When parked on an incline, also turn front
wheel towards the road curb.

66 Getting startedParking and lockingTurning off the engine
Shift the automatic transmission to
positionP (
page 199).

Apply the parking brake (
page 65).Turning off with the SmartKey

Turn the SmartKey in the starter switch
to position0 (
page 38).

Remove the SmartKey from the starter
switch.
The immobilizer is activated.Turning off with KEYLESS-GO*

Press the KEYLESS-GO start / stop
button (
page 40) to turn off the
engine.
With the driver's door closed, the start-
er switch is now in position1. With the
driver’s door opened, the starter switch
is set to position0, same as SmartKey
removed from starter switch
(
page 38).
iAlways set the parking brake in addi-
tion to shifting to position
P
(
page 199).
When parked on an incline, also turn
front wheel towards the road curb.
iIf you turn off the engine using the
SmartKey and remove the SmartKey
from the starter switch with the trans-
mission in a position other than P, the
transmission will automatically shift
toP.
Keep in mind that turning off the engine
with the SmartKey alone will not auto-
matically shift the transmission to P.
Only when the SmartKey is removed
from the starter switch will the trans-
mission automatically shift to P.
iIf you turn off the engine using the
KEYLESS-GO start/stop button and
open the driver’s door with the trans-
mission in a position other than P, the
transmission will automatically shift
toP.
Keep in mind that turning off the engine
with the KEYLESS-GO start/stop
button alone will not automatically shift
the transmission to P. Only when the
driver’s door is opened will the trans-
mission automatically shift to P.

67 Getting started
Parking and locking
Releasing seat belts
Press the seat belt release button
(page 51).
Allow the retractor to completely re-
wind the seat belt by guiding the latch
plate.
Locking

Exit the vehicle and close all doors and
the tailgate.
!Make sure the seat belt retracts fully so
that the seat belt and/or latch plate
cannot get caught or pinched in the
door or in the seat mechanism. This
can damage the seat belt and impair
the effectiveness of the seat belt,
and/or cause damage to the door
and/or door trim panel. Such damage
is not covered by the Mercedes-Benz
Limited Warranty.
Damaged seat belts must be replaced.
Contact an authorized Mercedes-Benz
Light Truck Center.
Warning!
G
To prevent possible personal injury, always
keep hands and fingers away from the door
openings when closing the doors. Be espe-
cially careful when small children are
around.
Before closing doors, make sure there is no
possibility of someone getting caught in a
door during closing.Warning!
G
When leaving the vehicle, always remove the
SmartKey from the starter switch, take the
SmartKey with KEYLESS-GO* with you, and
lock your vehicle. Do not leave children un-
attended in the vehicle, or with access to an
unlocked vehicle. Unsupervised use of vehi-
cle equipment may cause an accident
and/or serious personal injury.
iA warning sounds and the message Switch off lights
appears in the
multifunction display if the vehicle’s
exterior lamps are not switched off


with the SmartKey removed from
the starter switch and the driver’s
door open


with the engine turned off using the
KEYLESS-GO* start/stop button
and the driver’s door open (same as
SmartKey removed from starter
switch)
Switch off the exterior lamps.

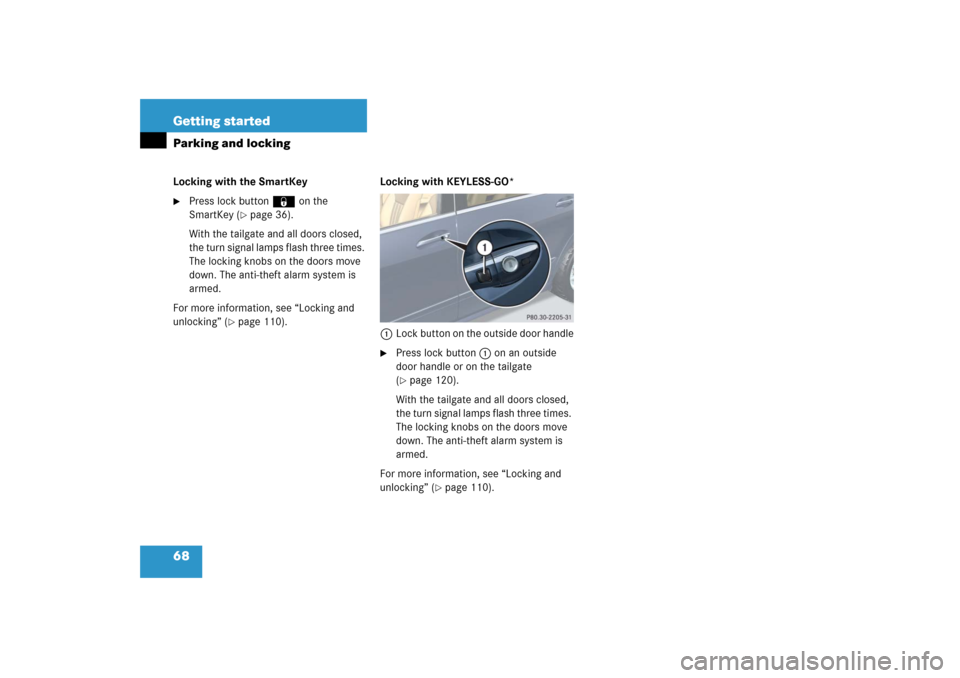

68 Getting startedParking and lockingLocking with the SmartKey
Press lock button‹ on the
SmartKey (
page 36).
With the tailgate and all doors closed,
the turn signal lamps flash three times.
The locking knobs on the doors move
down. The anti-theft alarm system is
armed.
For more information, see “Locking and
unlocking” (
page 110).Locking with KEYLESS-GO*
1Lock button on the outside door handle

Press lock button1 on an outside
door handle or on the tailgate
(page 120).
With the tailgate and all doors closed,
the turn signal lamps flash three times.
The locking knobs on the doors move
down. The anti-theft alarm system is
armed.
For more information, see “Locking and
unlocking” (
page 110).

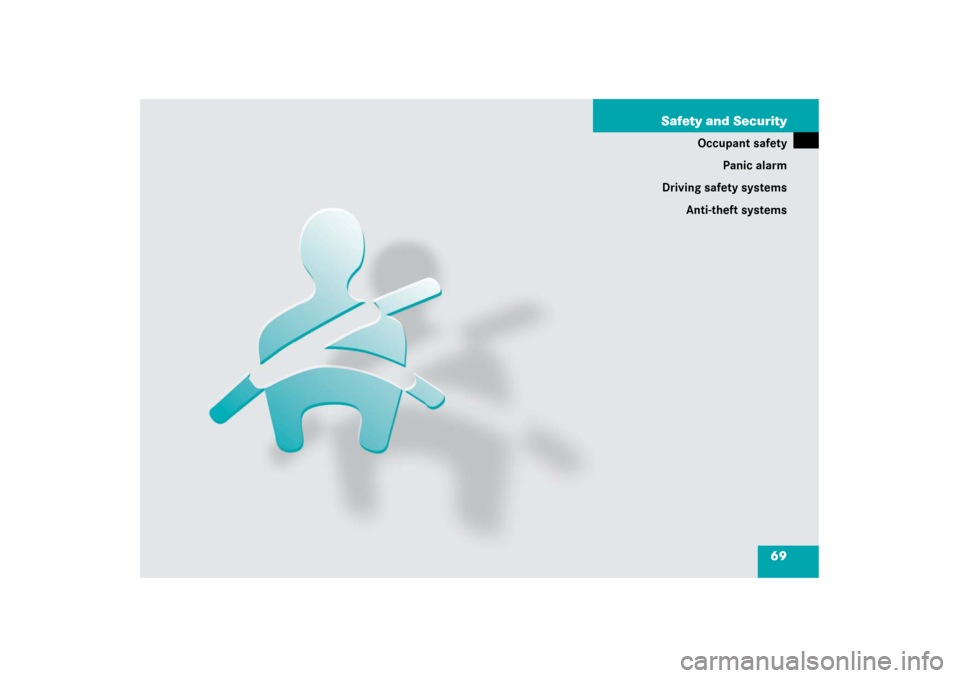

69 Safety and Security
Occupant safety
Panic alarm
Driving safety systems
Anti-theft systems

70 Safety and SecurityOccupant safetyIn this section you will learn the most im-
portant facts about the restraint systems
of the vehicle.
The restraint systems are

Seat belts (
page 77)


Child restraints (
page 90)


Lower anchors and tethers for children
(LATCH) (
page 92)
Supplemental Restraint System (SRS) with


Air bags (
page 71)


Air bag control unit (with crash
sensors)


Emergency tensioning device (ETD) for
seat belts (
page 80)Advanced air bag system components with


Front passenger air bag off indicator
lamp (
page 89)


Front passenger seat with Occupant
Classification System (OCS)
(page 85)
As independent systems, their protective
functions work in conjunction with each
other.The SRS system conducts a self-test when
the ignition is switched on and in regular
intervals while the engine is running. This
facilitates early detection of malfunctions.
The
1
indicator lamp in the instrument
cluster (page 24) comes on when the
ignition is switched on and goes out no
later than a few seconds after the engine
was started.
The SRS components are in operational
readiness if the
1
indicator lamp is not
lit when the engine is running.
A malfunction in the system has been
detected if the
1
indicator lamp:


fails to go out no later than approxi-
mately 4 seconds after the engine was
started


does not come on at all


comes on after the engine was started
or while driving
iFor information on infants and children
traveling with you in the vehicle and
restraint systems for infants and chil-
dren, see “Children in the vehicle”
(page 82).

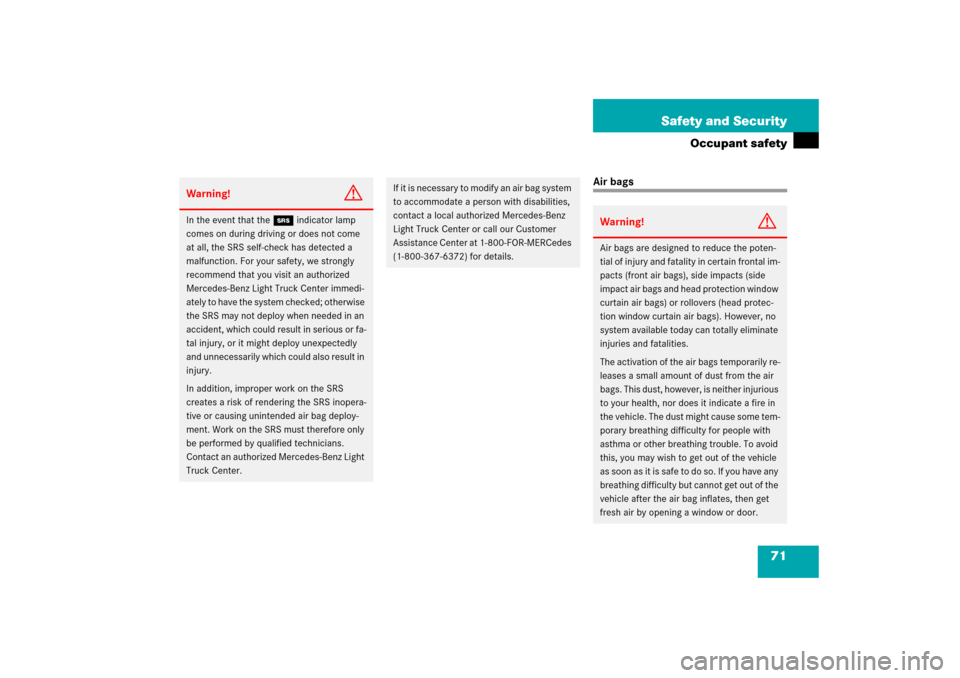

71 Safety and Security
Occupant safety
Air bags
Warning!
G
In the event that the 1indicator lamp
comes on during driving or does not come
at all, the SRS self-check has detected a
malfunction. For your safety, we strongly
recommend that you visit an authorized
Mercedes-Benz Light Truck Center immedi-
ately to have the system checked; otherwise
the SRS may not deploy when needed in an
accident, which could result in serious or fa-
tal injury, or it might deploy unexpectedly
and unnecessarily which could also result in
injury.
In addition, improper work on the SRS
creates a risk of rendering the SRS inopera-
tive or causing unintended air bag deploy-
ment. Work on the SRS must therefore only
be performed by qualified technicians.
Contact an authorized Mercedes-Benz Light
Truck Center.
If it is necessary to modify an air bag system
to accommodate a person with disabilities,
contact a local authorized Mercedes-Benz
Light Truck Center or call our Customer
Assistance Center at 1-800-FOR-MERCedes
(1-800-367-6372) for details.
Warning!
G
Air bags are designed to reduce the poten-
tial of injury and fatality in certain frontal im-
pacts (front air bags), side impacts (side
impact air bags and head protection window
curtain air bags) or rollovers (head protec-
tion window curtain air bags). However, no
system available today can totally eliminate
injuries and fatalities.
The activation of the air bags temporarily re-
leases a small amount of dust from the air
bags. This dust, however, is neither injurious
to your health, nor does it indicate a fire in
the vehicle. The dust might cause some tem-
porary breathing difficulty for people with
asthma or other breathing trouble. To avoid
this, you may wish to get out of the vehicle
as soon as it is safe to do so. If you have any
breathing difficulty but cannot get out of the
vehicle after the air bag inflates, then get
fresh air by opening a window or door.
