2006 MERCEDES-BENZ R500 Owner's Manual

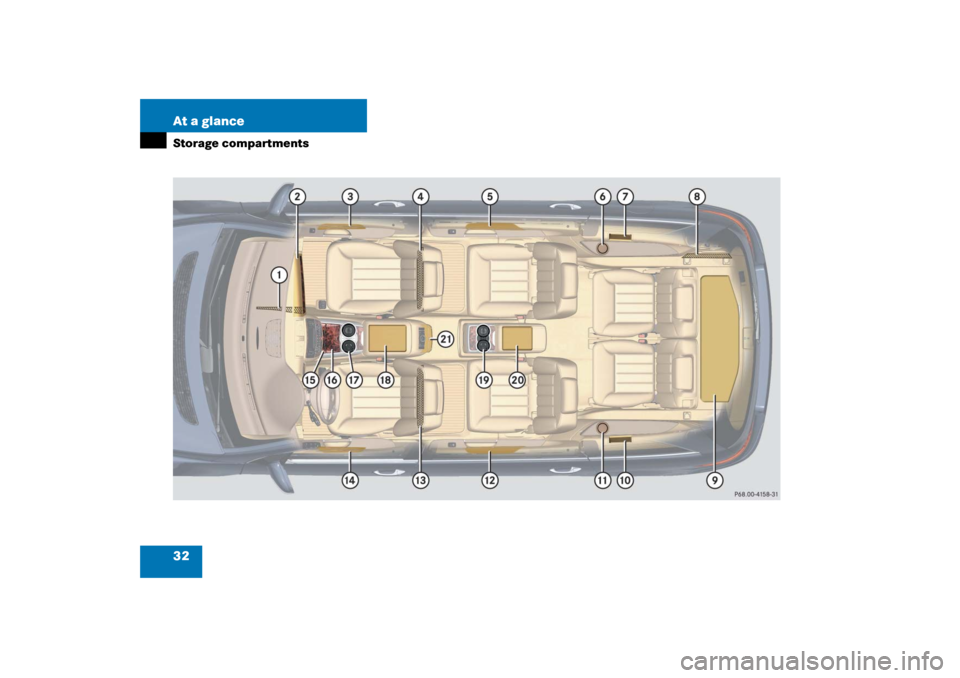

32 At a glanceStorage compartments

33 At a glance

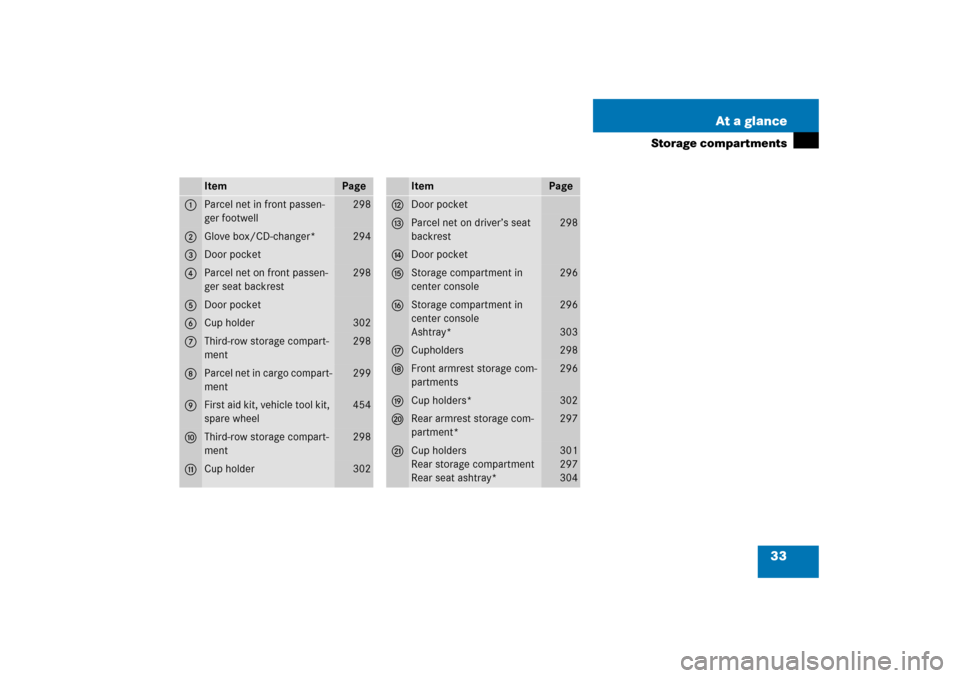

Storage compartments
Item
Page
1
Parcel net in front passen-
ger footwell
298
2
Glove box/CD-changer*
294
3
Door pocket
4
Parcel net on front passen-
ger seat backrest
298
5
Door pocket
6
Cup holder
302
7
Third-row storage compart-
ment
298
8
Parcel net in cargo compart-
ment
299
9
First aid kit, vehicle tool kit,
spare wheel
454
a
Third-row storage compart-
ment
298
b
Cup holder
302
Item
Page
c
Door pocket
d
Parcel net on driver’s seat
backrest
298
e
Door pocket
f
Storage compartment in
center console
296
g
Storage compartment in
center console
Ashtray*
296
303
h
Cupholders
298
j
Front armrest storage com-
partments
296
k
Cup holders*
302
l
Rear armrest storage com-
partment*
297
m
Cup holders
Rear storage compartment
Rear seat ashtray*
301
297
304

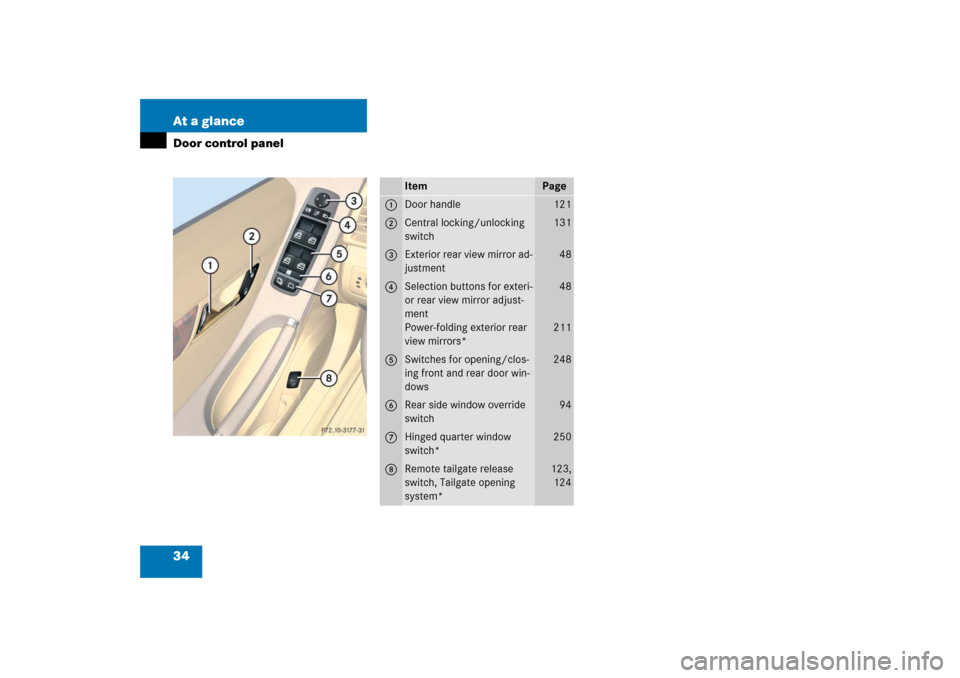

34 At a glanceDoor control panel
Item
Page
1
Door handle
121
2
Central locking/unlocking
switch
131
3
Exterior rear view mirror ad-
justment
48
4
Selection buttons for exteri-
or rear view mirror adjust-
ment
Power-folding exterior rear
view mirrors*
48
211
5
Switches for opening/clos-
ing front and rear door win-
dows
248
6
Rear side window override
switch
94
7
Hinged quarter window
switch*
250
8
Remote tailgate release
switch, Tailgate opening
system*
123,
124

35 Getting started
Unlocking
Adjusting
Driving
Parking and locking

36 Getting startedThe “Getting started” section provides an
overview of the vehicle’s most basic func-
tions. First-time Mercedes-Benz owners
should pay special attention to the infor-
mation given here.
If you are already familiar with the basic
functions described here, the “Controls in
detail” section will provide you with further
information. The corresponding page
references are located at the end of each
segment.Unlocking
Unlocking with the SmartKeySmartKey1‹Lock button
2ŠUnlock button* for tailgate
3ŒUnlock button
4ÂPanic button (
page 95)

Press unlock buttonΠon the
SmartKey.
All turn signal lamps flash once. The ve-
hicle unlocks. The locking knobs in the
doors move up. The anti-theft alarm
system is disarmed. The locator light-
ing comes on if the feature is enabled
in the control system (
page 183).

Enter the vehicle and insert the
SmartKey in the starter switch.
For more information, see “Locking and
unlocking” (
page 110).
Warning!
G
When leaving the vehicle, always remove the
SmartKey from the starter switch, take it
with you, and lock the vehicle. Do not leave
children unattended in the vehicle, or with
access to an unlocked vehicle. Unsuper-
vised use of vehicle equipment may cause
an accident and / or serious personal injury.

37 Getting started
Unlocking
Unlocking with Keyless-Go*
With the KEYLESS-GO function, you can
lock or unlock the vehicle without using
the remote control buttons on the
SmartKey and start the engine without in-
serting the SmartKey into the starter
switch.SmartKey with KEYLESS-GO*1‹Lock button
2ŠUnlock button* for tailgate
3ŒUnlock button
4ÂPanic button (
page 95)

Grasp an outside door handle or the
tailgate handle.
All turn signal lamps flash once. The ve-
hicle unlocks. The locking knobs in the
doors move up. The anti-theft alarm
system is disarmed. The locator light-
ing comes on if the feature is enabled
in the control system (
page 183).

Enter the vehicle.
For more information, see “SmartKey with
KEYLESS-GO*” (
page 114).
iTo unlock the vehicle, the SmartKey
with KEYLESS-GO must be outside the
vehicle, no further than approximately
3 feet (1 meter) away from the respec-
tive door.Warning!
G
When leaving the vehicle, always take the
SmartKey with KEYLESS-GO* with you, and
lock the vehicle. Do not leave children unat-
tended in the vehicle, or with access to an
unlocked vehicle. Unsupervised use of vehi-
cle equipment may cause an accident
and / or serious personal injury.
i If the vehicle has been parked for more
than 72 hours, you must pull an outside
door handle in order to activate the
KEYLESS-GO function.

38 Getting startedUnlockingStarter switch positions SmartKey
Starter switch0For removing SmartKey
1Power supply for some electrical con-
sumers, such as seat adjustment
2Ignition (power supply for all electrical
consumers) and driving position
All lamps (except high beam headlamp
indicator lamp and turn signal indicator
lamps unless activated) in the instru-
ment cluster come on. If a lamp in the
instrument cluster fails to come on
when the ignition is switched on, have
it checked and replaced if necessary. If
a lamp in the instrument cluster re-mains on after starting the engine or
comes on while driving, refer to “Lamps
in instrument cluster” (
page 404).
3Starting position
Warning!
G
When leaving the vehicle, always remove the
SmartKey or SmartKey with KEYLESS-GO*
from the starter switch, take it with you and
lock the vehicle. Do not leave children unat-
tended in the vehicle, or with access to an
unlocked vehicle. Unsupervised use of vehi-
cle equipment may cause an accident
and / or serious personal injury.
iWhen you switch on the ignition, the in-
dicator and warning lamps (except high
beam headlamp indicator lamp and
turn signal indicator lamps unless acti-
vated) in the instrument cluster come
on. The indicator and warning lamps
(except high beam headlamp indicator
lamp and turn signal indicator lamps if
activated) will go out when the engine
is running. This indicates that the re-
spective systems are operational.iWhen the SmartKey is removed from
the starter switch and the automatic
transmission is in a position other
thanP, the automatic transmission
automatically shifts toP.

39 Getting started
Unlocking
SmartKey with KEYLESS-GO*
Vehicles equipped with the KEYLESS-GO
feature are supplied with a SmartKey with
integrated KEYLESS-GO function and a re-
movable KEYLESS-GO start / stop button.
With the KEYLESS-GO start/stop button
inserted and the SmartKey with
KEYLESS-GO present in the vehicle, press-
ing the KEYLESS-GO start/stop button

without the brake pedal depressed
corresponds to the various starter
switch positions (
page 40)


with the brake pedal firmly depressed
will start the engine (
page 54)
If you wish or should there be a need to in-
sert the SmartKey with KEYLESS-GO in the
starter switch, the KEYLESS-GO start/stop
button can be easily removed by pulling it
out of the starter switch.
!If the SmartKey cannot be turned in the
starter switch, the battery may not be
sufficiently charged.

Check the battery and charge it if
necessary (
page 487).


Get a jump start (
page 496).
To prevent accelerated battery dis-
charge or a completely discharged bat-
tery, always remove the SmartKey from
the starter switch when the engine is
not in operation.
iThe KEYLESS-GO start/stop button
does not need to be removed from the
starter switch when you leave the vehi-
cle. However, always take the
SmartKey with KEYLESS-GO with you
when you leave the vehicle. As long as
the SmartKey with KEYLESS-GO is in
the vehicle, the vehicle’s electrical sys-
tems can be switched on or the engine
can be started using the KEYLESS-GO
start/stop button.
