2006 MERCEDES-BENZ R-Class display

171 Navigation*
Destination input
To cancel the compass screen in vehicles
with Navigation
Press any soft key, then press the Back
soft key.
or
Press b or c.
To cancel the Compass screen in vehicles
without Navigation
Press the A, B, a or C
buttons.Compass screen
1Pointer shows the steering angle on a
half circle scale in degrees
2Steering icon shows the position of the
vehicle wheels
3Dynamic compass displays the driving
direction at the top of the screen, the
white arrow always points to North
If your vehicle is equipped with Navigation
4Height indication, the scale scrolls as
the the vehicle's altitude changes
5Status bar shows GPS coordinates,
height above sea level and the number
of currently received satellites
i
Compass screen is activated during
route guidance:
COMAND continues to provide route
guidance via voice instructions
(
page 174). The Navigation screens
are visible in the instrument cluster
multifunction display.
i
Keep in mind, steering angle 1 and the
steering icon 2 are approximations.

172 Navigation*
Destination input
Additional information for 1, 3 and 4
IndicationRemarks and
value range
1 Steering angle Pointer shows to the
left
-35° to 0°
Pointer shows to the
right
0° to +35°
3 Dynamic
compass card 0° to 360°
4 Height above
the sea level i
The white indicator
is fixed, the scale
scrolls as vehicle
altitude changes
Scale range:
The display unit is
set to miles
-328 ft to 19680 ft
The display unit is
set to km
-100 m to 6000 m
IndicationRemarks and
value rangei
Using the control system, the display
unit can be changed between km or
miles (see your vehicle’s Operator’s
Manual).
When the instrument cluster
multifunction display is set to miles,
the COMAND will indicate
distances in miles (mi) or feet (ft)
When the instrument cluster
multifunction display is set to
kilometers, the COMAND will
indicate distances in kilometers
(km) or meters (m)

173 Navigation*
Route guidance

Route guidance
Route guidance can be started if the
destination input is complete and
Start
route guidance
is displayed at the
bottom of the main area.
Start route guidance menu
1Destination address
2Arrow indicates the direction to the
destination and the distance to the
destination (as the crow flies)
Press E.
Route calculation and route guidance
begins.
1Routing mode
Setting the routing mode (
page 154)
2Arrow indicates the direction of the
destination, the distance to destination
and
CALC RTE indication
3The road you are currently driving onRoute calculation can take some time,
depending on the distance to the
destination and the routing mode.
During route calculation, an arrow pointing
towards the destination, the distance to
the destination (as the crow flies) and
CALC RTE are displayed.
Route guidance begins when route
calculation is complete.
The system will calculate a new route
during active route guidance if the driver
does not follow the route guidance.
Starting route guidance
Route calculation
Recalculating an existing route

174 Navigation*
Route guidance
After route calculation, the system assists
route guidance using pictorial displays
(
page 175) and voice instructions. Repeating current voice instructions
If you have not understood a navigation
announcement, you can at any time have a
current announcement repeated.
Press j.
The current navigation announcement
is repeated.
Switching voice instructions On/Off
Switching off
Press J during a navigation
announcement.
The message
Voice announcements
muted
will appear briefly. Further route guidance takes place
using only the symbols in the display.
If a new route guidance cycle is started,
the announcements are automatically
switched on again.
Switching on again
Press j.
Voice instructions
WarningG
Voice instructions are intended to direct you
while driving without diverting your attenti-
on from the road and driving.
Always use this feature instead of consulting
the map display for directions. Consulting
the map displays for directions may cause
you to divert your attention from driving and
increase the risk of an accident.

175 Navigation*
Route guidance
The navigation displays are only visible
while route guidance is active.
To switch to the navigation display from
another display, e.g. from CD operation:
Press b or c.
Two examples are shown below:
Display example 1:The road you are currently driving on is
shown on the status bar, in this case
EAST I-90. The indication 571 mi is the
distance to the next driving maneuver.
If the GPS position display (
page 188) is
active, the GPS data are shown instead of
the street name.Important map symbols:
Current vehicle location and direction
of travel y
If the map orientation
Heading Up
(page 188) is chosen, the arrow will
always point upward.
The remaining route section is
highlighted in blue color.
Navigation displays
i
Using the control system, the display
unit can be changed between km or
miles (see your vehicle’s Operator’s
Manual).
When the instrument cluster
multifunction display is set to miles,
the COMAND will indicate
distances in miles (mi) or feet (ft)
When the instrument cluster
multifunction display is set to
kilometers, the COMAND will
indicate distances in kilometers
(km) or meters (m)
i
The colored highlight only appears
when the system has completed the
route calculation.

176 Navigation*
Route guidance
Display example 2:
1Current vehicle location and direction
of travel y, remaining route section
2Name of the road you are to turn onto
3Symbol for the next driving maneuver,
distance bar and distance to the next
driving maneuver
4The road you are currently driving onIn the right half of the display, the symbol
for the next driving maneuver is indicated
(here: right turn).
On the very right side of the display next to
the turn symbol is the distance bar. It
indicates the distance to the next driving
maneuver (here: 800 ft).
The status bar shows the name of the
street after the driving maneuver, if
available, here:
MAIN ST
The destination is marked with a flag $ on
the map, an intermediate destination is
marked with a flag showing the letter
S.
Press any soft key.
The soft key displays appear.
i
Using the control system, the display
unit can be changed between km or
miles (see your vehicle’s Operator’s
Manual).
When the instrument cluster
multifunction display is set to miles,
the COMAND will indicate
distances in miles (mi) or feet (ft)
When the instrument cluster
multifunction display is set to
kilometers, the COMAND will
indicate distances in kilometers
(km) or meters (m)
i
If no other action is taken within
approx. 8 seconds, the soft key
displays will disappear again.

177 Navigation*
Route guidance

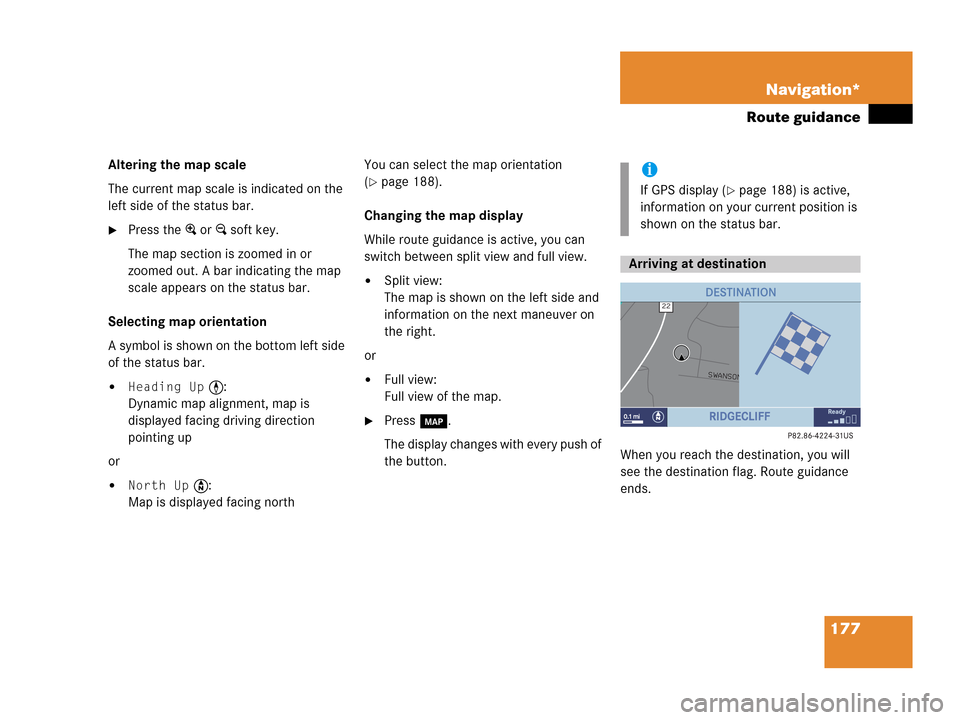

Altering the map scale
The current map scale is indicated on the
left side of the status bar.
Press the + or ) soft key.
The map section is zoomed in or
zoomed out. A bar indicating the map
scale appears on the status bar.
Selecting map orientation
A symbol is shown on the bottom left side
of the status bar.
Heading Up <:
Dynamic map alignment, map is
displayed facing driving direction
pointing up
or
North Up Y:
Map is displayed facing northYou can select the map orientation
(
page 188).
Changing the map display
While route guidance is active, you can
switch between split view and full view.
Split view:
The map is shown on the left side and
information on the next maneuver on
the right.
or
Full view:
Full view of the map.
Press c.
The display changes with every push of
the button.When you reach the destination, you will
see the destination flag. Route guidance
ends.
i
If GPS display (page 188) is active,
information on your current position is
shown on the status bar.
Arriving at destination

179 Navigation*
During route guidance

During route guidance
During route guidance you can use the soft
keys to activate additional menus and
displays and make settings.
The soft key displays will automatically
disappear after a few seconds.
During route guidance, press any soft
key.
The soft key displays will appear.Available soft keys
Info soft key:
Brings you to the Info menu
(
page 180).
Detour soft key:
Brings you to the Traffic Jam function
(
page 181).
Stopovr soft key:
Brings you to the stopover destination
function (
page 183).
POIs soft key:
Brings you to the POI function
(
page 199).
Memory soft key:
Brings you to the save current location
function (
page 155).
Display soft key:
Brings you to the Display menu
(
page 186).
Soft key +:
Enlarge visible map section
(
page 177).
Soft key ):
Reduce visible map section
(
page 177).
Displaying the soft keys
