248 Operation
Engine compartment
Screw oil filler cap2 back on filler
neck.
For more information on engine oil, see the
“Technical data” section (
page 376) and
(
page 377).
Transmission fluid level
The transmission fluid level does not need
to be checked. The transmission has a per-
manent supply of automatic transmission
fluid.
If you notice transmission fluid loss or gear
shifting malfunctions, have an authorized
Mercedes-Benz Light Truck Center check
the automatic transmission.
Coolant level
The engine coolant is a mixture of water
and anticorrosion/antifreeze.
When checking the coolant level,

the vehicle must be parked on level
ground.

the engine must be cool. The coolant
level should reach the Cold Level mark
(plastic bridge) in the reservoir.
!
Excess oil must be siphoned or drained
off. It could cause damage to the
engine and catalytic converter not
covered by the Mercedes-Benz Limited
Warranty.Warning!G
In order to avoid any possibly serious burns:

Use extreme caution when opening the
hood if there are any signs of steam or
coolant leaking from the cooling system,
or if the coolant temperature display in-
dicates that the coolant is overheated.

Do not remove pressure cap on coolant
reservoir if coolant temperature is
above 158°F (70°C). Allow engine to
cool down before removing cap. The
coolant reservoir contains hot fluid and
is under pressure.

Using a rag, slowly open the cap approx-
imately 1/2turn to relieve excess pres-
sure. If opened immediately, scalding
hot fluid and steam will be blown out un-
der pressure.

Do not spill antifreeze on hot engine
parts. Antifreeze contains ethylene gly-
col which may burn if it comes into con-
tact with hot engine parts.


249 Operation
Engine compartment
The coolant expansion tank is located on
the passenger side of the engine compart-
ment.
1CapUsing a rag, turn the cap slowly approx-
imately one half turn to the left to re-
lease any excess pressure.
Continue turning the cap to the left and
remove it.
Check coolant level.
The coolant level is correct if the level

for cold coolant: reaches the top of
the mark (plastic bridge) visible
through the filling opening

for warm coolant: is approx. 0.6 in
(1.5 cm) higher
Add coolant as required.
Replace and tighten cap until you hear
it click a few times.
For more information on coolant, see
“Coolants” (
page 380).Windshield/rear window washer sys-
tem and headlamp cleaning system
The windshield washer reservoir is located
in the engine compartment on the passen-
ger side. It holds approximately 5.3 US qt
(5.0 l). The headlamp cleaning system is
also supplied from the windshield washer
reservoir.
1Cap

250 Operation
Engine compartment
Use the tab to pull cap1 upwards.
Check washer solvent level and add
washer solvent as required.
Press cap1 on the filler neck until is
has completely engaged. Add MB Windshield Washer Concentrate
“S” to the water during all seasons.

At temperatures above freezing point,
use MB Windshield Washer
Concentrate “S” to prevent smearing.

If there is a danger of frost, use
MB Windshield Washer Concentrate
“S” and commercially available pre-
mixed windshield washer solvent/anti-
freeze to prevent water from freezing
on the windshield and the reservoir
from being damaged.
Premix the windshield washer fluid in a
suitable container, adapting the mixing
ratio to the outside temperature
(
page 382).
Warning!G
Washer solvent / antifreeze is highly flam-
mable. Do not spill washer
solvent /antifreeze on hot engine parts, be-
cause it may ignite and burn. You could be
seriously burned.
!
Only use washer fluid which is suitable
for plastic lenses. Improper washer flu-
id can damage the plastic lenses of the
headlamps.

251 Operation
Battery
Battery
The battery is located in front of the rear
seat bench and below the cup holder. Jump
starting terminals are located in the left
side of the engine compartment
(
page 357). Refer to Maintenance
Booklet for battery maintenance intervals.
The battery should always be sufficiently
charged in order to achieve its rated ser-
vice life.
If you use your vehicle less than approxi-
mately 200 miles (300 km) per month,
mostly for short-distance trips, or if it is not
used for long periods of time, you will need
to have the battery charge checked more
frequently and corrected if necessary.
When replacing batteries, always use bat-
teries approved by Mercedes-Benz.
If you do not intend to operate your vehicle
for an extended period of time, consult an
authorized Mercedes-Benz Light Truck
Center about steps you need to observe.Batteries contain materials that can harm
the environment if disposed of improperly.
Recycling of batteries is the preferred
method of disposal. Many states require
sellers of batteries to accept old batteries
for recycling.
For more information, see “Battery”
(
page 353).

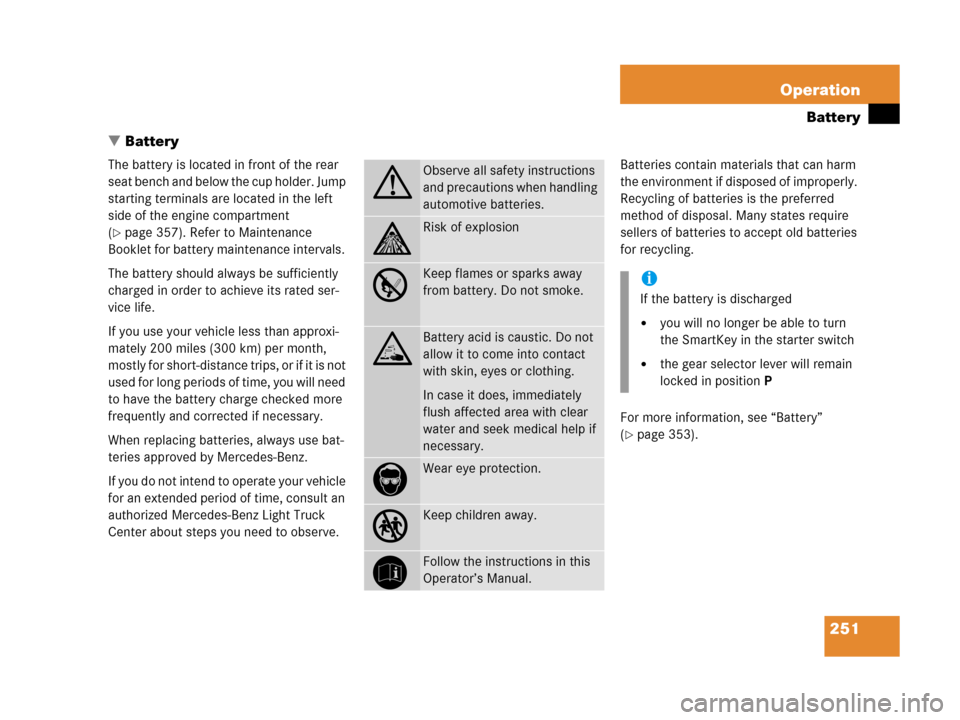

G
Observe all safety instructions
and precautions when handling
automotive batteries.
A
Risk of explosion
D
Keep flames or sparks away
from battery. Do not smoke.
B
Battery acid is caustic. Do not
allow it to come into contact
with skin, eyes or clothing.
In case it does, immediately
flush affected area with clear
water and seek medical help if
necessary.
E
Wear eye protection.
C
Keep children away.
F
Follow the instructions in this
Operator’s Manual.
i
If the battery is discharged

you will no longer be able to turn
the SmartKey in the starter switch

the gear selector lever will remain
locked in positionP

252 Operation
Tires and wheels
See an authorized Mercedes-Benz Light
Truck Center for information on tested and
recommended rims and tires for summer
and winter operation. They can also offer
advice concerning tire service and
purchase.
Retreaded tires are not tested or recom-
mended by Mercedes-Benz, since previous
damage cannot always be recognized on
retreads. The operating safety of the
vehicle cannot be assured when such tires
are used.Important guidelines

Only use sets of tires and rims of the
same type and make.

Tires must be of the correct size for the
rim.

Break in new tires for approximately
60 miles (100 km) at moderate
speeds.

Regularly check the tires and rims for
damage. Dented or bent rims can
cause tire inflation pressure loss and
damage to the tire beads.

If vehicle is heavily loaded, check tire
inflation pressure and correct as
required.

Do not allow your tires to wear down
too far. Adhesion properties on wet
roads are sharply reduced at tread
depths under
1/8in (3 mm).

When replacing individual tires, you
should mount new tires on the front
wheels first (on vehicles with
same-sized wheels all around).
Warning!G
Replace rims or tires with the same designa-
tion, manufacturer and type as shown on the
original part. See an authorized
Mercedes-Benz Light Truck Center for fur-
ther information. If incorrectly sized rims
and tires are mounted:

The wheel brakes or suspension
components can be damaged.

The operating clearance of the wheels
and the tires may no longer be correct.
Warning!G
Worn, old tires can cause accidents. If the
tire tread is badly worn, or if the tires have
sustained damage, replace them.
When replacing rims, only use genuine
Mercedes-Benz wheel bolts specified for the
particular rim type. Failure to do so can
result in the bolts loosening and possibly an
accident.

253 Operation
Tires and wheels
Tire care and maintenance
Regularly check your tire inflation pressure
at least once a month. For more informa-
tion on checking tire inflation pressure see
“Recommended tire inflation pressure”
(
page 260).Tire inspection
Every time you check your tire inflation
pressure, you should also inspect your
tires for the following:

excessive treadwear (page 254)

cord or fabric showing through the
tire’s rubber

bumps, bulges, cuts, cracks or splits in
the tread or side of the tire
Replace the tire if you find any of the above
conditions.
Make sure you also inspect the spare tire
periodically for condition and inflation.
Spare tires will age and become worn over
time even if never used, and thus should be
inspected and replaced when necessary.Life of tire
The service life of a tire is dependent upon
varying factors including but not limited to:

Driving style

Tire inflation pressure

Distance driven
Warning!G
Regularly check the tires for damage. Dam-
aged tires can cause tire inflation pressure
loss. As a result, you could lose control of
your vehicle.
Worn, old tires can cause accidents. If the
tire tread is badly worn, or if the tires have
sustained damage, replace them.
Warning!G
Tires and spare tire should be replaced after
six years, regardless of the remaining tread.

254 Operation
Tires and wheels
Tread depth
Do not allow your tires to wear down too
far. Adhesion properties on wet roads are
sharply reduced at tread depths under
1/8in (3 mm).
Treadwear indicators (TWI) are required by
law. These indicators are located in six
places on the tread circumference and
become visible at a tread depth of approx-
imately
1/16in (1.6 mm), at which point
the tire is considered worn and should be
replaced.
Recommended minimum tire tread depth:

Summer tires 1/8in (3 mm)

Winter tires 1/6in (4 mm)
1TWI (T
read Wear Indicator)
The treadwear indicator appears as a solid
band across the tread.Storing tires
Cleaning tiresWarning!G
Although the applicable federal motor safety
laws consider a tire to be worn when the
treadwear indicators (TWI) become visible at
approximately
1/16in (1.6 mm), we recom-
mend that you do not allow your tires
to wear down to that level. As tread depth
approaches 1/8in (3 mm), the adhesion
properties on a wet road are sharply re-
duced.
Depending upon the weather and/or road
surface (conditions), the tire traction varies
widely.!
Keep unmounted tires in a cool, dry
place with as little exposure to light as
possible. Protect tires from contact
with oil, grease and gasoline.
!
Never use a round nozzle to power
wash tires. The intense jet of water can
result in damage to the tire.
Always replace a damaged tire.

255 Operation
Tires and wheels
Direction of rotation
Unidirectional tires offer added advan-
tages, such as better hydroplaning perfor-
mance. To benefit, however, you must
make sure the tires rotate in the direction
specified.
An arrow on the sidewall indicates the
intended direction of rotation (spinning) of
the tire.Loading the vehicle
Two labels on your vehicle show how much
weight it may properly carry.

The Tire and Loading Information
placard can be found on the driver’s
door B-pillar. This placard tells you im-
portant information about the number
of people that can be in the vehicle and
the total weight that can be carried in
the vehicle. It also contains information
on the proper size and recommended
tire inflation pressures for the original
equipment tires on your vehicle.

The Certification label, also found on
the driver’s door B-pillar tells you about
the gross weight capacity of your vehi-
cle, called the Gross Vehicle Weight
Rating (GVWR). The GVWR includes the
weight of the vehicle, all occupants,
fuel and cargo. The Certification label
also tells you about the front and rear
axle weight capacity, called the Gross
Axle Weight Rating (GAWR). The GAWR
is the total allowable weight that can be carried by a single axle (front or rear).
Never exceed the GVWR or GAWR for
either the front axle or rear axle.
1Driver’s door B-pillar
Following is a discussion on how to work
with the information contained on the
placard with regards to loading your
vehicle.
i
Spare wheels may be mounted against
the direction of rotation (spinning) even
with a unidirectional tire for temporary
use only until the regular drive wheel
has been repaired or replaced. Always
observe and follow applicable tempo-
rary use restrictions and speed limita-
tions indicated on the spare wheel.
