2006 MERCEDES-BENZ G500 Owner's Manual

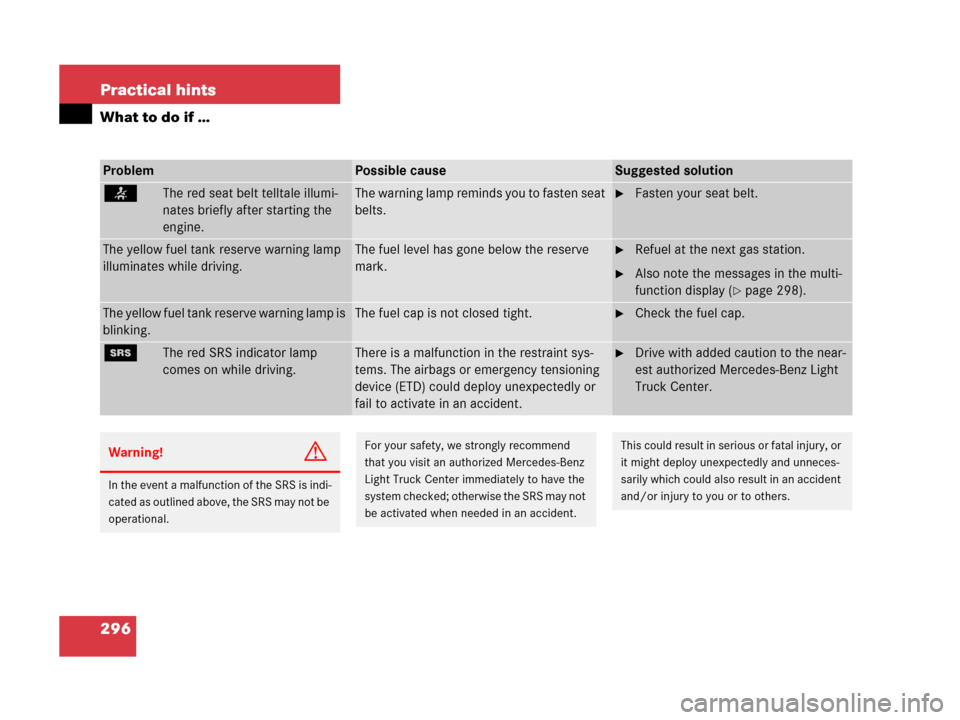

296 Practical hints
What to do if …
ProblemPossible causeSuggested solution
nates briefly after starting the
engine.The warning lamp reminds you to fasten seat
belts.Fasten your seat belt.
The yellow fuel tank reserve warning lamp
illuminates while driving.The fuel level has gone below the reserve
mark.Refuel at the next gas station.
Also note the messages in the multi-
function display (
page 298).
The yellow fuel tank reserve warning lamp is
blinking.The fuel cap is not closed tight.Check the fuel cap.
1The red SRS indicator lamp
comes on while driving.There is a malfunction in the restraint sys-
tems. The airbags or emergency tensioning
device (ETD) could deploy unexpectedly or
fail to activate in an accident.Drive with added caution to the near-
est authorized Mercedes-Benz Light
Truck Center.
Warning!G
In the event a malfunction of the SRS is indi-
cated as outlined above, the SRS may not be
operational.
For your safety, we strongly recommend
that you visit an authorized Mercedes-Benz
Light Truck Center immediately to have the
system checked; otherwise the SRS may not
be activated when needed in an accident.This could result in serious or fatal injury, or
it might deploy unexpectedly and unneces-
sarily which could also result in an accident
and/or injury to you or to others.

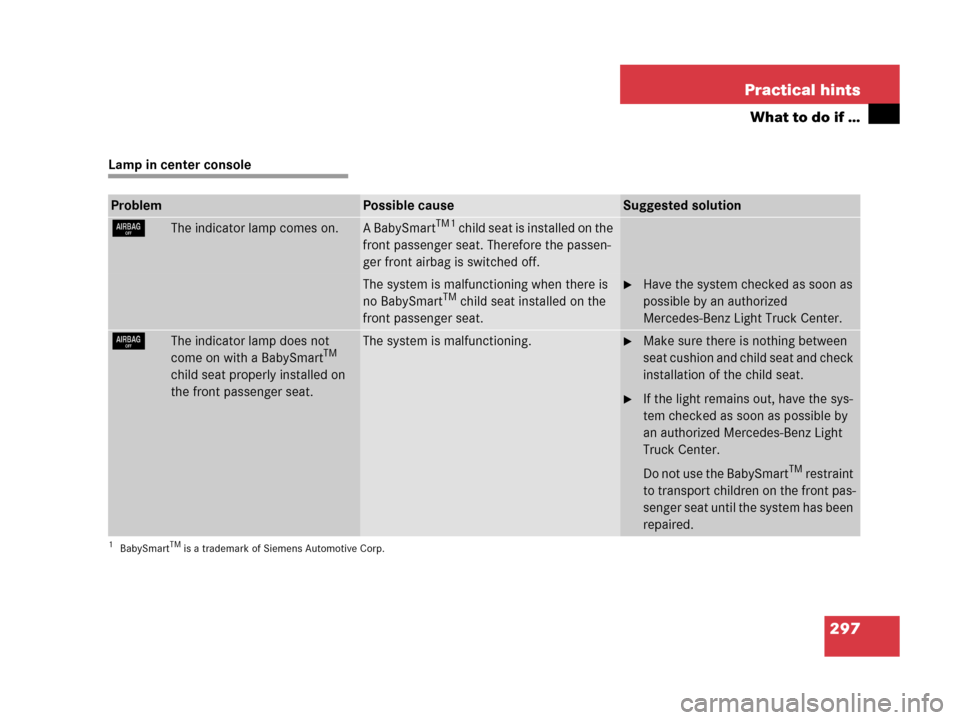

297 Practical hints
What to do if …
Lamp in center console
ProblemPossible causeSuggested solution
7The indicator lamp comes on.A BabySmartTM1 child seat is installed on the
front passenger seat. Therefore the passen-
ger front airbag is switched off.
1BabySmartTM is a trademark of Siemens Automotive Corp.
The system is malfunctioning when there is
no BabySmartTM child seat installed on the
front passenger seat.
Have the system checked as soon as
possible by an authorized
Mercedes-Benz Light Truck Center.
7The indicator lamp does not
come on with a BabySmartTM
child seat properly installed on
the front passenger seat.
The system is malfunctioning.Make sure there is nothing between
seat cushion and child seat and check
installation of the child seat.
If the light remains out, have the sys-
tem checked as soon as possible by
an authorized Mercedes-Benz Light
Truck Center.
Do not use the BabySmart
TM restraint
to transport children on the front pas-
senger seat until the system has been
repaired.

298 Practical hints
What to do if …
Vehicle status messages in the
multifunction display
Warning and malfunction messages ap-
pear in the multifunction display located in
the instrument cluster.
Certain warning and malfunction messag-
es are accompanied by an audible signal.
Address these messages accordingly and
follow the additional instructions given in
this Operator’s Manual.
Selecting the vehicle status message
memory menu in the control system
(
page 131) displays both cleared and
uncleared messages.High-priority messages appear in the mul-
tifunction display in red color.
Certain messages of high priority cannot
be cleared from the multifunction display
using the reset button (
page 120) or
buttonj, k, ·, orè on the
steering wheel.
Other messages of high priority and mes-
sages of less immediate priority (regular
display colors) can be cleared from the
multifunction display using the reset but-
ton (
page 25) or buttonj, k,
·, orè on the steering wheel. They
are then stored in the vehicle status mes-
sage memory (
page 131). Remember
that clearing a message will only make the
message disappear. Clearing a message
will not correct the condition that caused
the message to appear.
Warning!G
All categories of messages contain impor-
tant information which should be taken note
of and, where a malfunction is indicated, ad-
dressed as soon as possible at an autho-
rized Mercedes-Benz Light Truck Center.
Failure to repair condition noted may cause
damage not covered by the Mercedes-Benz
Limited Warranty, or result in property dam-
age or personal injury.

299 Practical hints
What to do if …
On the pages that follow, you will find a
compilation of the most important warning
and malfunction messages that may ap-
pear in the multifunction display.
For your convenience the messages are
divided into two sections:

Text messages (page 300)

Symbol messages (page 304)
Warning!G
No messages will be displayed if either the
instrument cluster or the multifunction dis-
play is inoperative. Systems that have a sig-
nificant influence on handling performance
may not be functioning.
Contact your nearest authorized
Mercedes-Benz Light Truck Center.
i
Switching on ignition (page 35),
causes all instrument cluster lamps
(except high beam headlamp indicator
lamp and turn signal indicator lamps
unless activated) as well as the multi-
function display to come on. Make sure
the lamps and multifunction display are
all in working order before starting your
journey.

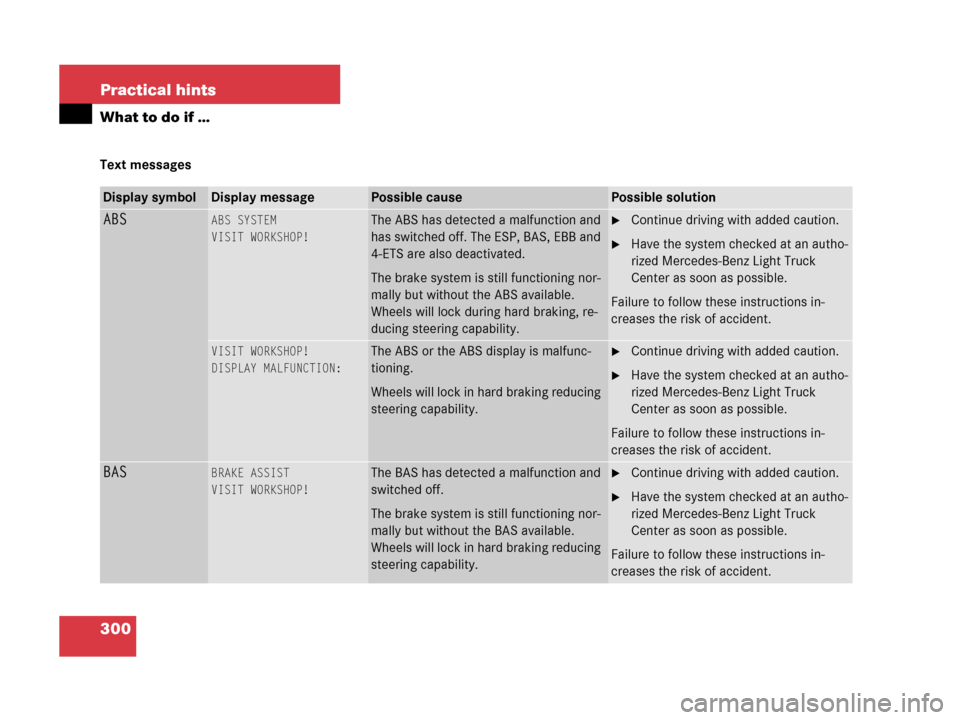

300 Practical hints
What to do if …
Text messages
Display symbolDisplay messagePossible causePossible solution
ABSABS SYSTEM
VISIT WORKSHOP!The ABS has detected a malfunction and
has switched off. The ESP, BAS, EBB and
4-ETS are also deactivated.
The brake system is still functioning nor-
mally but without the ABS available.
Wheels will lock during hard braking, re-
ducing steering capability.Continue driving with added caution.
Have the system checked at an autho-
rized Mercedes-Benz Light Truck
Center as soon as possible.
Failure to follow these instructions in-
creases the risk of accident.
VISIT WORKSHOP!
DISPLAY MALFUNCTION:The ABS or the ABS display is malfunc-
tioning.
Wheels will lock in hard braking reducing
steering capability.Continue driving with added caution.
Have the system checked at an autho-
rized Mercedes-Benz Light Truck
Center as soon as possible.
Failure to follow these instructions in-
creases the risk of accident.
BASBRAKE ASSIST
VISIT WORKSHOP!The BAS has detected a malfunction and
switched off.
The brake system is still functioning nor-
mally but without the BAS available.
Wheels will lock in hard braking reducing
steering capability.Continue driving with added caution.
Have the system checked at an autho-
rized Mercedes-Benz Light Truck
Center as soon as possible.
Failure to follow these instructions in-
creases the risk of accident.

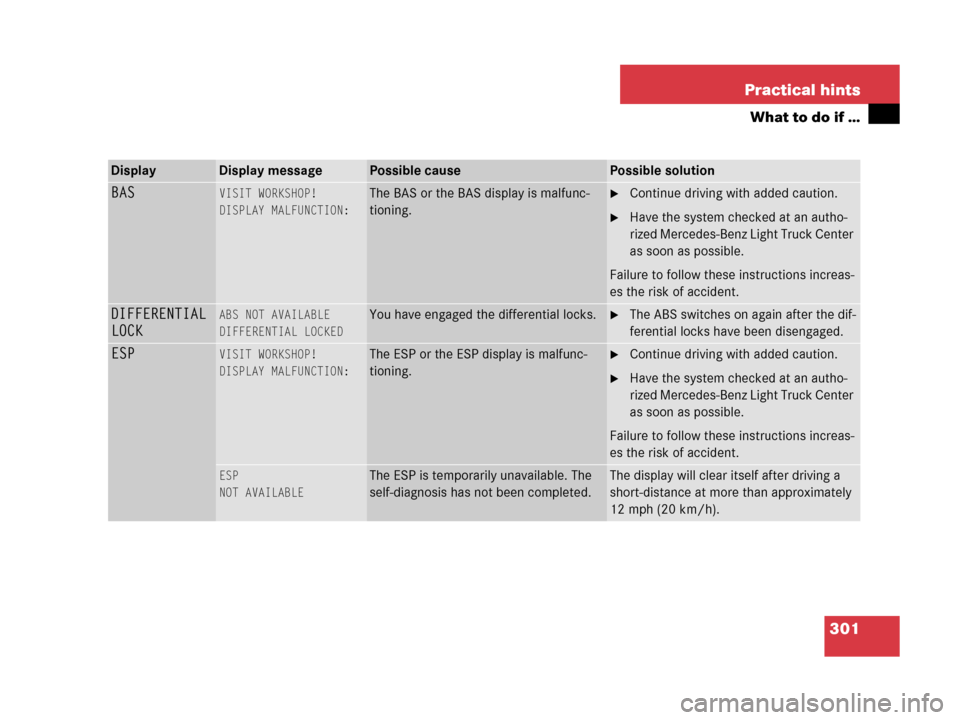

301 Practical hints
What to do if …
Display Display messagePossible causePossible solution
BASVISIT WORKSHOP!
DISPLAY MALFUNCTION:The BAS or the BAS display is malfunc-
tioning.Continue driving with added caution.
Have the system checked at an autho-
rized Mercedes-Benz Light Truck Center
as soon as possible.
Failure to follow these instructions increas-
es the risk of accident.
DIFFERENTIAL
LOCKABS NOT AVAILABLE
DIFFERENTIAL LOCKEDYou have engaged the differential locks.The ABS switches on again after the dif-
ferential locks have been disengaged.
ESPVISIT WORKSHOP!
DISPLAY MALFUNCTION:The ESP or the ESP display is malfunc-
tioning.Continue driving with added caution.
Have the system checked at an autho-
rized Mercedes-Benz Light Truck Center
as soon as possible.
Failure to follow these instructions increas-
es the risk of accident.
ESP
NOT AVAILABLEThe ESP is temporarily unavailable. The
self-diagnosis has not been completed.The display will clear itself after driving a
short-distance at more than approximately
12 mph (20 km/h).

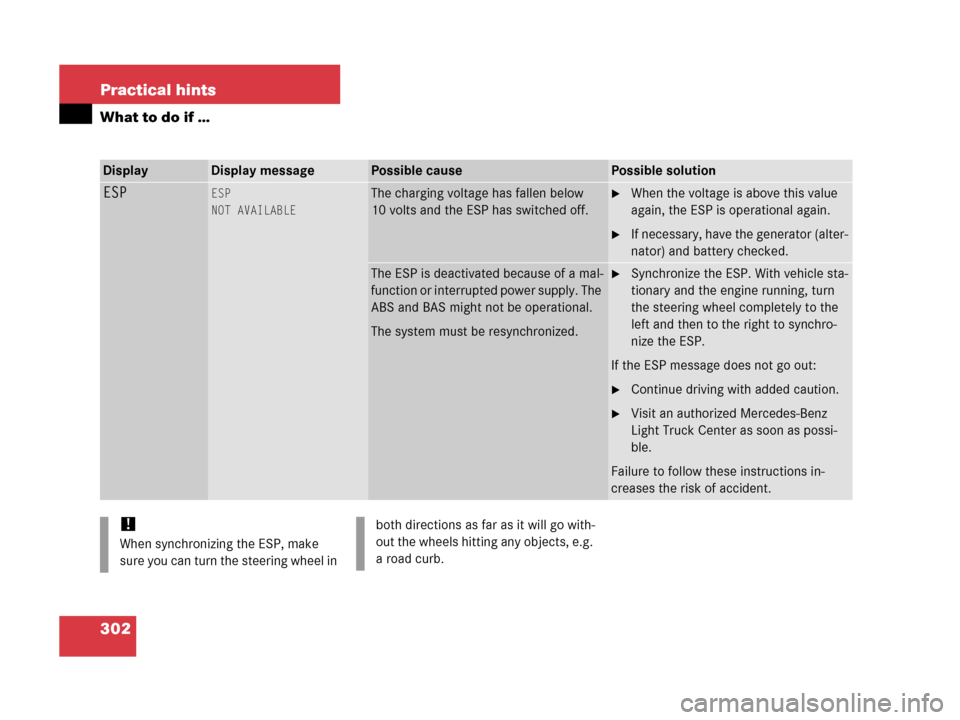

302 Practical hints
What to do if …
DisplayDisplay messagePossible causePossible solution
ESPESP
NOT AVAILABLEThe charging voltage has fallen below
10 volts and the ESP has switched off.When the voltage is above this value
again, the ESP is operational again.
If necessary, have the generator (alter-
nator) and battery checked.
The ESP is deactivated because of a mal-
function or interrupted power supply. The
ABS and BAS might not be operational.
The system must be resynchronized.Synchronize the ESP. With vehicle sta-
tionary and the engine running, turn
the steering wheel completely to the
left and then to the right to synchro-
nize the ESP.
If the ESP message does not go out:
Continue driving with added caution.
Visit an authorized Mercedes-Benz
Light Truck Center as soon as possi-
ble.
Failure to follow these instructions in-
creases the risk of accident.
!
When synchronizing the ESP, make
sure you can turn the steering wheel in
both directions as far as it will go with-
out the wheels hitting any objects, e.g.
a road curb.

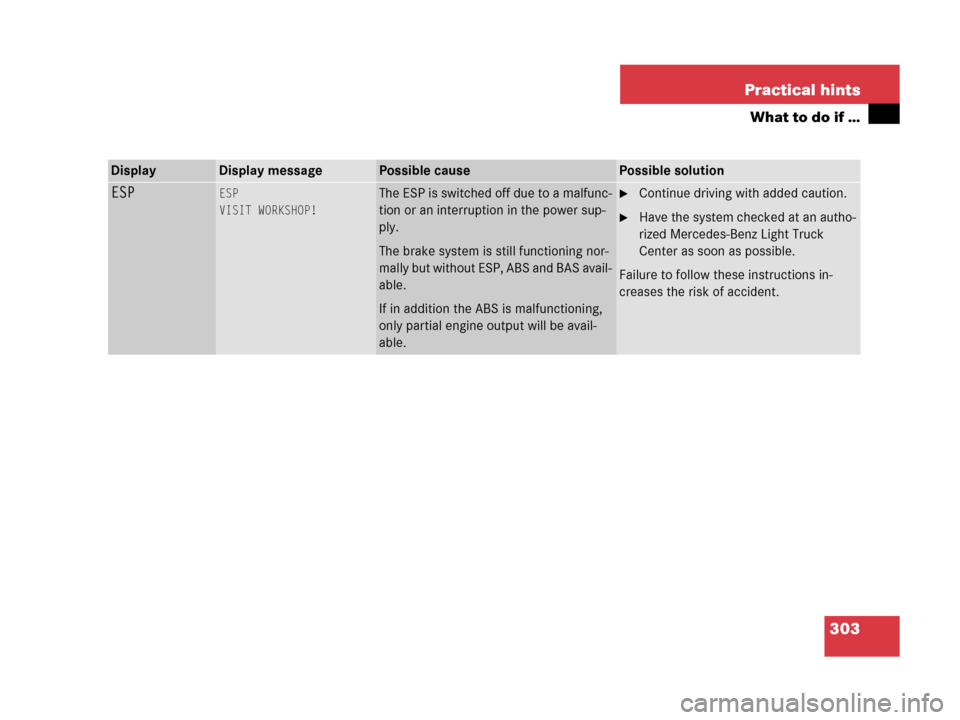

303 Practical hints
What to do if …
DisplayDisplay messagePossible causePossible solution
ESPESP
VISIT WORKSHOP!The ESP is switched off due to a malfunc-
tion or an interruption in the power sup-
ply.
The brake system is still functioning nor-
mally but without ESP, ABS and BAS avail-
able.
If in addition the ABS is malfunctioning,
only partial engine output will be avail-
able.Continue driving with added caution.
Have the system checked at an autho-
rized Mercedes-Benz Light Truck
Center as soon as possible.
Failure to follow these instructions in-
creases the risk of accident.
