2006 MAZDA MODEL MAZDASPEED 6 Owners Manual (in English)

Black plate (225,1)
qRear
To remove, open the ashtray lid, grasp
both sides of the ashtray and pull it out.
Cup Holder
WARNING
Using Cup Holder:
Using a cup holder to hold hot liquids
while the vehicle is moving is
dangerous. If the contents spill, you
could be scalded. Never use a cup
holder to hold hot liquids while the
vehicle is moving.
Don't Put Anything Other Than Cups
or Drink cans in Cup Holder:
Putting objects other than cups or
drink cans in a cup holder is
dangerous.
During sudden braking or
maneuvering, occupants could be hit
and injured, or objects could be
thrown around the vehicle, causing
interference with the driver and the
possibility of an accident. Only use a
cup holder for cups or drink cans.
CAUTION
To reduce the possibility of injury in an
accident or a sudden stop, keep cup
holders closed when not in use.
Interior Comfort
Interior Equipment
6-45
Mazdaspeed6_8U01-EA-05H_Edition1 Page225
Thursday, July 7 2005 1:3 PM
Form No.8U01-EA-05H

Black plate (226,1)
qFront
To use the cup holder, open the center
console by pressing the lower center part
of its cover.
qRear
The rear cup holder is on the rear center
armrest.
Bottle Holder
Bottle holders are on the inside of the
front doors.
Bottle holder
CAUTION
Don't use the bottle holders for
containers without caps. The contents
may spill when the door is opened or
closed.
6-46
Interior Comfort
Interior Equipment
Mazdaspeed6_8U01-EA-05H_Edition1 Page226
Thursday, July 7 2005 1:3 PM
Form No.8U01-EA-05H

Black plate (227,1)
Storage Compartments
WARNING
Open Storage Boxes:
Driving with the storage boxes open is
dangerous. To reduce the possibility of
injury in an accident or a sudden stop,
keep the storage boxes closed when
driving.
CAUTION
Don't leave lighters or eyeglasses in the
storage boxes while parked under the
sun. A lighter could explode or the
plastic material in eyeglasses could
deform and crack from high
temperature.
qOverhead Console
This console box is designed to store
eyeglasses or other accessories.
Push and release to open.
qStorage Pocket
To open, push the release catch down and
pull the lid downward.
qCenter Box with Lid (Without
Navigation System)
To use, pull the knob, and the lid opens
automatically.
Knob
Interior Comfort
Interior Equipment
6-47
Mazdaspeed6_8U01-EA-05H_Edition1 Page227
Thursday, July 7 2005 1:3 PM
Form No.8U01-EA-05H

Black plate (228,1)
qGlove Box
To open the glove box, pull the latch
toward you.
Insert the master key and turn it clockwise
to lock, counterclockwise to unlock.
Unlock
Lock
qCenter Console
To open, pull the lower release catch.
Small items can be placed in the tray of
the center console lid.
To open it, pull the upper release catch.
6-48
Interior Comfort
Interior Equipment
Mazdaspeed6_8U01-EA-05H_Edition1 Page228
Thursday, July 7 2005 1:3 PM
Form No.8U01-EA-05H

Black plate (229,1)

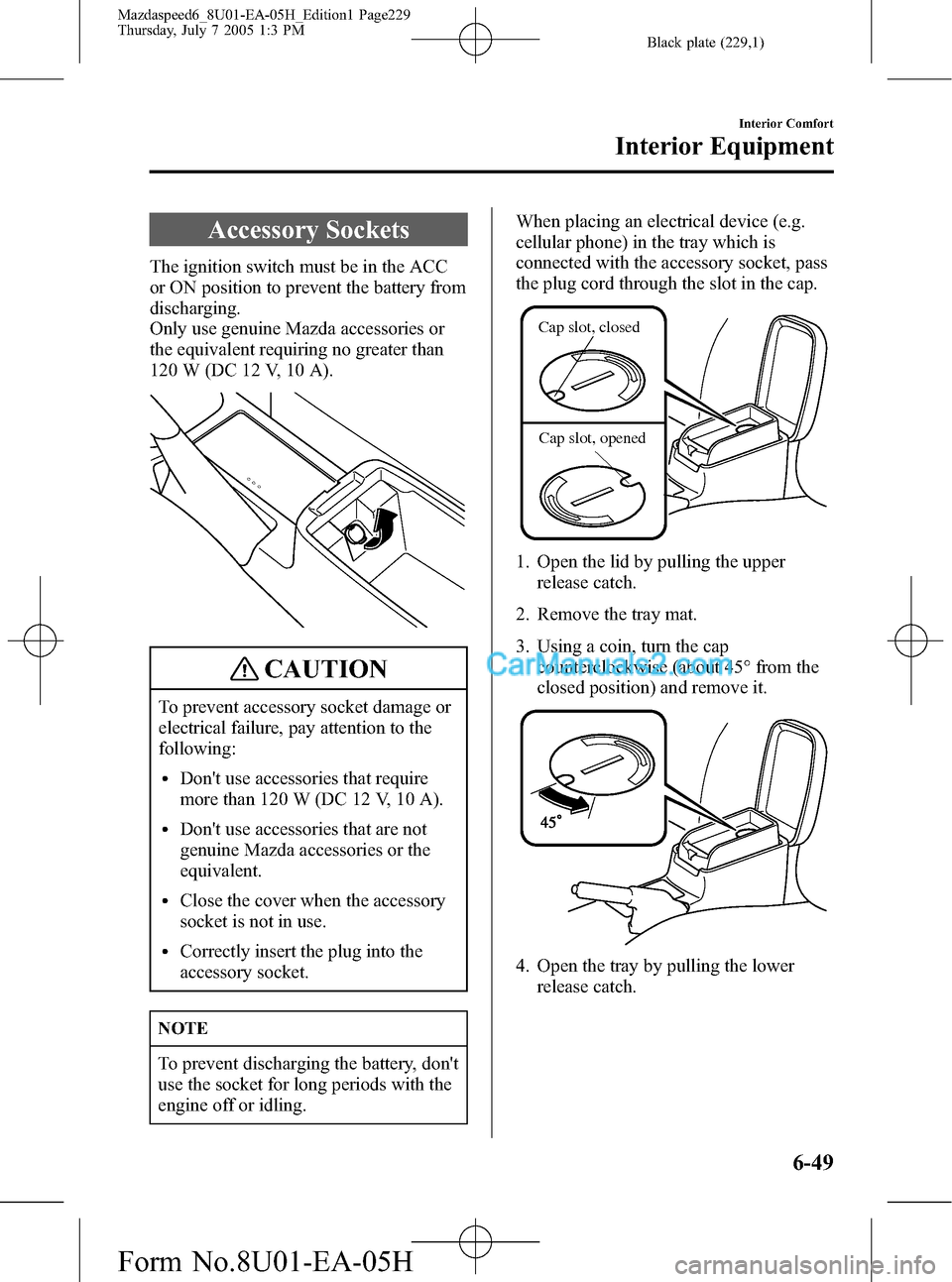

Accessory Sockets
The ignition switch must be in the ACC
or ON position to prevent the battery from
discharging.
Only use genuine Mazda accessories or
the equivalent requiring no greater than
120 W (DC 12 V, 10 A).
CAUTION
To prevent accessory socket damage or
electrical failure, pay attention to the
following:
lDon't use accessories that require
more than 120 W (DC 12 V, 10 A).
lDon't use accessories that are not
genuine Mazda accessories or the
equivalent.
lClose the cover when the accessory
socket is not in use.
lCorrectly insert the plug into the
accessory socket.
NOTE
To prevent discharging the battery, don't
use the socket for long periods with the
engine off or idling.When placing an electrical device (e.g.
cellular phone) in the tray which is
connected with the accessory socket, pass
the plug cord through the slot in the cap.
Cap slot, closed
Cap slot, opened
1. Open the lid by pulling the upper
release catch.
2. Remove the tray mat.
3. Using a coin, turn the cap
counterclockwise (about 45° from the
closed position) and remove it.
4. Open the tray by pulling the lower
release catch.
Interior Comfort
Interior Equipment
6-49
Mazdaspeed6_8U01-EA-05H_Edition1 Page229
Thursday, July 7 2005 1:3 PM
Form No.8U01-EA-05H

Black plate (230,1)
5. Pass the plug cord through the hole of
the tray and insert the plug in the
socket.
Plug
6. Make sure the plug cord is running
through the cap slot; reinstall the cap
and turn it clockwise (about 45° to the
opened position).
Plug cord
7. Set the plug cord into the slit of the tray
mat and replace the tray mat.
6-50
Interior Comfort
Interior Equipment
Mazdaspeed6_8U01-EA-05H_Edition1 Page230
Thursday, July 7 2005 1:3 PM
Form No.8U01-EA-05H

Black plate (231,1)
7In Case of an Emergency
Helpful information on what to do in an emergency.
Parking in an Emergency ............................................................. 7-2
Parking in an Emergency .......................................................... 7-2
Flat Tire ......................................................................................... 7-3
Spare Tire and Tool Storage ...................................................... 7-3
Changing a Flat Tire ................................................................. 7-5
Overheating ................................................................................. 7-11
Overheating ............................................................................. 7-11
Emergency Starting .................................................................... 7-13
Starting a Flooded Engine ....................................................... 7-13
Jump-Starting .......................................................................... 7-14
Push-Starting ........................................................................... 7-17
Emergency Towing ..................................................................... 7-18
Towing Description ................................................................. 7-18
Tiedown Hooks ....................................................................... 7-19
Recreational Towing ............................................................... 7-21
7-1
Mazdaspeed6_8U01-EA-05H_Edition1 Page231
Thursday, July 7 2005 1:3 PM
Form No.8U01-EA-05H

Black plate (232,1)
Parking in an Emergency
The hazard warning lights should always
be used when you stop on or near a
roadway.
The hazard warning lights warn other
drivers that your vehicle is a traffic hazard
and that they must take extreme caution
when near it.
Depress the hazard warning flasher and all
four turn signals will flash.
NOTE
lThe turn signals don't work when the
hazard warning lights are on.
lCheck local regulations about the use
of hazard warning lights while the
vehicle is being towed. They may
forbid it.
