Black plate (249,1)
WARNING
Towing a AWD Vehicle:
Towing a AWD vehicle with either the
front or rear wheels on the ground is
dangerous as the drive train could be
damaged, or the vehicle could trail
away from the tow truck and cause an
accident. Always tow a AWD vehicle
with all four wheels off the ground. If
the drive train has been damaged,
transport the vehicle on a flat bed
truck.
Tiedown Hooks
CAUTION
Don't use the tiedown hooks under the
front and rear for towing.
They are designed ONLY for tying
down the vehicle when it's being
transported. Using them for towing will
damage the bumper.
qTiedown Hooks
1. Remove the tiedown eyelet, lug
wrench, and jack lever from the trunk
(page 7-3).
2. Wrap the jack lever with a soft cloth to
prevent damage to the bumper and
open the cap located on the front and
rear bumper.
Front
In Case of an Emergency
Emergency Towing
7-19
Mazdaspeed6_8U01-EA-05H_Edition1 Page249
Thursday, July 7 2005 1:4 PM
Form No.8U01-EA-05H

Black plate (250,1)
Rear
CAUTION
The cap cannot be completely removed.
Do not use excessive force as it may
damage the cap or scratch the painted
bumper surface.
3. Securely install the tiedown eyelet
using the lug wrench.
Front
Lug wrench
RearLug wrench
4. Hook the tying rope to the tiedown
eyelet.
Front
Rear
7-20
In Case of an Emergency
Emergency Towing
Mazdaspeed6_8U01-EA-05H_Edition1 Page250
Thursday, July 7 2005 1:4 PM
Form No.8U01-EA-05H

Black plate (251,1)
CAUTION
If the tiedown eyelet is not securely
tightened, it may loosen or disengage
from the bumper when tying down the
vehicle. Make sure that the tiedown
eyelet is securely tightened to the
bumper.
Recreational Towing
An example of“recreational towing”is
towing your vehicle behind a motorhome.
The transaxle is not designed for towing
this vehicle on all 4 wheels.
When doing recreational towing refer to
“Towing Description”(page 7-18) and
carefully follow the instructions.
In Case of an Emergency
Emergency Towing
7-21
Mazdaspeed6_8U01-EA-05H_Edition1 Page251
Thursday, July 7 2005 1:4 PM
Form No.8U01-EA-05H

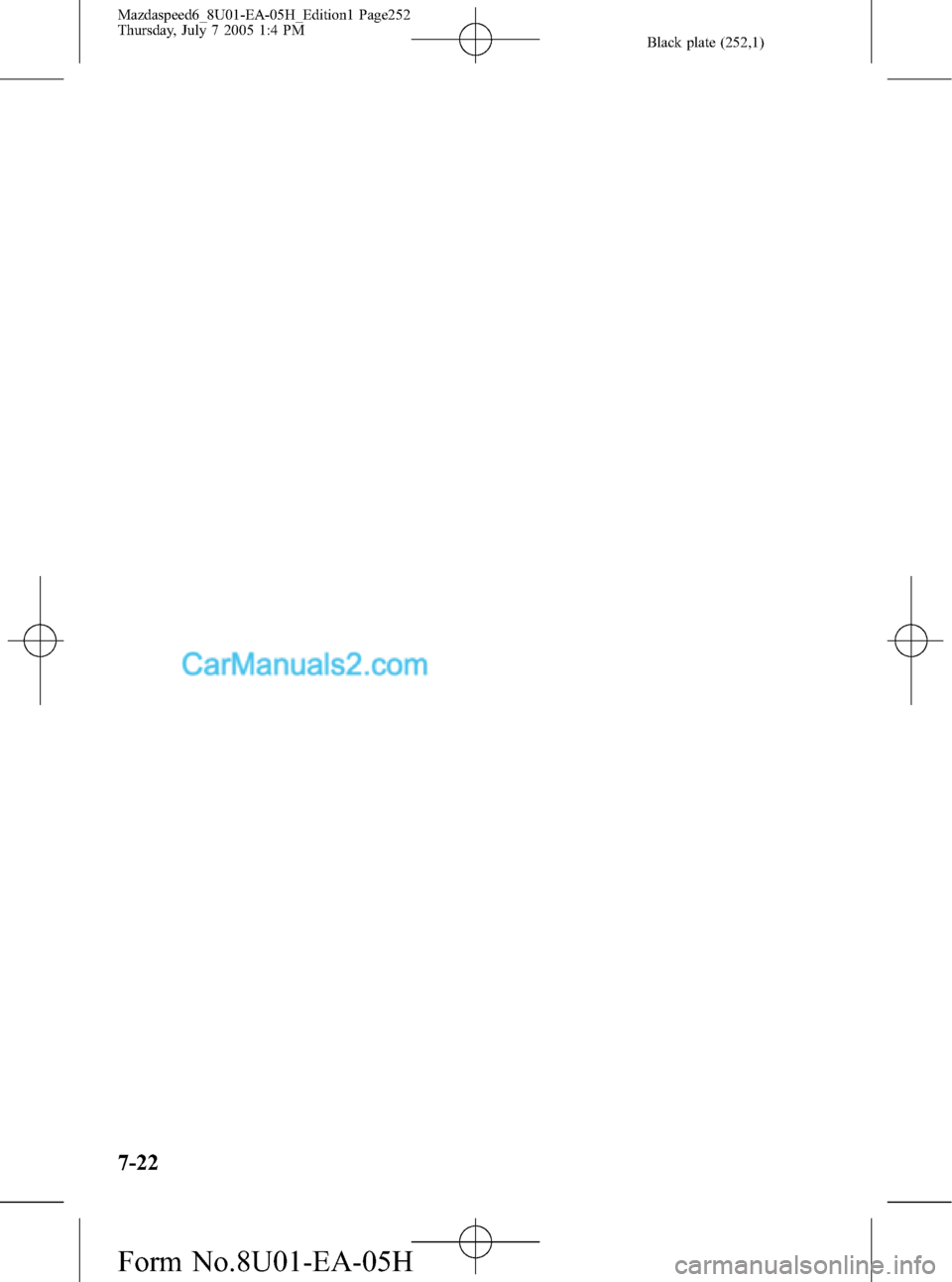

Black plate (252,1)
7-22
Mazdaspeed6_8U01-EA-05H_Edition1 Page252
Thursday, July 7 2005 1:4 PM
Form No.8U01-EA-05H

Black plate (253,1)
8Maintenance and Care
How to keep your Mazda in top condition.
Introduction .................................................................................. 8-2
Introduction ............................................................................... 8-2
Scheduled Maintenance ................................................................ 8-3
Scheduled Maintenance ............................................................ 8-3
Owner Maintenance ..................................................................... 8-8
Owner Maintenance Schedule .................................................. 8-8
Owner Maintenance Precautions ............................................... 8-9
Engine Compartment Overview .............................................. 8-11
Engine Oil ............................................................................... 8-12
Engine Coolant ....................................................................... 8-15
Brake/Clutch Fluid .................................................................. 8-18
Power Steering Fluid ............................................................... 8-19
Washer Fluid ........................................................................... 8-19
Body Lubrication .................................................................... 8-20
Air Filter .................................................................................. 8-21
Wiper Blades ........................................................................... 8-22
Battery ..................................................................................... 8-24
Tires ........................................................................................ 8-26
Light Bulbs ............................................................................. 8-30
Fuses ....................................................................................... 8-36
Appearance Care ........................................................................ 8-41
How to Minimize Environmental Paint Damage .................... 8-41
Exterior Care ........................................................................... 8-43
Interior Care ............................................................................ 8-46
8-1
Mazdaspeed6_8U01-EA-05H_Edition1 Page253
Thursday, July 7 2005 1:4 PM
Form No.8U01-EA-05H

Black plate (254,1)
Introduction
Be extremely careful and prevent injury to yourself and others or damage to your vehicle
when using this manual for inspection and maintenance.
If you're unsure about any procedure it describes, we strongly urge you to have a reliable
and qualified service shop perform the work, preferably an Authorized Mazda Dealer.
Factory-trained Mazda technicians and genuine Mazda parts are best for your vehicle.
Without this expertise and the parts that have been designed and made especially for your
Mazda, inadequate, incomplete, and insufficient servicing may result in problems. This
could lead to vehicle damage or an accident and injuries.
For expert advice and quality service, consult an Authorized Mazda Dealer.
The owner should retain evidence that proper maintenance has been performed as
prescribed.
Claims against the warranty resulting from lack of maintenance, as opposed to defective
materials or authorized Mazda workmanship, will not be honored.
Any auto repair shop using parts equivalent to your Mazda's original equipment may
perform maintenance.But we recommend that it always be done by an Authorized
Mazda Dealer using genuine Mazda parts.
8-2
Maintenance and Care
Introduction
Mazdaspeed6_8U01-EA-05H_Edition1 Page254
Thursday, July 7 2005 1:4 PM
Form No.8U01-EA-05H

Black plate (255,1)
Scheduled Maintenance
Follow Schedule 1 if the vehicle is operated mainly where none of the following conditions
apply.
If any do apply, follow Schedule 2 (Canada and Puerto Rico residents follow Schedule 2).
lRepeated short-distance driving
lDriving in dusty conditions
lDriving with extended use of brakes
lDriving in areas where salt or other corrosive materials are being used
lDriving on rough or muddy roads
lExtended periods of idling or low-speed operation
lDriving for long periods in cold temperatures or extremely humid climates
NOTE
After the prescribed period, continue to follow the described maintenance at the
recommended intervals.
Maintenance and Care
Scheduled Maintenance
8-3
Mazdaspeed6_8U01-EA-05H_Edition1 Page255
Thursday, July 7 2005 1:4 PM
Form No.8U01-EA-05H

Black plate (256,1)
qSchedule 1
Maintenance IntervalNumber of months or kilometers (miles), whichever comes first
Months 6 12 18 24 30 36 42 48
×1000 km 12 24 36 48 60 72 84 96
×1000 miles 7.5 15 22.5 30 37.5 45 52.5 60
ENGINE
Engine valve clearance Audible inspect every 120,000km (75,000miles),
if noisy, adjust
Drive belts (tension) I
Engine oilRRRRRRRR
Engine oil filterRRRRRRRR
COOLING SYSTEM
Cooling system I I
Engine coolantFL22 type
*1Replace at first 192,000 km (120,000 miles) or 10 years ; after
that, every 96,000 km (60,000 miles) or 5 years
OthersReplace at first 96,000 km (60,000 miles) or 4 years ; after that,
every 2 years
FUEL SYSTEM
Air filter R
Fuel lines and hoses
*2II
Hoses and tubes for emission*2I
IGNITION SYSTEM
Spark plugs Replace every 72,000 km (45,000 miles)
CHASSIS and BODY
Brake lines, hoses and connections I I
Disc brakesIIII
Tire (Rotation) Rotate every 12,000 km (7,500 miles)
Steering operation and linkages I I
Front and rear suspension and ball joints I I
Rear differential oil
*3*4
Transfer oil*4
Driveshaft dust boots I I
Exhaust system and heat shields Inspect every 72,000 km (45,000 miles) or 60 months
All locks and hingesLLLLLLLL
8-4
Maintenance and Care
Scheduled Maintenance
Mazdaspeed6_8U01-EA-05H_Edition1 Page256
Thursday, July 7 2005 1:4 PM
Form No.8U01-EA-05H
