2006 MAZDA MODEL MAZDASPEED 6 Owners Manual (in English)

Black plate (105,1)
NOTE
lThe two-step down function cannot
be canceled if the procedure is not
completed within the specified times,
or the procedure is changed along
the way. To redo the procedure, first
turn the ignition switch to the LOCK
position and proceed from the
beginning.
lIf you are unable to cancel the
function despite doing the
cancellation procedure, consult an
Authorized Mazda Dealer.
Restoring the two-step down function
With the two-step down function in the
canceled state, repeat the previous
procedure for canceling the function on
each door switch and it will be restored.
NOTE
If you are unable to restore the function
despite doing the restore procedure,
consult an Authorized Mazda Dealer.
Jam-safe window
If a person's hands, head or an object
blocks the window during the manual
closing operation or the auto-closing
operation, the window will stop and open
halfway.
WARNING
Blocking the Power Window:
Blocking the power window just
before it reaches the fully closed
position or while fully holding up the
power window switch is dangerous.
In this case, the jam-safe function
cannot prevent the window from
stopping. If fingers are caught, serious
injuries could occur. Make sure
nothing blocks the window just before
it reaches the fully closed position or
while fully holding up the power
window switch.
NOTE
Depending on driving conditions, a
closing power window could stop and
start opening when the window feels a
shock that is similar to something
blocking it.
In the event the jam-safe function
activates and the power window cannot
be closed automatically using the auto-
opening method, pull and hold the
switch fully and the window will close.
Engine-off power window operation
The power window can be operated about
40 seconds after the ignition switch is
turned from the ON position to the ACC
or LOCK position with all doors closed. If
either front door is opened, the power
window will be inoperable.
Knowing Your Mazda
Doors and Locks
3-37
Mazdaspeed6_8U01-EA-05H_Edition1 Page105
Thursday, July 7 2005 1:2 PM
Form No.8U01-EA-05H

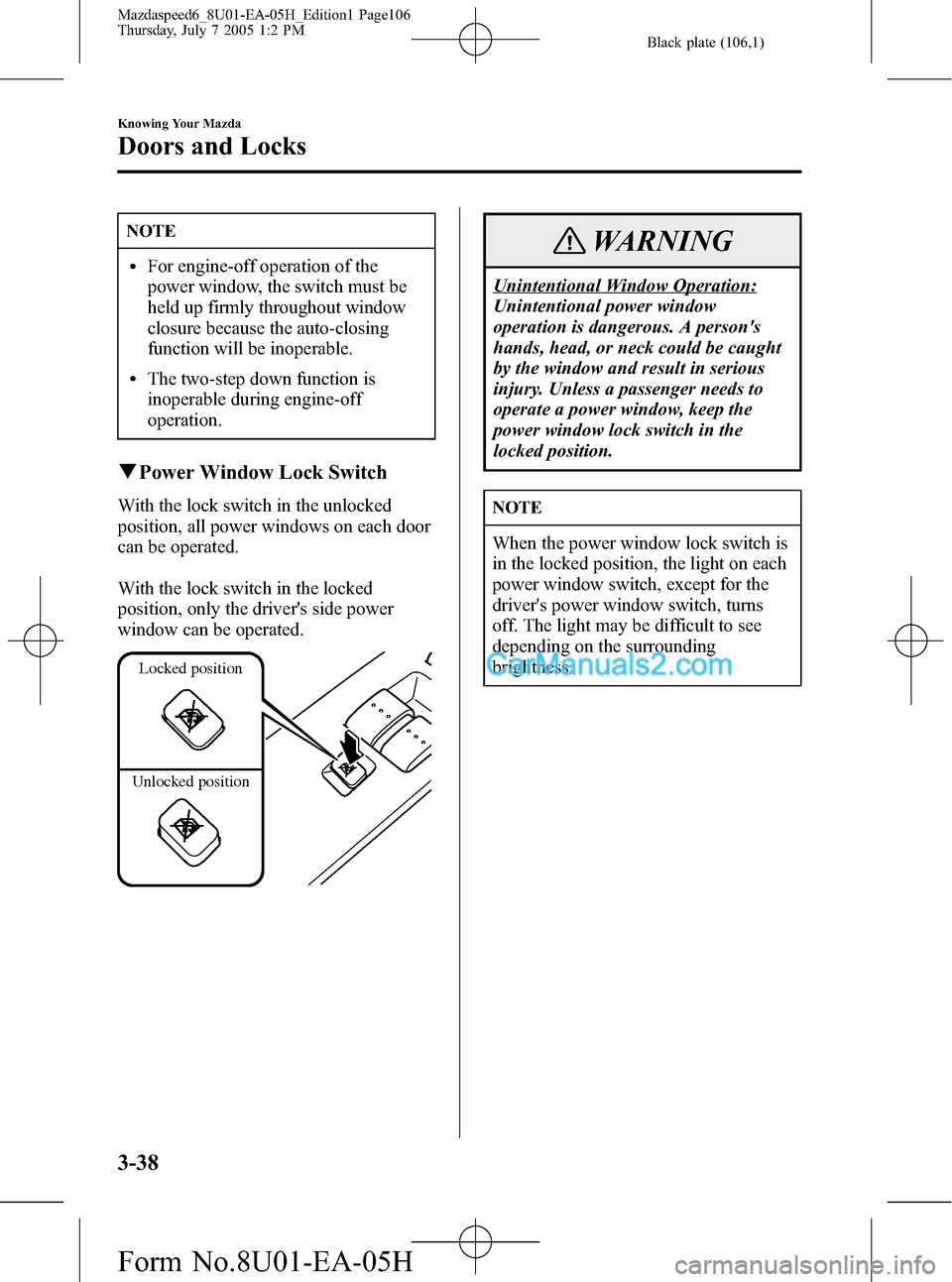

Black plate (106,1)
NOTE
lFor engine-off operation of the
power window, the switch must be
held up firmly throughout window
closure because the auto-closing
function will be inoperable.
lThe two-step down function is
inoperable during engine-off
operation.
qPower Window Lock Switch
With the lock switch in the unlocked
position, all power windows on each door
can be operated.
With the lock switch in the locked
position, only the driver's side power
window can be operated.
Locked position
Unlocked position
WARNING
Unintentional Window Operation:
Unintentional power window
operation is dangerous. A person's
hands, head, or neck could be caught
by the window and result in serious
injury. Unless a passenger needs to
operate a power window, keep the
power window lock switch in the
locked position.
NOTE
When the power window lock switch is
in the locked position, the light on each
power window switch, except for the
driver's power window switch, turns
off. The light may be difficult to see
depending on the surrounding
brightness.
3-38
Knowing Your Mazda
Doors and Locks
Mazdaspeed6_8U01-EA-05H_Edition1 Page106
Thursday, July 7 2005 1:2 PM
Form No.8U01-EA-05H

Black plate (107,1)
Opening/Closing the Power
Windows from Outside
All windows can be opened or closed
from outside the vehicle after the doors
and the trunk lid are closed.
WARNING
Closing Power Windows:
Closing power windows are
dangerous. A person's hands, head, or
even neck could be caught by the
window and result in serious injury or
even death.
This warning applies especially to
children. Make sure the opening is
clear before closing a window.
NOTE
lThe power windows cannot be
opened or closed from outside the
vehicle under the following
condition:
lA door or the trunk lid is opened.lThe key is inserted into the
ignition switch.
l(With advanced key)
The start knob is pushed into the
ignition switch.
lThe power windows may not close
completely under the following
conditions:
lThe vehicle battery is weak
(starter motor is too weak to start
the engine).
lExtreme cold conditions.
If the power windows cannot be
closed completely, operate each
power window switch from inside
the vehicle. After closing the
windows from outside the vehicle,
verify that they are completely
closed.
Knowing Your Mazda
Doors and Locks
3-39
Mazdaspeed6_8U01-EA-05H_Edition1 Page107
Thursday, July 7 2005 1:2 PM
Form No.8U01-EA-05H

Black plate (108,1)
qAuto-Opening
Because nobody likes getting into a very
hot car, we have introduced a way to get a
head start on cooling it, even before you
put your seat belts on and insert your key
in the ignition. If you see the vehicle is in
a secure area, you can open the all
windows as you approach the vehicle to
get the air moving before you even step
into the hot vehicle.
WARNING
Auto-Opening Windows and Security:
Do not let children play with your
keys. If they open the window without
your knowing, the open windows are
an even bigger invitation to a thief
than leaving the doors unlocked. Use
the Auto-Window function only when
you can see the vehicle and it is in a
secure area.
The windows can be opened for
ventilating the cabin before getting in the
vehicle.
With unlock button (with keyless entry
system)
Press the unlock button on the transmitter
and hold it. After the doors and the trunk
lid are unlocked, the windows fully open
automatically.Advanced key
Panic button
Unlock buttonLock button
Retractable type key
Lock button
Unlock button
Panic button
To stop this operation, press the unlock
button.
NOTE
lThe window opening operation also
can be stopped by pressing the lock
button or panic button. However,
pressing these buttons will operate
their functions.
lThe lock button cannot be used to
close the power windows.
With key
1. Insert the key in the driver's door key
cylinder.
3-40
Knowing Your Mazda
Doors and Locks
Mazdaspeed6_8U01-EA-05H_Edition1 Page108
Thursday, July 7 2005 1:2 PM
Form No.8U01-EA-05H

Black plate (109,1)
2. Turn the key toward the front and hold
it. After the doors and the trunk lid are
unlocked, the windows fully open
automatically.
Open
To stop this operation, turn the key to the
center position, then turn it toward the
front again.
NOTE
The window opening operation also can
be stopped by turning the key toward
the back. However, the doors and the
trunk lid will lock.
qClosing
The windows can be closed in case they
are left open after getting out of the
vehicle.
NOTE
(With advanced key)
If the auto-lock function (page 3-8) has
been activated, the doors and the trunk
lid automatically lock as you walk away
from vehicle, however, the power
windows cannot be closed. When
leaving the vehicle, close the windows
using the power window switch inside
the vehicle, the key, or a request switch.
With key
1. Insert the key in the driver's door key
cylinder.
2. Turn the key toward the back and hold
it. After the doors and the trunk lid are
locked, the windows close while the
key is turned.
Close
With request switch on the driver's
door (with advanced key)
1. If the doors and the trunk lid are
locked, unlock them.
Knowing Your Mazda
Doors and Locks
3-41
Mazdaspeed6_8U01-EA-05H_Edition1 Page109
Thursday, July 7 2005 1:2 PM
Form No.8U01-EA-05H

Black plate (110,1)
2. Press the request switch on the driver's
door and hold it. After the doors and
the trunk lid are locked, the windows
close while the request switch is
pressed.
Request switch
Fuel-Filler Lid and Cap
WARNING
Fuel Spray:
Fuel spray is dangerous. Fuel can
burn skin and eyes and cause illness if
ingested. Fuel spray is released when
there is pressure in the fuel tank and
the fuel cap is removed too quickly.
When removing the fuel cap, loosen
the cap slightly and wait for any
hissing to stop. Then remove it.
Fuel Vapor:
Fuel vapor is dangerous. It could be
ignited by sparks or flames causing
serious burns and injuries. Before
refueling, stop the engine, and always
keep sparks and flames away from the
filler neck. Additionally, use of the
incorrect fuel filler cap or not using a
fuel filler cap may result in fuel leak,
which could result in serious burns or
death in an accident.
CAUTION
Always use only a genuine Mazda fuel
cap or an approved equivalent,
available at an Authorized Mazda
Dealer. The wrong cap can result in a
serious malfunction of the fuel and
emission control systems. It may also
cause the check engine light in the
instrument cluster to illuminate.
3-42
Knowing Your Mazda
Doors and Locks
Mazdaspeed6_8U01-EA-05H_Edition1 Page110
Thursday, July 7 2005 1:2 PM
Form No.8U01-EA-05H

Black plate (111,1)
qFuel-Filler Lid
To open, pull up the remote fuel-filler lid
release.
Remote fuel-filler
lid release
qFuel-Filler Cap
To remove the filler cap, turn it
counterclockwise.
To close the filler cap, turn it clockwise
until it clicks.
Close
Open
CAUTION
Make sure the fuel-filler cap is
tightened securely. The check engine
light may illuminate when the cap isn't
tightened securely. If the light remains
on (even after you have tightened the
cap securely, driven, and restarted the
engine several times), it may indicate a
different problem. Contact an
Authorized Mazda Dealer as soon as
possible.
Knowing Your Mazda
Doors and Locks
3-43
Mazdaspeed6_8U01-EA-05H_Edition1 Page111
Thursday, July 7 2005 1:2 PM
Form No.8U01-EA-05H

Black plate (112,1)
Hood
WARNING
Closed and Securely Locked Hood:
A hood that is not closed and securely
locked is dangerous as it could fly
open while the vehicle is moving and
block the driver's vision which could
result in a serious accident. Always
check that the hood is closed and
securely locked.
qOpening the Hood
1. With the vehicle parked, pull the
release handle to unlock the hood.
2. Slide the hood latch to the right and lift
the hood.
3. Grasp the support rod in the padded
area and secure it in the stay hole
indicated by the arrow to hold the hood
open.
Clip
Pad
Support rod
qClosing the Hood
1. Check under the hood area to make
certain all filler caps are in place and
all loose items (e.g. tools, oil
containers, etc.) have been removed.
2. Insert the support rod in its clip while
holding up the hood. Verify that the
support rod is secured in the clip before
closing the hood.
3. Close the hood so that it locks securely.
3-44
Knowing Your Mazda
Doors and Locks
Mazdaspeed6_8U01-EA-05H_Edition1 Page112
Thursday, July 7 2005 1:2 PM
Form No.8U01-EA-05H
