STARTING AND DRIVING
465
4. With the vehicle stopped, push the reset switch on the left
lower instrument panel and hold it until the low tire pressure
warning light blinks three times.
Initialization is
completed after driving at the speeds of 30 km/h
(19 mph) or over for about a few hours total, when the tire
pressure warning system detects the normal tire pressure. If
the following driving conditions are satisfied, initialization will
be completed in about one hour.
 Vehicle speed varies between 30 km/h (19 mph) and 80
km/h (50 mph)
 Normal road surface
When the warning light blinks twice every second while driving,
you may be unable to reset the system. In this case, set the
system again according to the above procedure.
Do not push the reset switch without adjusting the tire inflation
pressure to the specified level. Otherwise, the low tire
pressure warning light may not come on even if the tire
pressure is low, or it may come on when the tire inflation
pressure is actually normal.
If you push the reset switch while the vehicle is moving,
initialization is not performed.
If the low tire pressure warning light does not blink when you
push and hold the reset switch, have the low pressure warning
system checked at your Lexus dealer.
BRAKE PAD WEAR LIMIT INDICATORS
The brake pad wear limit indicators on your disc brakes
give a warning noise when the brake pads are worn to the
extent that replacement is required.
If you hear a squealing or scraping noise while driving, have the
brake pads checked and replaced by your Lexus dealer as
soon as possible. Expensive rotor damage can result if the
pads are not replaced when needed.

DRIVING TIPS
469
When driving offroad or in rugged terrain, do not
drive at excessive speeds, jump, make sharp turns,
strike objects, etc. This may cause loss of control or
vehicle rollover causing death or serious injury. You
are also risking expensive damage to your vehicle’s
suspension and chassis.
 Do not drive horizontally across steep slopes.
Driving straight up or straight down is preferred.
Your vehicle (or any similar offroad vehicle) can tip
over sideways much more easily than forward or
backward.BREAKIN PERIOD
Drive gently and avoid high speeds.
You need not follow a break− in schedule with your new Lexus.
But following a few simple tips for the first 1600 km (1000 miles)
can add to the future economy and long life of your vehicle:
 Avoid full throttle acceleration when starting and driving.
 Avoid racing the engine.
 Try to avoid hard stops during the first 300 km (200 miles).
 Do not drive for a long time at any single speed, either fast
or slow.
 Do not tow a trailer during the first 800 km (500 miles).

DRIVING TIPS
485
Trailer towing tips
When towing a trailer, your vehicle will handle differently
than when not towing. The three main causes of
vehicletrailer accidents are driver error, excessive speed
and improper trailer loading. Keep these in mind when
towing:
 Before starting out, check the operation of the lights and all
vehicle −trailer connections. After driving a short distance,
stop and recheck the lights and connections. Practice
turning, stopping and backing with a trailer in an area away
from traffic until you learn the feel.
 Backing with a trailer is difficult and requires practice. Grip
the bottom of the steering wheel and move your hand to the
left to move the trailer to the left. Move your hand to the right
to move the trailer to the right. (This procedure is generally
opposite to that when backing without a trailer.) Also, just
turn the steering wheel a little at a time, avoiding sharp or
prolonged turning. Have someone guide you when backing
to reduce the risk of an accident.
 Because stopping distance may be increased,
vehicle −to−vehicle distance should be increased when
towing a trailer. For each 16 km/h (10 mph) of speed, allow
at least one vehicle and trailer length between you and the
vehicle ahead. Avoid sudden braking as you may skid,
resulting in jackknifing and loss of control. This is especially
true on wet or slippery surfaces.
Avoid jerky starts or sudden acceleration.
 Avoid jerky steering and sharp turns. The trailer could hit
your vehicle in a tight turn. Slow down before making a turn
to avoid the need of sudden braking.
 Remember that when making a turn, the trailer wheels will
be closer than the vehicle wheels to the inside of the turn.
Therefore, compensate for this by making a larger than
normal turning radius with your vehicle.
 Crosswinds and rough roads will adversely affect handling
of your vehicle and trailer, causing sway. Pay attention to
the rear from time to time to prepare yourself for being
passed by large trucks or buses, which may cause your
vehicle and trailer to sway. If swaying happens, firmly grip
the steering wheel and reduce speed immediately but
gradually. Never increase speed. If it is necessary to
reduce speed, brake slowly. Steer straight ahead. If you
make no extreme correction with the steering or brakes,
your vehicle and trailer will stabilize.
 Be careful when passing other vehicles. Passing requires
considerable distance. After passing a vehicle, do not forget
the length of your trailer and be sure you have plenty of room
before changing lanes.
 In order to maintain efficient engine braking and electrical
charging performance, do not use overdrive. Transmission
must be “4” position (with standard type) or the shift range
position must be “4” (fourth range) in “S” mode (with
multi−mode type).

DRIVING TIPS
486
Because of the added load of the trailer, your vehicle’s
engine may overheat on hot days (at temperatures over
30C [85 F]) when going up a long or steep grade with a
trailer. If the engine coolant temperature gauge indicates
overheating, immediately turn off the air conditioning (if in
use), pull your vehicle off the road and stop in a safe spot.
See “If your vehicle overheats” on page 499 of this manual.
 Always place wheel blocks under both the vehicle and trailer
wheels when parking. Apply the parking brake firmly. Put
the transmission in “P”. Avoid parking on a slope with a
trailer, but if it cannot be avoided, do so only after performing
the following:
1. Apply the brakes and keep them applied.
2. Have someone place wheel blocks under both the vehicle
and trailer wheels.
3. When the wheel blocks are in place, release your brakes
slowly until the blocks absorb the load.
4. Apply the parking brake firmly.
5. Shift into “P” and turn off the engine. When restarting out after parking on a slope:
1. With the transmission in “P” position, start the engine. Be
sure to keep the brake pedal depressed.
2. Shift into the following position.
With automatic transmission (standard type) —
Shift into the “3”, “2”, “L” or “R” position.
With automatic transmission (multi
−mode type) —
Shift into the “3” (third range), “2” (second range), “\
1” (first
range) or “R” position.
3. Release the parking brake and brake pedal and slowly pull
or back away from the wheel blocks. Stop and apply your
brakes.
4. Have someone retrieve the blocks.

IN CASE OF AN EMERGENCY
495
NOTICE
Do not pull or pushstart the vehicle. It may damage
the vehicle or cause a collision when the engine starts.
Also the threeway catalytic converter may overheat
and become a fire hazard.
If the engine turns over at its normal speed but will not
start —
1. Turn the ignition key to “ACC” or “LOCK” and try starting the
engine again.
2. If the engine will not start, the engine may be flooded
because of repeated cranking. See “(b) Starting a flooded
engine” for further instructions.
3. If the engine still will not start, it needs adjustment or repair.
Call a Lexus dealer, Roadside Assistance or Customer
Service. (See “Foreword”.)
(b) Starting a flooded engine
If the engine will not start, your engine may be flooded
because of repeated cranking.
If this happens, turn the key to “START” with the accelerator
pedal fully depressed. Continue this operation for 30 seconds
and then stop cranking. Then try starting the engine with your
foot off the accelerator pedal.
If the engine does not start after 30 seconds of cranking,
release the key, wait a few minutes and try again.
If the engine still will not start, it needs adjustment or repair.
Call a Lexus dealer, Roadside Assistance or Customer
Service. (See “Foreword”.)
NOTICE
Do not crank for more than 30 seconds at a time. This
may overheat the starter and wiring systems.

IN CASE OF AN EMERGENCY
501
CAUTION
When jacking, be sure to observe the following
to reduce the possibility of personal injury:
Follow jacking instructions.
 Do not put any part of your body under a
vehicle supported by a jack. Otherwise,
personal injury may occur.
 Do not start or run the engine while your
vehicle is supported by the jack.
 Stop the vehicle on a level firm ground, firmly
set the parking brake and put the
transmission in “P”. Block the wheel
diagonally opposite to the one being changed
if necessary.
Make sure to set the jack properly in the jack
point. Raising the vehicle with jack
improperly positioned will damage the vehicle
or may allow the vehicle to fall off the jack
and cause personal injury.
 Never get under the vehicle when the vehicle
is supported by the jack alone.
 Use the jack only for lifting your vehicle
during wheel changing.
 Do not raise the vehicle with someone in the
vehicle.
 When raising the vehicle, do not place any
objects on top of or underneath the jack.
 Raise the vehicle only high enough to remove
and change the tire.
 Vehicles with electronically modulated air
suspension: When jacking up, be sure to turn
off the height control and stop the engine.
Otherwise, the vehicle height may change in
the automatic leveling function, resulting in
an unexpected accident. For details, see
page 446.

INTRODUCTION
545

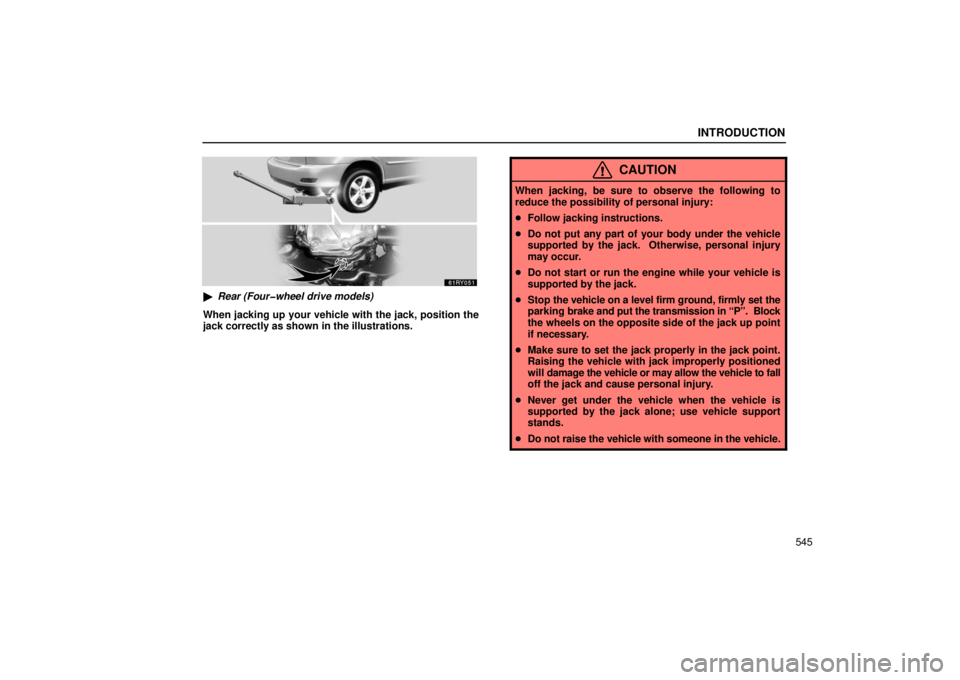

Rear (Fourwheel drive models)
When jacking up your vehicle with the jack, position the
jack correctly as shown in the illustrations.
CAUTION
When jacking, be sure to observe the following to
reduce the possibility of personal injury:
 Follow jacking instructions.
 Do not put any part of your body under the vehicle
supported by the jack. Otherwise, personal injury
may occur.
 Do not start or run the engine while your vehicle is
supported by the jack.
 Stop the vehicle on a level firm ground, firmly set the
parking brake and put the transmission in “P”. Block
the wheels on the opposite side of the jack up point
if necessary.
 Make sure to set the jack properly in the jack point.
Raising the vehicle with jack improperly positioned
will damage the vehicle or may allow the vehicle to fall
off the jack and cause personal injury.
 Never get under the vehicle when the vehicle is
supported by the jack alone; use vehicle support
stands.
 Do not raise the vehicle with someone in the vehicle.

ENGINE
553
Gasoline quality
In a very few cases, you may experience driveability problems
caused by the particular gasoline that you are using. If you
continue to have unacceptable driveability, try changing
gasoline brands. If this does not rectify your problem, then
consult your Lexus dealer.
NOTICE
 Do not use gasohol other than stated above. It will
cause fuel system damage or vehicle performance
problems.
 If drivability problems are encountered (poor hot
starting, vaporizing, engine knock, etc.), discontinue
its use.
 Take care not to spill gasohol during refueling.
Gasohol may cause paint damage.
Fuel tank capacity
72.5 L (19.2 gal., 15.9 Imp. gal.)
FUEL PUMP SHUT OFF SYSTEM
The fuel pump shut off system stops supplying fuel to the
engine to minimize the risk of fuel leakage when the engine
stalls or an airbag inflates upon collision. To restart the engine
after the fuel pump shut off system activates, turn the ignition
switch to “ACC” or “LOCK” once and start it.
CAUTION
Inspect the ground under the vehicle before restarting
the engine. If you find that liquid has leaked onto the
ground, it is the fuel system has been damaged and it is
in need of repair. In this case, do not restart the engine.
