2006 LEXUS RX330 display

STEERING WHEEL AND MIRRORS
238Leaving the system after the calibration for several seconds,
the direction will appear on the display. It shows the zone
number is set.
CAUTION
Do not adjust the display while the vehicle is moving.
Be sure to adjust the display only when the vehicle is
stopped.
Calibrating the compass (circling calibration)
To rectify the compass, stop the vehicle and push and hold the
“COMP” switch until “C” appears on the display.
There is also a case that “C” appears on the display in case of
a drastic change in the magnetic field.

STEERING WHEEL AND MIRRORS
239
Drive the vehicle slowly (at 8 km/h [5 mph] or lower) in a circle
until the direction is displayed. If there is not enough space to
drive in a circle, drive around the block until the direction is
displayed.
After driving in 1 to 3 circles in the above method, calibration
is complete with the direction shown on the display. Perform
circling calibration just after you have purchased
your Lexus. And then always perform circling calibration
after the battery has been removed, replaced or
disconnected.
 Do not perform circling calibration of the compass in a place
where the earth’s magnetic field is subject to interference by
artificial magnetic fields (underground parking, under a steel
tower, between buildings, roof parking, near a crossing,
near a large vehicle, etc.).
 During calibration, do not operate electric systems (moon
roof, power windows, etc.) as they may interfere with the
calibration.

STEERING WHEEL AND MIRRORS
240
CAUTION
When doing the circling calibration, be sure to secure
a wide space, and watch out for people and vehicles
in the neighborhood. Do not violate any local traffic
rules while performing circling calibration.
 Do not adjust the display while the vehicle is moving.
Be sure to adjust the display only when the vehicle is
stopped.
VANITY MIRRORS
To use the vanity mirror, swing the sun visor down and
open the cover.
The vanity light comes on when you open the cover.
To adjust the brightness of the vanity light, slide the knob.

AIR CONDITIONING
242
AUTOMATIC AIR CONDITIONING CONTROLS
You can adjust the brightness of the display. See “Multidisplay light control” on page 91 for details.

AIR CONDITIONING
243
The automatic air conditioning automatically maintains
the set temperature.
In the automatic operation mode, the air conditioning selects
the most suitable fan speed, air flow, air intake and on−
off the
air conditioning according to the temperature.
The ignition key must be in the “ON” position.
NOTICE
To prevent the battery from being discharged, do not
leave the air conditioning on longer than necessary
when the engine is not running.

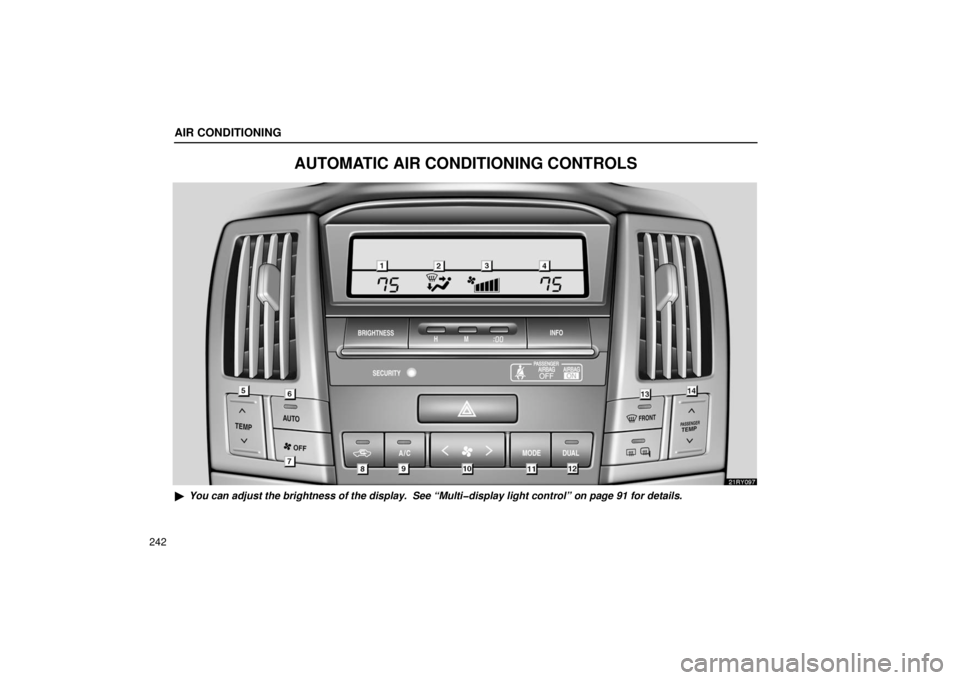

1Driver side temperature display (in degrees
Fahrenheit or Centigrade)
2Air flow display
3Fan speed display
4Passenger side temperature display (in degrees
Fahrenheit or Centigrade)
5“TEMP” (driver side temperature control) button
(At the independent mode that display shows
“DUAL”; mainly for driver and secondarily for
front passenger)
(At the linked mode that display does not show
“DUAL”; for driver)
6“AUTO” button
7“OFF” button
8Air intake control button
9“A/C” button
10Fan speed control button
11“MODE”(air flow control) button
12“DUAL” (temperature setting mode change) button
13Windshield air flow button
14“PASSENGER TEMP” (passenger side temperature
control) button
(Only for the independent mode that display
shows “DUAL”; mainly for front passenger and
secondarily for driver)

AUDIO
262
AUDIO SYSTEM (with singleCD player)
Quick reference for your audio system
You can adjust the brightness of the display. See “Instrument panel light control” on page 90 for details.


AUDIO
263
1Radio mode:Scan tuning
(See page 271 for details.)
CD mode: Scan selection
(See page 279 for details.)
2Ejecting a CD
(See page 277 for details.)
3CD slot
(See page 277 for details.)
4Display of functions in TAPE or CD mode
RAND: Random access
(See page 280 for details.)
RPT: Automatic repeat
(See page 276 or 280 for details.)
:DOLBY NR
(See page 275 for details.)
: Side change
(See page 275 for details.)
 : Rewinding or reversing
(See page 275 or 279 for details.)
 : Fast forwarding
(See page 275 or 279 for details.)
5Station selector and function buttons
(See page 270 for details.)
6MUTE button
(See page 265 for details.)
7Traffic announcement
(See page 273 for details.)
8Program type
(See page 272 for details.)
9TUNE/AUDIO CONTROL knob
(See page 267 for details.)
10Radio mode: Radio text message
(See page 273 for details.)
CD mode: CD text
(See page 281 for details.)
11Mode selectors
(See page 265 for details.)
12Cassette tape slot
(See page 274 for details.)
13Stopping and ejecting a cassette tape
(See page 274 for details.)
14Turning the system on and adjusting the volume
(See page 264 for details.)
15Radio mode:Seek tuning
(See page 271 for details.)
TAPE mode: Direct access to a desired program
(See page 276 for details.)
CD mode: Direct access to a desired track
(See page 279 for details.)

AUDIO
266Vehicles with rear seat entertainment system —
The “DISC” button may also be used to operate a DVD player
when a
disc is loaded in the DVD player. Pressing the “DISC”
button changes between the CD player and DVD player. When
the DVD player is in operation, “AUX” appears on the display.
In the “TAPE” or “CD” mode, the applicable functions are
shown in the lowest part of the display. Push the switch
just below to turn on each function.
(b) Adjusting audio sounds
Your audio system can adjust tone and sound balance
or select the listening seat position.
How good an audio program sounds to you is largely
determined by the mix of the treble, mid−range, and bass
levels. In fact, different kinds of music and vocal programs
usually sound better with different mixes of treble, mid −range
and bass.
