2006 INFINITI QX56 sensor

DTC P0117, P0118 ECT SENSOREC-195
C
DE
F
G H
I
J
K L
M A
EC
Revision: November 2009 2006 QX56
Diagnostic ProcedureUBS00H1N
1. CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten three ground screws on the body. Refer to EC-150, "
Ground Inspection" .
OK or NG
OK >> GO TO 2.
NG >> Repair or replace ground connections.
2. CHECK ECT SENSOR POWER SUPPLY CIRCUIT
1. Disconnect engine coolant temperature (ECT) sensor harness connector.
2. Turn ignition switch ON.
3. Check voltage between ECT sensor terminal 1 and ground with CONSULT-II or tester.
OK or NG
OK >> GO TO 4.
NG >> GO TO 3.
3. DETECT MALFUNCTIONING RART
Check the following.

Harness connector F26, F101

Harness for open or short between ECM and engine coolant temperature sensor
>> Repair open circuit or short to ground or short to power in harness or connectors.
BBIA0354E
Voltage: Approximately 5V
BBIA0370E
PBIB0080E

EC-196Revision: November 2009
DTC P0117, P0118 ECT SENSOR
2006 QX56
4. CHECK ECT SENSOR GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between ECT sensor terminal 2 and ECM terminal 67. Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 6.
NG >> GO TO 5.
5. DETECT MALFUNCTIONING PART
Check the following.

Harness connector F26, F101

Harness for open and short between ECT sensor and ECM
>> Repair open circuit or short to ground or short to power in harness or connectors.
6. CHECK ENGINE COOLANT TEMPERATURE SENSOR
Refer to EC-196, "
Component Inspection" .
OK or NG
OK >> GO TO 7.
NG >> Replace engine coolant temperature sensor.
7. CHECK INTERMITTENT INCIDENT
Refer to EC-144, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>> INSPECTION END
Component InspectionUBS00H1O
ENGINE COOLANT TEMPERATURE SENSOR
1. Check resistance between engine coolant temperature sensor
terminals 1 and 2 as shown in the figure.Continuity should exist.
PBIB2005E

DTC P0117, P0118 ECT SENSOREC-197
C
DE
F
G H
I
J
K L
M A
EC
Revision: November 2009 2006 QX56

2. If NG, replace engine coolant temperature sensor.
Removal and InstallationUBS00H1P
ENGINE COOLANT TEMPERATURE SENSOR
Refer to EM-63, "CYLINDER HEAD" .
Engine coolant temperature °C (°F) Resistance kΩ
20 (68) 2.1 - 2.9
50 (122) 0.68 - 1.00
90 (194) 0.236 - 0.260
SEF012P

EC-198Revision: November 2009
DTC P0122, P0123 TP SENSOR
2006 QX56
DTC P0122, P0123 TP SENSORPFP:16119
Component DescriptionUBS00H1Q
Electric throttle control actuator consists of throttle control motor,
throttle position sensor, etc. The throttle position sensor responds to
the throttle valve movement.
The throttle position sensor has the two sensors. These sensors are
a kind of potentiometers which transform the throttle valve position
into output voltage, and emit the voltage signal to the ECM. In addi-
tion, these sensors detect the opening and closing speed of the
throttle valve and feed the voltage signals to the ECM. The ECM
judges the current opening angle of the throttle valve from these sig-
nals and the ECM controls the throttle control motor to make the
throttle valve opening angle properly in response to driving condi-
tion.
CONSULT-II Reference Value in Data Monitor ModeUBS00H1R
Specification data are reference values.
*: Throttle position sensor 2 signal is converted by ECM internally. Thus, it differs from ECM terminal voltage signal.
On Board Diagnosis LogicUBS00H1S
These self-diagnoses have the one trip detection logic.
FAIL-SAFE MODE
When the malfunction is detected, ECM enters fail-safe mode and the MIL lights up.
PBIB0145E
MONITOR ITEMCONDITION SPECIFICATION
THRTL SEN 1
THRTL SEN 2*

Ignition switch: ON
(Engine stopped)

Selector lever: D Accelerator pedal: Fully released More than 0.36V
Accelerator pedal: Fully depressed Less than 4.75V
DTC No. Trouble diagnosis name
DTC detecting condition Possible cause
P0122
0122 Throttle position sensor
2 circuit low input An excessively low voltage from the TP sensor
2 is sent to ECM.

Harness or connectors
(TP sensor 2 circuit is open or shorted.)
(APP sensor 2 circuit is shorted.)

Electric throttle control actuator
(TP sensor 2)

Accelerator pedal position sensor
(APP sensor 2)
P0123
0123
Throttle position sensor
2 circuit high input An excessively high voltage from the TP sen-
sor 2 is sent to ECM.
Engine operation condition in fail-safe mode
The ECM controls the electric throttle control actuator in regulating the throttle opening in order for the idle position to be within +10
degrees.
The ECM regulates the opening speed of the throttle valve to be slower than the normal condition.
So, the acceleration will be poor.

DTC P0122, P0123 TP SENSOREC-199
C
DE
F
G H
I
J
K L
M A
EC
Revision: November 2009 2006 QX56
DTC Confirmation ProcedureUBS00H1T
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 8V at idle.
WITH CONSULT-II
1. Turn ignition switch ON.
2. Select “DATA MONITOR ” mode with CONSULT-II.
3. Start engine and let it idle for 1 second.
4. If DTC is detected, go to EC-201, "
Diagnostic Procedure" .
WITH GST
Follow the procedure “WITH CONSULT-II” above.
SEF058Y

EC-200Revision: November 2009
DTC P0122, P0123 TP SENSOR
2006 QX56

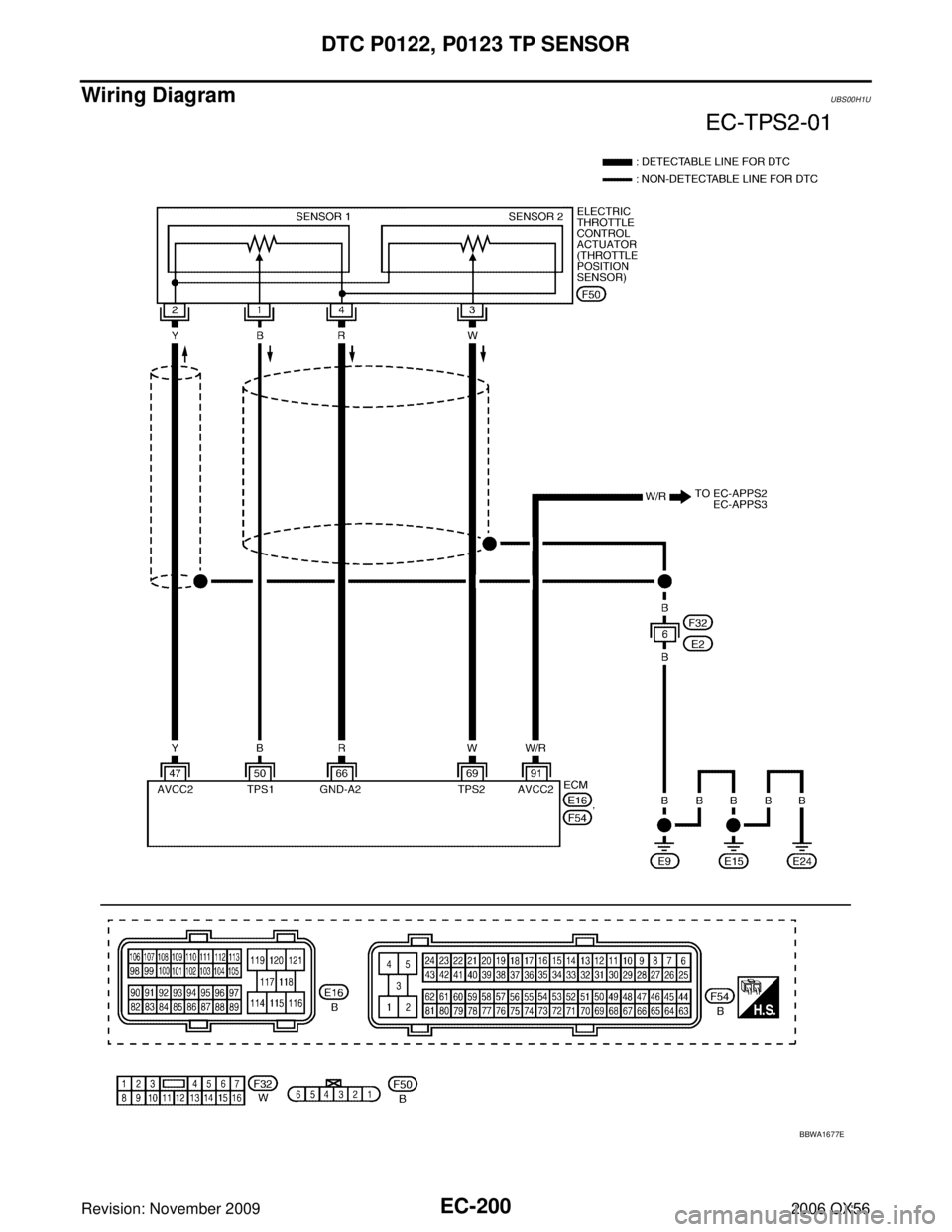

Wiring DiagramUBS00H1U
BBWA1677E

DTC P0122, P0123 TP SENSOREC-201
C
DE
F
G H
I
J
K L
M A
EC
Revision: November 2009 2006 QX56
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
Diagnostic ProcedureUBS00H1V
1. CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten three ground screws on the body. Refer to EC-150, "
Ground Inspection" .
OK or NG
OK >> GO TO 2.
NG >> Repair or replace ground connections.
TER-
MINAL NO. WIRE
COLOR ITEM
CONDITION DATA (DC Voltage)
47 Y Sensor power supply
(Throttle position sensor) [Ignition switch: ON]
Approximately 5V
50 B Throttle position sensor 1 [Ignition switch: ON]

Engine: Stopped

Selector lever: D

Accelerator pedal: Fully released
More than 0.36V
[Ignition switch: ON]

Engine: Stopped

Selector lever: D

Accelerator pedal: Fully depressed Less than 4.75V
66 R Sensor ground
(Throttle position sensor) [Engine is running]

Warm-up condition

Idle speed
Approximately 0V
69 W Throttle position sensor 2 [Ignition switch: ON]

Engine: Stopped

Selector lever: D

Accelerator pedal: Fully released
Less than 4.75V
[Ignition switch: ON]

Engine: Stopped

Selector ever: D

Accelerator pedal: Fully depressed More than 0.36V
91 W/R Sensor power supply
(APP sensor 2) [Ignition switch: ON]
Approximately 5V
BBIA0354E

EC-202Revision: November 2009
DTC P0122, P0123 TP SENSOR
2006 QX56
2. CHECK THROTTLE POSITION SENSOR 2 POWER SUPPLY CIRCUIT-I
1. Disconnect electric throttle control actuator harness connector.
2. Turn ignition switch ON.
3. Check voltage between electric throttle control actuator terminal 2 and ground with CONSULT-II or tester.
OK or NG
OK >> GO TO 7.
NG >> GO TO 3.
3. CHECK THROTTLE POSITION SENSOR 2 POWER SUPPLY CIRCUIT-II
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between electric throttle control actuator terminal 2 and ECM terminal 47. Refer to Wiring Diagram.
OK or NG
OK >> GO TO 4.
NG >> Repair or replace open circuit.
4. CHECK THROTTLE POSITION SENSOR 2 POWER SUPPLY CIRCUIT-III
Check harness for short to power and short to ground, between the following terminals.
OK or NG
OK >> GO TO 5.
NG >> Repair short to ground or short to power in harness or connectors.
5. CHECK ACCELERATOR PEDAL POSITION SENSOR
Refer to EC-574, "
Component Inspection" .
OK or NG
OK >> GO TO 11.
NG >> GO TO 6.
PBIB1480E
Voltage: Approximately 5V
PBIB2065E
Continuity should exist.
ECM terminal Sensor terminal Reference Wiring Diagram
47 Electric throttle control actuator terminal 2 EC-200
91APP sensor terminal 6 EC-569
