LT-150
INTERIOR ROOM LAMP
Revision: November 20092006 QX56
4. Touch "INT LAMP" on "SELECT TEST ITEM" screen.
WORK SUPPORT
Operation Procedure
1. Touch "INT LAMP" on "SELECT TEST ITEM" screen.
2. Touch "WORK SUPPORT" on "SELECT DIAG MODE" screen.
3. Touch "SET I/L D-UNLCK INTCON" on "SELECT WORK ITEM" screen.
4. Touch "START".
5. Touch "CHANGE SETT".
6. The setting will be changed and "CUSTOMIZING COMPLETED" will be displayed.
7. Touch "END".
Display Item List
Reference between "MODE" and "TIME" for "TURN ON/OFF".
DATA MONITOR
Operation Procedure
1. Touch "INT LAMP" on "SELECT TEST ITEM" screen.
2. Touch "DATA MONITOR" on "SELECT DIAG MODE" screen.
3. Touch either "ALL SIGNALS" or "SELECTION FROM MENU" on "SELECT MONITOR ITEM" screen.
4. Touch "START".
5. When "SELECTION FROM MENU" is selected, touch items to be monitored. When "ALL SIGNALS" is
selected, all the items will be monitored.
6. Touch "RECORD" while monitoring, then the status of the monitored item can be recorded. To stop recording, touch "STOP".
PKIA5226E
Item Description CONSULT-II
SET I/L D-UNLCK INTCON The 30 seconds operating function of the interior room lamps and the
ignition keyhole illumination can be selected when front door LH is
released (unlocked). ON/OFF
ROOM LAMP ON TIME SET The time in order to escalate illumination can be adjusted when the
interior room lamps and the ignition keyhole illumination is turned on. MODE 1 - 7
ROOM LAMP OFF TIME SET The time in order to diminish illumination can be adjusted when the
interior room lamps and the ignition keyhole illumination is turned off. MODE 1 - 7
MODE 1 2 3 4 5 6 7
Time (sec.) 0.5 1 2 3 4 5 0
All signals Monitors all the signals.
Selection from menu Selects and monitors the individual signal.

INTERIOR ROOM LAMPLT-151
C
DE
F
G H
I
J
L
M A
B
LT
Revision: November 2009 2006 QX56
Display Item List
ACTIVE TEST
Operation Procedure
1. Touch "INT LAMP" on "SELECT TEST ITEM" screen.
2. Touch "ACTIVE TEST" on "SELECT DIAG MODE" screen.
3. Touch item to be tested and check operation of the selected item.
4. During the operation check, touching "BACK" or "OFF" deactivates the operation.
Display Item List
Room/Map Lamp Control Does Not OperateEKS00BBD
1. CHECK EACH SWITCH
Select "BCM" on CONSULT-II. With "INT LAMP" data monitor, make
sure switches listed in display item list turn ON-OFF linked with
switch operation. Refer to LT- 1 5 1 , "
Display Item List" for switches
and their functions.
OK or NG
OK >> GO TO 2.
NG >> Inspect malfunctioning switch system.
Monitor item Contents
IGN ON SW "ON/OFF"Displays "IGN position (ON)/OFF, ACC position (OFF)" judged from the ignition switch sig-
nal.
KEY ON SW "ON/OFF" Displays "Key inserted (ON)/key removed (OFF)" status judged from the key switch signal.
DOOR SW-DR "ON/OFF"Displays status of the front door LH as judged from the front door switch LH signal. (Door is
open: ON/Door is closed: OFF)
DOOR SW-AS "ON/OFF"Displays "Door open (ON)/Door closed (OFF)" status, determined from front door switch RH
signal.
DOOR SW-RR "ON/OFF"Displays "Door open (ON)/Door closed (OFF)" status, determined from rear door switch RH
signal.
DOOR SW-RL "ON/OFF"Displays "Door open (ON)/Door closed (OFF)" status, determined from rear door switch LH
signal.
BACK DOOR SW "ON/OFF" Displays "Door open (ON)/Door closed (OFF)" status, determined from back door latch
(door ajar switch) signal.
KEY CYL LK-SW "ON/OFF" Displays "Door locked (ON)" status, determined from front door lock assembly LH (key cylin-
der switch) in front door LH.
KEY CYL UN-SW "ON/OFF" Displays "Door unlocked (OFF)" status, determined from front door lock assembly LH (key
cylinder switch) in front door LH.
CDL LOCK SW "ON/OFF"Displays "Door locked (ON)/Door unlocked (OFF)" status, determined from locking detection
switch in front door LH.
CDL UNLOCK SW "ON/OFF" Displays "Door unlocked (OFF)" status, determined from locking detection switch in front
door RH.
KEYLESS LOCK "ON/OFF" Displays "Locked (ON)/Other (OFF)" status, determined from lock signal.
KEYLESS UNLOCK "ON/OFF" Displays "Unlocked (ON)/Other (OFF)" status, determined from unlock signal.
Test item Description
INT LAMP Interior room lamp can be operated by any ON-OFF operations.
IGN ILLUM Ignition keyhole illumination can be operated by ON-OFF operation.
SKIA5930E

INTERIOR ROOM LAMPLT-153
C
DE
F
G H
I
J
L
M A
B
LT
Revision: November 2009 2006 QX56
Personal Lamp Control Does Not Operate (Room/Map Lamps Operate)EKS00BBE
1. CHECK EACH DOOR SWITCH
Select "BCM" on CONSULT-II. With "INT LAMP" data monitor, make
sure switches listed in display item list turn ON-OFF linked with
switch operation. Refer to LT- 1 3 6 , "
SWITCH OPERATION" for
switches and their function.
OK or NG
OK >> GO TO 2.
NG >> Inspect malfunctioning door switch.
2. CHECK PERSONAL LAMP OUTPUT
1. Turn ignition switch OFF.
2. Confirm lamp switch is in the DOOR position.
3. Disconnect personal lamp connector.
4. Open any door.
5. Check voltage between personal lamp harness connector termi- nal 3 and ground.
OK or NG
OK >> GO TO 3.
NG >> Repair harness or connector.
3. CHECK PERSONAL LAMP CONTROL CIRCUIT
1. Disconnect front room/map lamp assembly connector.
2. Check continuity between front room/map lamp assembly har- ness connector R102 terminal 2 and personal lamp harness
connector terminal 1.
OK or NG
OK >> Replace personal lamp.
NG >> Repair harness or connector.
SKIA5930E
3 - Ground : Battery voltage should exist.
WKIA1482E
2 - 1 : Continuity should exist.
WKIA1908E

LT-154
INTERIOR ROOM LAMP
Revision: November 20092006 QX56
All Step/Foot/Puddle Lamps Do Not OperateEKS00BBF
1. CHECK EACH DOOR SWITCH
Select "BCM" on CONSULT-II. With "INT LAMP" data monitor, make
sure switches listed in display item list turn ON-OFF linked with
switch operation. Refer to LT- 1 5 1 , "
Display Item List" for switches
and their functions.
OK or NG
OK >> GO TO 2.
NG >> Inspect malfunctioning switch system.
2. CHECK STEP LAMP POWER SUPPLY
1. Turn ignition switch OFF.
2. Check voltage between front step lamp LH harness connector D11 terminal + and ground.
OK or NG
OK >> GO TO 3.
NG >> GO TO 4.
3. CHECK STEP LAMP CONTROL CIRCUIT
1. Disconnect BCM connector and front step lamp LH connector.
2. Check continuity between BCM harness connector M20 terminal 62 and front step lamp LH harness connector D11 terminal –.
OK or NG
OK >> Replace BCM if front step lamp does not work after set- ting the connector again. Refer to BCS-20, "
BCM" .
NG >> Repair harness or connector.
4. CHECK STEP LAMP CIRCUIT
1. Disconnect BCM connector and front step lamp LH connector.
2. Check continuity between BCM harness connector M20 terminal 56 and front step lamp LH harness connector D11 terminal +.
OK or NG
OK >> Replace BCM if front step lamp does not work after set- ting the connector again. Refer to BCS-20, "
BCM" .
NG >> Repair harness or connector.
SKIA5930E
+ - Ground : Battery voltage should exist.
LKIA0306E
– - 62 : Continuity should exist.
WKIA1484E
+ - 56: Continuity should exist.
WKIA1485E

INTERIOR ROOM LAMPLT-155
C
DE
F
G H
I
J
L
M A
B
LT
Revision: November 2009 2006 QX56

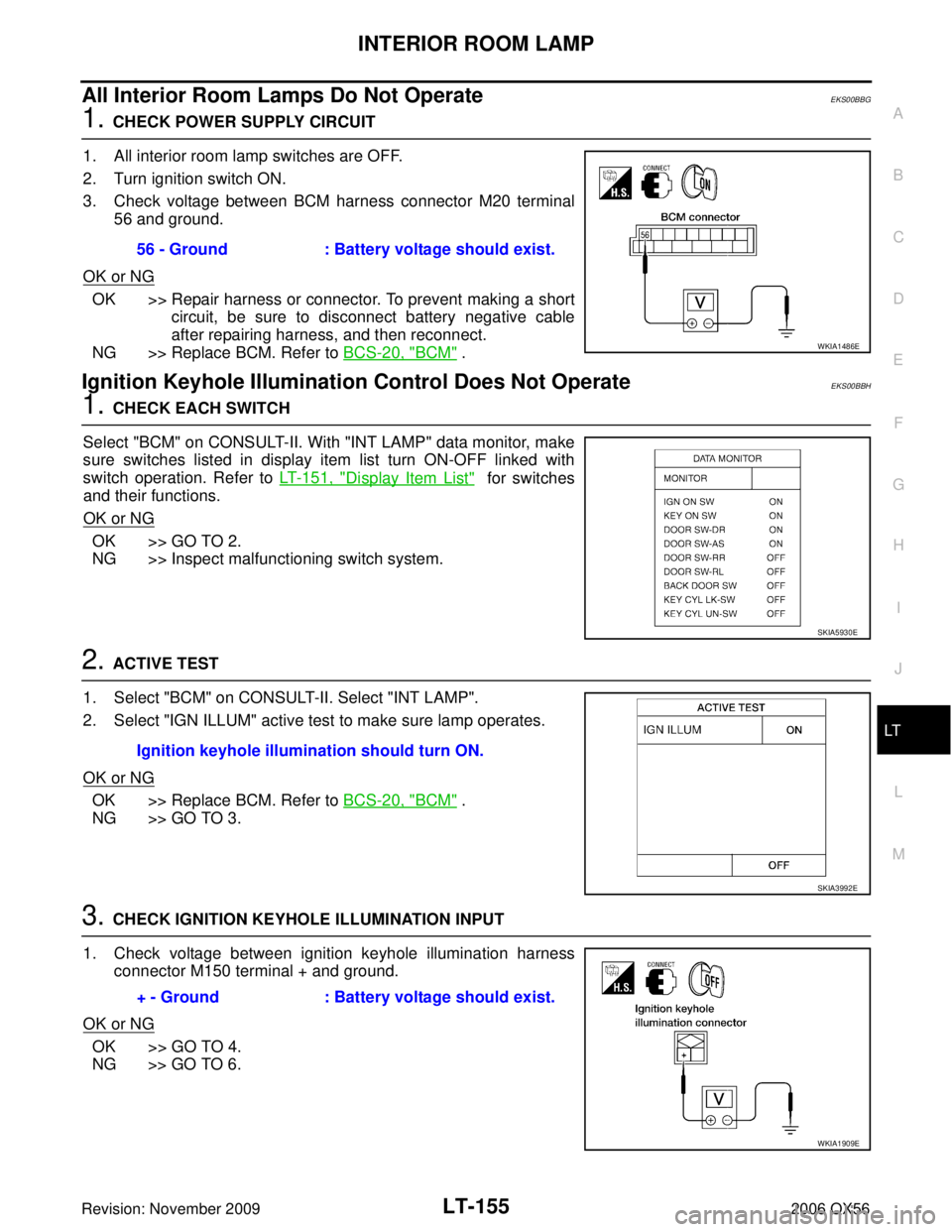

All Interior Room Lamps Do Not OperateEKS00BBG
1. CHECK POWER SUPPLY CIRCUIT
1. All interior room lamp switches are OFF.
2. Turn ignition switch ON.
3. Check voltage between BCM harness connector M20 terminal 56 and ground.
OK or NG
OK >> Repair harness or connector. To prevent making a short circuit, be sure to disconnect battery negative cable
after repairing harness, and then reconnect.
NG >> Replace BCM. Refer to BCS-20, "
BCM" .
Ignition Keyhole Illumination Control Does Not OperateEKS00BBH
1. CHECK EACH SWITCH
Select "BCM" on CONSULT-II. With "INT LAMP" data monitor, make
sure switches listed in display item list turn ON-OFF linked with
switch operation. Refer to LT- 1 5 1 , "
Display Item List" for switches
and their functions.
OK or NG
OK >> GO TO 2.
NG >> Inspect malfunctioning switch system.
2. ACTIVE TEST
1. Select "BCM" on CONSULT-II. Select "INT LAMP".
2. Select "IGN ILLUM" active test to make sure lamp operates.
OK or NG
OK >> Replace BCM. Refer to BCS-20, "BCM" .
NG >> GO TO 3.
3. CHECK IGNITION KEYHOLE ILLUMINATION INPUT
1. Check voltage between ignition keyhole illumination harness connector M150 terminal + and ground.
OK or NG
OK >> GO TO 4.
NG >> GO TO 6. 56 - Ground
: Battery voltage should exist.
WKIA1486E
SKIA5930E
Ignition keyhole illumination should turn ON.
SKIA3992E
+ - Ground: Battery voltage should exist.
WKIA1909E

LT-158
ILLUMINATION
Revision: November 20092006 QX56

to combination meter terminal 8
With the ignition switch in the ON or START position, power is supplied

to ignition relay, located in the IPDM E/R, and

through 10A fuse (No. 59, located in the fuse and relay box)

to BCM terminal 38, and

through 10A fuse [No. 14, located in the fuse block (J/B)]

to combination meter terminal 24.
Ground is supplied

to BCM terminal 67 and

to combination meter terminal 17

through grounds M57, M61 and M79, and

to IPDM E/R terminals 38 and 59

through grounds E9, E15 and E24.
ILLUMINATION OPERATION BY LIGHTING SWITCH
With the lighting switch in the 1ST or 2ND position (or if the auto light system is activated), the BCM receives
input signal requesting the illumination lamps to illuminate. This input signal is communicated to the IPDM E/R
across the CAN communication lines. The CPU of the IPDM E/R controls the tail lamp relay coil, which, when
energized, directs power

through 10A fuse (No. 36, located in the IPDM E/R)

through IPDM E/R terminal 49

to illumination control switch terminal 1

to power liftgate switch terminal 3

to front room/map lamp assembly (console box illumination) terminal 7

to hazard switch terminal 3

to rear sonar system OFF switch terminal 3

to glove box lamp terminal 1

to display control unit terminal 14

to 4WD shift switch terminal 7 (with 4-wheel drive)

to front air control terminal 23

to rear power vent window switch terminal 5

to DVD player terminal 12 (with DVD entertainment system)

to NAVI control unit terminal 61

to pedal adjusting switch terminal 5

to electric brake (pre-wiring) terminal 4 (with trailer tow)

to front and rear heated seat switch LH and RH terminal 5

to A/T device terminal 11

to VDC OFF switch terminal 3

to tow mode switch terminal 3

to headlamp aiming switch terminal 3

to clock terminal 3, and

through 10A fuse (No. 37, located in the IPDM E/R)

through IPDM E/R terminal 57

to AV switch terminal 3

to audio unit terminal 8

to rear air control terminal 1 and

to rear audio remote control unit terminal 6.
Illumination is controlled

through illumination control switch terminal 2

to power liftgate switch terminal 4

ILLUMINATIONLT-159
C
DE
F
G H
I
J
L
M A
B
LT
Revision: November 2009 2006 QX56

to front room/map lamp assembly (console box illumination) terminal 8

to AV switch terminal 4

to hazard switch terminal 4

to audio unit terminal 7

to rear sonar system OFF switch terminal 4

to 4WD switch terminal 8 (with 4-wheel drive)

to front air control terminal 24

to rear power vent window switch terminal 6

to DVD player terminal 10 (with DVD entertainment system)

to pedal adjusting switch terminal 6

to A/T device terminal 12

to front heated seat switch LH and RH terminal 6

to VDC OFF switch terminal 4

to tow mode switch terminal 4

to headlamp aiming switch terminal 4

to clock terminal 4 and

to combination meter terminal 18.
Ground is supplied

to illumination control switch terminal 3

to glove box lamp terminal 2

to display control unit terminal 3

to rear heated seat switches terminal 6

to electric brake (pre-wiring) terminal 1 (with trailer tow) and

to compass and thermometer terminal 7

through grounds M57, M61 and M79, and

to NAVI control unit terminal 1

to rear air control terminal 3 and

to rear audio remote control unit terminal 15

through grounds B117 and B132.
With power and ground supplied, illumination lamps illuminate.
EXTERIOR LAMP BATTERY SAVER CONTROL
When the combination switch (lighting switch) is in the 1ST or 2ND position (or if auto light system is acti-
vated), and the ignition switch is turned from ON or ACC to OFF, the battery saver control function is activated.
Under this condition, the illumination lamps remain illuminated for 5 minutes, then the illumination lamps are
turned off.
When the lighting switch is turned from OFF to 1ST or 2ND position (or if auto light system is activated) after
illumination lamps are turned off by the battery saver control, the illumination lamps illuminate again.
Exterior lamp battery saver control mode can be changed by the function setting of CONSULT-II.
CAN Communication System DescriptionEKS00BBK
Refer to LAN-26, "CAN COMMUNICATION" .

PG-20
IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)
Revision: November 20092006 QX56
CONSULT-II Function IPDM E/REKS00BN5
CONSULT-II can display each diagnostic item using the diagnostic test modes shown following.
CONSULT-II BASIC OPERATION
CAUTION:
If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be
detected in self-diagnosis depending on control unit which carries out CAN communication.
1. With the ignition switch OFF, connect CONSULT-II and CON-
SULT-II CONVERTER to the data link connector, then turn igni-
tion switch ON.
2. Touch “START (NISSAN BASED VHCL) ”.
3. Touch “IPDM E/R” on “SELECT SYSTEM ” screen.

If “IPDM E/R” is not displayed refer to GI-40, "CONSULT-II
Data Link Connector (DLC) Circuit" .
IPDM E/R diagnostic Mode Description
SELF-DIAG RESULTS Displays IPDM E/R self-diagnosis results. DATA MONITOR Displays IPDM E/R input/output data in real time.
CAN DIAG SUPPORT MNTR The result of transmit/receive diagnosis of CAN communication can be read. ACTIVE TEST Operation of electrical loads can be checked by sending drive signal to them.
BBIA0369E
BCIA0029E
BCIA0030E
