SE-94
FRONT SEAT
Revision: November 20092006 QX56
REMOVAL
CAUTION:

When removing or installing the seat trim, handle it carefully to keep dirt out and avoid damage.

Before removing the front seat, turn the ignition switch off, disconnect both battery cables and
wait at least 3 minutes.

When checking the power seat circuit for continuity using a circuit tester, do not confuse its con-
nector with the side air bag module connector. Such an error may cause the air bag to deploy.

Do not drop, tilt, or bump the side air bag module while installing the seat. Always handle it with
care.

After front side air bag module inflates, front seatback assembly must be replaced.

Front passenger seat is equipped with an Occupant Classification System sensor and control
module. Do not disassemble front passenger seat cushion assembly or remove the trim as this
will affect the Occupant Classification System calibration.

Always replace passenger seat cushion as an assembly.
1. Slide the seat until the four body mounting bolts are visible and a tool can be inserted. NOTE:

If disassembling the seat after removal, set the front/rear cushion lifters to the top position.
2. Disconnect both battery cables and wait at least 3 minutes.
3. Disconnect the side air bag module harness connector.
4. Remove the four body mounting bolts.
5. Disconnect the power seat harness connectors and remove the seat from the vehicle. NOTE:
When removing and installing the seat, use shop cloths to protect the vehicle from damage.
INSTALLATION
Installation is in the reverse order of removal.
Disassembly and AssemblyEIS004YT
SEATBACK TRIM AND PAD
WARNING:
Removal of front side air bag module should only be done to allow deployment of front side air bag
module prior to disposal of seatback assembly.
NOTE:
Only complete seatback assemblies can be replaced on vehicles equipped with side air bags.
Be sure to set the front/rear cushion lifter to the top position.
Driver Seat
1. Remove the headrest.
7. Outboard reclining arm outer cover 8. Outboard reclining arm inner cover 9. Inboard reclining arm inner cove
10. Latch cover 11. LH outer leg cover 12. Outboard reclining arm inner cover
13. Seat cushion inner cover 14. Passenger seat wiring harness 15. Inner front leg cover
16. Power seat frame assembly 17. NVH assembly 18. Seat cushion front finisher
19. Outer pedestal finisher 20. Seat cushion outer finisher 21. Seat cushion assembly
22. Power seat switch escutcheon 23. Slide switch knob 24. Recliner switch knob
25. Seatback assembly 26. Headrest holder 27. Seat slide/ recline switch
28. Power lumbar switch

FRONT SEATSE-95
C
DE
F
G H
J
K L
M A
B
SE
Revision: November 2009 2006 QX56
2. Unhook the j-channel.
3. From inside of the seatback, squeeze the headrest holder tabs
at the base of the stay pipe and pull up to remove.
NOTE:
Before installing the headrest holder, check its orientation (front/
rear and right/left).
Passenger Seat
1. Remove the headrest.
2. Remove the seatback board from the back of the seatback.
3. Remove the retainer.
LIIA1580E
LRS023
PIIA0163E
SIIA0113E

SE-96
FRONT SEAT
Revision: November 20092006 QX56
4. From inside of the seatback, squeeze the headrest holder tabs
at the base of the stay pipe and pull up to remove.
NOTE:
Before installing the headrest holder, check its orientation (front/
rear and right/left).
REMOVAL OF SEATBACK ASSEMBLY
1. After completing the steps 1 and 2 of "Seatback Trim and Pad", remove the side air bag harness connec-
tor from the seat cushion.
2. Remove the mounting bolts (2 for each side) and seatback assembly.
INSTALLATION OF SEATBACK ASSEMBLY

Installation is in the reverse order of removal.
SEAT CUSHION TRIM AND PAD (DRIVER) OR SEAT CUSHION ASSEMBLY (PASSENGER)
CAUTION:

Front passenger seat is equipped with an Occupant Classification System sensor and control
module. Do not disassemble front passenger seat cushion assembly or remove the trim as this
will affect the Occupant Classification System calibration.

Always replace passenger seat cushion as an assembly.

When removed, the passenger seat cushion must always be placed pan side UP to prevent dam-
age.

During installation, the wire harness clips must be reinstalled in the holes they were originally in.
Do not add clips.

The Occupant Classification System control module can only be replaced as part of the seat cush-
ion assembly.
NOTE:
If the vehicle has been involved in a collision the seat must be inspected for damage. Refer to SRS-60, "
COL-
LISION DIAGNOSIS" .
1. Remove the power seat switch knobs, power seat switch escutcheon and lumbar switch bezel.
2. Remove the power seat and power lumbar switches.
LRS023
LIIA1581E

SE-100
SECOND SEAT
Revision: November 20092006 QX56
1. Headrest 2. Seatback pad 3. Seatback frame
4. Rear seat bezel 5. RH Headrest guide 6. LH Headrest guide
7. Seat back panel 8. Seat actuator assembly 9. Reclining device inner cover
10. Reclining device inner mid cover 11. Armrest assembly 12. Armrest bolt cover
13. Armrest trim cover 14. Latch assembly 15. Seat cushion mat springs
16. Seat cushion mat 17. Seat cushion frame assembly 18. Seat support trim cover
19. Seat support pad assembly 20. Lower rear seat cover 21. Lower rear seat cover inner
22. Outboard cushion floor latch 23. Seat cushion support frame assem- bly24. Lower rear seat cover outer
25. Seat cushion pad 26. Inner inboard reclining device cover 27. Outer inboard reclining device cover
28. Seat latch and recliner release 29. Reclining device outer mid cover 30. Reclining device lever
31. Reclining device outer cover 32. Seatback trim cover 33. Seat cushion trim cover
34. Seat cushion heating element

SECOND SEATSE-101
C
DE
F
G H
J
K L
M A
B
SE
Revision: November 2009 2006 QX56

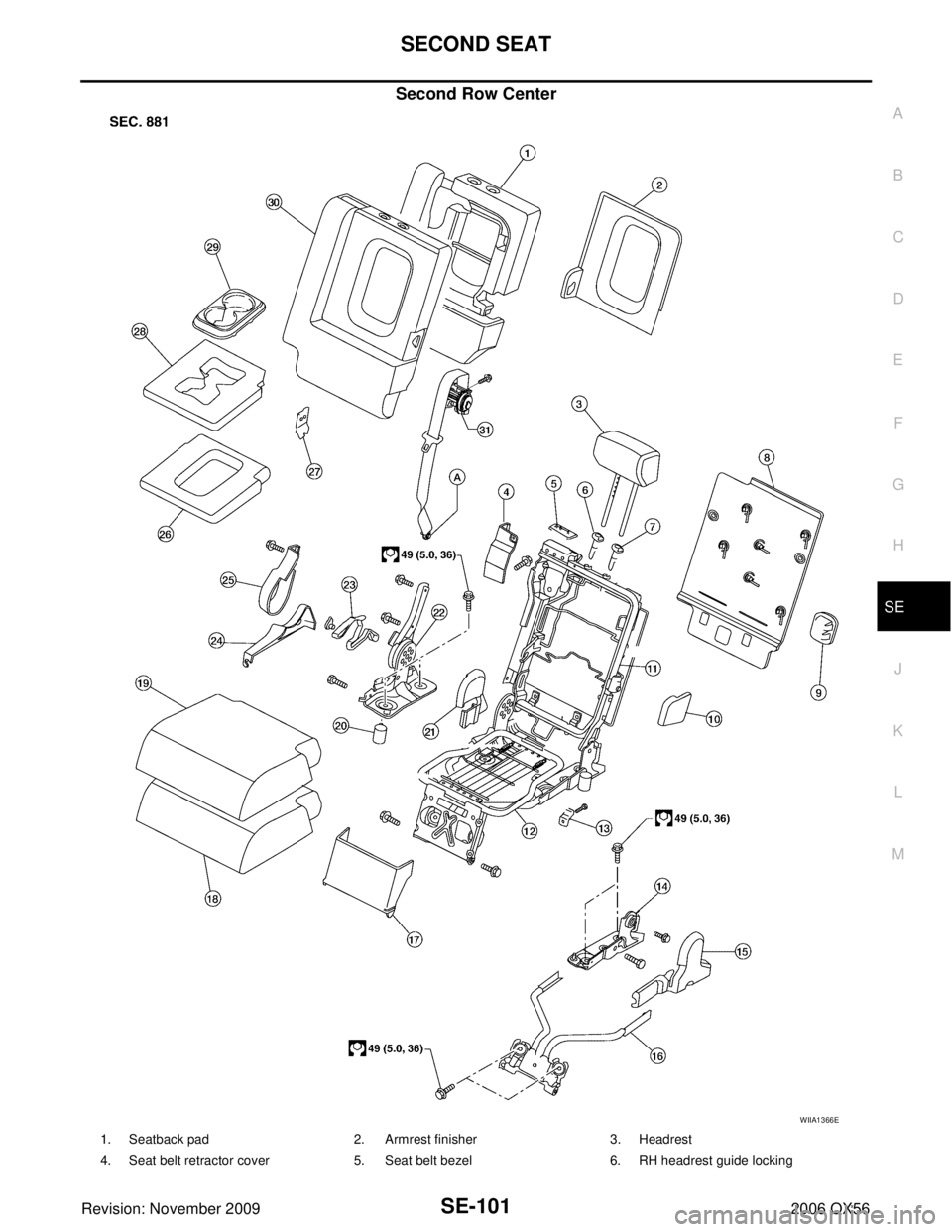

Second Row Center
WIIA1366E
1. Seatback pad2. Armrest finisher 3. Headrest
4. Seat belt retractor cover 5. Seat belt bezel 6. RH headrest guide locking

SE-102
SECOND SEAT
Revision: November 20092006 QX56
7. LH headrest guide free8. Seatback board 9. Seat bracket cover
10. Armrest pivot bracket cover 11. Seatback frame 12. Seat cushion frame
13. Latch assembly 14. Lower rear pivot bracket support 15. Outer hinge cover
16. Center seat base assembly 17. Link and pivot bracket apron 18. Seat cushion pad
19. Seat cushion trim cover 20. Cushion stop bumper 21. Inner lever cover
22. Seat hinge assembly 23. Seat lever assembly 24 Outer lever cover
25. Seat lock cover 26 Armrest cover 27 Armrest bracket
28 Armrest pad 29 Cup holder 30 Seatback trim cover
31. Seat belt retractor and belt assembly A. Refer to SB-6, "
Removal and Installation of Second Row Seat Belt"

SECOND SEATSE-103
C
DE
F
G H
J
K L
M A
B
SE
Revision: November 2009 2006 QX56

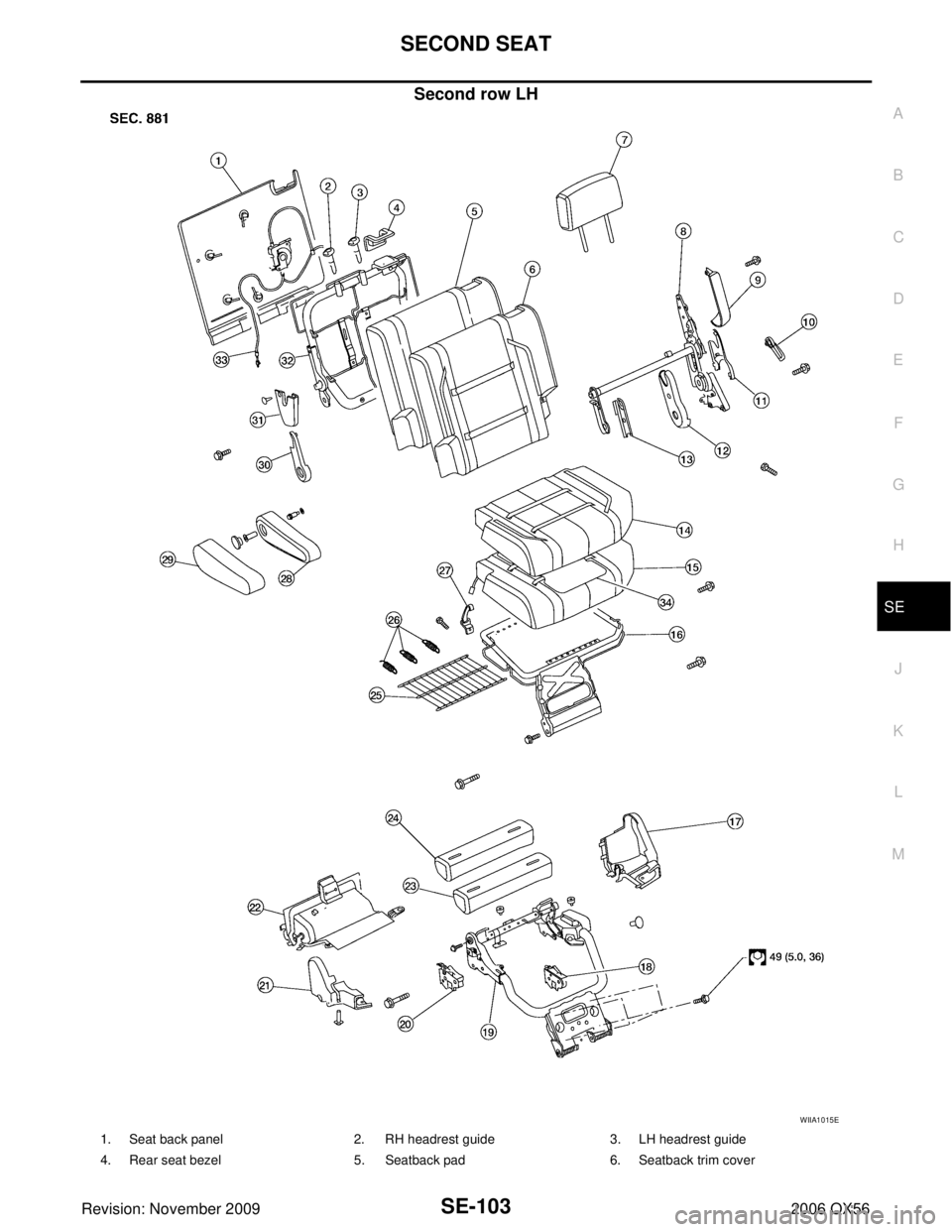

Second row LH
WIIA1015E
1. Seat back panel2. RH headrest guide 3. LH headrest guide
4. Rear seat bezel 5. Seatback pad 6. Seatback trim cover

SE-104
SECOND SEAT
Revision: November 20092006 QX56
7. Headrest8. Seat latch and recliner release 9. Reclining device outer cover
10. Reclining device lever 11. Reclining device outer mid cover 12. Outer inboard reclining device cover
13. Inner inboard reclining device cover 14. Seat cushion trim cover 15. Seat cushion pad
16. Seat cushion frame assembly 17. Lower rear seat cover outer 18. Outboard cushion floor latch
19. Seat cushion support frame assem- bly 20. Inboard cushion floor latch
21. Lower rear seat cover inner
22. Lower rear seat cover 23. Seat support pad assembly 24. Seat support trim cover
25. Seat cushion mat 26. Seat cushion mat springs 27. Latch assembly
28. Armrest assembly 29. Armrest trim cover 30. Reclining device outer cover
31. Reclining device inner mid cover 32. Seatback frame 33. Seat actuator assembly
34. Seat cushion heating element
