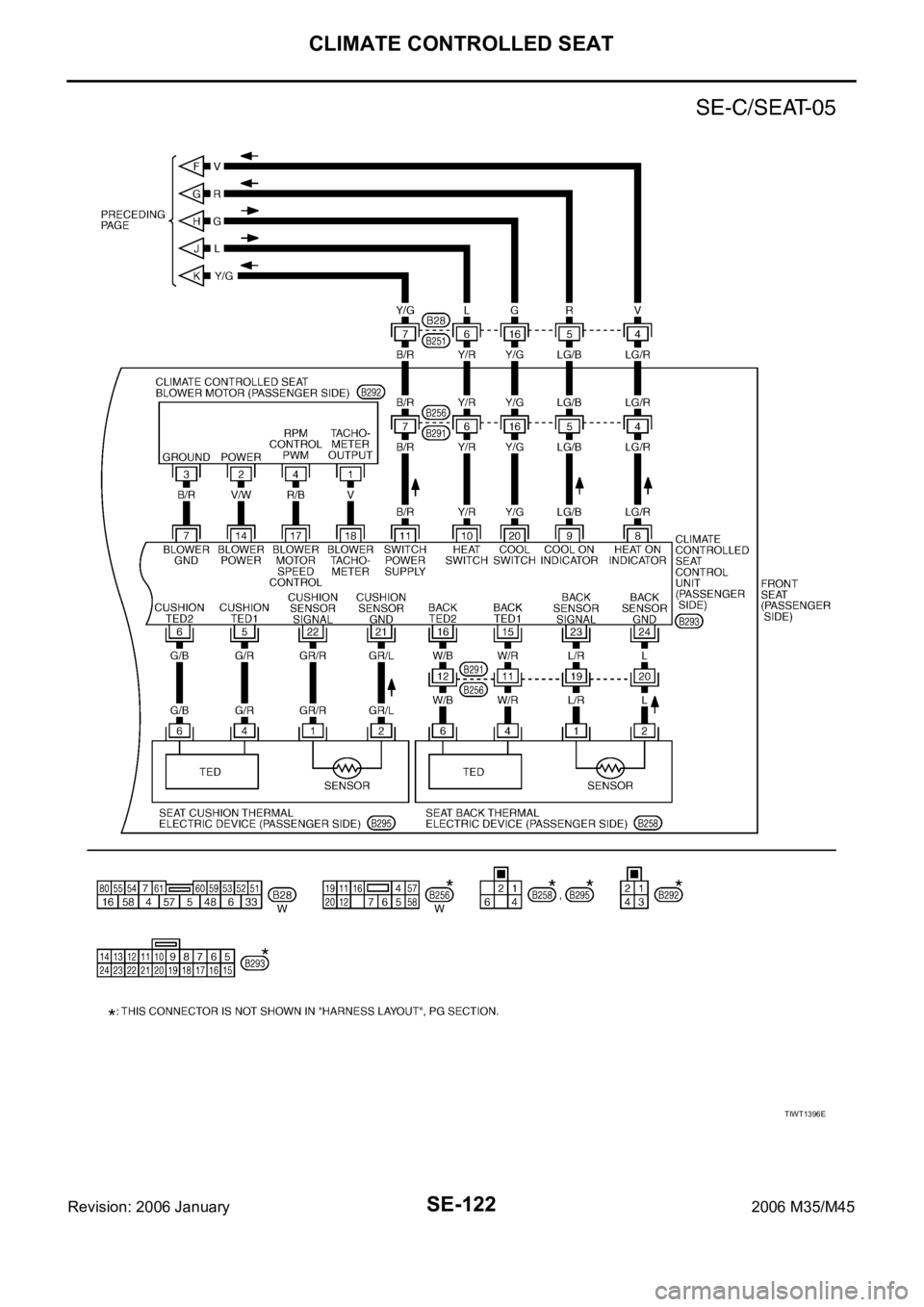

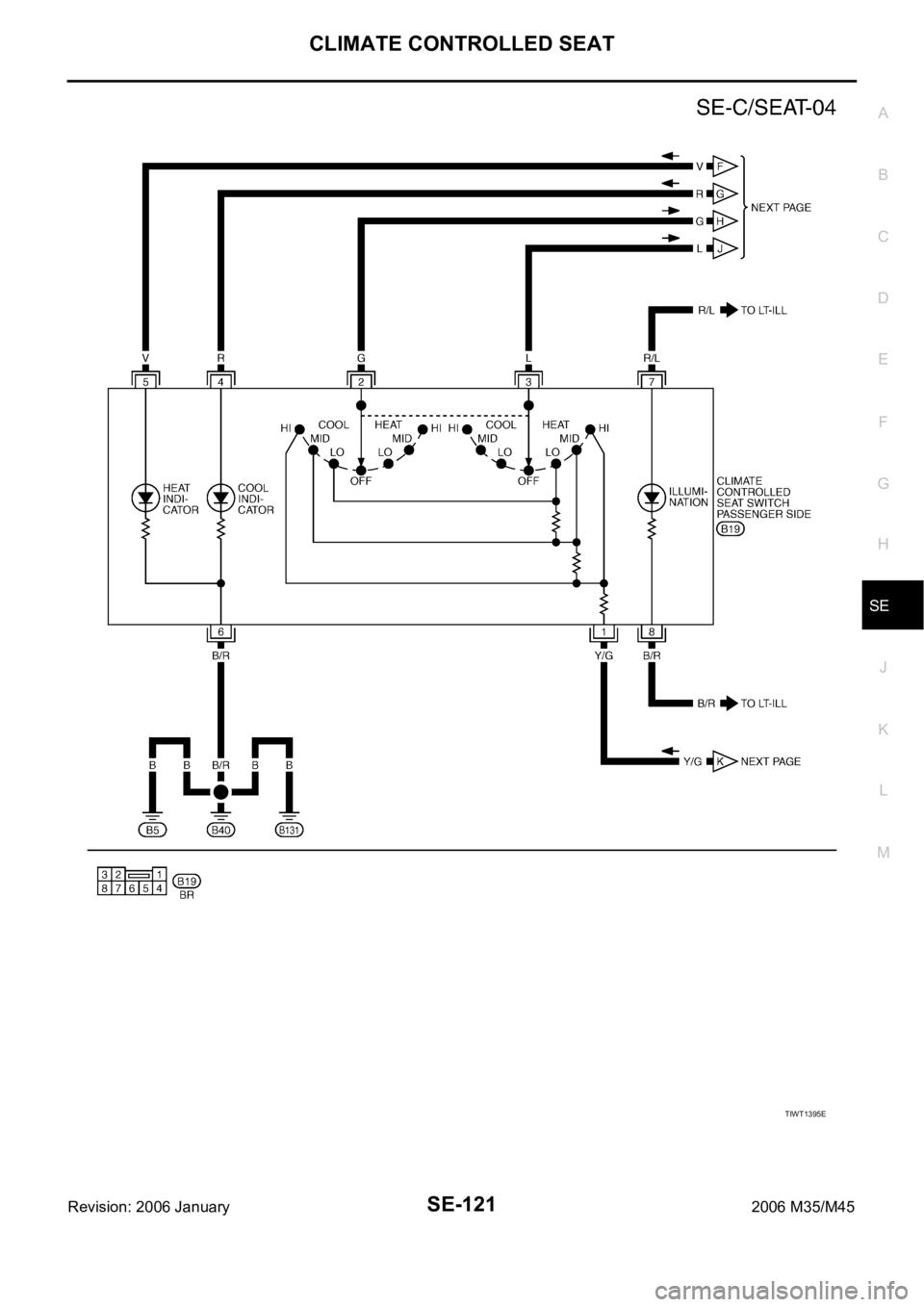

Terminal and Reference Value for Climate Controlled Seat Control UnitNIS0027L
TerminalWire
ColorItem ConditionVoltage (V)
(Approx)
2 R/Y Ignition switch power supply Ignition switch ON or START Battery voltage
3 B Ground — 0
4 R/Y Ignition switch power supply Ignition switch ON or START Battery voltage
5 G/RSeat cushion thermal electric
device power supply (HEAT)Ignition switch ON
or STARTClimate controlled seat switch
select HEAT0 – Battery voltage
Climate controlled seat switch
select OFF0
6 G/BSeat cushion thermal electric
device power supply (COOL)Ignition switch ON
or STARTClimate controlled seat switch
select COOL0 – Battery voltage
Climate controlled seat switch
select OFF0
7 B/R Blower motor ground — 0
8 LG/R HEAT switch indicator signalIgnition switch ON
or STARTClimate controlled seat switch
select HEATBattery voltage
Climate controlled seat switch
select OFF0
9 LG/B COOL switch indicator signalIgnition switch ON
or STARTClimate controlled seat switch
select COOLBattery voltage
Climate controlled seat switch
select OFF0
10 Y/R HEAT switch signalIgnition switch ON
or STARTClimate controlled seat switch
select HEAT0
Climate controlled seat switch
select OFFBattery voltage
11 B / RClimate controlled seat switch
power supplyIgnition switch ON or START Battery voltage
14 V/W Blower motor power supplyIgnition switch ON
or STARTClimate controlled seat switch
select HEAT or COOL5.5 – Battery voltage
Climate controlled seat switch
select OFF0
15 W/RSeatback thermal electric
device power supply (HEAT) Ignition switch ON
or STARTClimate controlled seat switch
select HEAT0 – Battery voltage
Climate controlled seat switch
select OFF0
16 W/BSeatback thermal electric
device power supply (COOL) Ignition switch ON
or STARTClimate controlled seat switch
select COOL0 – Battery voltage
Climate controlled seat switch
select OFF0
17 R/BBlower motor speed control
signal Ignition switch ON
or STARTClimate controlled seat switch
select HEAT or COOL4.5 – 8.0
Climate controlled seat switch
select OFF0
18 VBlower motor tachometer sig-
nalIgnition switch ON
or STARTClimate controlled seat switch
select HEAT or COOL4.5 – 8.0
Climate controlled seat switch
select OFFBattery voltage
20 Y/G COOL switch signalIgnition switch ON
or STARTClimate controlled seat switch
select COOL0
Climate controlled seat switch
select OFFBattery voltage

SE-124
CLIMATE CONTROLLED SEAT
Revision: 2006 January2006 M35/M45
Work FlowNIS0027M
1. Check the symptom and customer's requests.
2. Understand the outline of system. Refer to SE-113, "
System Description" .
3. Perform the preliminary check. Refer toSE-124, "
Preliminary Check" .
4. According to the trouble diagnosis chart, repair or replace the cause of the malfunction. Refer to SE-125,
"Trouble Diagnoses Symptom Chart" .
5. Does climate controlled seat operate normally? YES: GO TO 6, NO: GO TO 4.
6. INSPECTION END.
Preliminary CheckNIS0027N
1. CHECK DUCT AND FILTER
Check the following.
Is that there no foreign body in the blower motor filter.
Is that there no foreign body in the duct.
OK or NG
OK >> Preliminary check is OK.
NG >> The foreign body is removed.
21 GR/LSeat cushion thermal electric
device sensor groundIgnition switch ON 0
22 GR/RSeat cushion thermal electric
device sensor signalBlower motor operated 0.5 – 4
Ignition switch OFF 0
23 L/RSeatback thermal electric
device sensor signalBlower motor operated 0.5 – 4
Ignition switch OFF 0
24 LSeatback thermal electric
device sensor groundIgnition switch ON 0 TerminalWire
ColorItem ConditionVoltage (V)
(Approx)

CLIMATE CONTROLLED SEAT
SE-125
C
D
E
F
G
H
J
K
L
MA
B
SE
Revision: 2006 January2006 M35/M45
Trouble Diagnoses Symptom ChartNIS0027O
NOTE:
Make sure other systems using the signal of the following systems operate normally.
NOTE:
The climate controlled seat blower keep low speed for approximately 60 seconds turning the switch.
The climate controlled seat system is downed when the temperature sensor set as the seat cushion and
the seatback's thermal electric device machine detects 20
C (68F) or more of mutual differences of tem-
perature.
Symptom Diagnoses / service procedureRefer to
page
Climate controlled seat do not operate (Neither the driver's
side nor passenger's side operate).1. Climate controlled seat control unit power supply cir-
cuit check.SE-126
All the driver side or passenger side climate controlled
seat do not operate.1. Climate controlled seat control unit power supply and
ground circuit inspection.SE-1272. Climate controlled seat switch power supply circuit
inspectionSE-130
3. Climate controlled seat blower motor circuit inspection.SE-140
4. Replace climate controlled seat control unit.SE-113
Climate controlled seat blower motor speed cannot adjust.1. Climate controlled seat switch power supply circuit
inspectionSE-1302. Climate controlled seat switch circuit inspectionSE-131
3. Climate controlled seat control unit inspection.SE-142
4. Replace climate controlled seat blower motor.SE-113
The climate controlled seat dose not operates when the
switch is done in HEAT or COOL.Climate controlled seat switch circuit inspection.SE-131
When the climate controlled seat switch is turned on,
operation stops at nose (When the climate controlled seat
switch is in HEAT or COOL mode after ignition switch is
turned ON again, the motor operates).1. Seat cushion thermal electric device sensor circuit
inspection.SE-1372. Seat cushion thermal electric device circuit inspectionSE-135
3. Seatback thermal electric device sensor circuit inspec-
tion.SE-139
4. Seatback thermal electric device circuit inspectionSE-136
5. Climate controlled seat blower motor circuit inspection.SE-140
6. Replace Climate controlled seat control unitSE-113
The climate controlled seat switch indicator do not oper-
ated with HEAT or COOL positionClimate controlled seat switch indicator circuit inspectionSE-133

SE-126
CLIMATE CONTROLLED SEAT
Revision: 2006 January2006 M35/M45
Climate Controlled Seat Control Unit Power Supply Circuit CheckNIS0027P
1. CHECK FUSE
Check 10A fuse [No. 12, located in fuse block (J/B)]
NOTE:
Refer to SE-113, "
Component Parts and Harness Connector Location" .
OK or NG
OK >> GO TO 2.
NG >> If fuse is blown, be sure to eliminate cause of malfunction before installing new fuse, refer to PG-
3, "POWER SUPPLY ROUTING CIRCUIT" .
2. CHECK CLIMATE CONTROLLED SEAT RELAY POWER SUPPLY CIRCUIT
1. Disconnect climate controlled seat relay connector.
2. Turn ignition switch ON.
3. Check voltage between climate controlled seat relay harness
connector and ground.
OK or NG
OK >> GO TO 3.
NG >> Repair or replace harness between fuse block (J/B) and
climate controlled seat relay.
3. CHECK CLIMATE CONTROLLED SEAT RELAY
Check continuity climate controlled seat relay.
OK or NG
OK >> GO TO 4.
NG >> Replace climate controlled seat relay.
Terminal
Voltage (V)
(Approx.) (+)
(–)
Climate controlled
seat relay connectorTerminal
E16 2 Ground Battery voltage
PIIB6067E
Climate controlled
seat relay connectorTerminal Condition Continuity
E163512V direct current
supply between
terminals 1and 2Ye s
No current supply No
6712V direct current
supply between
terminals 1and 2Ye s
No current supply No
SEC202B

CLIMATE CONTROLLED SEAT
SE-127
C
D
E
F
G
H
J
K
L
MA
B
SE
Revision: 2006 January2006 M35/M45
4. CHECK CLIMATE CONTROLLED SEAT RELAY GROUND CIRCUIT
1. Turn ignition switch OFF.
2. Check continuity between climate controlled seat relay connec-
tor and ground.
OK or NG
OK >> Check the condition of the harness and connector.
NG >> Repair or replace harness between climate controlled
seat relay and ground.
Climate Controlled Seat Control Unit Power Supply and Ground Circuit Inspec-
tion
NIS0027Q
1. CHECK CLIMATE CONTROLLED SEAT CONTROL UNIT POWER SUPPLY CIRCUIT
1. Disconnect climate controlled seat control unit connector.
2. Turn ignition switch ON.
3. Check voltage between climate controlled seat control unit con-
nector and ground.
OK or NG
OK >> GO TO 6.
NG >> GO TO 2.
2. CHECK FUSE
Check 15A fuse [No. 42, located in fuse, fusible link and relay unit] (Driver side)
Check 15A fuse [No. 41, located in fuse, fusible link and relay unit] (Passenger side)
NOTE:
Refer to SE-113, "
Component Parts and Harness Connector Location" .
OK or NG
OK >> GO TO 3.
NG >> If fuse is blown, be sure to eliminate cause of malfunction before installing new fuse, refer to PG-
3, "POWER SUPPLY ROUTING CIRCUIT" .
Terminal
Continuity
Climate controlled
seat relay connectorTerminal
Ground
E16 1 Yes
PIIB6068E
Terminal
Voltage (V)
(Approx.) (+)
(–)
Climate controlled seat
control unit connectorTerminal
B284
(driver side)
B294
(passenger side)2
Ground Battery voltage
4
PIIB6069E

SE-128
CLIMATE CONTROLLED SEAT
Revision: 2006 January2006 M35/M45
3. CHECK CLIMATE CONTROLLED SEAT RELAY POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect climate controlled seat relay.
3. Check voltage between climate controlled seat relay connector
and ground.
OK or NG
OK >> GO TO 4.
NG >> Repair or replace harness between climate controlled seat relay and ground.
4. CHECK CLIMATE CONTROLLED SEAT RELAY
Check continuity climate controlled seat relay.
OK or NG
OK >> GO TO 5.
NG >> Replace climate controlled seat relay.
Terminal
Voltage (V)
(Approx.) (+)
(–)
Climate controlled
seat relay connectorTe r m i n a l
E165
Ground Battery voltage
7
PIIB6070E
Climate controlled
seat relay connectorTerminal Condition Continuity
E163512V direct current
supply between
terminals 1and 2Ye s
No current supply No
6712V direct current
supply between
terminals 1and 2Ye s
No current supply No
SEC202B
