2006 INFINITI M35 ECU

EM-14
[VQ35DE]
ENGINE ROOM COVER
Revision: 2006 January2006 M35/M45
ENGINE ROOM COVERPFP:14049
ComponentsNBS004MS
Removal and InstallationNBS004MT
REMOVAL
CAUTION:
Do not damage or scratch cover when installing or removing.
Refer to EM-19, "INTAKE MANIFOLD COLLECTOR" for removal and installation of engine cover.
Refer to EM-17, "AIR CLEANER AND AIR DUCT" for removal and installation of air duct (inlet).
Remove the washer tank cap before removing the engine room cover (RH).
Remove the engine room covers (RH and LH) by lifting the clipped point using a clip driver.
Major parts and inspection points under each cover are as follows; (numbered as in figure)
1. Upper side of engine assembly
2. Battery, relay box
3. Power steering fluid reservoir tank, engine coolant reservoir tank, relay box
4. Engine assembly front side, drive belts, cooling fan
5. Mass air flow sensor, air cleaner case
6. Brake master cylinder, brake booster
INSTALLATION
Installation is the reverse order of removal.
1. Engine cover 2. Battery cover 3. Engine room cover (RH)
4. Air duct (inlet) 5. Engine room cover (LH) 6. Brake master cylinder cover
A. Clip (secure at back surface)
PBIC3824E

INTAKE MANIFOLD COLLECTOR
EM-19
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: 2006 January2006 M35/M45
INTAKE MANIFOLD COLLECTORPFP:14003
ComponentsNBS004N0
Refer to GI-11, "Components" for symbol marks in the figure.
Removal and InstallationNBS004N1
REMOVAL
WAR NING :
To avoid the danger of being scalded, never drain engine coolant when the engine is hot.
Gasket for intake manifold collector (upper) is secured together with mounting bolt for intake man-
ifold collector (lower). Thus, even when only gasket for upper side is replaced, gasket for lower
side must be also replaced.
1. Vacuum hose 2.EVAP canister purge volume control
solenoid valve3. Vacuum hose
4. Bracket 5. Intake manifold collector (upper) 6. Water hose
7. Water hose 8. Gasket 9. Electric throttle control actuator
10. Bracket 11. PCV hose 12. Bracket
13. Gasket 14. Intake manifold collector (lower) 15. Gasket
16. Intake manifold collector cover
A. To vacuum pipe B. To water outlet C. To heater pipe
D. To PCV valve
KBIA3590J

EM-22
[VQ35DE]
INTAKE MANIFOLD COLLECTOR
Revision: 2006 January2006 M35/M45

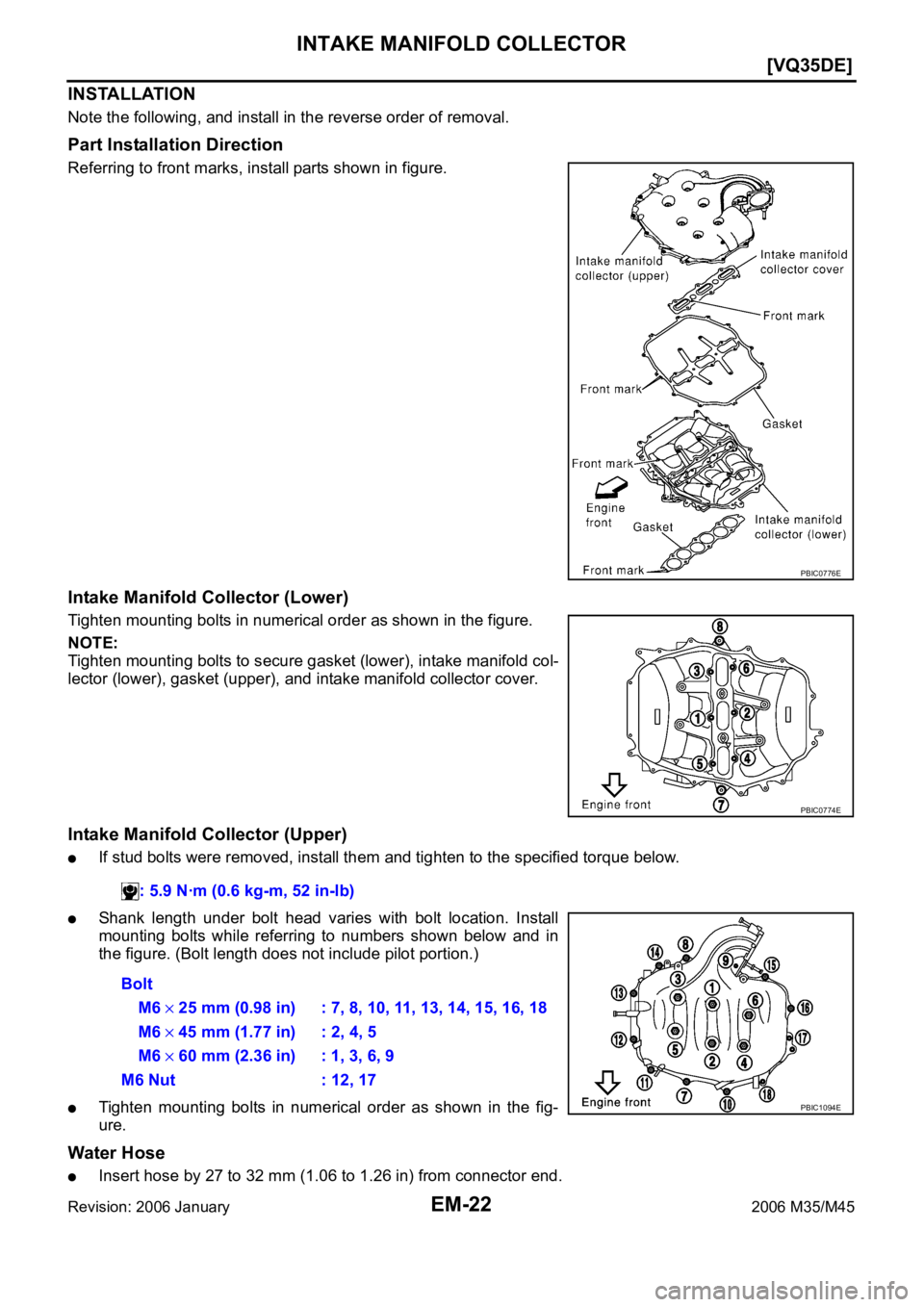

INSTALLATION
Note the following, and install in the reverse order of removal.
Part Installation Direction
Referring to front marks, install parts shown in figure.
Intake Manifold Collector (Lower)
Tighten mounting bolts in numerical order as shown in the figure.
NOTE:
Tighten mounting bolts to secure gasket (lower), intake manifold col-
lector (lower), gasket (upper), and intake manifold collector cover.
Intake Manifold Collector (Upper)
If stud bolts were removed, install them and tighten to the specified torque below.
Shank length under bolt head varies with bolt location. Install
mounting bolts while referring to numbers shown below and in
the figure. (Bolt length does not include pilot portion.)
Tighten mounting bolts in numerical order as shown in the fig-
ure.
Water Hose
Insert hose by 27 to 32 mm (1.06 to 1.26 in) from connector end.
PBIC0776E
PBIC0774E
: 5.9 Nꞏm (0.6 kg-m, 52 in-lb)
Bolt
M6
25 mm (0.98 in) : 7, 8, 10, 11, 13, 14, 15, 16, 18
M6
45 mm (1.77 in) : 2, 4, 5
M6
60 mm (2.36 in) : 1, 3, 6, 9
M6 Nut : 12, 17
PBIC1094E

EM-48
[VQ35DE]
FUEL INJECTOR AND FUEL TUBE
Revision: 2006 January2006 M35/M45
Lubricate O-ring with new engine oil.
Do not clean O-ring with solvent.
Make sure that O-ring and its mating part are free of foreign material.
When installing O-ring, be careful not to scratch it with tool or fingernails. Also be careful not
to twist or stretch O-ring. If O-ring was stretched while it was being attached, do not insert it
quickly into fuel tube.
Insert new O-ring straight into fuel tube. Do not decenter or twist it.
Insert fuel damper and fuel sub-tube straight into fuel tube.
Tighten mounting bolts evenly in turn.
After tightening mounting bolts, make sure that there is no gap between flange and fuel tube.
2. Install new O-rings to fuel injector, paying attention to the following.
CAUTION:
Upper and lower O-ring are different. Be careful not to confuse them.
Handle O-ring with bare hands. Do not wear gloves.
Lubricate O-ring with new engine oil.
Do not clean O-ring with solvent.
Make sure that O-ring and its mating part are free of foreign material.
When installing O-ring, be careful not to scratch it with tool or fingernails. Also be careful not to
twist or stretch O-ring. If O-ring was stretched while it was being attached, do not insert it
quickly into fuel tube.
Insert O-ring straight into fuel injector. Do not decenter or twist it.
3. Install fuel injector to fuel tube as follows:
a. Insert clip into clip mounting groove on fuel injector.
Insert clip so that protrusion “A” of fuel injector matches cutout
“A” of clip.
CAUTION:
Do not reuse clip. Replace it with a new one.
Be careful to keep clip from interfering with O-ring. If
interference occurs, replace O-ring.
b. Insert fuel injector into fuel tube with clip attached.
Insert it while matching it to the axial center.
Insert fuel injector so that protrusion “B” of fuel tube matches
cutout “B” of clip.
Make sure that fuel tube flange is securely fixed in flange fix-
ing groove on clip.
c. Make sure that installation is complete by checking that fuel
injector does not rotate or come off.
Make sure that protrusions of fuel injectors are aligned with
cutouts of clips after installation.
4. Install spacers on intake manifold.
5. Install fuel tube and fuel injector assembly to intake manifold.
CAUTION:
Be careful not to let tip of injector nozzle come in contact with other parts. Fuel tube side : Black
Nozzle side : Green
PBIC2545E

EM-54
[VQ35DE]
FRONT TIMING CHAIN CASE
Revision: 2006 January2006 M35/M45
FRONT TIMING CHAIN CASEPFP:13599
Removal and InstallationNBS004NI
NOTE:
This section describes removal/installation procedure of front timing chain case and timing chain related
parts without removing oil pan (upper) on the vehicle.
When oil pan (upper) needs to be removed or installed, or when rear timing chain case is removed or
installed, remove oil pans (upper and lower) first. Then remove front timing chain case, timing chain
related parts, and rear timing chain case in this order, and install in reverse order of removal. Refer to EM-
64, "TIMING CHAIN" .
Refer to EM-64, "TIMING CHAIN" for component parts location.
REMOVAL
1. Remove engine room cover (RH and LH). Refer to EM-14, "ENGINE ROOM COVER" .
2. Disconnect the battery cable from the negative terminal. Refer to SC-4, "
BATTERY" .
3. Remove engine cover with power tool. Refer to EM-19, "
INTAKE MANIFOLD COLLECTOR" .
4. Remove air duct (inlet) and air cleaner case assembly. Refer to EM-17, "
AIR CLEANER AND AIR DUCT"
.
5. Remove front and rear engine undercover with power tool.
6. Release the fuel pressure. Refer to EC-98, "
FUEL PRESSURE RELEASE" .
7. Drain engine oil. Refer to LU-9, "
Changing Engine Oil" .
CAUTION:
Perform this step when the engine is cold.
Do not spill engine oil on drive belts.
8. Drain engine coolant from radiator. Refer to CO-11, "
Changing Engine Coolant" .
CAUTION:
Perform this step when the engine is cold.
Do not spill engine coolant on drive belts.
9. Remove radiator hose (upper and lower) and A/T fluid cooler hose. Refer to CO-14, "
RADIATOR" .
10. Separate engine harnesses removing their brackets from front timing chain case.
11. Remove drive belts. Refer to EM-15, "
DRIVE BELTS" .
12. Remove intake manifold collectors (upper and lower). Refer to EM-19, "
INTAKE MANIFOLD COLLEC-
TOR" .
13. Remove power steering oil pump from bracket with piping connected, and temporarily secure it aside.
Refer to PS-29, "
POWER STEERING OIL PUMP" .
14. Remove power steering oil pump bracket. Refer to PS-29, "
POWER STEERING OIL PUMP" .
15. Remove alternator. Refer to SC-23, "
CHARGING SYSTEM" .
16. Remove water bypass hose, water hose clamp and idler pulley bracket from front timing chain case.
17. Remove intake valve timing control covers.
Loosen mounting bolts in reverse order as shown in the fig-
ure.
U s e t h e s e a l c u t t e r [ S S T: K V 1 0 1111 0 0 ( J 3 7 2 2 8 ) ] t o c u t l i q u i d
gasket for removal.
CAUTION:
Shaft is internally jointed with camshaft sprocket (INT) cen-
ter hole. When removing, keep it horizontal until it is com-
pletely disconnected.
SEM728G

TIMING CHAIN
EM-65
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: 2006 January2006 M35/M45
Removal and InstallationNBS004NK
NOTE:
This section describes procedures for removing/installing front timing chain case and timing chain related
parts, and rear timing chain case, when oil pan (upper) needs to be removed/installed for engine overhaul,
etc.
To remove/install front timing chain case, timing chain, and its related parts without removing oil pan
(upper), refer to EM-54, "
FRONT TIMING CHAIN CASE" .
REMOVAL
1. Remove engine room cover (RH and LH) Refer to EM-14, "ENGINE ROOM COVER" .
2. Remove front tire.
3. Disconnect the battery cable from the negative terminal.
4. Remove engine cover with power tool. Refer to EM-19, "
INTAKE MANIFOLD COLLECTOR" .
5. Remove air duct (inlet) and air cleaner case assembly. Refer to EM-17, "
AIR CLEANER AND AIR DUCT"
.
6. Remove front and rear engine undercover with power tool.
7. Release the fuel pressure. Refer to EC-98, "
FUEL PRESSURE RELEASE" .
8. Drain engine coolant from radiator. Refer to CO-11, "
Changing Engine Coolant" .
CAUTION:
Perform this step when the engine is cold.
Do not spill engine coolant on drive belts.
9. Remove radiator hose (upper and lower) and A/T fluid cooler hose. Refer to CO-14, "
RADIATOR" .
10. Drain engine oil. Refer to LU-9, "
Changing Engine Oil" .
CAUTION:
Perform this step when the engine is cold.
Do not spill engine oil on drive belts.
11. Separate engine harnesses removing their brackets from front timing chain case.
12. Remove intake manifold collectors (upper and lower). Refer to EM-19, "
INTAKE MANIFOLD COLLEC-
TOR" .
13. Remove radiator cooling fan assembly. Refer to CO-22, "
COOLING FAN" .
14. Remove drive belts. Refer to EM-15, "
DRIVE BELTS" .
15. Remove A/C compressor from bracket with piping connected, and temporarily secure it aside. Refer to
ATC-155, "
Removal and Installation of Compressor" .
16. Remove power steering oil pump from bracket with piping connected, and temporarily secure it aside.
Refer to PS-29, "
POWER STEERING OIL PUMP" .
17. Remove power steering oil pump bracket. Refer to PS-29, "
POWER STEERING OIL PUMP" .
18. Remove alternator. Refer to SC-23, "
CHARGING SYSTEM" .
19. Remove water bypass hose, water hose clamp and idler pulley bracket from front timing chain case.
20. Remove intake valve timing control covers.
1. Timing chain tensioner (secondary) 2. Internal chain guide 3. Timing chain tensioner (secondary)
4. Camshaft sprocket (EXH) 5. Timing chain (secondary) 6. Timing chain (primary)
7. Camshaft sprocket (INT) 8. Camshaft sprocket (EXH) 9. Timing chain (secondary)
10. Camshaft sprocket (INT) 11. Slack guide 12. Crankshaft sprocket
13. Timing chain tensioner (primary) 14. Intake valve timing control cover 15. Collared O-ring
16. O-ring 17. Chain tensioner cover 18. Intake valve timing control cover
19. Water hose clamp 20. Idler pulley bracket 21. Idler pulley
22. Crankshaft pulley 23. Front oil seal 24. Idler pulley
25. A/C compressor bracket 26. Water pump cover 27. Bracket
28. Front timing chain case 29. Bracket 30. Rear timing chain case
31. O-ring 32. Tension guide 33. Water drain plug (front side)

TIMING CHAIN
EM-69
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: 2006 January2006 M35/M45
31. Remove internal chain guide, tension guide and slack guide.
NOTE:
Tension guide can be removed after removing timing chain (pri-
mary).
32. Remove timing chain (primary) and crankshaft sprocket.
CAUTION:
After removing timing chain (primary), do not turn crankshaft and camshaft separately, or valves
will strike the piston heads.
33. Remove timing chain (secondary) and camshaft sprockets as follows:
a. Attach suitable stopper pin to the right and left timing chain ten-
sioners (secondary).
NOTE:
Use approximately 0.5 mm (0.02 in) dia. hard metal pin as a
stopper pin.
For removal of timing chain tensioner (secondary), refer to
EM-84, "
CAMSHAFT" . [Removing camshaft bracket (No. 1)
is required.]
b. Remove camshaft sprocket (INT and EXH) mounting bolts.
Secure the hexagonal portion of camshaft using a wrench to
loosen mounting bolts.
CAUTION:
Do not loosen the mounting bolts with securing anything
other than the camshaft hexagonal portion or with ten-
sioning the timing chain.
c. Remove timing chain (secondary) together with camshaft sprockets.
Turn camshaft slightly to secure slackness of timing chain on timing chain tensioner (secondary) side.
PBIC2266E
PBIC2047E
KBIA1698J

EM-76
[VQ35DE]
TIMING CHAIN
Revision: 2006 January2006 M35/M45
b. Install timing chains (secondary) and camshaft sprockets.
Align the mating marks on timing chain (secondary) (gold link)
with the ones on intake and exhaust camshaft sprockets
(punched), and install them.
NOTE:
Mating marks for intake camshaft sprocket are on the back
side of camshaft sprocket (secondary).
There are two types of mating marks, circle and oval types.
They should be used for the right and left banks, respec-
tively.
Align dowel pin and pin hole on camshafts with the groove
and dowel pin on sprockets, and install them.
On the intake side, align pin hole on the small diameter side of
the camshaft front end with dowel pin on the back side of
camshaft sprocket, and install them.
On the exhaust side, align dowel pin on camshaft front end
with pin groove on camshaft sprocket, and install them.
In case that positions of each mating mark and each dowel
pin are not fit on mating parts, make fine adjustment to the
position holding the hexagonal portion on camshaft with wrench or equivalent.
Mounting bolts for camshaft sprockets must be tightened in the next step. Tightening them by hand is
enough to prevent the dislocation of dowel pins.
It may be difficult to visually check the dislocation of mating
marks during and after installation. To make the matching
easier, make a mating mark on the top of sprocket teeth and
its extended line in advance with paint.
c. After confirming the mating marks are aligned, tighten camshaft
sprocket mounting bolts.
Secure camshaft using a wrench at the hexagonal portion to
tighten mounting bolts.Right bank : Use circle type.
Left bank : Use oval type.
PBIC2981E
PBIC0891E
KBIA1698J
