2006 INFINITI FX35 engine control system

CONSULT-II CHECKING SYSTEM GI-39
C
D E
F
G H
I
J
K L
M B
GI
Revision: 2006 December 2006 FX35/FX45

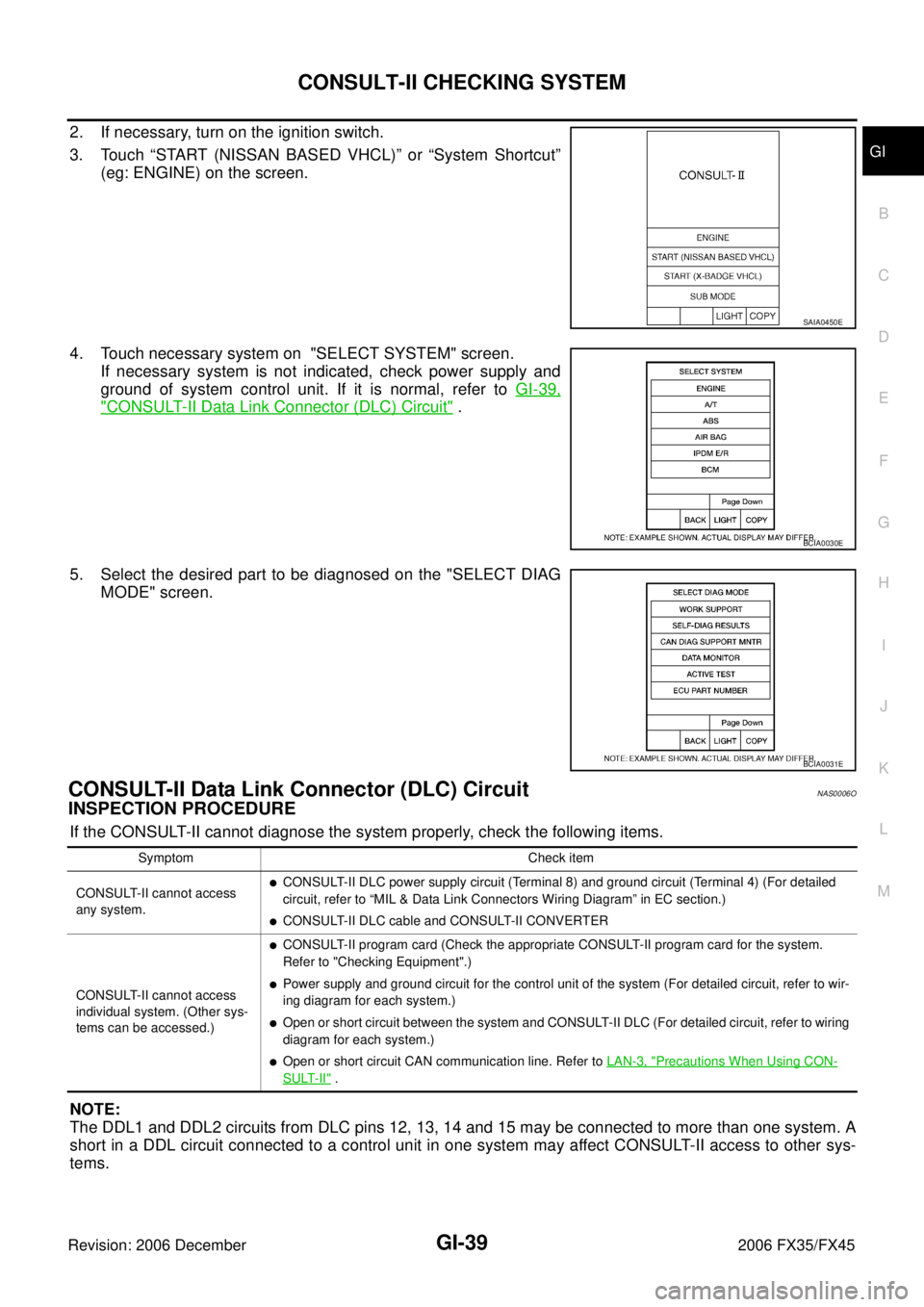

2. If necessary, turn on the ignition switch.
3. Touch “START (NISSAN BASED VHCL)” or “System Shortcut” (eg: ENGINE) on the screen.
4. Touch necessary system on "SELECT SYSTEM" screen. If necessary system is not indicated, check power supply and
ground of system control unit. If it is normal, refer to GI-39,
"CONSULT-II Data Link Connector (DLC) Circuit" .
5. Select the desired part to be diagnosed on the "SELECT DIAG MODE" screen.
CONSULT-II Data Link Connector (DLC) CircuitNAS0006O
INSPECTION PROCEDURE
If the CONSULT-II cannot diagnose the system properly, check the following items.
NOTE:
The DDL1 and DDL2 circuits from DLC pins 12, 13, 14 and 15 may be connected to more than one system. A
short in a DDL circuit connected to a control unit in one system may affect CONSULT-II access to other sys-
tems.
SAIA0450E
BCIA0030E
BCIA0031E
Symptom Check item
CONSULT-II cannot access
any system.

CONSULT-II DLC power supply circuit (Terminal 8) and ground circuit (Terminal 4) (For detailed
circuit, refer to “MIL & Data Link Connectors Wiring Diagram” in EC section.)

CONSULT-II DLC cable and CONSULT-II CONVERTER
CONSULT-II cannot access
individual system. (Other sys-
tems can be accessed.)

CONSULT-II program card (Check the appropriate CONSULT-II program card for the system.
Refer to "Checking Equipment".)

Power supply and ground circuit for the control unit of the system (For detailed circuit, refer to wir-
ing diagram for each system.)

Open or short circuit between the system and CONSULT-II DLC (For detailed circuit, refer to wiring
diagram for each system.)

Open or short circuit CAN communication line. Refer to LAN-3, "Precautions When Using CON-
SULT-II" .

GI-52
TERMINOLOGY
Revision: 2006 December 2006 FX35/FX45
TERMINOLOGYPFP:00011
SAE J1930 Terminology List NAS00070
All emission related terms used in this publication in accordance with SAE J1930 are listed. Accordingly, new
terms, new acronyms/abbreviations and old terms are listed in the following chart.
NEW TERM NEW ACRONYM /
ABBREVIATION OLD TERM
Air cleaner ACL Air cleaner
Barometric pressure BARO ***
Barometric pressure sensor-BCDD BAROS-BCDD BCDD
Camshaft position CMP ***
Camshaft position sensor CMPS Crank angle sensor
Canister *** Canister
Carburetor CARB Carburetor
Charge air cooler CAC Intercooler
Closed loop CL Closed loop
Closed throttle position switch CTP switch Idle switch
Clutch pedal position switch CPP switch Clutch switch
Continuous fuel injection system CFI system ***
Continuous trap oxidizer system CTOX system ***
Crankshaft position CKP ***
Crankshaft position sensor CKPS ***
Data link connector DLC ***
Data link connector for CONSULT-II DLC for CONSULT-II Diagnostic connector for CONSULT-II
Diagnostic test mode DTM Diagnostic mode
Diagnostic test mode selector DTM selector Diagnostic mode selector
Diagnostic test mode I DTM I Mode I
Diagnostic test mode II DTM II Mode II
Diagnostic trouble code DTC Malfunction code
Direct fuel injection system DFI system ***
Distributor ignition system DI system Ignition timing control
Early fuel evaporation-mixture heater EFE-mixture heater Mixture heater
Early fuel evaporation system EFE system Mixture heater control
Electrically erasable programmable read
only memory EEPROM ***
Electronic ignition system EI system Ignition timing control
Engine control EC ***
Engine control module ECM ECCS control unit
Engine coolant temperature ECT Engine temperature
Engine coolant temperature sensor ECTS Engine temperature sensor
Engine modification EM ***
Engine speed RPM Engine speed
Erasable programmable read only memory EPROM ***
Evaporative emission canister EVAP canister Canister
Evaporative emission system EVAP system Canister control solenoid valve
Exhaust gas recirculation valve EGR valve EGR valve

TERMINOLOGY GI-53
C
D E
F
G H
I
J
K L
M B
GI
Revision: 2006 December 2006 FX35/FX45
Exhaust gas recirculation control-BPT
valve EGRC-BPT valve BPT valve
Exhaust gas recirculation control-solenoid
valve EGRC-solenoid valve EGR control solenoid valve
Exhaust gas recirculation temperature sen-
sor EGRT sensor Exhaust gas temperature sensor
EGR temperature sensor
Flash electrically erasable programmable
read only memory FEEPROM ***
Flash erasable programmable read only
memory FEPROM ***
Flexible fuel sensor FFS ***
Flexible fuel system FF system ***
Fuel pressure regulator *** Pressure regulator
Fuel pressure regulator control solenoid
valve *** PRVR control solenoid valve
Fuel trim FT ***
Heated Oxygen sensor HO2S Exhaust gas sensor
Idle air control system IAC system Idle speed control
Idle air control valve-air regulator IACV-air regulator Air regulator
Idle air control valve-auxiliary air control
valve IACV-AAC valve Auxiliary air control (AAC) valve
Idle air control valve-FICD solenoid valve IACV-FICD solenoid valve FICD solenoid valve
Idle air control valve-idle up control sole-
noid valve IACV-idle up control solenoid valve Idle up control solenoid valve
Idle speed control-FI pot ISC-FI pot FI pot
Idle speed control system ISC system ***
Ignition control IC ***
Ignition control module ICM ***
Indirect fuel injection system IFI system ***
Intake air IA Air
Intake air temperature sensor IAT sensor Air temperature sensor
Knock *** Detonation
Knock sensor KS Detonation sensor
Malfunction indicator lamp MIL Check engine light
Manifold absolute pressure MAP ***
Manifold absolute pressure sensor MAPS ***
Manifold differential pressure MDP ***
Manifold differential pressure sensor MDPS ***
Manifold surface temperature MST ***
Manifold surface temperature sensor MSTS ***
Manifold vacuum zone MVZ ***
Manifold vacuum zone sensor MVZS ***
Mass air flow sensor MAFS Air flow meter
Mixture control solenoid valve MC solenoid valve Air-fuel ratio control solenoid valve
Multiport fuel injection System MFI system Fuel injection control NEW TERM
NEW ACRONYM /
ABBREVIATION OLD TERM

REAR WINDOW DEFOGGER GW-67
C
D E
F
G H
J
K L
M A
B
GW
Revision: 2006 December 2006 FX35/FX45
REAR WINDOW DEFOGGERPFP:25350
Component Parts and Harness Connector LocationNIS001S0
System DescriptionNIS001S1
The rear window defogger system is controlled by BCM (Body Control Module) and IPDM E/R (Intelligent
Power Distribution Module Engine Room).
The rear window defogger operates only for approximately 15 minutes.
Power is at all times supplied

through 20A fuse [No. 75, located in the IPDM E/R]

to rear window defogger relay terminals 3,

through 20A fuse [No. 80, located in the IPDM E/R]

to rear window defogger relay terminals 6,

through 15A fuse [No. 32, located in the fuse block (J/B)]

to A/C and AV switch terminal 1,

through 50A fusible link (letter M , located in the fuse and fusible link box)

to BCM terminal 55,

through 15A fuse [No. 22, located in the fuse block (J/B)]

to BCM terminal 42.
With the ignition switch turned to ON or START position,
Power is supplied

through 15A fuse [No. 1, located in the fuse block (J/B)]

to BCM terminal 38.

through 10A fuse [No. 12, located in the fuse block]
1. a: Fusible link 50A letter M
b: Fuse 15A No.32 2. a: Fuse block (J/B) M1, M2, E201
b: BCM M3, M4 3. IPDM E/R E4, E8, E9
4. Rear window defogger relay E13 5. A/C and AV switch M64 (Rear window defogger switch) 6. a: Rear window defogger D104
b: Rear window defogger D114
PIIB8568E

IDX-3
A
C
D E
F
G H
I
J
K L
B
IDX
ALPHABETICAL INDEX
C
Camshaft inspection(VK45DE) ........................ EM-216
Camshaft inspection(VQ35DE) ......................... EM-85
Camshaft position sensor (PHASE) EC-368, EC-1037
Camshaft(VK45DE) ......................................... EM-215
Camshaft(VQ35DE) ........................................... EM-83
CAN .................................................................. DI-108
CAN - Wiring diagram ......... EC-157, EC-820, AT-105,
LAN-29
, LAN-49, LAN-69, LAN-91, LAN-117, LAN-139,
LAN-163
CAN (Controller Area Network) . BL-24, BL-57, BL-95,
BL-184
, GW-20, GW-68, RF-12, SE-16
CAN communication EC-38, EC-156, EC-159, EC-819,
EC-822
, AT-33, AT-104, TF-13, TF-32, WT-12, BL-24,
BL-57
, BL-95, BL-184, GW-20, GW-68, RF-12, SE-16
Canister-See EVAP canister ............... EC-42, EC-702
Center bearing assembly (propeller shaft) ........ PR-13
Center bearing disassembly (propeller shaft) .... PR-12
CHARGE - Wiring diagram ................................ SC-21
Charging system ................................................ SC-20
Chassis and body maintenance ........................ MA-29
CHIME - Wiring diagram ..................................... DI-61
Circuit breaker ................................................... PG-16
Clock ................................................................. DI-114
CLOCK - Wiring diagram .................................. DI-114
Closed loop control .............................. EC-32, EC-692
Closed loop control (Bank 1) ........... EC-494, EC-1168
Closed loop control (Bank 2) ........... EC-494, EC-1168
Collision diagnosis ........................................... SRS-50
Combination lamp, rear, removal and installation ........
LT-154
Combination meter ............................................... DI-5
Combination meter removal and installation - See
Instrument panel .................................................. IP-11
COMM - Wiring diagram ...................... AV-64, AV-108
COMPAS - Wiring diagram ............................... DI-112
Compass .......................................................... DI-109
Component Location (auto A/C) ...................... ATC-42
Compression pressure(VK45DE) .................... EM-232
Compression pressure(VQ35DE) .................... EM-101
Compressor clutch removal and installation .. ATC-142
Compressor special service tool ...................... ATC-17
Condenser ..................................................... ATC-153
Connecting rod bearing clearance(VK45DE) .. EM-272
Connecting rod bushing clearance .................. EM-143
Connecting rod bushing clearance(VK45DE) .. EM-267
Connecting rod(VK45DE) ................................ EM-267
Connecting rod(VQ35DE) ................................ EM-141
Console box - See Instrument panel ................... IP-10
CONSULT for VDC ......................................... BRC-24
CONSULT-II for engine ................................... EC-119
CONSULT-II Reference value (A/T) .................. AT-90
Control units (terminal arrangement) ................. PG-75
Control valve (A/T) ............................................. AT-38
Controller Area Network (CAN) . BL-24, BL-57, BL-95,
BL-184
, GW-20, GW-68, RF-12, SE-16
Converter housing installation ............ AT-268, AT-272
COOL/F - Wiring diagram ................ EC-501, EC-1175
Coolant replacement(VQ35DE) ........................ MA-15
Cooling circuit (engine)(VK45DE) ..................... CO-36
Cooling circuit (engine)(VQ35DE) ...................... CO-9
Cooling fan motor ............................ EC-508, EC-1182
Cooling fan(VK45DE) ....................................... CO-49
Cooling fan(VQ35DE) ....................................... CO-21
Cowl top .............................................................. EI-23
Cowl top cover .................................................... EI-23
Crankcase ventilation system - See Positive crankcase
ventilation ............................................. EC-51
, EC-711
Crankshaft position sensor (POS) ... EC-361, EC-1030
Crankshaft(VK45DE) ...................................... EM-249
Crankshaft(VQ35DE) ...................................... EM-141
Crash zone sensor .......................................... SRS-46
Cylinder block boring(VK45DE) ...................... EM-270
Cylinder block(VK45DE) ................................. EM-248
Cylinder block(VQ35DE) ................................. EM-123
Cylinder head bolt tightening(VK45DE) .......... EM-234
Cylinder head bolt tightening(VQ35DE) .......... EM-104
Cylinder head(VK45DE) ................................. EM-232
Cylinder head(VQ35DE) ................................. EM-101
D
D/LOCK - Wiring diagram ....................... BL-26
, BL-32
Diagnosis sensor unit ..................................... SRS-49
Diagnostic trouble code (DTC) for OBD system EC-15,
EC-676
, EC-719
Diagnostic trouble code (DTC) inspection priority chart
EC-94
Direct clutch solenoid valve ............... AT-154, AT-156
Display and amp.assembly ............... ATC-50, ATC-62
Door glass ........................................... GW-58, GW-62
Door glass Fitting Adjustment(Front) ................ GW-60
Door lock .......................................................... BL-152
Door mirror ........................................................ GW-92
Door trim ............................................................. EI-35
Door, front ........................................... BL-148, GW-58
Door, rear ............................................ BL-148, GW-62
Drive belt inspection ......................................... MA-22
Drive belt inspection(VQ35DE) ......................... MA-14
Drive belt(VK45DE) ........................................ EM-174
Drive belt(VQ35DE) .......................................... EM-15
Drive shaft ......................................................... MA-38
Drive shaft (rear) ............................................... RAX-9
Driver air bag .................................................. SRS-38
Duct and grilles .............................................. ATC-133
E
ECM input/output signal ................................... EC-110
ECM power supply ............ EC-477, EC-812, EC-1142
ECM/PW - Wiring diagram ............... EC-478, EC-1143
ECTS - Wiring diagram ...................... EC-212, EC-881
Electric sunroof .................................................. RF-10
Electric throttle control actuator ........ EC-562, EC-573,
EC-1240
, EC-1252
Electric throttle control actuator (VK45DE) ..... EM-179
Electric throttle control actuator (VQ35DE) ....... EM-19

IDX-4
ALPHABETICAL INDEX
Electrical load signal circuit .............. EC-626, EC-1305
Electrical unit ..................................................... PG-75
Electrical units location ...................................... PG-68
Electronic ignition (EI) system ............. EC-33, EC-693
Engine control circuit diagram ......................... EC-108
Engine control component parts location ......... EC-101
Engine control module (ECM) .......... EC-481, EC-1146
Engine control system diagram ........... EC-30, EC-690
Engine coolant temperature sensor (ECTS) ... EC-210,
EC-222
, EC-879, EC-892
Engine coolant(VK45DE) .................................. CO-38
Engine coolant(VQ35DE) ................................. CO-11
Engine fail-safe system ...................................... EC-96
Engine oil filter replacement ............................. MA-26
Engine oil filter replacement(VQ35DE) ............. MA-19
Engine oil precautions .......................................... GI-8
Engine oil replacement(VQ35DE) ..................... MA-18
Engine oil(VK45DE) ........................................... LU-25
Engine oil(VQ35DE) ............................................ LU-7
Engine removal(VK45DE) ............................... EM-243
Engine removal(VQ35DE) .............................. EM-113
Engine room cover(VK45DE) ......................... EM-173
ETC1 - Wiring diagram .................... EC-563, EC-1241
ETC2 - Wiring diagram .................... EC-558, EC-1236
ETC3 - Wiring diagram .................... EC-569, EC-1248
EVAP canister ...................................... EC-42, EC-702
EVAP canister purge volume control solenoid valve ....
EC-397
, EC-405, EC-1063, EC-1071
EVAP canister vent control valve ...... EC-412, EC-419,
EC-1078
, EC-1085
EVAP control system (small leak) diagnosis .. EC-388,
EC-450
, EC-1054, EC-1116
EVAP control system pressure sensor ........... EC-425,
EC-428
, EC-434, EC-1091, EC-1094, EC-1100
EVAP control system purge flow monitoring diagnosis
EC-383
, EC-1049
EVAP vapor lines inspection ................. MA-21, MA-28
Evaporative emission (EVAP) system . EC-39, EC-699
Evaporator ..................................................... ATC-154
Exhaust manifold(VK45DE) ............................ EM-183
Exhaust manifold(VQ35DE) .............................. EM-26
Exhaust system ................................................... EX-3
Exhaust system inspection ..................... EX-3, MA-29
Expansion valve ............................................. ATC-155
F
F/PUMP - Wiring diagram ................ EC-636
, EC-1315
Final drive pre-inspection .................. FFD-20, RFD-19
Final drive removal and installation .. FFD-13, FFD-15,
RFD-16
Floor trim ............................................................. EI-40
Flow charts ......................................................... GI-28
Fluid temperature sensor (A/T) ........................ AT-134
Fluorescent leak detector .............................. ATC-156
Freeze frame data ............................... EC-59, EC-720
Front axle ................................ FAX-4, FAX-10, RAX-5
Front brake solenoid valve ................. AT-150, AT-152
Front bumper ...................................................... EI-14
Front door ............................. BL-148, BL-152, GW-58
Front passenger air bag .................................. SRS-42
Front seat belt ...................................................... SB-4
Front seat belt pre-tensioner ..... SB-2, SRS-3, SRS-48
Front suspension .............................................. FSU-6
FTS - Wiring diagram ....................................... AT-135
FTTS - Wiring diagram ...... EC-330, EC-335, EC-999,
EC-1004
Fuel cut control (at no load high engine speed) EC-34,
EC-694
Fuel filter replacement ......................................... FL-4
Fuel gauge ............................................................ DI-5
Fuel injection system (Bank 1) ......... EC-305, EC-317,
EC-975
, EC-986
Fuel injection system (Bank 2) ......... EC-305, EC-317,
EC-975
, EC-986
Fuel injector ..................................................... EC-628
Fuel injector and fuel tube(VK45DE) .............. EM-194
Fuel injector and fuel tube(VQ35DE) ................ EM-45
Fuel level sensor EC-460, EC-462, EC-464, EC-1125,
EC-1127
, EC-1129
Fuel line inspection .................................. FL-3, MA-25
Fuel line inspection(VQ35DE) .......................... MA-17
Fuel precautions .......................................... GI-6, GI-7
Fuel pressure check ........................... EC-86, EC-746
Fuel pressure release ......................... EC-86, EC-746
Fuel pump ....................................... EC-635, EC-1314
Fuel pump and gauge .......................................... FL-4
Fuel system ......................................................... FL-3
Fuel tank ............................................................ FL-10
Fuel tank temperature sensor .......... EC-328, EC-334,
EC-997
, EC-1003
Fuel tank vacuum relief valve ............. EC-42, EC-702
FUELB1 - Wiring diagram .. EC-307, EC-319, EC-977,
EC-988
FUELB2 - Wiring diagram .. EC-309, EC-321, EC-979,
EC-990
Fuse .................................................................. PG-16
Fuse and fusible link box .................................. PG-82
Fusible link ........................................................ PG-16
G
Gauges ................................................................. DI-5
Generic scan tool (GST) .................................. EC-130
Glass ...................................... GW-11, GW-58, GW-62
Grille - See Exterior ............................................ EI-22
Ground distribution ........................................... PG-29
H
Harness connector ............................................ PG-72
Harness layout .................................................. PG-44
Headlining - See Roof trim .................................. EI-42
Heated oxygen sensor 2 (bank 1) .... EC-270, EC-281,
EC-294
, EC-940, EC-951, EC-964
Heated oxygen sensor 2 (bank 2) .... EC-270, EC-281,
EC-294
, EC-940, EC-951, EC-964
Heated oxygen sensor 2 heater (bank 1) ....... EC-173,

IDX-5
A
C
D E
F
G H
I
J
K L
B
IDX
ALPHABETICAL INDEX
EC-843
Heated oxygen sensor 2 heater (bank 2) .......
EC-173,
EC-843
Heated seat ....................................................... SE-94
Heater and cooling unit (Heater core) ........... ATC-125
HFC134a (R134a) system precaution ............... ATC-6
HFC134a (R134a) system service procedure ATC-137
HFC134a (R134a) system service tools .......... ATC-18
HFC134a system service equipment precaution ..........
ATC-13
High and low reverse clutch solenoid valve .... AT-158,
AT-160
Hood ................................................................... BL-13
How to erase DTC for OBD system ..... EC-59, EC-727
HSEAT - Wiring diagram ................................... SE-95
I
IATS - Wiring diagram ....................... EC-207
, EC-876
ICC - Wiring diagram ....................................... ACS-21
ICC/BS - Wiring diagram ................. EC-531, EC-1204
ICC/SW - Wiring diagram ................ EC-516, EC-1189
ICCBOF - Wiring diagram ................ EC-642, EC-1321
Idle air volume learning ....................... EC-84, EC-744
Idle speed .............................. EC-82, EC-737, EC-742
Idle speed control (ISC) .... EC-468, EC-470, EC-1133,
EC-1135
Ignition coil ....................................... EC-649, EC-1328
Ignition coil(VK45DE) ...................................... EM-191
Ignition coil(VQ35DE) ........................................ EM-42
Ignition control system ..................... EC-649, EC-1328
Ignition timing ........................ EC-82, EC-737, EC-742
IGNSYS - Wiring diagram ................ EC-650, EC-1329
In vehicle sensor ........................... ATC-106, ATC-117
INF/D - Wring diagram ....................................... AV-57
INJECT - Wiring diagram ................. EC-629, EC-1308
Injector ........................................................... EC-1307
Input clutch solenoid valve ................. AT-146, AT-148
Instrument panel .................................................. IP-10
Intake air temperature sensor ........... EC-205, EC-225,
EC-874
, EC-895
Intake door control linkage adjustment ............ ATC-76
Intake door motor ........................... ATC-74, ATC-123
Intake manifold collector(VQ35DE) ................... EM-19
Intake manifold(VK45DE) ................................ EM-179
Intake manifold(VQ35DE) .................................. EM-24
Intake sensor ................................ ATC-112, ATC-119
Intake valve timing control (Bank 1) .. EC-161, EC-824
Intake valve timing control (Bank 2) .. EC-161, EC-824
Intake valve timing control position sensor (Bank 1) ....
EC-1159
Intake valve timing control position sensor (Bank 2) ....
EC-1159
Intake valve timing control solenoid valve (Bank 1) ......
EC-181
, EC-851
Intake valve timing control solenoid valve (Bank 2) ......
EC-181
, EC-851
Integrated homelink transmitter ........................ BL-227
Intelligent cruise control (ICC) system ............... ACS-6
Interior ................................................................. EI-37
IPDM (Intelligent power distribution module engine
room) ................................................................. PG-17
IVCB1 - Wiring diagram ..................... EC-182, EC-852
IVCB2 - Wiring diagram ..................... EC-184, EC-854
IVCSB1 - Wiring diagram ............................... EC-1161
IVCSB2 - Wiring diagram ............................... EC-1163
IVTB1 - Wiring diagram ................................... EC-827
IVTB2 - Wiring diagram ................................... EC-829
K
Knock sensor (KS) ........................... EC-356
, EC-1025
KS - Wiring diagram ......................... EC-357, EC-1026
L
LAN system circuit ........................................... ATC-64
Lane Departure Warning System ....................... DI-80
Laser beam aiming adjustment ....................... ACS-14
Latch (lower anchors and tether for children) system ...
SB-10
LDW .................................................................... DI-80
LDW - Wiring Diagram ........................................ DI-92
Line pressure solenoid valve ........................... AT-129
Line pressure test (A/T) ..................................... AT-54
Liquid gasket application ......................... EM-6, LU-21
Liquid gasket application(VQ35DE) ........... LU-3, CO-3
Location of electrical units ................................. PG-68
Low coast brake solenoid valve ......... AT-162, AT-164
Low tire pressure warning system .................... WT-10
Lubricant (R134a) A/C ..................................... ATC-27
Lubrication circuit (engine)(VK45DE) ................ LU-23
Lubrication circuit (engine)(VQ35DE) .................. LU-5
Lubrication oil A/C .......................................... ATC-160
M
M/ANT - Wiring diagram .................................... AV-49
MAFS - Wiring diagram ..... EC-191, EC-199, EC-861,
EC-869
Magnet clutch ................................. ATC-82, ATC-142
MAIN - Wiring diagram ........ EC-149, EC-812, AT-179
Maintenance (engine)(VQ35DE) ...................... MA-14
Major overhaul (Final drive) .............. FFD-17, RFD-18
Major overhaul (Transfer) .................................. TF-45
Malfunction indicator lamp (MIL) .......... EC-68, EC-729
Mass air flow sensor (MAFS) ............ EC-188, EC-197,
EC-858
, EC-867
Meter ..................................................................... DI-5
METER - Wiring diagram .................................... DI-12
MIL data link connectors circuit ....... EC-672, EC-1360
MIL/DL - Wiring diagram .................. EC-672, EC-1360
Mirror, door ....................................................... GW-92
Mirror, out side .................................................. GW-92
Misfire .............................................. EC-346, EC-1015
MMSW - Wiring diagram .................................. AT-167
Mode door control linkage adjustment ............. ATC-70
Mode door motor ............................ ATC-68, ATC-130

IDX-6
ALPHABETICAL INDEX
Molding - See Exterior ................... EI-25, EI-30, EI-33
Multiport fuel injection (MFI) system .... EC-31, EC-691
Multiport fuel injection precautions ....................... GI-7
N
NATS - Wiring diagram .................................... BL-208
NAVI - Wiring diagram ..................................... AV-100
Navigation system ............................................. AV-93
NONDTC - Wiring diagram .............................. AT-186
NVH troubleshooting (EM) .............................. EM-171
NVH troubleshooting (EM)(VQ35DE) ............... EM-13
NVH troubleshooting (Final drive) ......... FFD-6, RFD-7
NVH troubleshooting (Propeller shaft) ................. PR-3
NVH troubleshooting (Transfer) ........................... TF-8
O
O2H2B1 - Wiring diagram .................. EC-175
, EC-845
O2H2B2 - Wiring diagram .................. EC-177, EC-847
O2S2B1 - Wiring diagram .. EC-273, EC-284, EC-297,
EC-943
, EC-954, EC-967
O2S2B2 - Wiring diagram .. EC-275, EC-286, EC-299,
EC-945
, EC-956, EC-969
Oil cooler (engine)(VQ35DE) ............................. LU-14
Oil filter(VK45DE) .............................................. LU-28
Oil filter(VQ35DE) .............................................. LU-10
Oil pan (engine)(VK45DE) .............................. EM-187
Oil pan (engine)(VQ35DE) ................................ EM-30
Oil pressure (engine)(VK45DE) ......................... LU-25
Oil pressure (engine)(VQ35DE) ........................... LU-8
Oil pressure relief valve (engine)(VQ35DE) ........ LU-6
Oil pump (A/T) ................................................. AT-312
Oil pump (engine)(VK45DE) .............................. LU-31
Oil pump (engine)(VQ35DE) .............................. LU-17
Oil pump regulator valve (engine)(VK45DE) ..... LU-31
Oil pump regulator valve (engine)(VQ35DE) ..... LU-17
Oil seal replacement (engine)(VK45DE) ......... EM-228
Oil seal replacement (engine)(VQ35DE) .......... EM-98
Oil seal replacement (front of final drive) .......... FFD-9,
RFD-10
Oil seal replacement (side of final drive) ......... FFD-11,
RFD-14
On board diagnostic system .............................. EC-54
ORVR (On-board Refueling Vapor Recovery) .. EC-46,
EC-706
Out side mirror .................................................. GW-92
Overheat .......................................... EC-497, EC-1171
P
Park/Neutral position switch ............ EC-489
, EC-1154
Park/neutral position switch (A/T) .................... AT-112
Parking brake control ........................................... PB-4
PCV (positive crankcase ventilation) ... EC-51, EC-711
PGC/V - Wiring diagram .. EC-399, EC-407, EC-1065,
EC-1073
PHASE - Wiring diagram ............................... EC-1039
PHSB1 - Wiring diagram .................................. EC-370
PHSB2 - Wiring diagram .................................. EC-372
Pilot bushing replacement - See Pilot
converter(VQ35DE) ........................................ EM-124
Piston assembly(VK45DE) ............................. EM-259
Piston assembly(VQ35DE) ............................. EM-136
Piston pin inspection(VK45DE) ....................... EM-265
Piston pin inspection(VQ35DE) ...................... EM-141
Piston ring inspection(VK45DE) ..................... EM-266
Piston ring inspection(VQ35DE) ..................... EM-142
Piston to bore clearance(VK45DE) ................. EM-269
Piston to bore clearance(VQ35DE) ................ EM-145
PNP/SW - Wiring diagram . EC-491, EC-1156, AT-113
POS - Wiring diagram ..................... EC-363, EC-1032
POWER - Wiring diagram ................................... PG-4
Power door mirror .............................................. BL-21
Power seat ......................................................... SE-92
Power steering fluid level ........................ PS-8, MA-37
Power steering gear ........................................... PS-17
Power steering hydraulic pressure .................... PS-29
Power steering oil pump .................................... PS-29
Power steering pressure (PSP) sensor ........... EC-472
Power steering system bleeding .......................... PS-8
Power supply routing .......................................... PG-3
Power window .................................................. GW-15
PRE/SE - Wiring diagram EC-430, EC-436, EC-1096,
EC-1102
Precations for Leak detection dye .................. ATC-16
Precautions (General) ........................................... GI-4
Pressure switch 1 .............................. AT-152, AT-171
Pressure switch 2 ............................................ AT-164
Pressure switch 3 .............................. AT-148, AT-173
Pressure switch 5 .............................. AT-156, AT-175
Pressure switch 6 .............................. AT-160, AT-177
Pressure test (A/T) ............................................. AT-54
Propeller shaft ........................................... PR-4, PR-7
Propeller shaft on vehicle service ............. PR-4, PR-7
Propeller shaft vibration ............................ PR-4, PR-7
PS/SEN - Wiring diagram ............... EC-473, EC-1138
R
R/VIEW - Wiring diagram .................................. DI-119
Radiator(VK45DE) ............................................ CO-41
Radiator(VQ35DE) ............................................ CO-14
Rear bumper ....................................................... EI-17
Rear combination lamp removal and installation ..........
LT-154
Rear door ............................................ BL-148, GW-62
Rear seat ......................................................... SE-105
Rear suspension ............................................... RSU-5
Rear view monitor ............................................. DI-116
Rear window defogger ..................................... GW-67
Refrigerant connection precaution .................... ATC-8
Refrigerant discharging evacuating charging ATC-137
Refrigerant general precaution ......................... ATC-7
Refrigerant lines ............................................ ATC-137
Refrigerant pressure sensor .......... EC-662, EC-1341,
ATC-89
, ATC-154
Refrigeration cycle .......................................... ATC-21
