2006 GMC SIERRA 1500 Owners Manual

Page 377 of 600

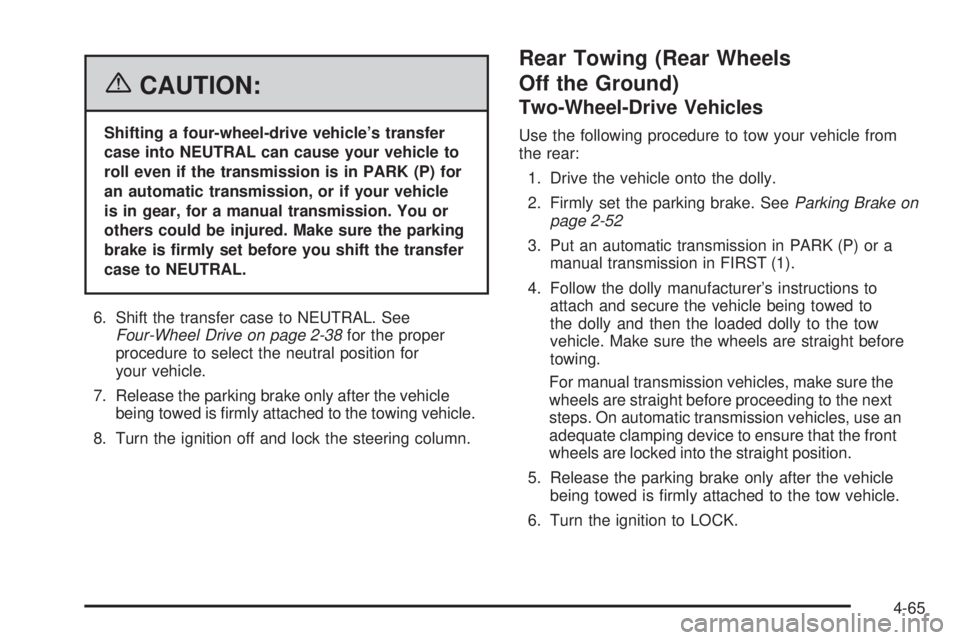

GMC SIERRA 1500 2006  Owners Manual {CAUTION:
Shifting a four-wheel-drive vehicle’s transfer
case into NEUTRAL can cause your vehicle to
roll even if the transmission is in PARK (P) for
an automatic transmission, or if your vehicle
is

Page 378 of 600

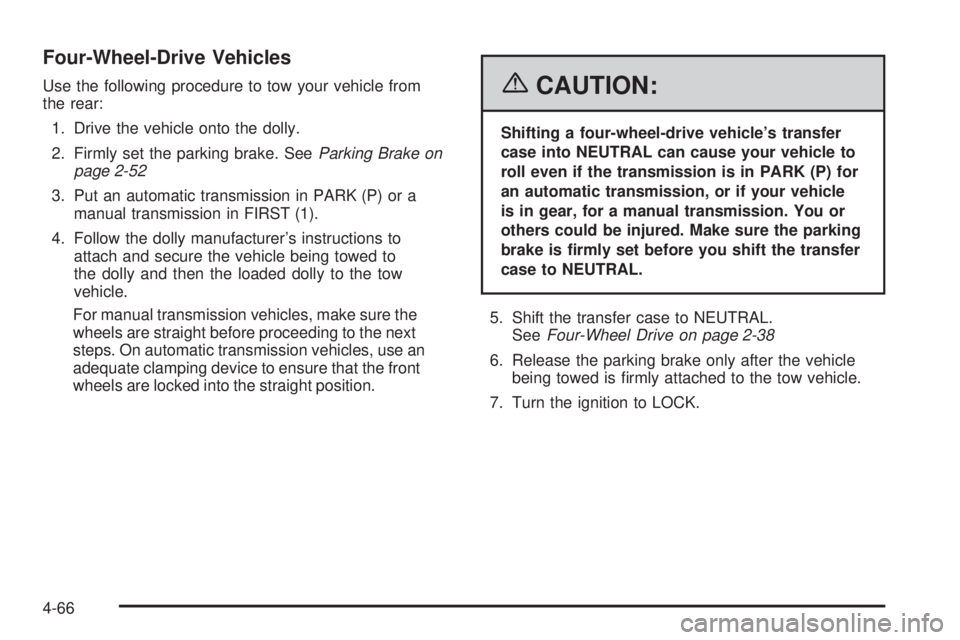

GMC SIERRA 1500 2006  Owners Manual Four-Wheel-Drive Vehicles
Use the following procedure to tow your vehicle from
the rear:
1. Drive the vehicle onto the dolly.
2. Firmly set the parking brake. SeeParking Brake on
page 2-52
3. Put an a

Page 379 of 600

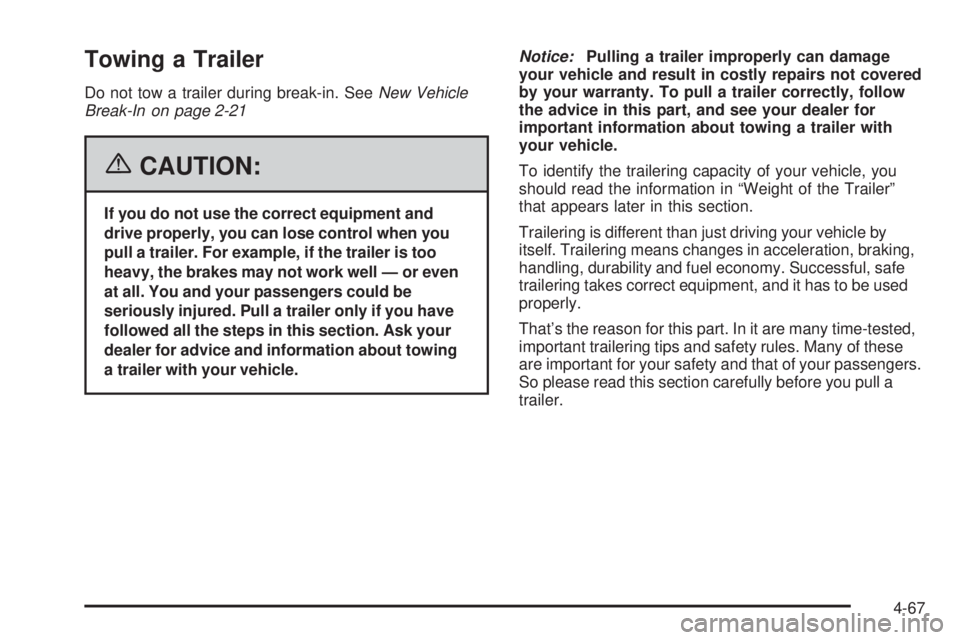

GMC SIERRA 1500 2006  Owners Manual Towing a Trailer
Do not tow a trailer during break-in. SeeNew Vehicle
Break-In on page 2-21
{CAUTION:
If you do not use the correct equipment and
drive properly, you can lose control when you
pull a t

Page 380 of 600

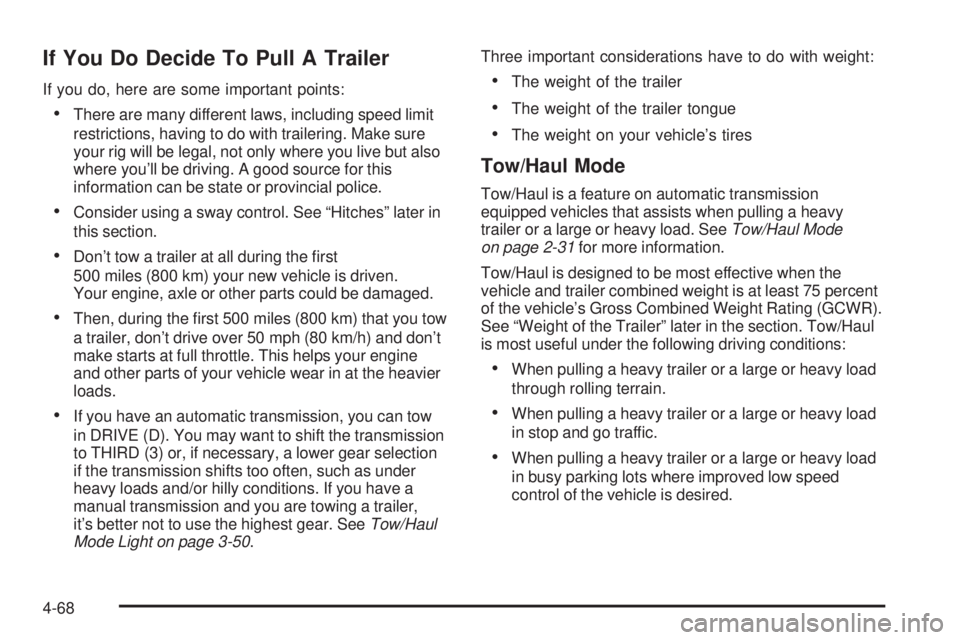

GMC SIERRA 1500 2006  Owners Manual If You Do Decide To Pull A Trailer
If you do, here are some important points:
There are many different laws, including speed limit
restrictions, having to do with trailering. Make sure
your rig will

Page 381 of 600

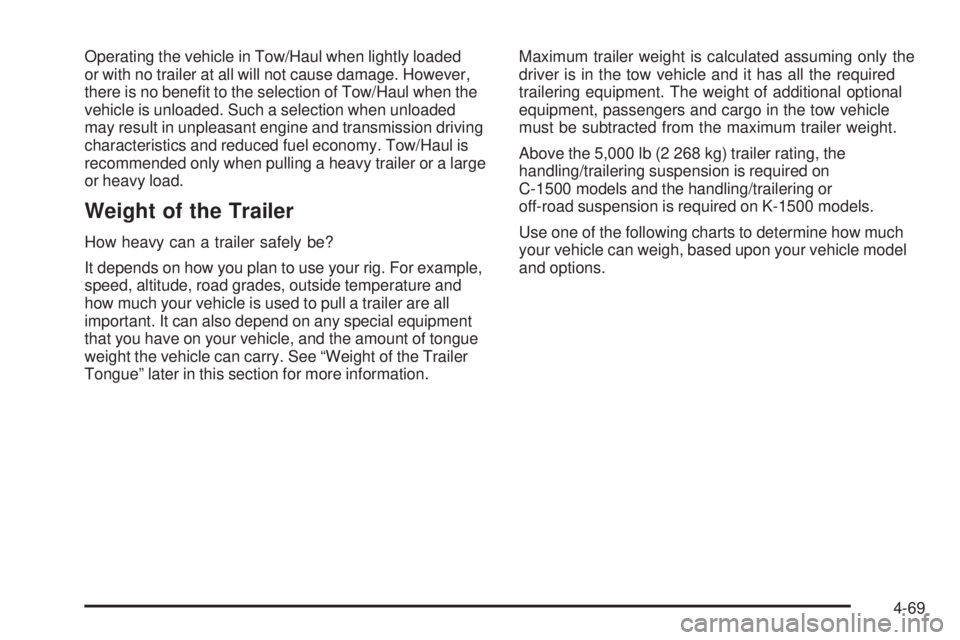

GMC SIERRA 1500 2006  Owners Manual Operating the vehicle in Tow/Haul when lightly loaded
or with no trailer at all will not cause damage. However,
there is no bene�t to the selection of Tow/Haul when the
vehicle is unloaded. Such a sel

Page 382 of 600

GMC SIERRA 1500 2006  Owners Manual Vehicle* Axle Ratio Maximum Trailer Weight GCWR
C-1500 Regular Cab Short Box (2WD)*
4300 V6 (Auto) 3.23 5,000 lbs (2 268 kg) 9,500 lbs (4 309 kg)
4300 V6 (Manual) 3.23 4,000 lbs (1 814 kg) 8,500 lbs (

Page 383 of 600

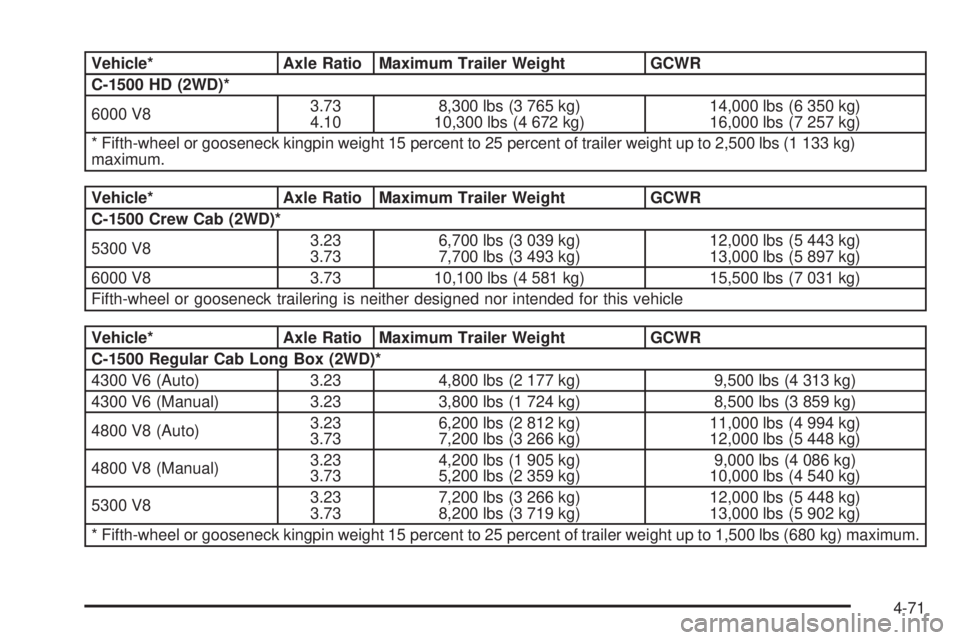

GMC SIERRA 1500 2006  Owners Manual Vehicle* Axle Ratio Maximum Trailer Weight GCWR
C-1500 HD (2WD)*
6000 V83.73
4.108,300 lbs (3 765 kg)
10,300 lbs (4 672 kg)14,000 lbs (6 350 kg)
16,000 lbs (7 257 kg)
* Fifth-wheel or gooseneck kingpi

Page 384 of 600

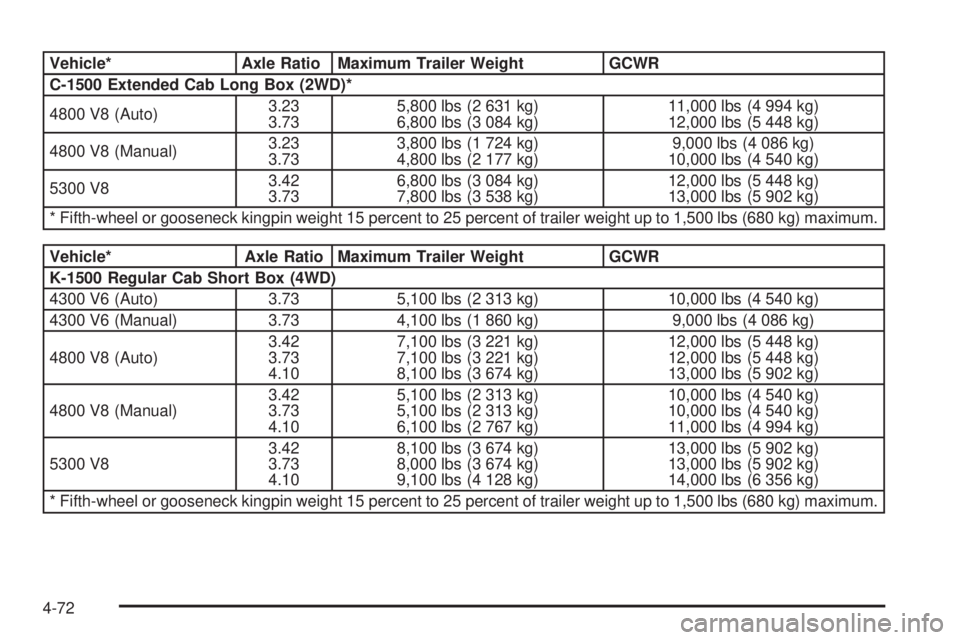

GMC SIERRA 1500 2006  Owners Manual Vehicle* Axle Ratio Maximum Trailer Weight GCWR
C-1500 Extended Cab Long Box (2WD)*
4800 V8 (Auto)3.23
3.735,800 lbs (2 631 kg)
6,800 lbs (3 084 kg)11,000 lbs (4 994 kg)
12,000 lbs (5 448 kg)
4800 V8
