2006 GMC SIERRA 1500 Owners Manual

Front Seats
Manual Seats
{CAUTION:
You can lose control of the vehicle if you try to
adjust a manual driver’s seat while the vehicle
is moving. The sudden movement could startle
and confuse you, or make you push a pedal
when you do not want to. Adjust the driver’s
seat only when the vehicle is not moving.
If your vehicle has a manual bucket or a split bench
seat, you can adjust the seat forward or rearward with
the bar located under the front of the seat cushion.
Lift the bar to unlock the seat. Slide the seat to where you
want it and release the bar. Try to move the seat with
your body to be sure the seat is locked in place.
1-3

Power Seats
If your vehicle has power seats, the controls are located
on the outboard side of the seats.
Raise or lower the front of the seat cushion by
raising or lowering the front of the horizontal control.
Raise or lower the rear of the seat cushion by
raising or lowering the rear of the horizontal control.
Raise or lower the entire seat cushion by raising or
lowering the whole horizontal control.
Move the seat forward or rearward by moving the
horizontal control forward or rearward.If your vehicle has power reclining seatbacks, the
control is located rear of the power seat control on the
outboard side of the seats. Adjust the angle of the
seatback by pressing the vertical control forward
or rearward. SeeReclining Seatbacks on page 1-6.
If your vehicle has manual reclining seatbacks,
seeReclining Seatbacks on page 1-6.
Power Lumbar
Your vehicle may have this feature.
The control is located on
the outboard side of the
seat cushion.
To increase or decrease support, hold the control
forward or rearward. Keep in mind that as your seating
position changes, as it may during long trips, so
should the position of your lumbar support. Adjust the
seat as needed.
1-4

Heated Seats
If your vehicle has this
feature, the buttons are
located on the front doors.
The engine must be
running for the heated
seats to work.
To heat the entire seat, press the horizontal button with
the heated seat and seatback symbol. Press the button to
cycle through the temperature settings of high, medium
and low and to turn the heated seat off. Indicator lights
will be lit to designate the level of heat selected: three for
high, two for medium, and one for low.To heat only the seatback, press the vertical button with
the heated seatback symbol. An indicator light on the
seatback button will be lit to designate that only the
seatback is being heated. Additional presses of
the seatback button will cycle through the heat levels for
the seatback only. Press the horizontal button again
to heat the whole seat.
The heated seats will be canceled after the ignition is
turned off. If you still want to use the heated seat feature
after you restart your vehicle, you will need to press
the heated seat button again.
1-5

Reclining Seatbacks
{CAUTION:
If the seatback is not locked, it could move
forward in a sudden stop or crash. That could
cause injury to the person sitting there. Always
push and pull on the seatback to be sure it is
locked.To adjust the seatback, lift the manual lever located on
the outboard side of the seat. Release the lever to
lock the seatback in the desired position. Lift the lever
again without pushing on the seatback and the seatback
will go to an upright position.
If your vehicle has power seats with a power recliner,
seePower Seats on page 1-4for further information on
how to operate the reclining seatback feature.
1-6

{CAUTION:
Sitting in a reclined position when your vehicle
is in motion can be dangerous. Even if you
buckle up, your safety belts cannot do their
job when you are reclined like this.
The shoulder belt cannot do its job. In a crash,
you could go into it, receiving neck or other
injuries.
The lap belt cannot do its job either. In a crash
the belt could go up over your abdomen. The
belt forces would be there, not at your pelvic
bones. This could cause serious internal
injuries.
For proper protection when the vehicle is in
motion, have the seatback upright. Then sit
well back in the seat and wear your safety belt
properly.
Do not have a seatback reclined if your vehicle is
moving.
Head Restraints
Adjust your head restraint so that the top of the restraint
is closest to the top of your head. This position
reduces the chance of a neck injury in a crash.
Pull the head restraint up to raise it. Push the head
restraint down to lower it.
Your rear seats may have head restraints that can be
adjusted up and down.
1-7

Seatback Latches
The front seatbacks fold forward to allow access to the
rear of the cab.
To fold the seatback forward, lift the lever located on
the outboard side of the seat cushion.
{CAUTION:
If the seatback is not locked, it could move
forward in a sudden stop or crash. That could
cause injury to the person sitting there. Always
push and pull on the seatback to be sure it is
locked.
To return the seatback to the upright position, push the
seatback rearward until it latches. After returning the
seatback to its upright position, push and pull on
the seatback to make sure it is locked.
Rear Seats
Rear Seat Operation (Extended Cab)
Folding the Rear Seat
The rear seat in the extended cab can be folded up to
provide more cargo space.
To fold the seat up, do the following:
1. Push down on the front
of the seat cushion
while pulling down on
the release strap
which is located under
the seat cushion.
2. Pull the seat cushion up until it latches with the
seatback.
3. After latching the seat cushion up, pull forward on it
to make sure it is locked.
1-8

The seat can also be folded down for more seating
space.
To fold the seat down, do the following:
1. Push the seat cushion while pulling the release
strap which is located under the seat cushion.
Pull the seat cushion down until it latches.
2. After latching the seat cushion, pull up on it to
make sure it is locked.
Rear Seat Operation (Crew Cab)
The second row seat is a 60/40 split seat. Either side of
the rear seat may be ipped and folded for added
cargo space.
Make sure that nothing is under or in front of the seat
and that the head restraints are completely lowered.To ip and fold the seat, do the following:
1. Pull up on the strap
loop at the rear of the
seat cushion. Then,
pull the seat cushion up
and ip it forward.
2. After folding the seat cushion fully forward, pull the
seatback forward until it is at. If the seatback
cannot fold at because it interferes with the
cushion, try moving the front seat forward and/or
bringing the front seat more upright. The lever at the
base of the seat must be turned rearward to
release the seatback.
1-9

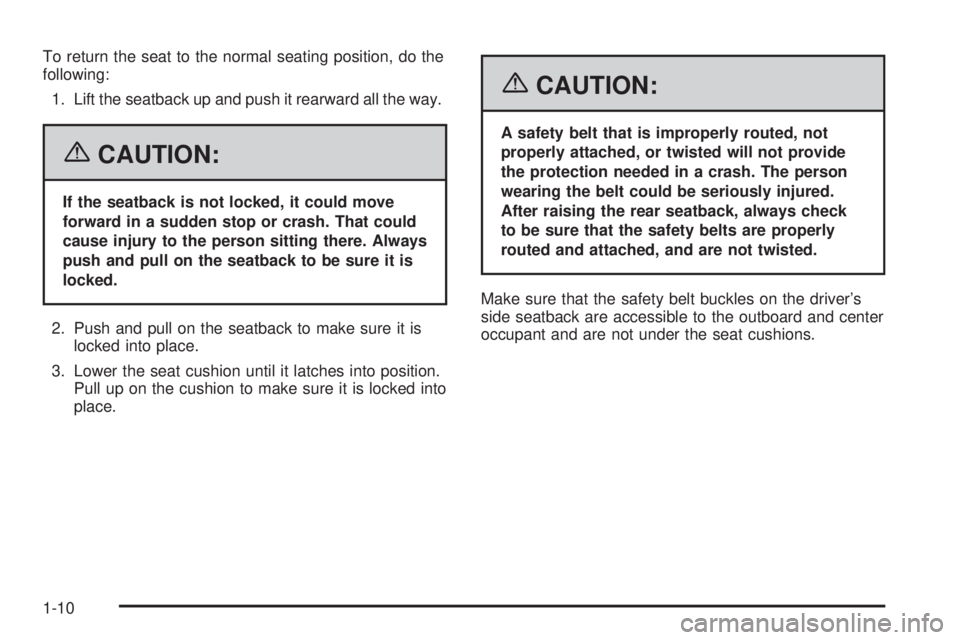

To return the seat to the normal seating position, do the
following:
1. Lift the seatback up and push it rearward all the way.
{CAUTION:
If the seatback is not locked, it could move
forward in a sudden stop or crash. That could
cause injury to the person sitting there. Always
push and pull on the seatback to be sure it is
locked.
2. Push and pull on the seatback to make sure it is
locked into place.
3. Lower the seat cushion until it latches into position.
Pull up on the cushion to make sure it is locked into
place.
{CAUTION:
A safety belt that is improperly routed, not
properly attached, or twisted will not provide
the protection needed in a crash. The person
wearing the belt could be seriously injured.
After raising the rear seatback, always check
to be sure that the safety belts are properly
routed and attached, and are not twisted.
Make sure that the safety belt buckles on the driver’s
side seatback are accessible to the outboard and center
occupant and are not under the seat cushions.
1-10
