2006 GMC SIERRA 1500 Owners Manual

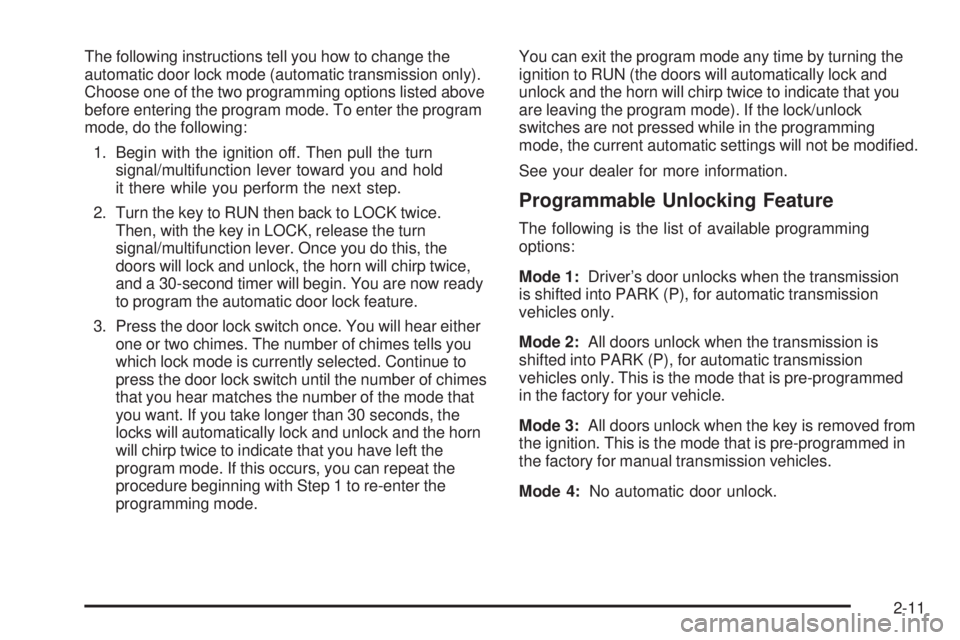

The following instructions tell you how to change the
automatic door lock mode (automatic transmission only).
Choose one of the two programming options listed above
before entering the program mode. To enter the program
mode, do the following:
1. Begin with the ignition off. Then pull the turn
signal/multifunction lever toward you and hold
it there while you perform the next step.
2. Turn the key to RUN then back to LOCK twice.
Then, with the key in LOCK, release the turn
signal/multifunction lever. Once you do this, the
doors will lock and unlock, the horn will chirp twice,
and a 30-second timer will begin. You are now ready
to program the automatic door lock feature.
3. Press the door lock switch once. You will hear either
one or two chimes. The number of chimes tells you
which lock mode is currently selected. Continue to
press the door lock switch until the number of chimes
that you hear matches the number of the mode that
you want. If you take longer than 30 seconds, the
locks will automatically lock and unlock and the horn
will chirp twice to indicate that you have left the
program mode. If this occurs, you can repeat the
procedure beginning with Step 1 to re-enter the
programming mode.You can exit the program mode any time by turning the
ignition to RUN (the doors will automatically lock and
unlock and the horn will chirp twice to indicate that you
are leaving the program mode). If the lock/unlock
switches are not pressed while in the programming
mode, the current automatic settings will not be modied.
See your dealer for more information.
Programmable Unlocking Feature
The following is the list of available programming
options:
Mode 1:Driver’s door unlocks when the transmission
is shifted into PARK (P), for automatic transmission
vehicles only.
Mode 2:All doors unlock when the transmission is
shifted into PARK (P), for automatic transmission
vehicles only. This is the mode that is pre-programmed
in the factory for your vehicle.
Mode 3:All doors unlock when the key is removed from
the ignition. This is the mode that is pre-programmed in
the factory for manual transmission vehicles.
Mode 4:No automatic door unlock.
2-11

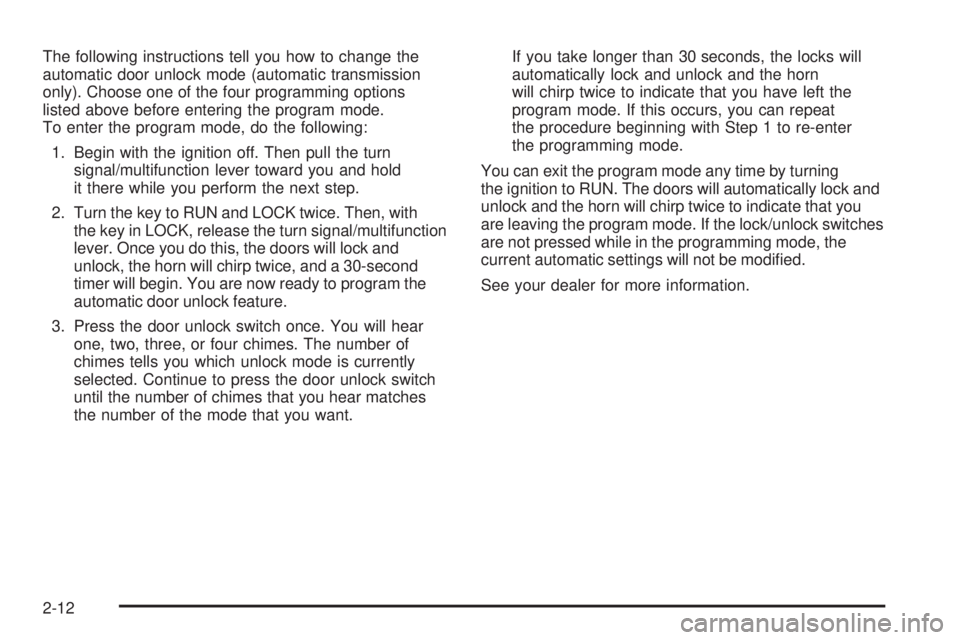

The following instructions tell you how to change the
automatic door unlock mode (automatic transmission
only). Choose one of the four programming options
listed above before entering the program mode.
To enter the program mode, do the following:
1. Begin with the ignition off. Then pull the turn
signal/multifunction lever toward you and hold
it there while you perform the next step.
2. Turn the key to RUN and LOCK twice. Then, with
the key in LOCK, release the turn signal/multifunction
lever. Once you do this, the doors will lock and
unlock, the horn will chirp twice, and a 30-second
timer will begin. You are now ready to program the
automatic door unlock feature.
3. Press the door unlock switch once. You will hear
one, two, three, or four chimes. The number of
chimes tells you which unlock mode is currently
selected. Continue to press the door unlock switch
until the number of chimes that you hear matches
the number of the mode that you want.If you take longer than 30 seconds, the locks will
automatically lock and unlock and the horn
will chirp twice to indicate that you have left the
program mode. If this occurs, you can repeat
the procedure beginning with Step 1 to re-enter
the programming mode.
You can exit the program mode any time by turning
the ignition to RUN. The doors will automatically lock and
unlock and the horn will chirp twice to indicate that you
are leaving the program mode. If the lock/unlock switches
are not pressed while in the programming mode, the
current automatic settings will not be modied.
See your dealer for more information.
2-12

Rear Door Security Locks
(Crew Cab)
With this feature, you can lock the rear side doors so that
they cannot be opened from the inside by passengers.
This feature is located
on the inside edge of
the rear doors.
To use one of the locks do the following:
1. Open one of the rear doors.
2. To engage the rear door security lock, move the
lever forward.
3. To disengage the lock, move the lever rearward.4. Close the door.
5. Do the same thing to the other rear door.
The rear doors of your vehicle cannot be opened from
the inside when this feature is in use. If you want to
open the rear door while the security lock is engaged,
unlock the door and open the door from the outside.
Lockout Protection
This feature protects you from locking your key in
the vehicle when the key is in the ignition and a door
is open.
If the power lock switch is pressed when a door is open
and the key is in the ignition, all of the doors will lock and
then the driver’s door will unlock.
2-13

Rear Doors
Extended Cab
Your vehicle may be equipped with a rear access
door(s) that allows easier access to the rear area
of the extended cab.
To open a rear access door
from the outside, rst open
the front door. Then, use
the handle located on
the front edge of the rear
access door to open it.
You must fully close a rear access door before you can
close the front door.To open a rear access door
from the inside, the front
door must be opened rst.
Then, use the handle
located on the inside of the
rear access door to open it.
Crew Cabs
If your vehicle is a crew cab, you can open your doors
from the inside or outside. Your vehicle may also have
a feature which prevents children from opening the rear
doors. SeeRear Door Security Locks (Crew Cab) on
page 2-13for more information.
Tailgate
You can open the tailgate by lifting up on its handle
while pulling the tailgate toward you.
To shut the tailgate, rmly push it upward until it
latches.
After you put the tailgate back up, pull it back towards
you to be sure it latches securely.
2-14

Tailgate Removal
The tailgate on your vehicle can be removed to allow for
different loading situations. Although the tailgate can be
removed without assistance, you may want someone to
assist you with the removal to avoid possible damage to
the vehicle.
To remove the tailgate, do the following:
1. Raise the tailgate
slightly and release
both retaining cable
clips. To release the
retaining cable clips,
lift the cable so it points
straight out and push
the cable clip forward.2. With the tailgate at a
slight upward angle,
pull back on the tailgate
at the right edge and
then move the tailgate
to the right to release
the left edge.
Reverse the above procedure to reinstall. Make sure the
tailgate is secure.
2-15

Windows
{CAUTION:
Leaving children, helpless adults, or pets in a
vehicle with the windows closed is dangerous.
They can be overcome by the extreme heat and
suffer permanent injuries or even death from
heat stroke. Never leave a child, a helpless
adult, or a pet alone in a vehicle, especially with
the windows closed in warm or hot weather.
Manual Windows
Turn the hand crank on each door to manually raise or
lower the manual windows.
2-16

Power Windows
If your vehicle is equipped with power windows, the
controls are located on each of the side doors in the
front and rear for crew cab models.
The driver’s door has a switch for the passenger’s
and rear windows as well, if equipped. Your power
windows will work when the ignition has been turned
to ACCESSORY or RUN or when Retained Accessory
Power (RAP) is active. SeeRetained Accessory
Power (RAP) on page 2-23.
Press the switch down to lower the window.
Pull up the front of the switch to raise the window.
Express Down Windows
The driver and front passenger windows also have an
express down feature that allows the windows to be
lowered without holding the switch. Press down fully on
the window switch, then release, to activate the express
down mode. The express down mode can be canceled at
any time by pulling up on the switch. To open the window
partway, press the switch to the rst depression position,
until the window is at the desired position.
Window Lockout
o
(Window Lockout):If you have power windows on
a crew cab, the driver’s door power window switch has a
lockout feature. The lockout switch is located in front of
the window switches. This feature prevents all windows
from operating, except from the driver’s position. To
engage the lockout feature press the switch, and an
indicator light on the switch will illuminate. To disengage
the lockout feature press the switch again, and the
indicator light will turn off.
2-17

Swing-Out Windows
Your vehicle may have
swing-out windows. To
open a rear swing-out
window, ip the latch open
and swing the glass out.
The latch will catch when the window is fully open and it
will also hold it in the open position.
Sliding Rear Window
If your vehicle has this feature, squeeze the latch in the
center of the window and slide the glass to open it.
When you close the window, be sure the latch is
engaged.
The sliding rear window does not have rear defogger.
Sun Visors
Pull the sun visor down to block glare. Swing the sun
visor to the side to cover the side window.
The passenger’s side sun visor may have a vanity
mirror.
2-18
