2006 FORD FREESTAR Owners Manual

Item Ford part
nameFord part
numberFord specification
Door latch,
hood latch,
auxiliary
hood latch,
door and
liftgate
hinges,
striker plates,
seat tracks,
sliding door
both sides
(upper and
lower track)
and fuel filler
door hinge.Multi-Purpose
GreaseXG-4 or XL-5 ESB-M1C93-B
Lock
cylindersMotorcraft
Penetrating
and Lock
LubricantXL-1 none
Power
steering fluidMotorcraft
MERCON
AT FXT-2-QDX MERCON
Automatic
transaxle
(4F50N)Motorcraft
MERCONV
AT F
2
XT-5-QM MERCONV
Disc brake
caliper railsMotorcraft
Silicone
Brake Caliper
Grease and
Dielectric
CompoundXG-3-A ESE-M1C171-A
Constant
velocity jointsMotorcraft
CV Joint
Grease (High
Temp.)XG-5 WSS-MIC258-A1
2006 Freestar(win)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
305

Item Ford part
nameFord part
numberFord specification
Windshield
washer fluidMotorcraft
Premium
Windshield
Washer
ConcentrateZC-32–A WSB-M8B16–A2
1Use only brake fluids certified to meet Ford specifications. DOT 3 fluid is
recommended. However, if DOT 3 is not available, DOT 4 fluid can be used.
2Ensure the correct automatic transmission fluid is used MERCONand
MERCONV are not interchangeable. DO NOT MIX MERCONand
MERCONV. Refer toscheduled maintenance informationto
determine the correct service interval.
ENGINE DATA
Engine 3.9 L OHV V6 engine 4.2L OHV V6 engine
Cubic inches 232 256
Required fuel 87 octane 87 octane
Firing order 1-4-2-5-3-6 1-4-2-5-3-6
Ignition system EDIS EDIS
Spark plug gap 0.052–0.056 inch
(1.32–1.42mm)0.052–0.056 inch
(1.32–1.42mm)
Compression ratio 9.36:1 9.27:1

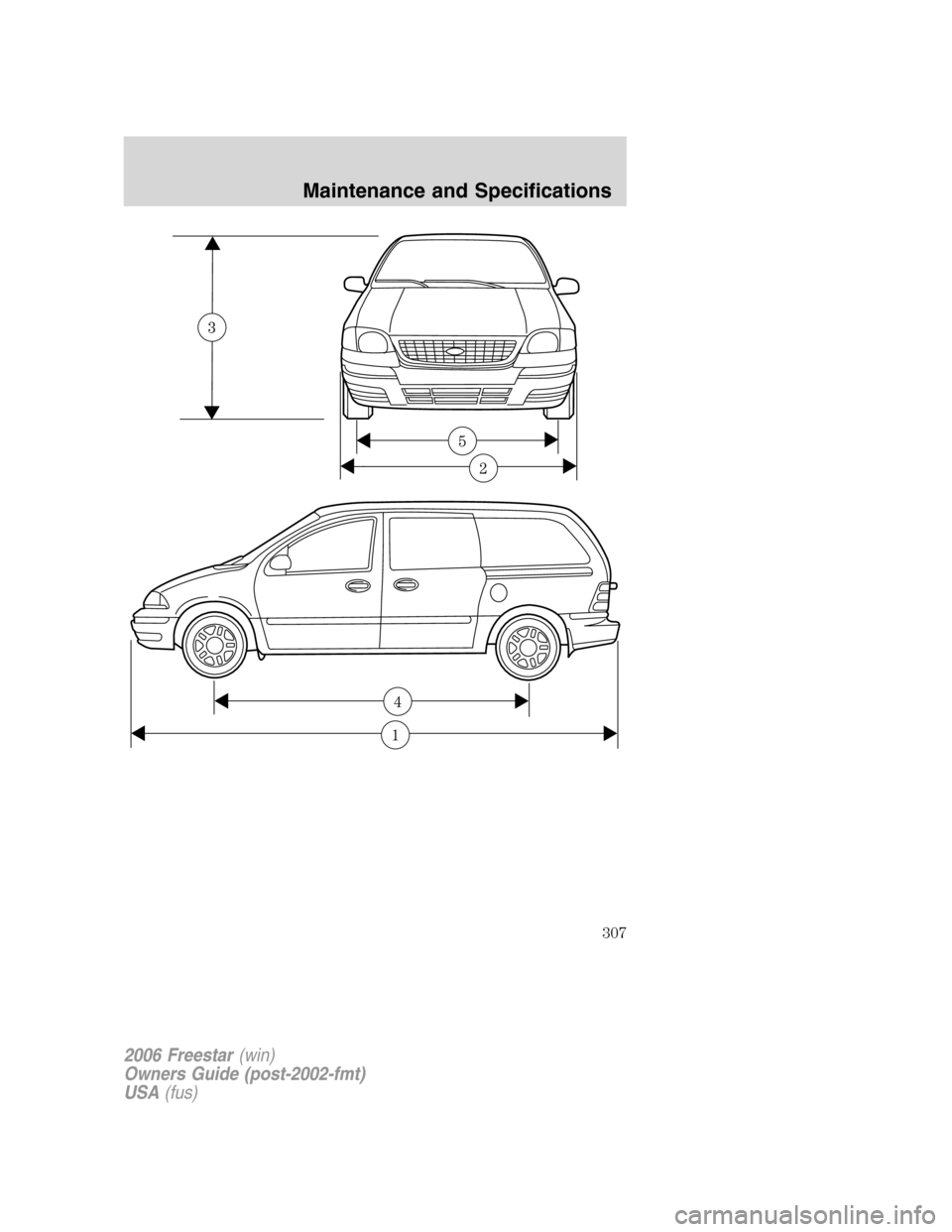

VEHICLE DIMENSIONS
Vehicle dimensions Wagon - inches
(mm)Van - inches (mm)
(1) Overall length 201.0 (5105) 201.0 (5105)
(2) Overall width 88.3 (2244) 88.3 (2244)
(3) Overall height 70.9 (1785)
168.8 (1748)2
(4) Wheelbase 120.8 (3069) 120.8 (3069)
(5) Tread - Front 64.7 (1644) 64.7 (1644)
(5) Tread - Rear 62.8 (1595) 62.8 (1595)
1Equipped with P225/60R16 tires.
2Equipped with P235/60R16 tires.
2006 Freestar(win)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
306

1
4
2006 Freestar(win)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
307

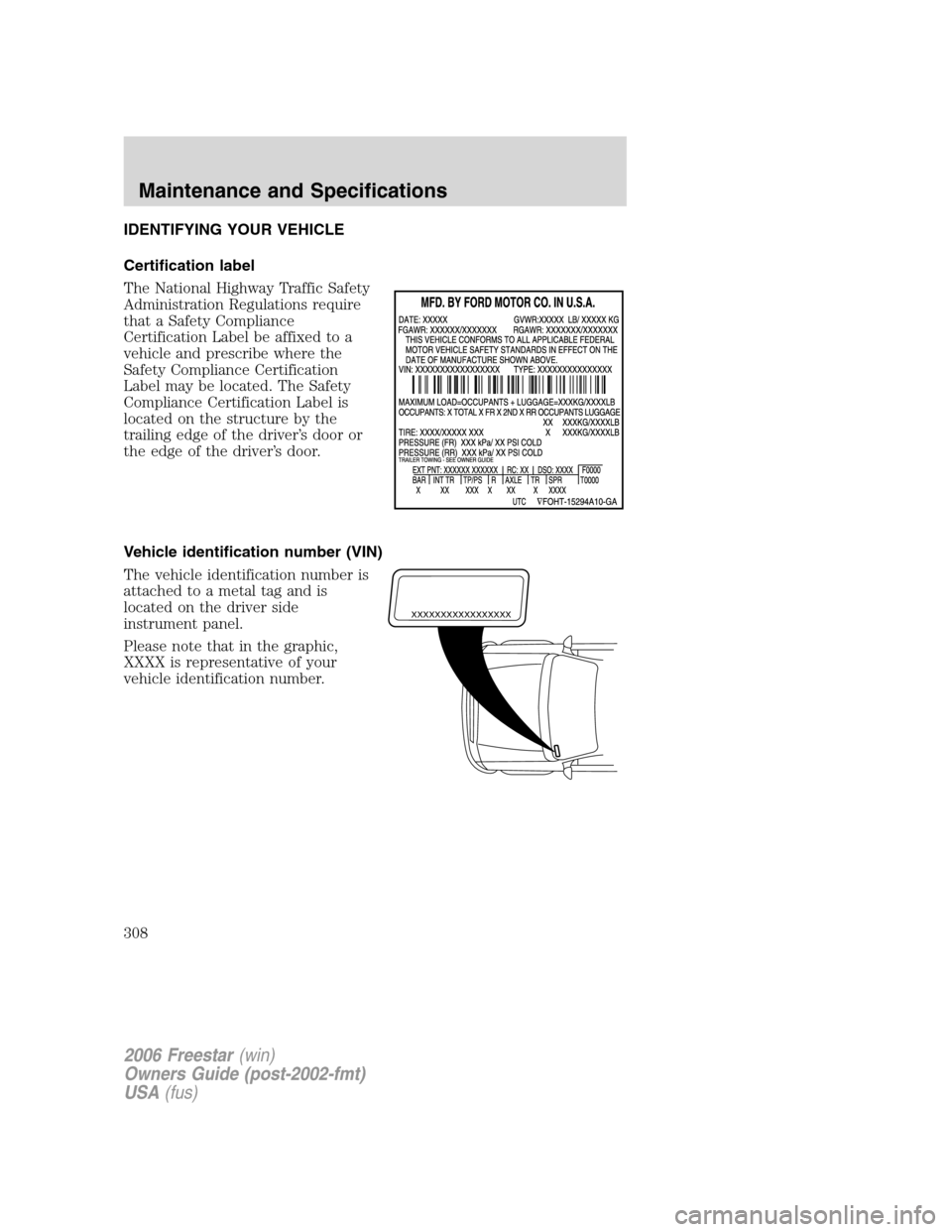

IDENTIFYING YOUR VEHICLE
Certification label
The National Highway Traffic Safety
Administration Regulations require
that a Safety Compliance
Certification Label be affixed to a
vehicle and prescribe where the
Safety Compliance Certification
Label may be located. The Safety
Compliance Certification Label is
located on the structure by the
trailing edge of the driver’s door or
the edge of the driver’s door.
Vehicle identification number (VIN)
The vehicle identification number is
attached to a metal tag and is
located on the driver side
instrument panel.
Please note that in the graphic,
XXXX is representative of your
vehicle identification number.
XXXXXXXXXXXXXXXXX
2006 Freestar(win)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
308

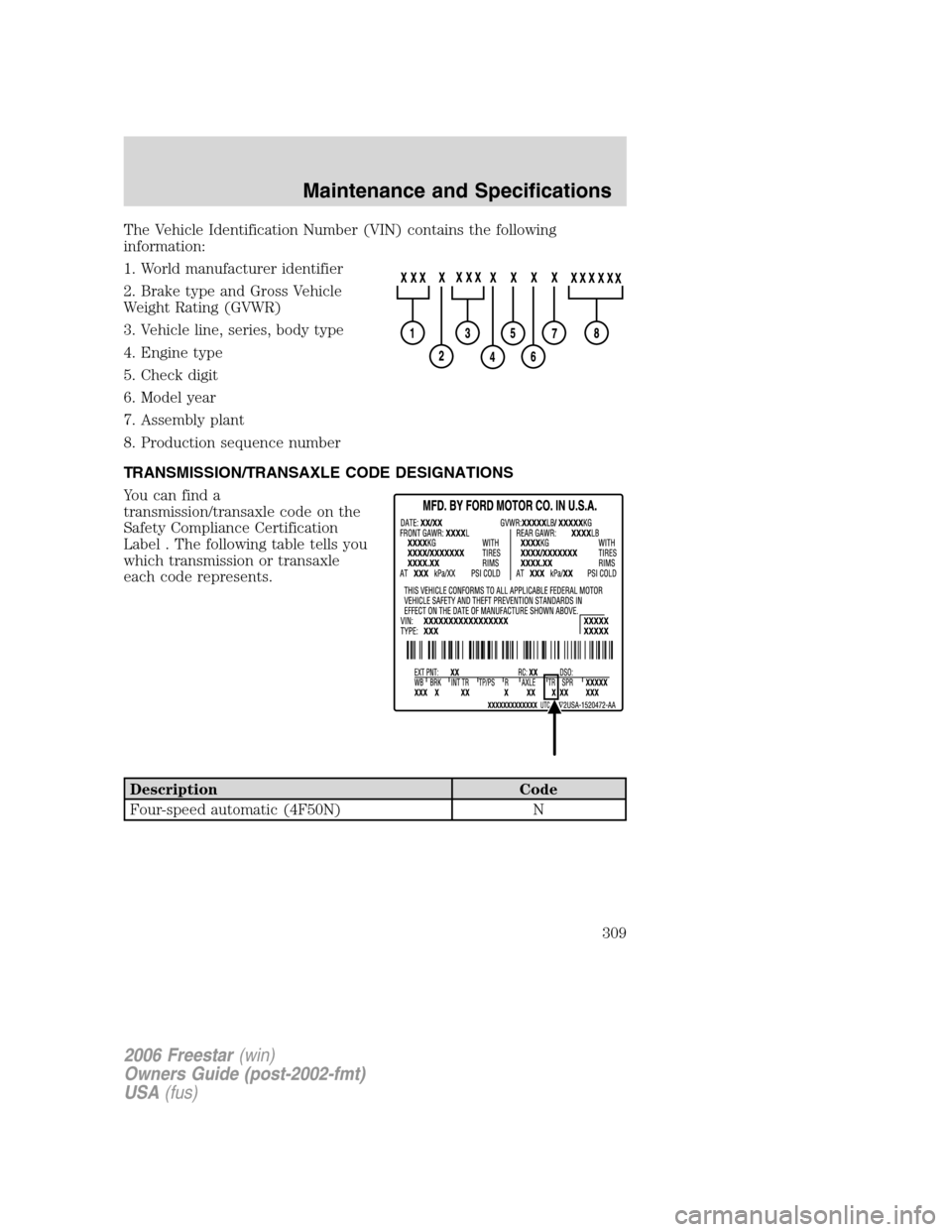

The Vehicle Identification Number (VIN) contains the following
information:
1. World manufacturer identifier
2. Brake type and Gross Vehicle
Weight Rating (GVWR)
3. Vehicle line, series, body type
4. Engine type
5. Check digit
6. Model year
7. Assembly plant
8. Production sequence number
TRANSMISSION/TRANSAXLE CODE DESIGNATIONS
You can find a
transmission/transaxle code on the
Safety Compliance Certification
Label . The following table tells you
which transmission or transaxle
each code represents.
Description Code
Four-speed automatic (4F50N) N
2006 Freestar(win)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
309

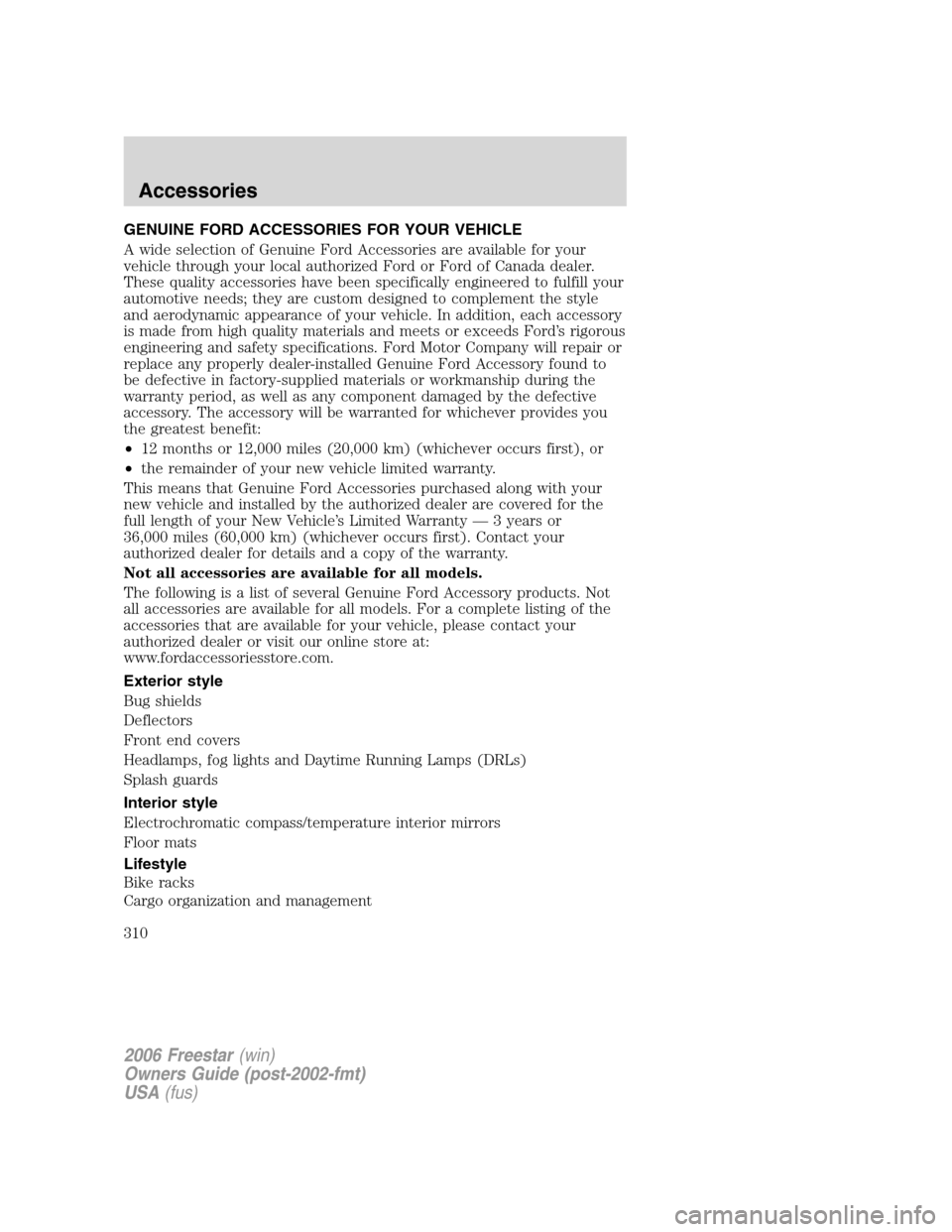

GENUINE FORD ACCESSORIES FOR YOUR VEHICLE
A wide selection of Genuine Ford Accessories are available for your
vehicle through your local authorized Ford or Ford of Canada dealer.
These quality accessories have been specifically engineered to fulfill your
automotive needs; they are custom designed to complement the style
and aerodynamic appearance of your vehicle. In addition, each accessory
is made from high quality materials and meets or exceeds Ford’s rigorous
engineering and safety specifications. Ford Motor Company will repair or
replace any properly dealer-installed Genuine Ford Accessory found to
be defective in factory-supplied materials or workmanship during the
warranty period, as well as any component damaged by the defective
accessory. The accessory will be warranted for whichever provides you
the greatest benefit:
•12 months or 12,000 miles (20,000 km) (whichever occurs first), or
•the remainder of your new vehicle limited warranty.
This means that Genuine Ford Accessories purchased along with your
new vehicle and installed by the authorized dealer are covered for the
full length of your New Vehicle’s Limited Warranty — 3 years or
36,000 miles (60,000 km) (whichever occurs first). Contact your
authorized dealer for details and a copy of the warranty.
Not all accessories are available for all models.
The following is a list of several Genuine Ford Accessory products. Not
all accessories are available for all models. For a complete listing of the
accessories that are available for your vehicle, please contact your
authorized dealer or visit our online store at:
www.fordaccessoriesstore.com.
Exterior style
Bug shields
Deflectors
Front end covers
Headlamps, fog lights and Daytime Running Lamps (DRLs)
Splash guards
Interior style
Electrochromatic compass/temperature interior mirrors
Floor mats
Lifestyle
Bike racks
Cargo organization and management
2006 Freestar(win)
Owners Guide (post-2002-fmt)
USA(fus)
Accessories
310

Rear seat entertainment systems - DVD
Ash cup/coin holder
Trailer hitches, wiring harnesses and accessories
Roof carriers
Peace of mind
First aid and safety kits
Full vehicle covers
Locking gas cap
Remote start
Vehicle security systems
Mobile-Ease
hands-free communication system
For maximum vehicle performance, keep the following information in
mind when adding accessories or equipment to your vehicle:
•When adding accessories, equipment, passengers and luggage to your
vehicle, do not exceed the total weight capacity of the vehicle or of
the front or rear axle (GVWR or GAWR as indicated on the Safety
Compliance Certification label). Consult your authorized dealer for
specific weight information.
•The Federal Communications Commission (FCC) and Canadian Radio
Telecommunications Commission (CRTC) regulate the use of mobile
communications systems — such as two-way radios, telephones and
theft alarms - that are equipped with radio transmitters. Any such
equipment installed in your vehicle should comply with FCC or CRTC
regulations and should be installed only by a qualified service
technician.
•Mobile communications systems may harm the operation of your
vehicle, particularly if they are not properly designed for automotive
use.
•To avoid interference with other vehicle functions, such as anti-lock
braking systems, amateur radio users who install radios and antennas
onto their vehicle should not locate the Amateur Radio Antennas in
the area of the driver’s side hood.
•Electrical or electronic accessories or components that are added to
the vehicle by the authorized dealer or the owner may adversely affect
battery performance and durability.
2006 Freestar(win)
Owners Guide (post-2002-fmt)
USA(fus)
Accessories
311

A
Accessory delay ..........................65
AdvanceTrac ..............................217
Air cleaner filter ...............298, 302
Air filter, cabin ............................42
Airbag supplemental restraint
system ................148–149, 157, 159
and child safety seats ............150
description ..............149, 157, 159
disposal ....................................162
driver airbag ............151, 158, 160
indicator light .................157, 162
operation .................151, 158, 160
passenger airbag .....151, 158, 160
side airbag ...............................157
Antifreeze
(see Engine coolant) ................280
Anti-lock brake system
(see Brakes) ......................215–216
Anti-theft system ......................107
arming the system ..................108
disarming a triggered
system .....................................108
Audio system
(see Radio) ................18, 20, 23, 26
Automatic transaxle .................220
fluid, adding ............................296
fluid, checking ........................296
fluid, refill capacities ..............303
fluid, specification ..................306
Automatic transmission
driving an automatic
overdrive .................................221
Auxiliary power point .................63
Axle
lubricant specifications ..........304
B
Battery .......................................277acid, treating emergencies .....277
jumping a disabled battery ....246
maintenance-free ....................277
replacement, specifications ...302
servicing ..................................277
BeltMinder .................................143
Brakes ........................................215
anti-lock ...........................215–216
anti-lock brake system
(ABS) warning light ...............216
fluid, checking and adding ....296
fluid, refill capacities ..............303
fluid, specifications .........304, 306
lubricant
specifications ..................304, 306
parking ....................................217
shift interlock ..........................220
Bulbs ............................................49
C
Capacities for refilling fluids ....303
Cargo net .....................................88
Cassette tape player .......18, 20, 23
Cell phone use ..............................7
Child safety restraints ..............163
child safety belts ....................163
Child safety seats ......................169
in front seat ............................171
in rear seat ..............................171
tether anchorage hardware ...173
Cleaning your vehicle
engine compartment ..............265
instrument panel ....................267
interior .....................................267
interior trim ............................267
plastic parts ............................266
washing ....................................264
waxing .....................................264
